ASSEMBLY INSTRUCTIONS

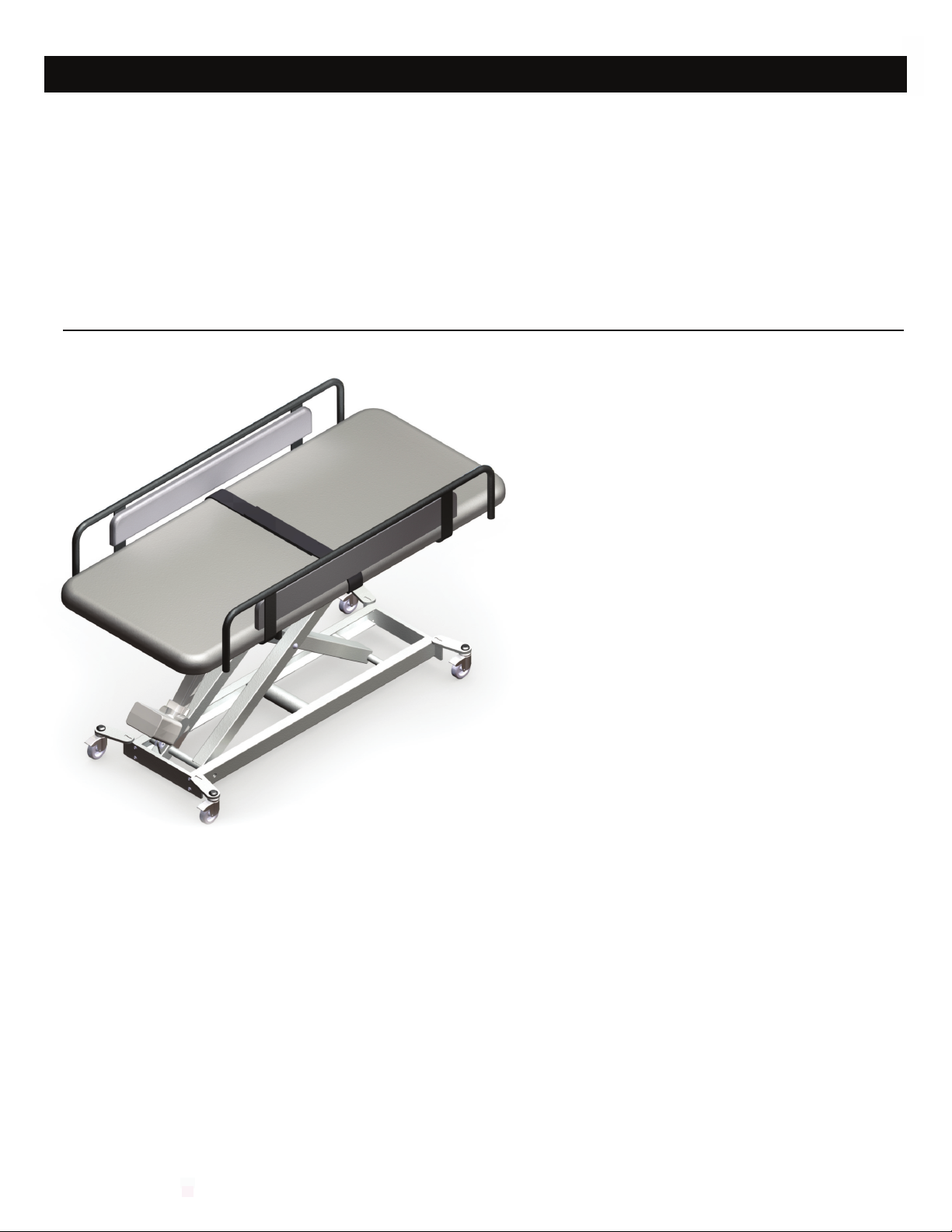

INFINITY MOBILE CHANGER
Powered Height-Adjustable Table for Changing and Treatment
FEATURES:
•
Powered height-adjustable changing or treatment
table for children or adults operates with a convenient
foot switch
•
Ergonomic height range of 18-37 inches for transfers
and caregiver working heights
•
Dual safety rails ensure injury prevention
•
Stabilization belt with Velcro closure is integrated into
mat section
Safe design eliminates all pinch hazards
•
•
Total lock casters provide excellent stability or
eortless mobility
TECHNICAL DATA:
•
Weight lifting capacity 400 lbs
•
120 Volt 60 Hz motor
•
Duty cycle of Motor is 1 minute on/ 9 minutes o
•
Durable steel frame with graphite gray powder
coated nish
Dove Gray Vinyl is 34 ounce and oers superior
•
infection and bacterial control
•
Radius corners are seamless and wrap around 1.5 inch
high density foam
•
Mat sizes are available in two sizes: 60 x 27 inches,
72 x 27 inches, 72 x 34 inches, and 72 x40 inches
•
Shipping weights are: 220 and 230 pounds
INSTALLATION:
1. Remove all packaging material from the table.
2. There is no assembly required on the Populas Innity Mobile Changer.
3. Plug the power cord into a properly grounded 120 Volt AC outlet and follow the procedure outlined in the Precautionary
Instructions.
4. The tables are equipped with 4-total lock swivel casters for maximum stability.
5. The motors are equipped with a thermal cutout that protects them from overheating.
PRECAUTIONARY INSTRUCTIONS:
1. Read, understand and practice the precautionary instructions in this manual. Be aware of the limitations and the hazards
associated with the Populas Innity Mobile Changer.
2. Always make certain all 4 casters are locked prior to patient use.
3. Use the stabilization belt to secure patients with imbalance or physical instability.
4. Understand and practice how to operate and use the safety side rails.
5. Never place your hands or feet, nor the patient’s hands or feet, near any of the working mechanisms of the table when raising or
lowering the table or when operating the side rails.
Page 2
OPERATING INSTRUCTIONS:
To adjust the height of the Populas Innity Mobile Changer,
a low voltage foot switch or hand switch is used to activate
the electric motor assembly. The up and down activators are
clearly indicated by decals. Duty cycle on/o Int. 1 min. / 9
min.
The engage the safety side rails, swing the rails to the up
position and engage the lock plunger with an automatic
spring return.
MAINTENANCE:
The Populas Innity Mobile Changer is equipped with a
maintenance free electric motor. The moving parts of the
table should have a drop of oil placed on them approximately every six months. When lubricating the slide block
track use a food grade grease. Frequently check to make
certain that all hardware (nuts, bolts, etc.) are properly
adjusted and securely fastened. In the event it becomes
necessary to replace the foot switch, hand switch or the
power cord, make certain that the plug is properly installed
and the locking tabs on the motor snaps in place. The vinyl
cover should be cleaned with mild soap and water and the
table frame wiped with a dry cloth to remove dust and lint
when necessary.
SYMBOLS AND INDICATORS:
Attention: Consult accompanying documents.
Type B Equipment: “An adequate degree of protection
against electric shock is provided, particularly
regarding leakage currents and reliability of the
protective earth connection.”
The grounding pin located on the power supply cable
is for functional use only, and is present for EMI/EMC
purposes. The product is Class II equipment and does
not rely on this grounding means for safety.
TROUBLESHOOTING:
Motor doesn’t work
A. Check to see if motor is plugged into electrical outlet, and
the power cord is properly plugged into the motor.
B. Make sure the electrical outlet has power.
C. Check hand switch or foot switch to be sure it is plugged
in correctly.
D. Thermal cutout may have activated. Allow the motor to
cool.
E. In the event there is a failure of the motor, the motor must
be returned to Populas. The motor must be serviced by
the manufacturer. Contact Populas prior to returning any
parts or products to obtain return authorization.
MOTOR SPECIFICATIONS:
•
Magnetic Corp., Olney, Illinois 62450
•
Model MAX 63-A200415A0100-000
•
Rated Voltage and Frequency 120V 60HZ
•
Current 1.8 Amps. Current 1.8 Amps.
•
UL CORD SET 140-355
•
Duty cycle: on/o Int. 1 min. / 9 min.
•
Table Lifting Capacity: 400 lb (181 KILOGRAMS)
POPULAS TWO-YEAR LIMITED WARRANTY:
Populas warrants that the Innity Mobile Changers are free
from defects in material and workmanship. This warranty
shall remain in eect for two years from the date of original
consumer purchase of the product. If the product fails to
function during the warranty period due to a defect in
material or workmanship, Populas or the selling Dealer will
repair or replace the table without charge within a 30 day
period from the date on which the table is returned to
Populas or the selling Dealer. Populas has a policy of
continuous improvement that may result in changes to
specications at any time.
THIS WARRANTY DOES NOT COVER:
1. Replacement parts or labor furnished by anyone other
than Populas, selling dealer or approved Populas service
agent.
2. Any failure of the table during the warranty period if the
failure is not caused by a defect in material or workman ship or if the failure is caused by unreasonable use,
including the failure to provide reasonable and necessary
maintenance.
POPULAS IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGE TO PROPERTY OR BUSINESS:
To obtain service under this warranty, please do the
following:
1. A written claim should be sent to Populas, 2720 West
Idaho Street, Boise, ID 83702 or selling dealer.
2. The table must be returned to Populas or the selling
dealer.
3. This warranty gives you specic legal rights and you may
have other rights, which vary from state to state. Populas
does not authorize any person or dealer to create for it
any other obligations or liabilities in connection with the
sale of the tables. Any representation or agreement not
contained in this warranty shall be void.
