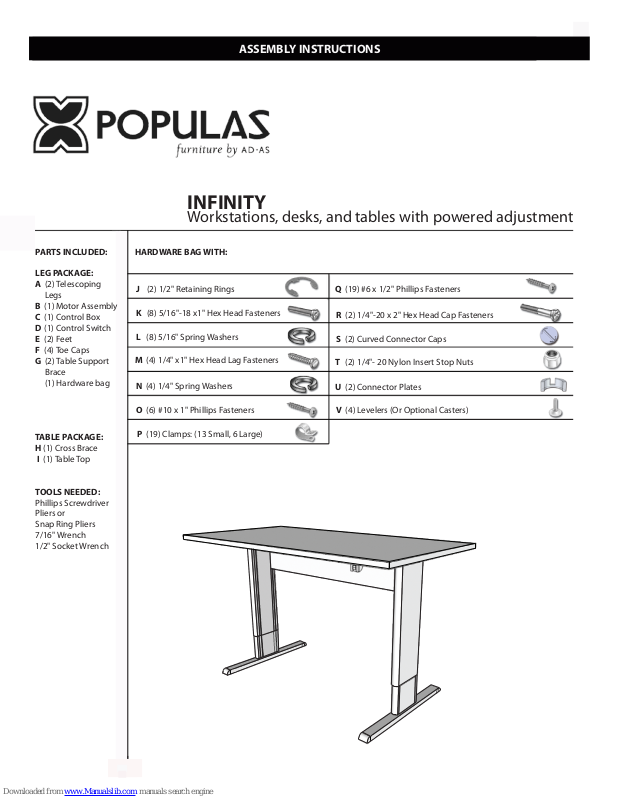

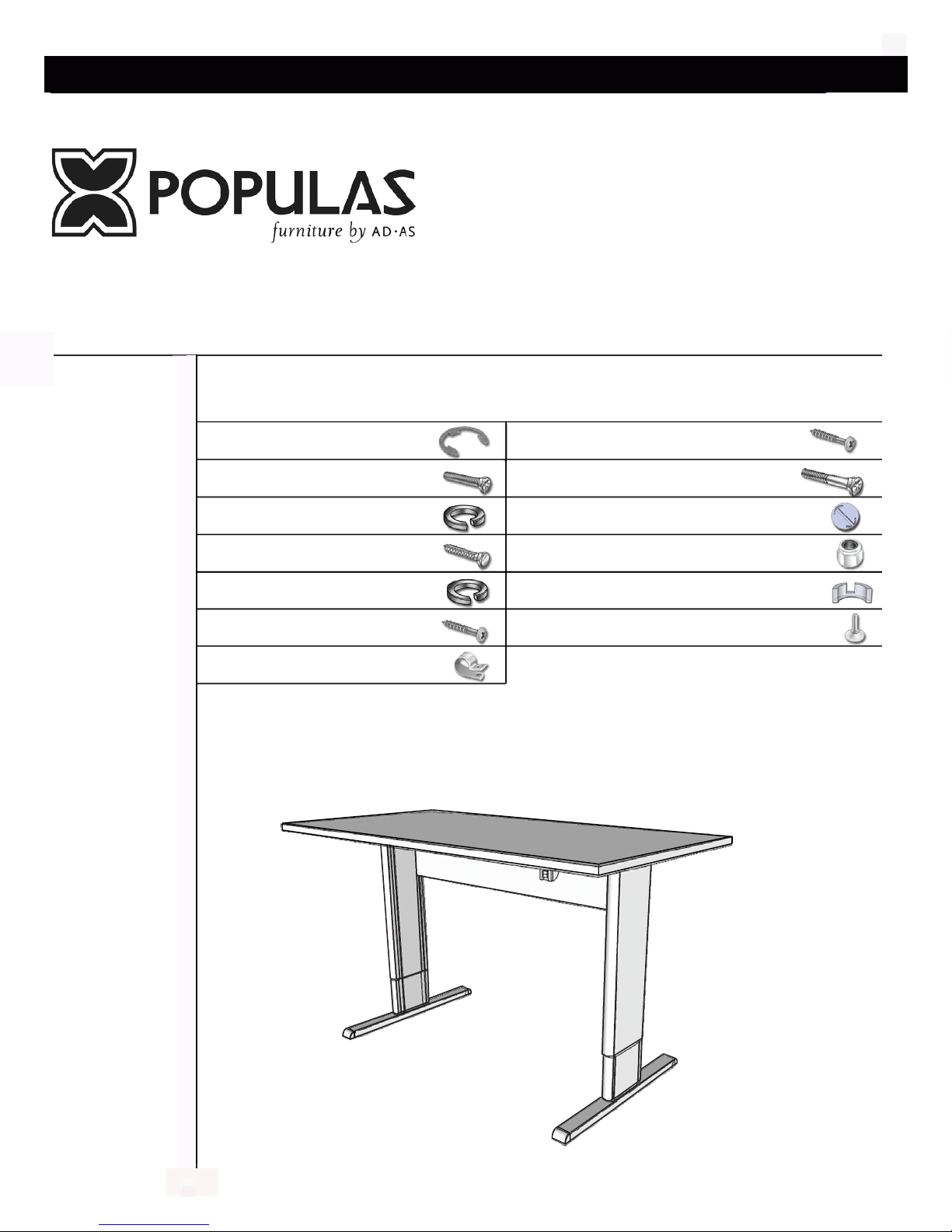

ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
INFINITY
INFINITY
Workstations, desks, and tables with powered adjustment
WORKSTATIONS, DESKS, AND TABLES WITH POWERED ADJUSTMENT
ASSEMBLY INSTRUCTIONS
PARTS INCLUDED:
LEG PACKAGE:
A (2) Telescoping
Legs
B (1) Motor Assembly
C (1) Control Box
(1) Control Switch
D
(2) Feet
E
(4) Toe Caps
F
G (2) Table Support
Brace
(1) Hardware bag
TABLE PACKAGE:
H (1) Cross Brace
I (1) Table Top
TOOLS NEEDED:
Phillips Screwdriver
Pliers or
Snap Ring Pliers
7/16" Wrench
1/2" Socket Wrench
HARDWARE BAG WITH:
J (2) 1/2" Retaining Rings
K (8) 5/16"-18 x1" Hex Head Fasteners
L (8) 5/16" Spring Washers
M (4) 1/4" x1" Hex Head Lag Fasteners
N (4) 1/4" Spring Washers
O (6) #10 x 1" Phillips Fasteners
P (19) Clamps: (13 Small, 6 Large)
Q (19) #6 x 1/2" Phillips Fasteners
R (2) 1/4"-20 x 2" Hex Head Cap Fasteners
S (2) Curved Connector Caps
T (2) 1/4"- 20 Nylon Insert Stop Nuts
U (2) Connector Plates
V (4) Levelers (Or Optional Casters)
Page 2

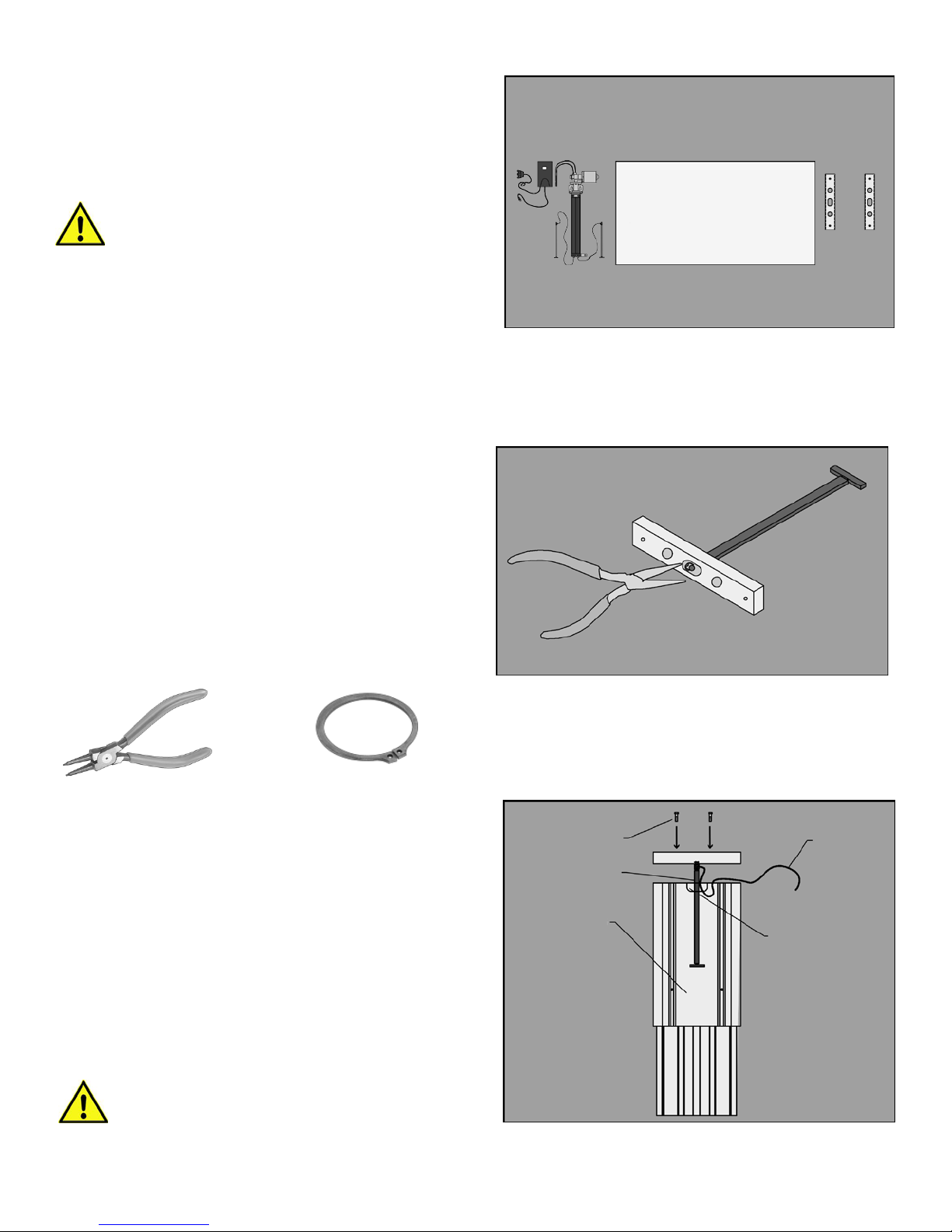

Step 1: Preparation
Unpack and identify all parts. Place Table Top (I)
upside down on padded surface and identify
front edge.
Be careful not to damage the
hydraulic hose
Step 2: Piston Attachment
Insert hydraulic piston into center hole of
Table Support Brace (G) with piston top
recessed inside brace. Secure with 1/2"
Retaining Ring (J), using pliers to snap 1/2”
Retaining Ring into piston groove. Repeat
for second piston. Snap ring pliers and snap
rings can be used.
Motor Assembly
Table Top
Table Braces
Snap ring pliers
Snap rings
Step 3: Telescoping Leg Attachment
Insert piston foot into center of Telescoping Leg (A).
Piston hose port must route through “mouse hole”
of Telescoping Leg (A). Align Telescoping Leg (A)
with hose port facing center. Attach using two
5/16”-18 x 1“Hex Head Fasteners (O) and 5/16”
Spring Washers (P). Tighten using a 1/2” socket
wrench.
Keep hose routed through mouse hole to
avoid pinch points
Hex Head Fasteners
Piston
Telescoping Leg
Piston Hose
Mouse Hole
Page 3

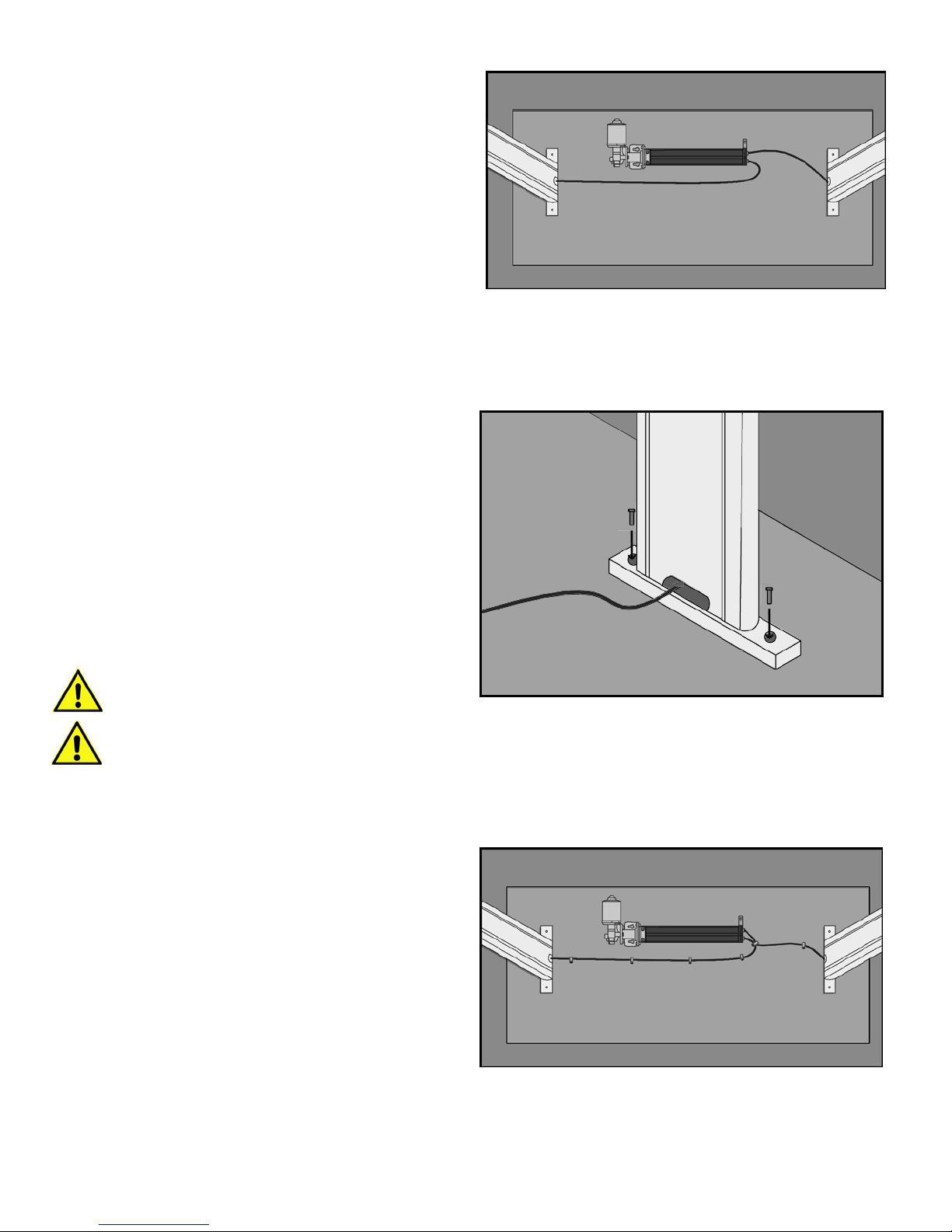

Step 4: Motor Assembly Positioning
Place Motor Assembly (B) on table as shown.
Step 5: Table Support Brace
Attachment
Place Table Support Brace (G) and Motor
Assembly (B) on underside of table. Locate four
guide holes for Motor Assembly (B). Position
Telescoping Leg with shorter hose (A, right)
Align Table Support Brace (G) to guide holes and
attach using four 1/4" x 1" Hex Head Lag Fasteners
(M) and 1/4" Spring Washers (N). Tighten using
7/16” socket wrench.
Slotted groove on telescoping legs face in
Do not over-tighten or strip
Step 6: Motor Attachment
Align Motor Assembly (B) to four pre-drilled holes
and attach using four #10 x 1" Phillips Fasteners
(O). Route hoses through Small Clamps (P) in
pattern shown, and secure using #6 x 1/2" Phillips
Fasteners (Q).
Page 4

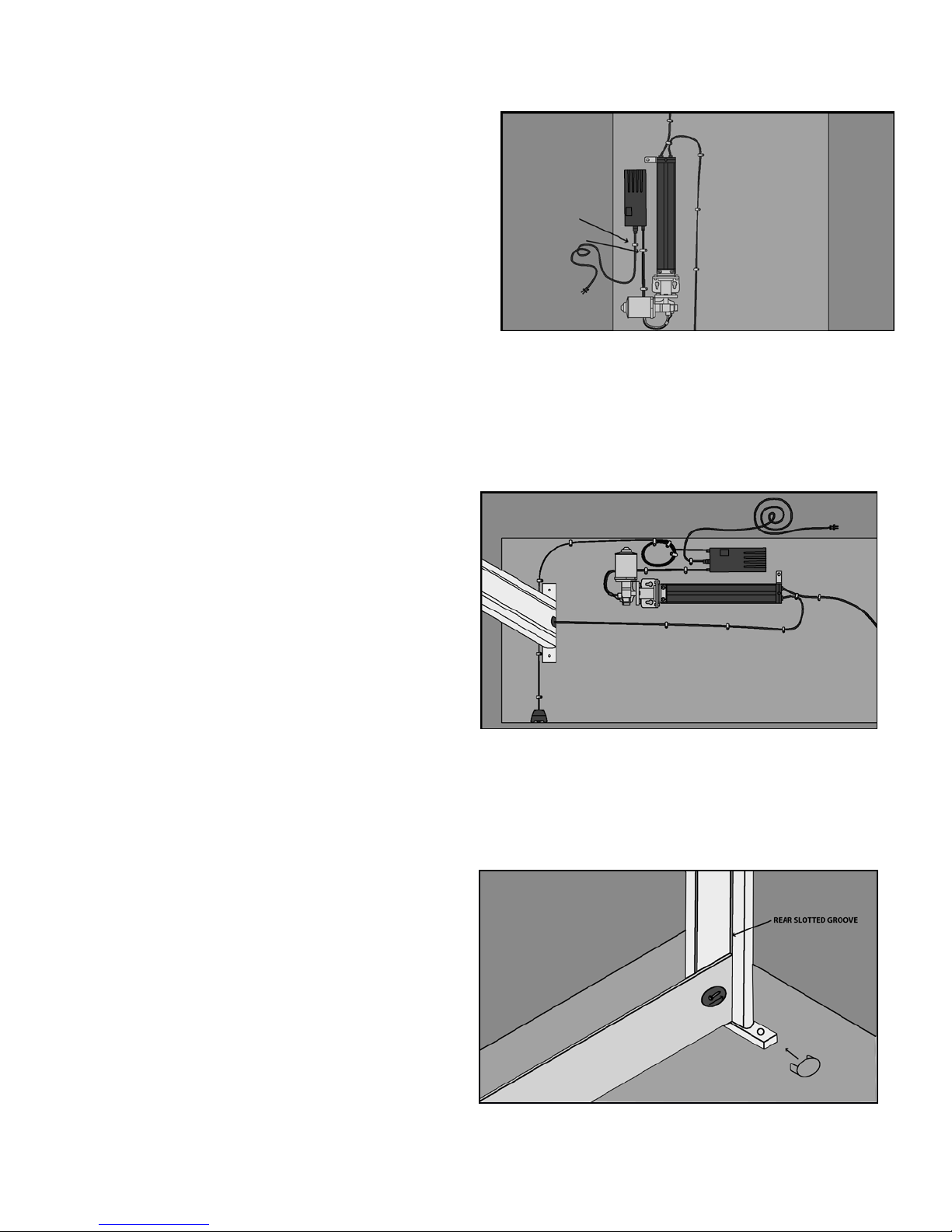

Step 7: Control Box Attachment
and Motor Placement
Align Control Box (C) with pre-drilled holes and
attach to the table (number side down) using two
#10 x 1" Phillips Fasteners (O).
Plug motor wire into Control Box (C). Secure wires
with two Large Clamps (P) using #6 x 1/2" Phillips
Fasteners (Q). Plug power wire into Control Box (C).
Secure one Small
#6 x 1/2” Phillips fasteners (Q).
Clamp (P) (for strain relief) using
Step 8: Control Switch Attachment
Small Clips
Large Clips
Attach Control Switch (D) to pre-drilled location
using enclosed Fasteners. Control Switch (D) may
be positioned elsewhere depending upon
preference. Secure wire with Small Clamps (P)
and #6 x 1/2" Phillips Fasteners (Q). Insert Control
Switch (D) plug into Control Box. Coil the wire and
secure with four Large Clamps (P) using #6 x 1/2"
Phillips Fasteners (Q).
Step 9: Cross Brace Attachment
Hardware is shipped attached. Insert 1/4”-20 x 2”
Hex Head Fasteners (R) into rear slotted groove of
Telescoping Leg (A). Level Cross Brace (H) below
top of Telescoping Leg. Tighten using 7/16" wrench.
Cover connector hardware with Connector Cap (S).
Rear Slotted GrooveRear Slotted Groove
Page 5

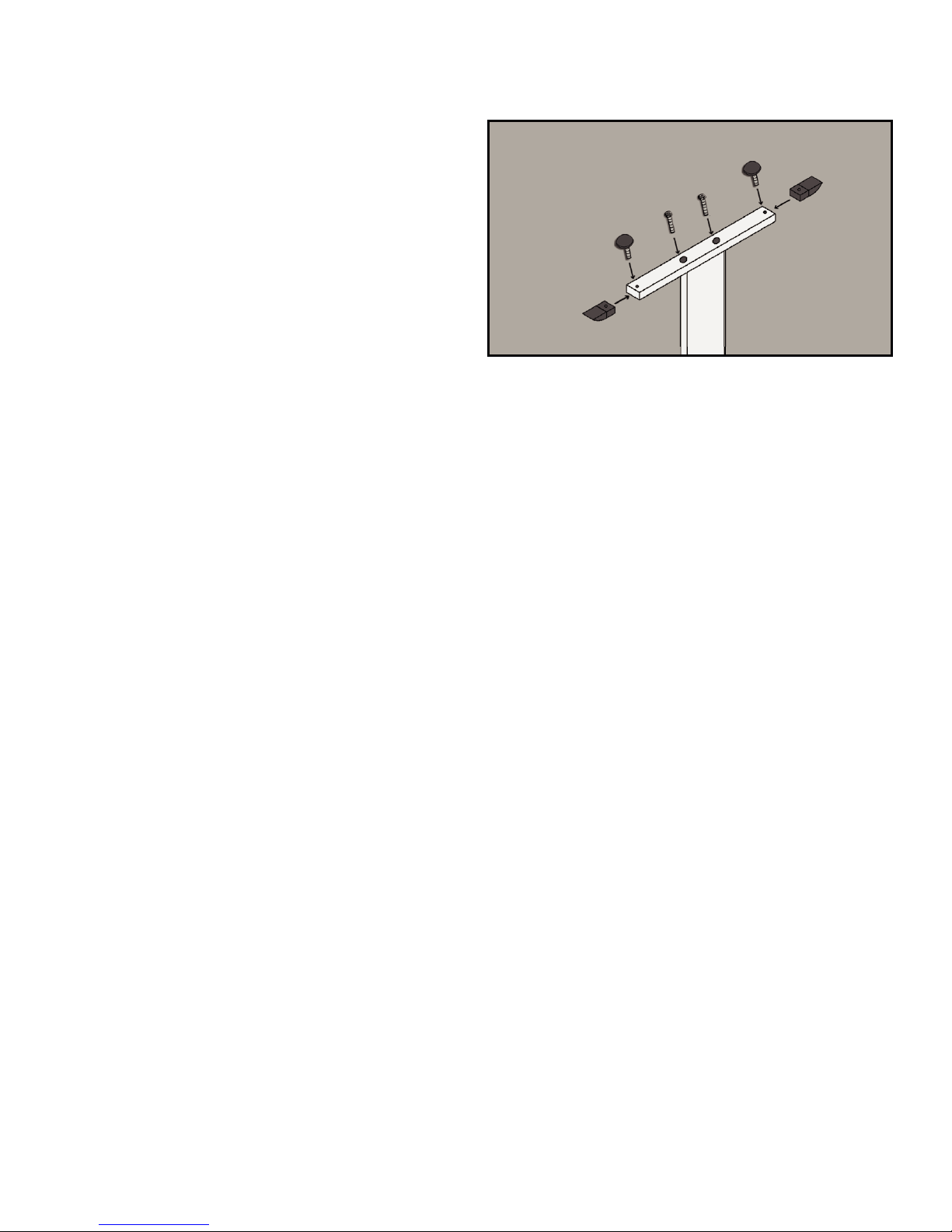

Step 10: Feet Attachment
Attach Feet (E) to Telescoping Legs (A) using two
5/16"-18 x 1" Hex Head Fasteners (K) and 5/16"
Spring Washers (L) tighten using 1/2" socket wrench.
Gently insert Toe Caps (F) into feet until nut aligns
with hole. Attach Levelers (V) or optional casters to
threaded Toe Cap (F).
Step 11: Operation And Use
Gently turn table over and adjust levelers if required.
Table adjusts up and down using the control switch.
Clean with soft cloth and mild cleaners suitable for
furniture.
