Page 1
HARDWARE BAG WITH:
2720 West Idaho Street Boise, ID 83702
Toll Free 800-957-2720 Fax 208-362-8009 www.populasfurniture.com

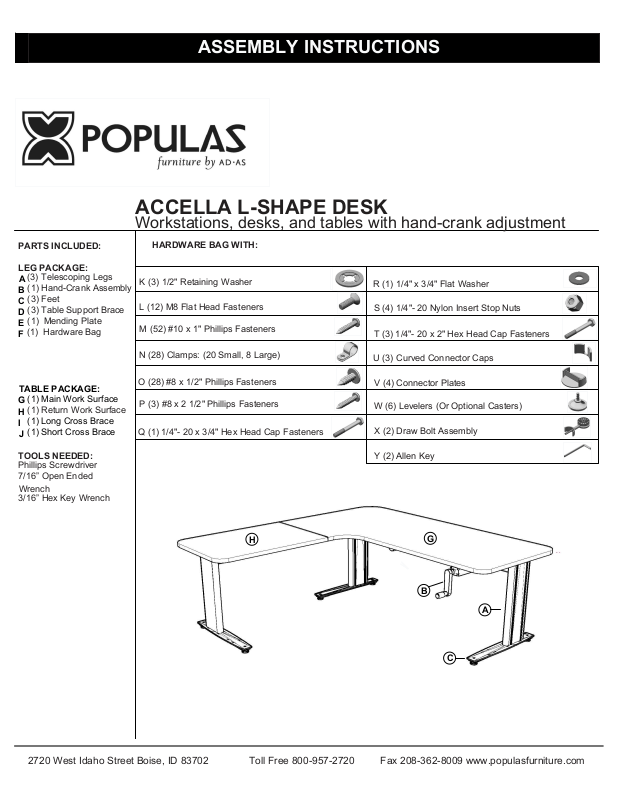

ASSEMBLY INSTRUCTIONS
TABLE PACKAGE:
(1) Main Work Surface
(1) Long Cross Brace
G
I
TOOLS NEEDED:
Phillips Screwdriver
7/16” Open Ended
Wrench
3/16” Hex Key Wrench
K (3) 1/2" Retaining Washer
L (12) M8 Flat Head Fasteners
N (28) Clamps: (20 Small, 8 Large)
O (28) #8 x 1/2" Phillips Fasteners
U (3) Curved Connector Caps
T (3) 1/4"- 20 x 2" Hex Head Cap Fasteners
S (4) 1/4"- 20 Nylon Insert Stop Nuts
V (4) Connector Plates
W (6) Levelers (Or Optional Casters)
P (3) #8 x 2 1/2" Phillips Fasteners
Y (2) Allen Key
B
C
G
H
A
PARTS INCLUDED:
LEG PACKAGE:
(3) Telescoping Legs
A
B
C
D
E
(1) Hand-Crank Assembly
(3) Feet
F
(3) Table Support Brace
(1) Mending Plate

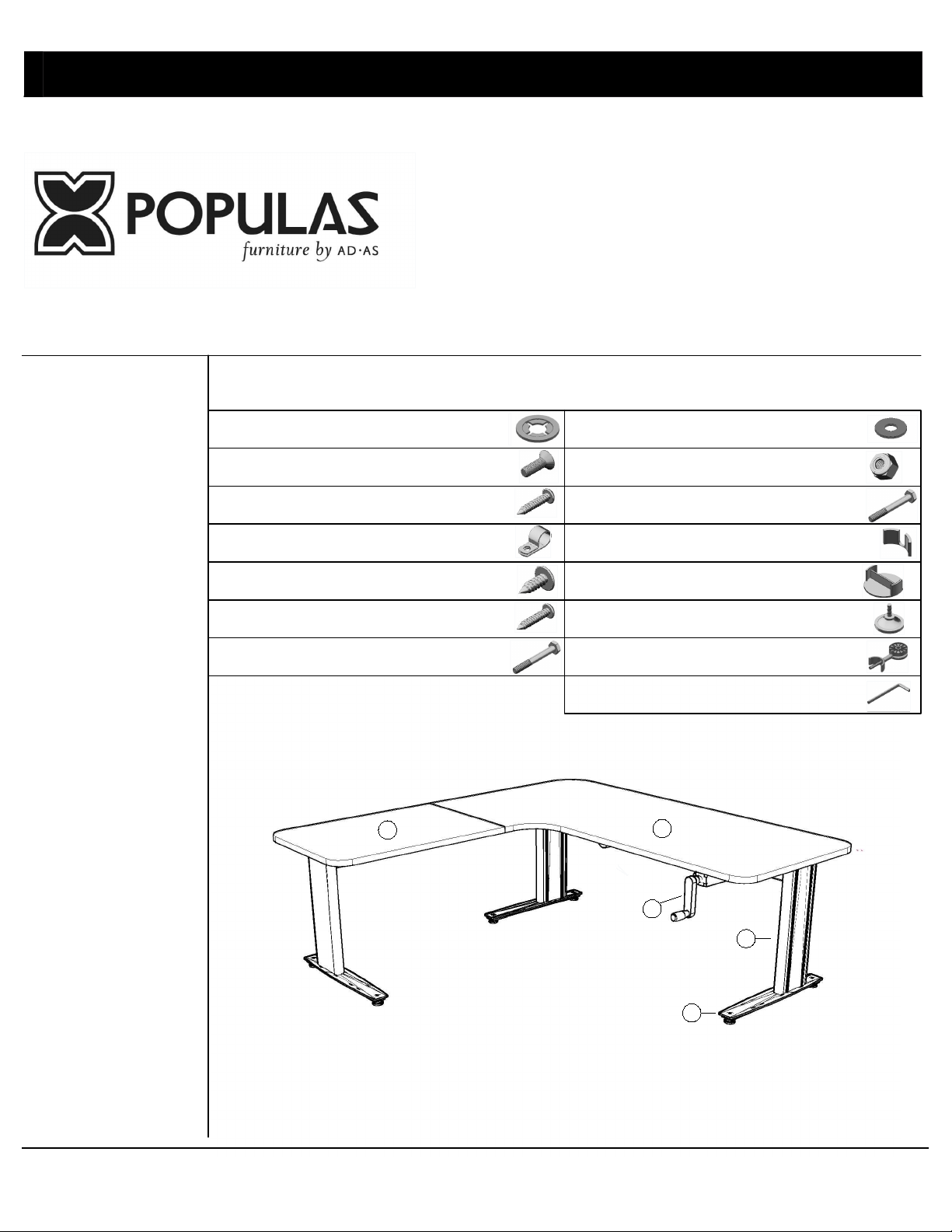

ACCELLA L-SHAPE DESK
Workstations, desks, and tables with hand-crank adjustment
(1) Hardware Bag
H
(1) Return Work Surface
(1) Short Cross Brace
J
Q (1) 1/4"- 20 x 3/4" Hex Head Cap Fasteners
R (1) 1/4" x 3/4" Flat Washer
X (2) Draw Bolt Assembly
M (52) #10 x 1" Phillips Fasteners
Page 2

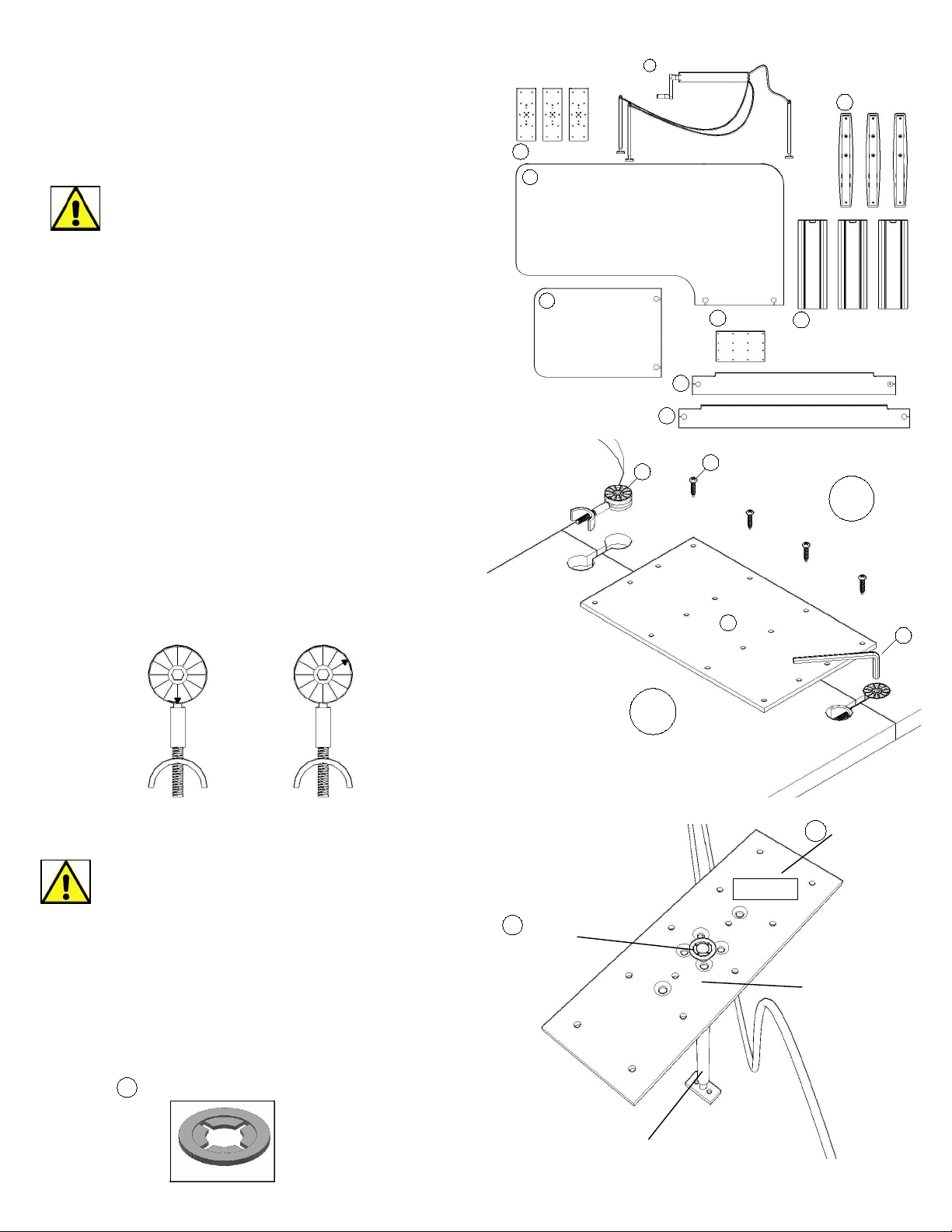

Step 1: Preparation
Unpack and identify all parts. Place Table Top
(G and H) upside down on padded surface and
identify front edge.
Be careful not to damage the hydraulic hose
Piston Head
Retaining
Washer
Telescoping Legs
Cross Braces
Feet
Table Braces
Piston
Table Brace
Hand-Crank Assembly
A
B
C
D
H
G
D
K
Top Side
pg 2
Main Work Surface
Return
Work Surface
J
I
Front Edge
Mending
Plate
E
Step 3: Piston Attachment
Insert hydraulic piston into the bottom center hole
of the Table Support Brace (D).
Secure with 1/2" Retaining Washer (K) by pressing
and snapping into piston groove. Retaining Washer
may need to be flipped in order to snap in.
Repeat with each piston .
Retaining Washer
Table Support Brace (D) has a top and bottom.
The top has 7 beveled or counter sunk holes.
K
Step 2: Work Surface Attachment
In "Unlock" position (as indicated by arrow), place
Draw Bolt Assembly (X) into keyholes of Main and
Return Work Surfaces (G and H). Use
appropriately sized Allen Key (Y) to turn Draw Bolt
Assembly (X) until tight (arrow should be between
12 and 2).
Attach Table Mending Plate (E) to Work Surfaces
(G and H) using sixteen #10 x 1" Phillips Fasteners
(M) as shown.
12
2
Unlock
Locked
X
M
keyhole
E
Y
G
H
(1) Long Hose
(2) Short Hoses
Page 3

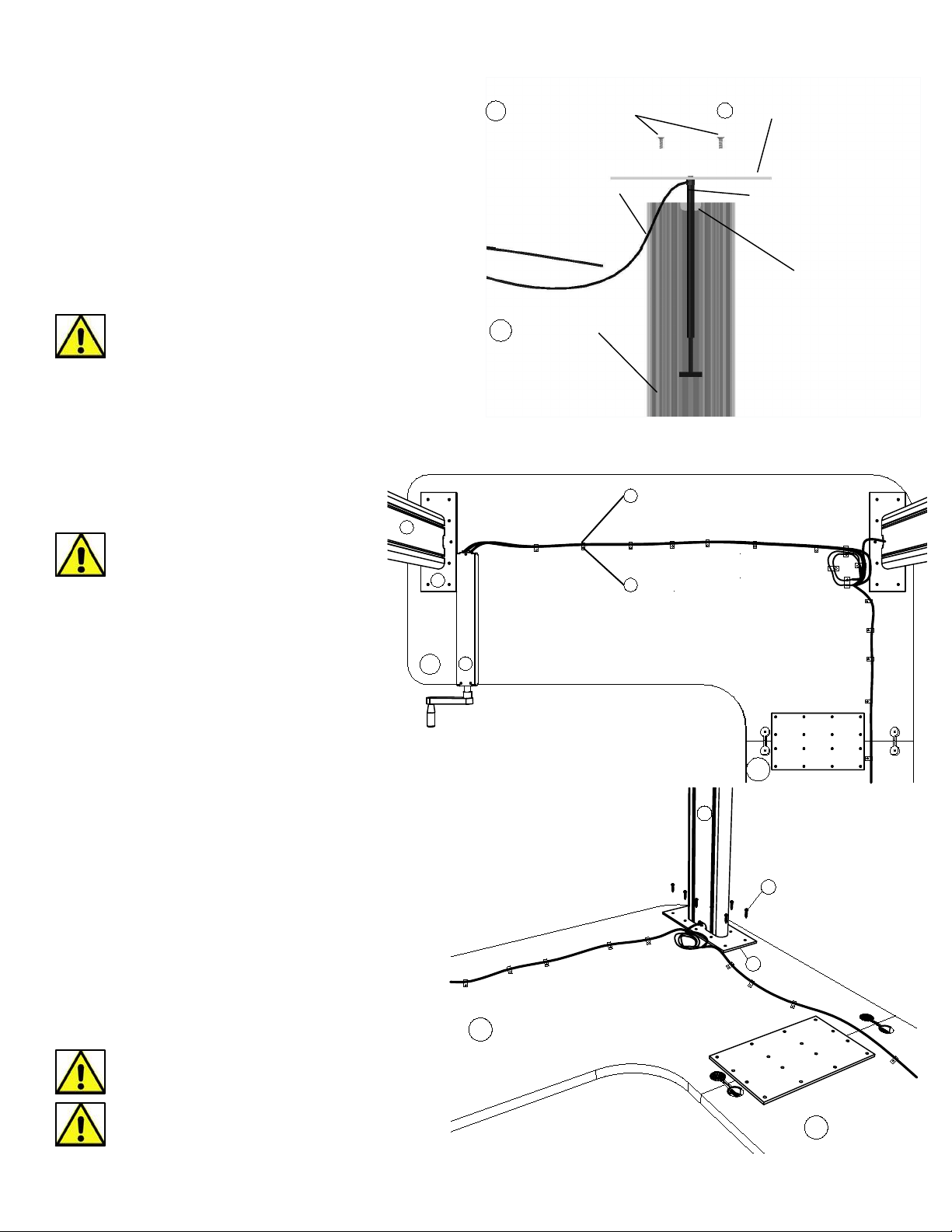

Step 6: Table Support Brace
Attachment
G
A
M
Step 5: Hand-Crank
Assembly Positioning
and Attachment
Place Hand-Crank Assembly (B)
on table as shown. Align to three
pre-drilled holes and attach using three
#8 x 2 1/2" Phillips Fasteners (P).
Route hoses through Small Clamps (N)
and secure using #8 x 1/2" Phillips
Fasteners (O). Use Large Hose
Clamps (N) to coil excess hoses and
secure in the same fashion.
Place Table Support Brace(s) (D)
on underside of table.
Align Table Support Brace (D) to guide holes and
attach using 36 #10 x 1" Phillips Fasteners (M).
Tighten using Phillips screw driver.
Do not over-tighten or strip
Slotted groove on telescoping legs face in
D
B
G
A
pg 3
Step 4: Telescoping Leg
Attachment
L M8 Flat Head Fasteners
Insert piston rectangular foot into center of Telescoping
Leg (A). Piston hose must route through "mouse hole"
of Telescoping Leg (A). Align Telescoping Leg (A) with
hose port facing center. Attach using two
M8 Flat Head Fasteners (L) and Allen Key (Y)
Tighten using Allen Key (Y).
D Table Brace
Piston Hose
Piston
Mouse Hole
A Telescoping Leg
Keep hose routed through mouse hole to
avoid pinch points
D
H
N
O
Leg with Long Hose goes to
Return Work Surface (H)
Long Hose
H
Page 4

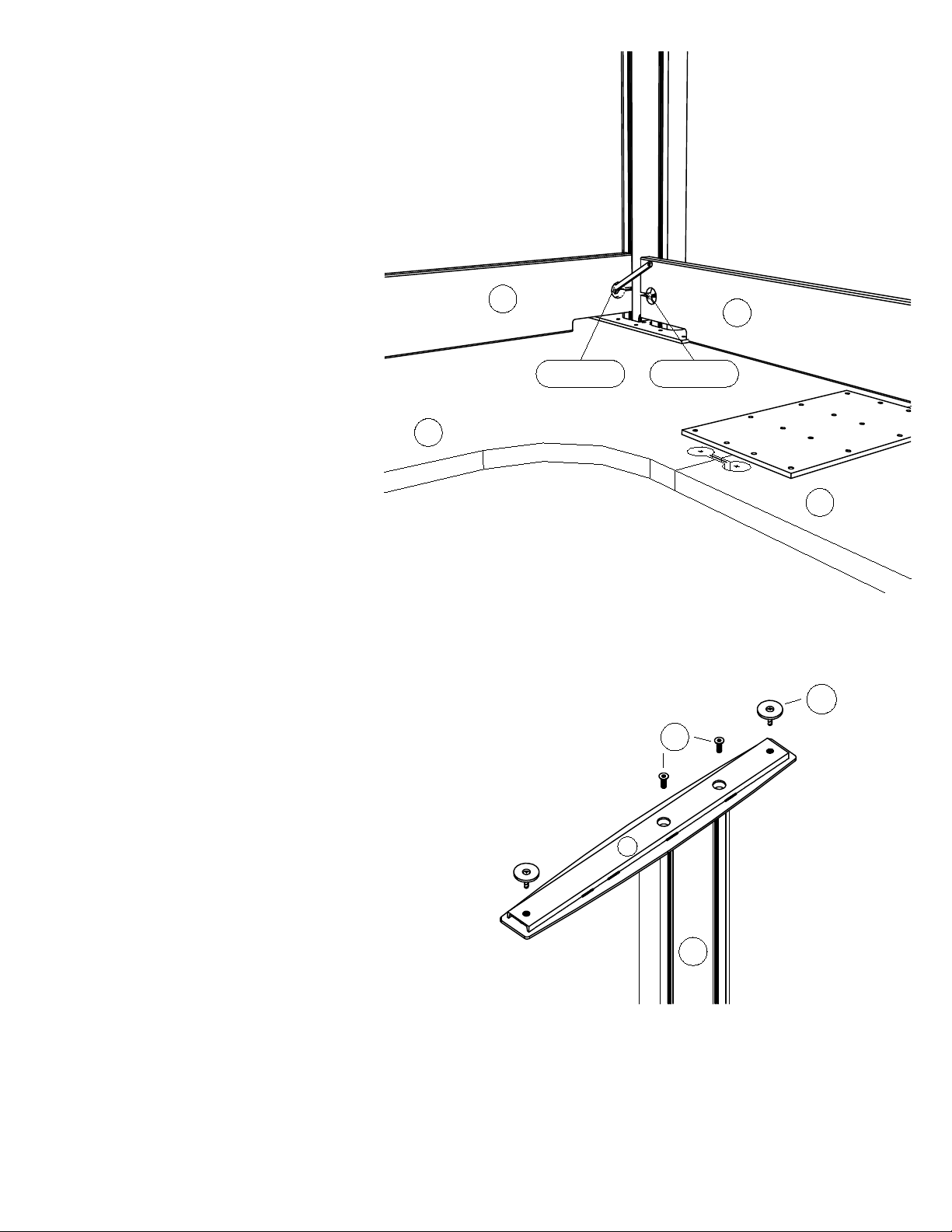

Step 7: Cross Brace
Attachment
Cross Brace Hardware is shipped
attached. Insert Hex Head of 1/4" - 20 x
2" Fastener (T) of Long Cross Brace (I)
into rear slotted grove of Telescoping
Legs (A) of Main Work Surface (G).
Long Cross Brace (I) sits flat to the
underside of the Main Work surface (G).
Tighten Using 7/16" wrench. Cover with
Connector Plates (V).
With Short Cross Brace (J), Insert one
1/4" - 20 x 2" Hex Head Cap Fastener
(T) into rear slotted groove of
Telescoping Leg (A) on Return Work
Surface (H). Insert 1/4" -20 x 3/4" Hex
Head Cap Fastener (S) into the open
slotted grove the shared leg (as
pictured). Short Cross Brace (J) sits flat
to the underside of the Return Work
surface (H). Tighten Using 7/16" wrench.
Cover with Connector Plates (V).
Step 8: Feet Attachment
W
Attach Feet (C) to Telescoping Legs
(A) using two M8 Flat Head
Fasteners (L) and tighten with Allen Key (Y)
for each Telescoping leg (A), with Fastener
heads recessed inside Foot (C).
Attach Floor Levelers (W). Optional Casters
attach using 3/8” button head fasteners.
A
Step 9: Operation And Use
Gently turn table over using at least two
people and adjust levelers if required.
Table adjusts up and down using the Hand-Crank.
Clean with soft cloth and mild cleaners suitable for
furniture.
C
L
I
J
G
H
Q,R,SS,T,U
pg 4
