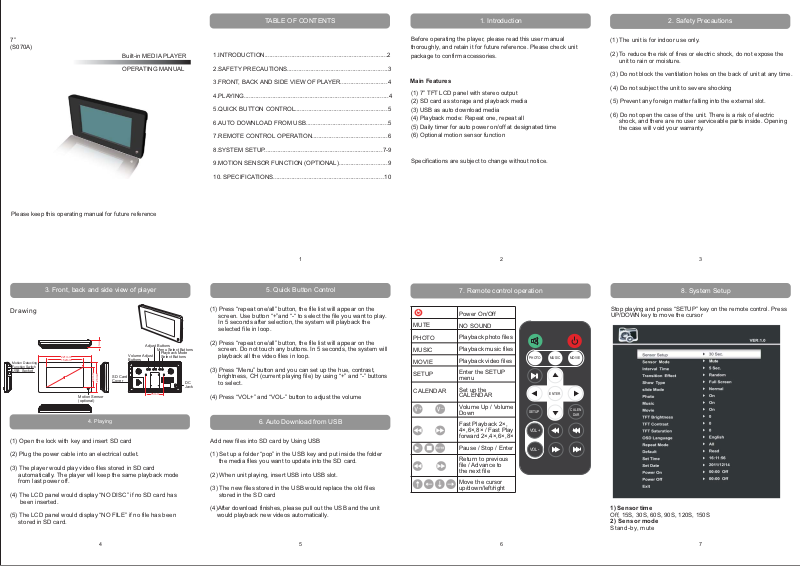

POPScreens S070AA User Manual
TABLE OF CONTENTS
1. Introduction
2. Safety Precautions
7”
(S070A)
Built-in MEDIA PLAYER
OPERATING MANUAL
Please keep this operating manual for future reference
1.INTRODUCTION.........................................................................2
2.SAFETY PRECAUTIONS............................................................3
3.FRONT, BACK AND SIDE VIEW OF PLAYER............................4
4.PLAYING......................................................................................4
5.QUICK BUTTON CONTROL.......................................................5
6.AUTO DOWNLOAD FROM USB.................................................5
7.REMOTE CONTROL OPERATION.............................................6
8.SYSTEM SETUP.......................................................................7-9
9.MOTION SENSOR FUNCTION (OPTIONAL).............................9
10. SPECIFICATIONS..................................................................10
Before operating the player, please read this user manual
thoroughly, and retain it for future reference. Please check unit
package to confirm accessories.
Main Features
(1) 7” TFT LCD panel with stereo output
(2) SD card as storage and playback media
(3) USB as auto download media
(4) Playback mode: Repeat one, repeat all
(5) Daily timer for auto power on/off at designated time
(6) Optional motion sensor function
Specifications are subject to change without notice.
(1) The unit is for indoor use only.
(2) To reduce the risk of fires or electric shock, do not expose the
unit to rain or moisture.
(3) Do not block the ventilation holes on the back of unit at any time.
(4) Do not subject the unit to severe shocking
(5) Prevent any foreign matter falling into the external slot.
(6) Do not open the case of the unit. There is a risk of electric
shock, and there are no user serviceable parts inside. Opening
the case will void your warranty.
3. Front, back and side view of player
Drawing
31mm
221mm
Motion Detecting
Function Switch
USB Socket
152mm
84mm
126mm
Motion Sensor
(optional)
4. Playing
SD Card
Cover
(1) Open the lock with key and insert SD card
(2) Plug the power cable into an electrical outlet.
(3) The player would play video files stored in SD card
automatically. The player will keep the same playback mode
from last power off.
(4) The LCD panel would display “NO DISC” if no SD card has
been inserted.
(5) The LCD panel would display “NO FILE” if no file has been
stored in SD card.
Adjust Buttons
Volume Adjust
Buttons
Menu Select Buttons
Playback Mode
Select Buttons
75mm
DC
Jack
1 2
5. Quick Button Control
(1) Press “repeat one/all” button, the file list will appear on the
screen. Use button “+”and “-“ to select the file you want to play.
In 5 seconds after selection, the system will playback the
selected file in loop.
(2) Press “repeat one/all” button, the file list will appear on the
screen. Do not touch any buttons. In 5 seconds, the system will
playback all the video files in loop.
(3) Press “Menu” button and you can set up the hue, contrast,
brightness, CH (current playing file) by using “+” and “-” buttons
to select.
(4) Press “VOL+” and “VOL-” button to adjust the volume
6. Auto Download from USB
Add new files into SD card by Using USB
(1) Set up a folder “pop” in the USB key and put inside the folder
the media files you want to update into the SD card.
(2) When unit playing, insert USB into USB slot.
(3) The new files stored in the USB would replace the old files
stored in the SD card
(4)After download finishes, please pull out the USB and the unit
would playback new videos automatically.
MUTE
MUSIC
MOVIE
SETUP
CALENDAR
7. Remote control operation
Power On/Off
NO SOUND
Playback photo files
Playback music files
Playback video files
Enter the SETUP
menu
Set up the
CALENDAR
Volume Up / Volume
Down
Fast Playback 2×,
4×,6×,8× / Fast Play
forward 2×,4×,6×,8×
Pause / Stop / Enter
Return to previous
file / Advance to
the next file
Move the cursor
up/down/left/right
PHOTO MUSIC
SETUP
VOL+
VOL-
ENTER
MOVIE
CALEN
DAR
3
8. System Setup
Stop playing and press “SETUP” key on the remote control. Press
UP/DOWN key to move the cursor
1) Sensor time
Off, 15S, 30S, 60S, 90S, 120S, 150S
2) Sensor mode
Stand-by, mute
4
5
6
7
8. System Setup
8. System Setup
10. Specifications
3) Interval Time
Off, 5 Sec, 10 Sec, 15 Sec, 30 Sec, 1 Min, 3 Min
4) Transition Effect
Block 1, Block 2, Block 3, Block 4, Block 5, Block 6, Block 7, Block
8, Block 9, Bar LR CVG, Bar UpDown CVG, Bar LR SPD,
Bar UpDown SPD, Bar Top Down, Bar Button UP, Rect Converge,
Rect Spread, Rhombus, Compression, Cross Comb, Silk, Mask,
Dissolve, Fade in Fade Out, Flip, Reel, Move Zoom, Random,
No Effect, Blinde Horizontal, Blind Vertical, Color Ratio Hor,
Color Ratio Ver, Expansion Hor, Expansion Ver
5) Show Type
Full Screen, Fit Screen
6) Slide Mode
Motion, Normal
7) Browse
Thumbnail, File Magager
8) Photo
On/off
9) TFT Brightness
-4 --- 4
10) TFT Contrast
-4 --- 4
11) TFT Saturation
-4 --- 4
12) OSD Language
English, Francaise, Deutsch, Italiano, Espanol, Portugues,
Nederlands, Polski
13) Encoding
Western European, Central European
14) Repeat Mode
All, Off, One, Folder
15) Music Preference
Spectrum, Tag & Cover
8
16) Default
Read
17) Set Time
Set up the clock display
18) Set Date
Set up the current date
19) Alarm Setting
Set up the alarm
20) Power on
Set up the time for power on
21) Power off
Set up the time for power off
22) Exit
9. Motion Sensor Function (Optional)
Please check first whether the player you purchased has motion
detecting function.
MUTE MODE
When playing, the unit audio output would be shut off if no human
body is detected after a certain interval of time (Please see the
motion sensor interval time setup in the previous chapter), while
the visual output is still on. The unit would resume audio output if
any human body is detected.
STAND-BY MODE
When playing, the player would go to standby mode if no human
body is detected after a certain interval of time (Please see the
motion sensor interval time setup in the previous chapter). The
player would power on automatically if any human body is detected.
9
Panel Size
Panel Resolution
Brightness
Storage Media
Auto Download Media
Audio Output
Power Input
Environmental
MPEG1(VCD)
File format:
MPG/ DAT/VOB
MPEG2(SVD)
Support
Video
Formats
Support
Formats
Support
Audio
Formats
File format:
MPG/ DAT/VOB
MPEG4 File
format:avi Video
Codec: XviD/
DivX/ M4S2/ MP4S
M-J File
format:avi Video
Codec: XviD/
DivX/ M4S2/
MP4S
JPEG Baseline
(444/ 440/ 422/
420/ Grayscale)
BMPOS/2 V1,
Windows V3/V4/ V5
MP3
AAC LC
WMA
7inch
480*234/800*480 for digital panel
2
200cd/m
SD card
USB
L/R 1.5W
DC 12V,1.5A
Operation temperature 0-50℃
Relative Humidity: 5%-95%(non-condensing)
Video Scale Size: Max 720X576 pixels (PAL), Frame Rate:
up to 30fps, Bit rate: up to 8mbps, Audio Decode:
MPEG-1/2 layer 1/ 2
Video Scale Size: Max 720X480 pixels (NTSC), Frame Rate:
up to 30fps, Bit rate: up to 8mbps, Audio Decode:
MPEG-1/2 layer 1/ 2
Video Scale Size: Max 720X576 pixels (PAL), Frame Rate:
up to 30fps, Bit rate: up to 8mbps, Audio Decode:
MPEG-1/2 layer 1/ 2, LPCM
Video Scale Size: Max 720X480 pixels (NTSC), Frame Rate:
up to 30fps, Bit rate: up to 8mbps, Audio Decode:
MPEG-1/2 layer 1/ 2, LPCM
Video Scale Size: Max 720X576 pixels, Frame Rate: up to
30fps, Bit rate: up to 8mbps, Audio Decode:
MPEG-1/2 layer 1/ 2/3, PCM,WMA
Video Scale Size: Max 720X576 pixels (PAL), Frame Rate:
up to 30fps, Bit rate: up to 8mbps, Audio Decode:
MPEG-1/2 layer 1/ 2/3, PCM,WMA
Video Scale Size: Max 720X480 pixels (NTSC), Frame Rate:
up to 30fps, Bit rate: up to 8mbps, Audio Decode:
MPEG-1/2 layer 1/ 2/3, PCM,WMA
Resolution: Up to 4 Mega-Pixels, File Size: 40MB, EXIF:
Up to v2.2
Resolution: Up to 20M Pixels, File Size: 40MB
Bit Rate: 32K ~ 320Kbps, Sampling Tag: 8K ~ 48KHz,
ID3 Tag: No
Bit Rate: Arbitrary bitrates, Sampling Tag: 8K ~ 96KHz,
ID3 Tag: No
Bit Rate: 5K ~ 192Kbps, Sampling Tag: 8K ~ 48KHz,
ID3 Tag: No
10
