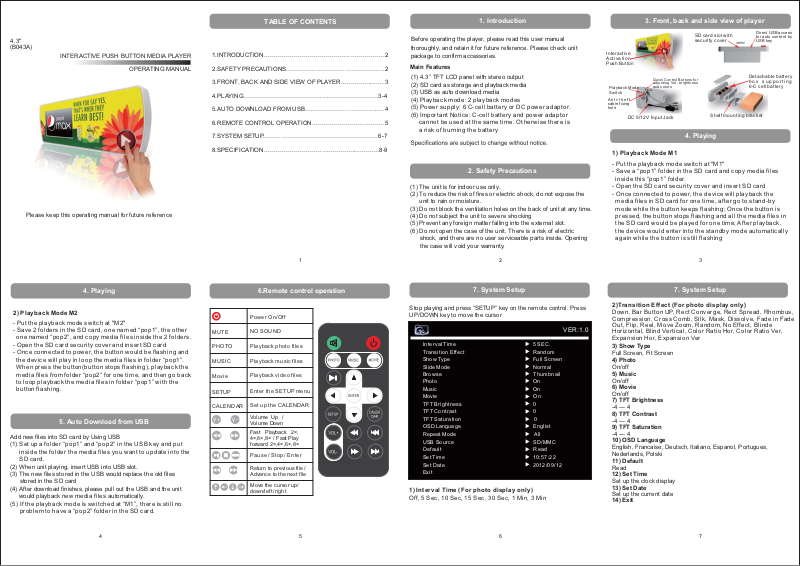

POPScreens B043A User Manual

4.3"
(B043A)

INTERACTIVE PUSH BUTTON MEDIA PLAYER

OPERATING MANUAL

TABLE OF CONTENTS

1.INTRODUCTION............................................................2

2.SAFETY PRECAUTIONS................................................2

3.FRONT, BACK AND SIDE VIEW OF PLAYER...................... 3

4.PLAYING...................................................................3-4

5.AUTO DOWNLOAD FROM USB.......................................4

6.REMOTE CONTROL OPERATION....................................5

7.SYSTEM SETUP.........................................................6-7

1. Introduction

Before operating the player, please read this user manual
thoroughly, and retain it for future reference. Please check unit
package to confirm accessories.

Main Features

(1) 4.3” TFT LCD panel with stereo output
(2) SD card as storage and playback media
(3) USB as auto download media
(4) Play back mode: 2 playback modes
(5) Power supply: 6 C-cell battery or DC power adaptor.
(6) Impo rtant Not ice: C-ce ll batter y and power adaptor

cannot be used at the same time. Otherwise there is
a risk of burning the battery

Interactive
Activation
Push Button

Playback Mode
Switch

Anti-theft
cable fixing
hole

DC 9/12V Input Jack

3. Front, back and side view of player

Direct USB access
for auto content by
USB key

Detachable battery
box supporting
6-C cell battery

Quick Control Buttons for
adjusting Vol, brightness
and colors

SD card slot with
security cover

Shelf mounting bracket

4. Playing

Please keep this operating manual for future reference

4. Playing

2) Playback Mode M2

- Put the playback mode switch at "M2"

- Save 2 folders in the SD card, one named “pop1”, the other
one named “pop2”, and copy media files inside the 2 folders.

- Open the SD card security cover and insert SD card

- Once connected to power, the button would be flashing and
the device will play in loop the media files in folder “pop1”.
When press the button(button stops flashing), playback the
media files from folder “pop2” for one time, and then go back
to loop playback the media files in folder “pop1” with the
button flashing.

5. Auto Download from USB

Add new files into SD card by Using USB
(1)

Set up a folder “pop1” and “pop2” in the USB key and put

inside the folder the media files you want to update into the

SD card.
(2) When unit playing, insert USB into USB slot.
(3) The new files stored in the USB would replace the old files

stored in the SD card

(4) After download finishes, please pull out the USB and the unit

would playback new automatically.
(5)

If the playback mode is switched at “M1”, there is still no
problem to have a “pop2” folder in the SD card.

media files

8.SPECIFICATION..........................................................8-9

6.Remote control operation

Power On/Off

MUTE


MUSIC

Movie

SETUP

CALENDAR

V+ V-

NO SOUND

Playback photo files

Playback music files

Playback video files

Enter the SETU P menu

Set up the CALENDAR

Volume Up /
Volume Down

Fast Playback 2×,
4×,6×,8× / Fast Play
forward 2×,4×,6×,8×

ENTER

Pause / Stop / Ent er

Return to previous file /
Advance to the next file

Move the cursor up/
down/left/right

2. Safety Precautions

(1) The unit is for indoor use only.
(2) To reduce the risk of fires or electric shock, do not expose the

unit to rain or moisture.
(3) Do not block the ventilation holes on the back of unit at any time.
(4) Do not subject the unit to severe shocking
(5) Prevent any foreign matter falling into the external slot.
(6) Do not open the case of the unit. There is a risk of electric

shock, and there are no user serviceable parts inside. Opening
the case will void your warranty.

21

7. System Setup

Stop playing and press “SETUP” key on the remote control. Press
UP/DOWN key to move the cursor

VER:1.0

Interval Time 5 SEC.
Transition Effect Random
Sho w Type Ful l Sc re en
Slide Mode Normal
Browse Thumbnail
Photo On
Music On
Movie On
TFT Brightness 0
TFT Contrast 0
TFT Saturation 0
OSD Language Englist

Repeat Mode All
USB Source SD/MMC
Default Read
Set Time 10:57:22
Set Date 2012/09/12
Exit

1) Interval Time (For photo display only)

Off, 5 Sec , 10 Sec, 15 Se c, 30 Sec, 1 Mi n, 3 Min

1) Playback Mode M1

- Put the playback mode switch at "M1"

- Save a “pop1” folder in the SD card and copy media files
inside this “pop1” folder.

- Open the SD card security cover and insert SD card

- Once connected to power, the device will playback the
media files in SD card for one time, after go to stand-by
mode while the button keeps flashing; Once the button is
pressed, the button stops flashing and all the media files in
the SD card would be played for one time; After playback,
the device would enter into the standby mode automatically
again while the button is still flashing

3

7. System Setup

2)Transition Effect (For photo display only)

Down, Bar Button UP, Rect Converge, Rect Spread, Rhombus,
Compression, Cross Comb, Silk, Mask, Dissolve, Fade in Fade
Out, Flip, Reel, Move Zoom, Random, No Effect, Blinde
Horizontal, Blind Vertical, Color Ratio Hor, Color Ratio Ver,
Expansion Hor, Expansion Ver

3) Show Type

Full Screen, Fit Screen

4) Photo

On/off

5) Music

On/off

6) Movie

On/off

7) TFT Brightness

-4 --- 4

8) TFT Contrast

-4 --- 4

9) TFT Saturation

-4 --- 4

10) OSD Language

English, Francaise, Deutsch, Italiano, Espanol, Portugues,
Nederlands, Polski

11) Default

Read

12) Set Time

Set up the clock display

13) Set Date

Set up the current date

14) Exit

4

5

6

7

8. Specifications

8. Specifications

Panel Size

Panel Resolution

Storage and Playback Media

Auto Download Media

Audio Output

Power

Environmental

MPEG1(VCD)

File format:
MPG/ DAT/VOB

MPEG2(SVD)

File format:
MPG/ DAT/VOB

Support
Video
Formats

MPEG4

File format: avi
Video Codec:
XviD/ DivX/
M4S2/ MP4S

M-J

File format:avi
Video Codec:
XviD/ DivX/
M4S2/

MP4S

4.3"

480 x234

SD card

USB

L/R 1.5W

6 x C cell battery or DC 9/12V input

Operation temperature -20 to 70 degree

Relative Humidity: 5%-95%(non-condensing)

Video Scale Size: Max 720X576 pixels (PAL),
Frame Rate: up to 30fps, Bit rate: up to 8mbps,
Audio Decode: MPEG-1/2 layer 1/ 2

Video Scale Size: Max 720X480 pixels (NTSC),
Frame Rate: up to 30fps, Bit rate: up to 8mbps,
Audio Decode: MPEG-1/2 layer 1/ 2

Video Scale Size: Max 720X576 pixels (PAL),
Frame Rate: up to 30fps, Bit rate: up to 8mbps,
Audio Decode: MPEG-1/2 layer 1/ 2, LPCM

Video Scale Size: Max 720X480 pixels (NTSC),
Frame Rate: up to 30fps, Bit rate: up to 8mbps,
Audio Decode: MPEG-1/2 layer 1/ 2, LPCM

Video Scale Size: Max 720X576 pixels, Frame
Rate: up to 30fps, Bit rate: up to 8mbps,Audio
Decode: MPEG-1/2 layer 1/ 2/3, PCM,WMA

Video Scale Size: Max 720X576 pixels (PAL),
Frame Rate: up to 30fps, Bit rate: up to 8mbps,
Audio Decode: MPEG-1/2 layer 1/ 2/3, PCM,
WMA

Video Scale Size: Max 720X480 pixels (NTSC),
Frame Rate: up to 30fps, Bit rate: up to 8mbps,
Audio Decode: MPEG-1/2 layer 1/ 2/3, PCM,
WMA

Support
Formats

Support
Audio
Formats

JPEG)Baseline

(444/ 440/ 422/
420/ Grayscale

BMP

OS/2 V1,
Windows V3/V4/
V5

Mp3

AAC LC

WMA

8 9

Resolution: Up to 4 Mega-Pixels, File Size:
40MB, EXIF: Up to v2.2

Resolution: Up to 20M Pixels, File Size: 40MB

Bit Rate: 32K ~ 320Kbps, Sampling Tag: 8K ~
48KHz, ID3 Tag: No

Bit Rate: Arbitrary bitrates, Sampling Tag: 8K ~
96KHz, ID3 Tag: No

Bit Rate: 5K ~ 192Kbps, Sampling Tag: 8K ~
48KHz, ID3 Tag: No
