Step 4: Wiring (there are multiple ways to run the wiring this is one suggestion)
Route the bullet connector side of the short wiring harness through one of the drain holes at the bottom of the tailgate up to the power lock
assembly. Connect it to the bullet connectors of the power unit. Secure the wire with cable ties to prevent the wire from getting pinched
or in the way of the latch rods. Connect the other end to the long wire harness. Locate this connector under the truck so that it is
accessible for tailgate removal. Run the long wiring cable along the factory wire harness to under the cab and secure with cable ties.
For 2-Door and Access cab models the wire will be tied into either side kick panel (the plastic cover next to where your feet go). For 4Door models the wire can be tied into either side front step plate (the plastic trim along the floor as you step into the truck). Run the wire
into the cab using one of the factory’s rubber grommets in either the firewall or along the floor pan. Cut a small slit in the grommet or
run the wire next to the grommet to allow the wire to pass through. It is recommended to seal around wire to prevent moisture from entering
the cab. Run the wire out of view and to the place where it is going to get connected. For 2005 and 2006 2-Door models locate the blue and
blue with a white stripe wire. For 2005 and 2006 4-Door models locate the blue and blue with pink stripe wire. For 2007 and up all models
locate the Blue with a black stripe and the blue with light red stripe wire. Use the supplied wire taps to connect to theses two wires. At
this point it doesn’t matter which wire is tapped to the OEM wires. Test the operation of the lock (if the tailgate lock works opposite of
the door locks, disconnect the two bullet connectors back by the power lock assembly, switch the leads of the wires, and reconnect the
bullet connectors. This will make the lock the same as the doors). Secure all the wiring and replace the removed trim pieces.

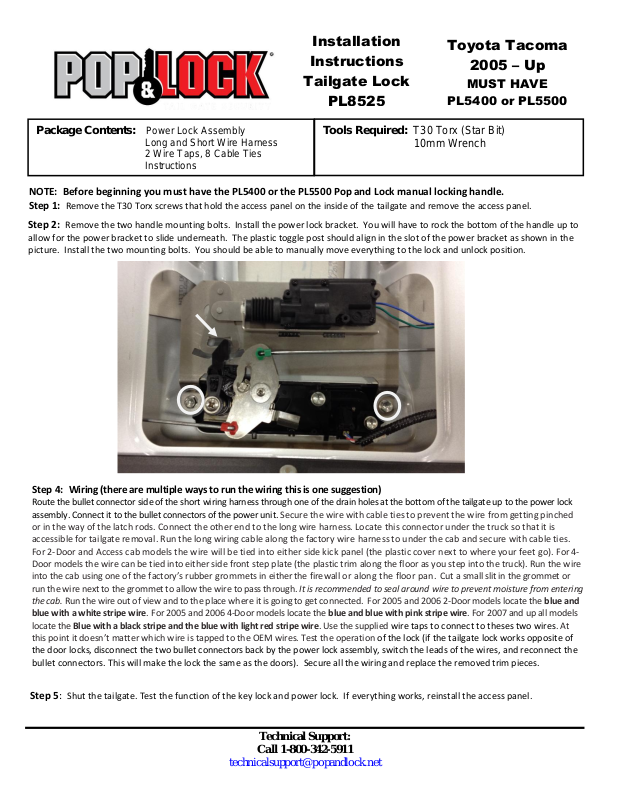

Installation
Instructions
Tailgate Lock
Toyota Tacoma
2005 – Up
MUST HAVE
PL5400 or PL5500
Tools Required: T30 Torx (Star Bit)
10mm Wrench
Step 5: Shut the tailgate. Test the function of the key lock and power lock. If everything works, reinstall the access panel.
Package Contents: Power Lock Assembly
Long and Short Wire Harness
2 Wire Taps, 8 Cable Ties
Instructions
NOTE: Before beginning you must have the PL5400 or the PL5500 Pop and Lock manual locking handle.
Step 1: Remove the T30 Torx screws that hold the access panel on the inside of the tailgate and remove the access panel.

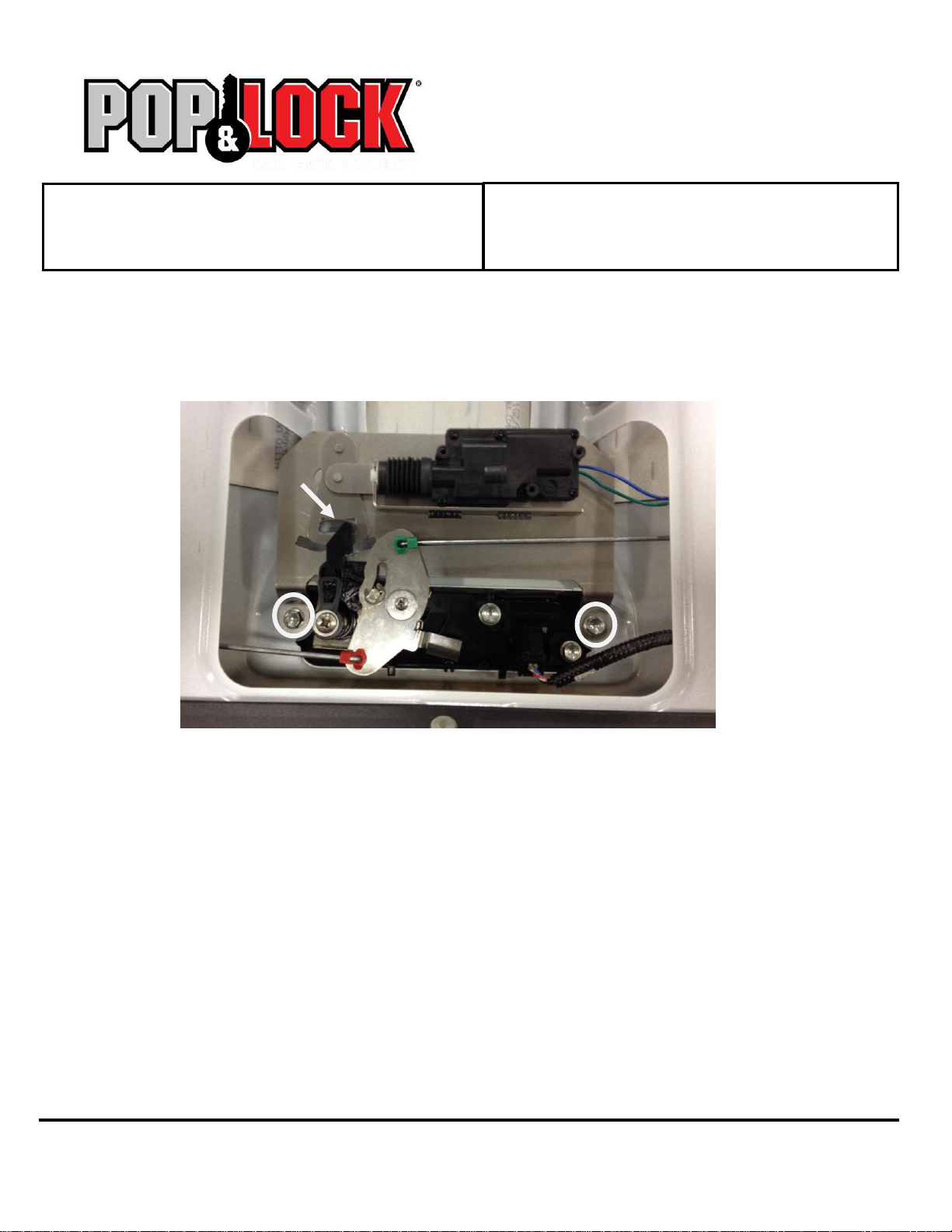

Step 2: Remove the two handle mounting bolts. Install the power lock bracket. You will have to rock the bottom of the handle up to
allow for the power bracket to slide underneath. The plastic toggle post should align in the slot of the power bracket as shown in the
picture. Install the two mounting bolts. You should be able to manually move everything to the lock and unlock position.
Page 2
LIMITED WARRANTY TERMS AND CONDITIONS
(1) Installation. Pop & Lock™, LLC (and Pop & Lock™ Corporation) is not responsible for installing the Pop &
Lock™ or for the harm suffered by any person as a result installing it.
(2) Warranties.
a. Customer acknowledges that it is unreasonable to believe that any device whatever will prevent a theft in the
case of every attempt and that the most that can be expected from a so-called anti-theft or security device is
that it will deter many thieves.
b. POP & LOCK™ LLC. (and Pop & Lock™ Corporation) MAKES, AND CUSTOMER RECEIVES, NO
WARRANTY, EXPRESSED OR IMPLIED, EXCEPT THE WARRANTIES OF TITLE TO THE POP &
LOCK™ AND THEIR MERCHANTABILITY, PARTICULARILY NO WARRANTY OF FITNESS FOR
A PARTICULAR USE OR PURPOSE OR AGAINST INFRINGEMENT.
c. As Customer’s only remedy, Pop & Lock™, LLC (and Pop & Lock™ Corporation) will repair or replace, at its
option and without charge, any lock that is defective in material or workmanship when received by
Customer and is returned to Pop & Lock™ LLC (and Pop & Lock™ Corporation), FOB Pop & Lock™
Corporation’s offices, within one (1) year after it’s receipt by the Customer. Pop & Lock LLC will ship all
replacement, or repaired, Locks to Customer, FOB Pop & LockTM’s shipping point.
d. Factory support is only available for Pop & Lock™ products purchased as new through an Authorized Pop &
Lock™
dealer.
Please Note: Pop & Lock™ Products purchased on auction sites such as Ebay, Amazon and
Craigslist, to name a few, will not be covered under factory warranty under any circumstance. Pop &
Lock™, LLC (and Pop & Lock™ Corporation) is unable to verify whether products sold through
Auction Sites are new, used, or refurbished, and as such, Pop & Lock, LLC (and Pop & Lock™
Corporation) is unable to warranty such purchases. Pop & Lock, LLC advises using extreme caution
when buying through auction sites as you'll be doing so at your own risk.
(3) No Liability. Pop & Lock™ Corporation is not liable for any loss or damage claimed by Customer or any third person
to have been suffered or incurred as a result or, or related to, the Locks purchased under this Agreement, regardless
of the circumstances or form of action, except any bodily injury or death for which Pop & Lock™ is liable under
products-liability law. Without limiting the generality of the foregoing, in no event will Pop & Lock™ LLC be liable to
Customer for any indirect, special, or consequential damages, regardless of the circumstances or the cause of
action, particularly not for the value of a vehicle, or any other money damages in the event that a tailgate is stolen
either notwithstanding the use of a Pop
& Lock™ or when it has been returned for repair or replacement.
END OF TERMS AND CONDITIONS
Please Mail Completed Warranty Form (below) In Self Addressed Envelope To:
POP & LOCK LLC 1271 CONTRACT DRIVE GREEN BAY, WI USA 54304
Additional Install Instructions and answers to technical questions can be found on our website at www.popnlock.net or by
calling
Technical Support 1-800-342-5911
Monday – Friday 8am to 5pm CST
