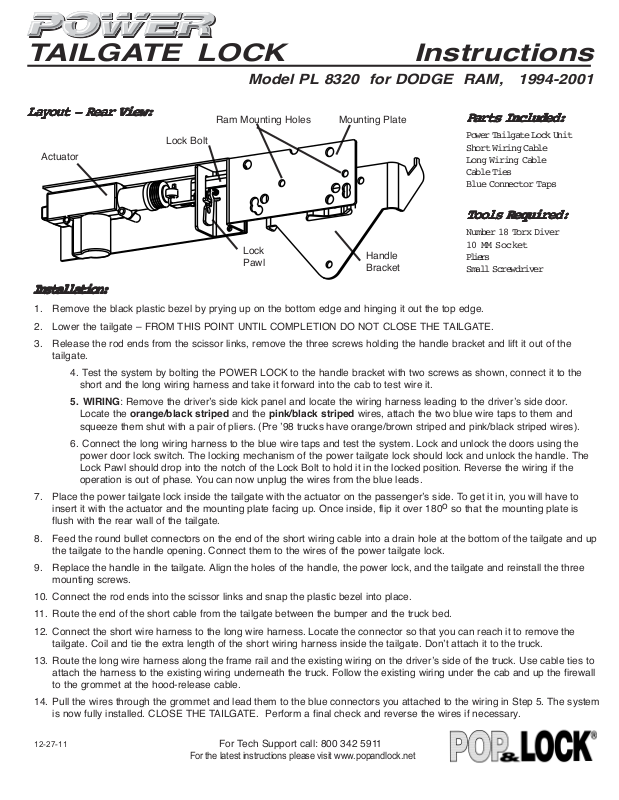

TAILGATE LOCK
Instructions
Model PL 8320 for DODGE RAM, 1994-2001

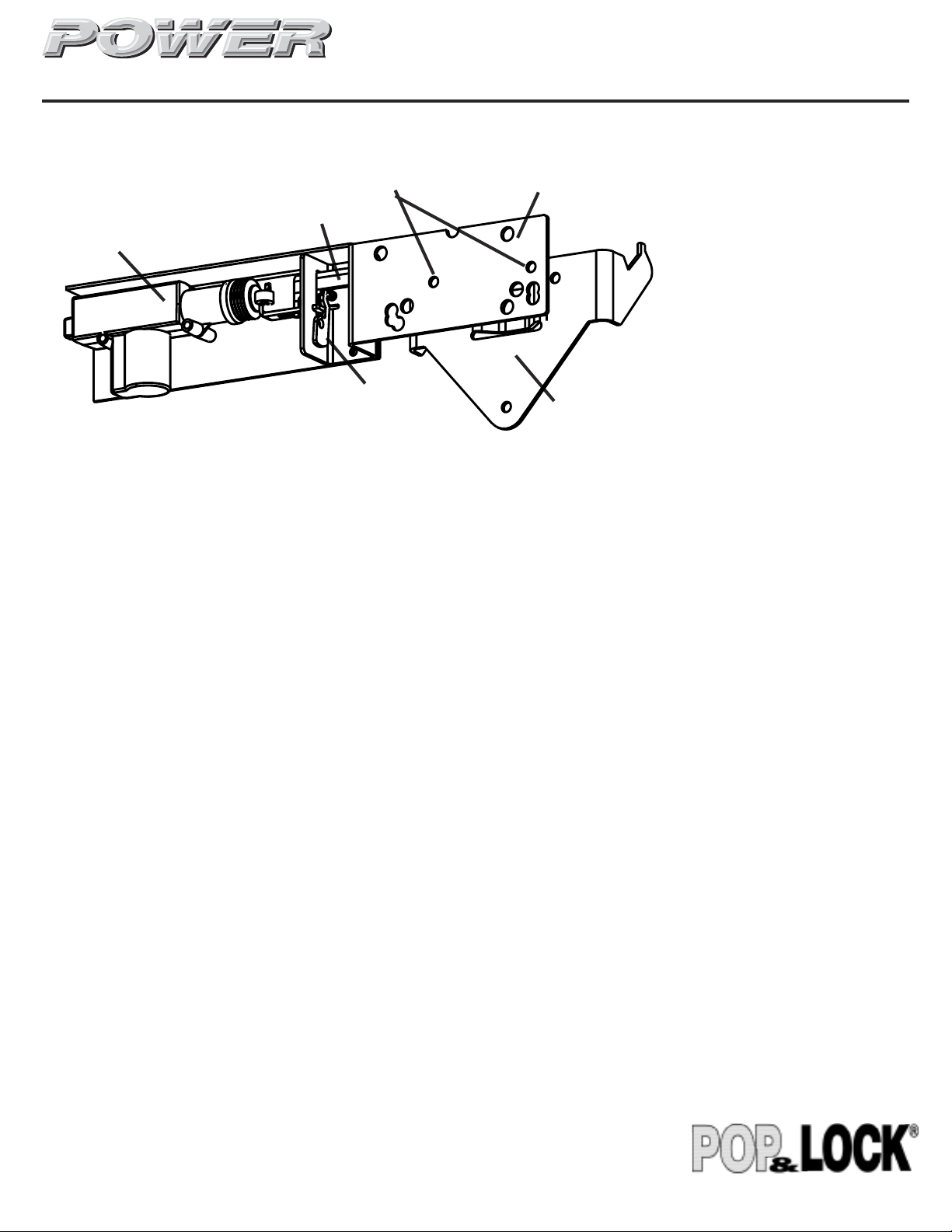

Layout - Rear View:Layout - Rear View:
Layout - Rear View:
Layout - Rear View:Layout - Rear View:
Lock Bolt
Actuator
Installation:Installation:
Installation:
Installation:Installation:
1. Remove the black plastic bezel by prying up on the bottom edge and hinging it out the top edge.
2. Lower the tailgate – FROM THIS POINT UNTIL COMPLETION DO NOT CLOSE THE TAILGATE.
3. Release the rod ends from the scissor links, remove the three screws holding the handle bracket and lift it out of the
tailgate.
Ram Mounting Holes
Lock
Pawl
Mounting Plate
Handle
Bracket
Parts Included:Parts Included:
Parts Included:
Parts Included:Parts Included:
Power Tailgate Lock Unit
Short Wiring Cable
Long Wiring Cable
Cable Ties
Blue Connector Taps
Tools Required:Tools Required:
Tools Required:
Tools Required:Tools Required:
Number 18 Torx Diver
10 MM Socket
Pliers
Small Screwdriver
4. Test the system by bolting the POWER LOCK to the handle bracket with two screws as shown, connect it to the
short and the long wiring harness and take it forward into the cab to test wire it.
5. WIRING: Remove the driver’s side kick panel and locate the wiring harness leading to the driver’s side door.
Locate the orange/black striped and the pink/black striped wires, attach the two blue wire taps to them and
squeeze them shut with a pair of pliers. (Pre ’98 trucks have orange/brown striped and pink/black striped wires).
6. Connect the long wiring harness to the blue wire taps and test the system. Lock and unlock the doors using the
power door lock switch. The locking mechanism of the power tailgate lock should lock and unlock the handle. The
Lock Pawl should drop into the notch of the Lock Bolt to hold it in the locked position. Reverse the wiring if the
operation is out of phase. You can now unplug the wires from the blue leads.
7. Place the power tailgate lock inside the tailgate with the actuator on the passenger’s side. To get it in, you will have to
insert it with the actuator and the mounting plate facing up. Once inside, flip it over 180o so that the mounting plate is
flush with the rear wall of the tailgate.
8. Feed the round bullet connectors on the end of the short wiring cable into a drain hole at the bottom of the tailgate and up
the tailgate to the handle opening. Connect them to the wires of the power tailgate lock.
9. Replace the handle in the tailgate. Align the holes of the handle, the power lock, and the tailgate and reinstall the three
mounting screws.
10. Connect the rod ends into the scissor links and snap the plastic bezel into place.
11. Route the end of the short cable from the tailgate between the bumper and the truck bed.
12. Connect the short wire harness to the long wire harness. Locate the connector so that you can reach it to remove the
tailgate. Coil and tie the extra length of the short wiring harness inside the tailgate. Don’t attach it to the truck.
13. Route the long wire harness along the frame rail and the existing wiring on the driver’s side of the truck. Use cable ties to
attach the harness to the existing wiring underneath the truck. Follow the existing wiring under the cab and up the firewall
to the grommet at the hood-release cable.
14. Pull the wires through the grommet and lead them to the blue connectors you attached to the wiring in Step 5. The system
is now fully installed. CLOSE THE TAILGATE. Perform a final check and reverse the wires if necessary.
12-27-11
For Tech Support call: 800 342 5911
For the latest instructions please visit www.popandlock.net
Page 2
POP & LOCK™ LIMITED WARRANTY FORM
Please complete and mail this form to record your warranty with the manufacturer.
NAME _______________________________________
ADDRESS_____________________________________
CITY_________________________________________
STATE________ZIP_________________
TELEPHONE #_________________________________
EMAIL ADDRESS ______________________________
POP & LOCK™ MODEL ________________________
VEHICLE YEAR ____________
VEHICLE MAKE/MODEL _______________________
REASON FOR RETURN (continue on other side):
Please Mail Completed Warranty Form (below) In Self Addressed Envelope To:
POP & LOCK LLC 1271 CONTRACT DRIVE GREEN BAY, WI USA 54304
Additional Install Instructions and answers to technical questions can be found on our website at www.popnlock.net or by calling
Technical Support 1-800-342-5911
Monday – Friday 8am to 5pm CST
LIMITED WARRANTY TERMS AND CONDITIONS
(1) Installation. Pop & Lock™, LLC (and Pop & Lock™ Corporation) is not responsible for installing the Pop & Lock™ or for the
harm suffered by any person as a result installing it.
(2) Warranties.
a. Customer acknowledges that it is unreasonable to believe that any device whatever will prevent a theft in the case
of every attempt and that the most that can be expected from a so-called anti-theft or security device is that it will
deter many thieves.
b. POP & LOCK™ LLC. (and Pop & Lock™ Corporation) MAKES, AND CUSTOMER RECEIVES, NO WARRANTY,
EXPRESSED OR IMPLIED, EXCEPT THE WARRANTIES OF TITLE TO THE POP & LOCK™ AND THEIR
MERCHANTABILITY, PARTICULARILY NO WARRANTY OF FITNESS FOR A PARTICULAR USE OR PURPOSE OR
AGAINST INFRINGEMENT.
c. As Customer’s only remedy, Pop & Lock™, LLC (and Pop & Lock™ Corporation) will repair or replace, at its option
and without charge, any lock that is defective in material or workmanship when received by Customer and is
returned to Pop & Lock™ LLC (and Pop & Lock™ Corporation), FOB Pop & Lock™ Corporation’s offices, within one
(1) year after it’s receipt by the Customer. Pop & Lock LLC will ship all replacement, or repaired, Locks to
Customer, FOB Pop & Lock™’s shipping point.
d. Factory support is only available for Pop & Lock™ products purchased as new through an Authorized Pop & Lock™
dealer.
Please Note: Pop & Lock™ Products purchased on auction sites such as Ebay, Amazon and Craigslist, to name a
few, will not be covered under factory warranty under any circumstance. Pop & Lock™, LLC (and Pop & Lock™
Corporation) is unable to verify whether products sold through Auction Sites are new, used, or refurbished, and
as such, Pop & Lock, LLC (and Pop & Lock™ Corporation) is unable to warranty such purchases. Pop & Lock, LLC
advises using extreme caution when buying through auction sites as you'll be doing so at your own risk.
(3) No Liability. Pop & Lock™ Corporation is not liable for any loss or damage claimed by Customer or any third person to have
been suffered or incurred as a result or, or related to, the Locks purchased under this Agreement, regardless of the
circumstances or form of action, except any bodily injury or death for which Pop & Lock™ is liable under products-liability
law. Without limiting the generality of the foregoing, in no event will Pop & Lock™ LLC be liable to Customer for any
indirect, special, or consequential damages, regardless of the circumstances or the cause of action, particularly not for the
value of a vehicle, or any other money damages in the event that a tailgate is stolen either notwithstanding the use of a Pop
& Lock™ or when it has been returned for repair or replacement.
END OF TERMS AND CONDITIONS
