Page 1
Step 4: Remove the plastic gasket by pulling it off the OEM handle and reinstall
it onto the Pop and Lock handle ensuring it is seated on the 3 plastic posts.
-Install the Pop and Lock handle into the tailgate. Put the bottom of the handle
into the tailgate first then rock the top of the handle into the tailgate. The tabs
on the gasket should snap past the sheet metal (hold the handle in place to
prevent the handle from falling out).
-Install the two 10mm bolts that fasten the handle to the tailgate.
-If truck has backup camera, remove the camera cover from the PL5500 by
pushing in on the 2 snap tabs and popping the cover off of the handle. Position
the camera on the handle and install the two 10mm bolts to fasten the camera.
-Install the rods into the clips and turn the clips till they snap onto the rods.
(Do not install the access panel back onto the truck yet)

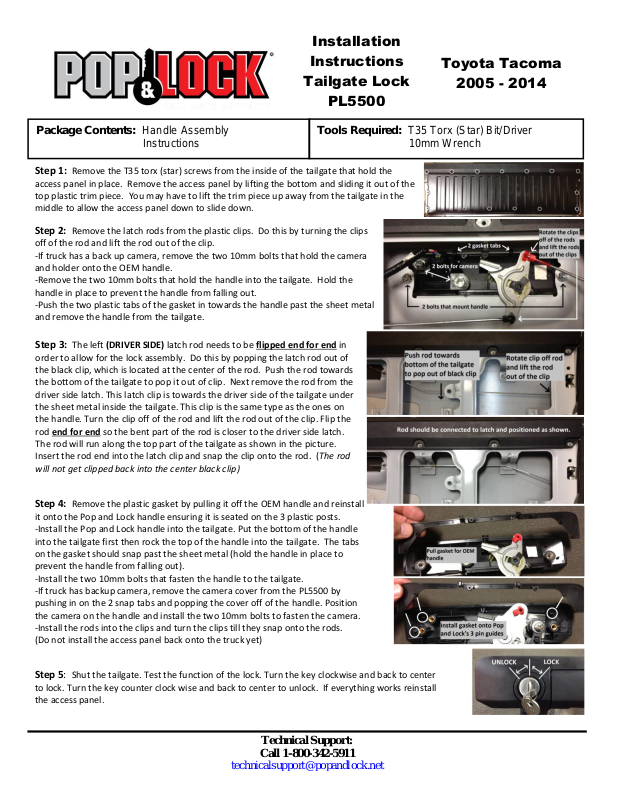

Installation
Instructions
Tailgate Lock
Toyota Tacoma
2005 - 2014
Tools Required: T35 Torx (Star) Bit/Driver
10mm Wrench
Step 5: Shut the tailgate. Test the function of the lock. Turn the key clockwise and back to center
to lock. Turn the key counter clock wise and back to center to unlock. If everything works reinstall
the access panel.
Package Contents: Handle Assembly
Instructions
Step 1: Remove the T35 torx (star) screws from the inside of the tailgate that hold the
access panel in place. Remove the access panel by lifting the bottom and sliding it out of the
top plastic trim piece. You may have to lift the trim piece up away from the tailgate in the
middle to allow the access panel down to slide down.
Step 3: The left (DRIVER SIDE) latch rod needs to be flipped end for end in
order to allow for the lock assembly. Do this by popping the latch rod out of
the black clip, which is located at the center of the rod. Push the rod towards
the bottom of the tailgate to pop it out of clip. Next remove the rod from the
driver side latch. This latch clip is towards the driver side of the tailgate under
the sheet metal inside the tailgate. This clip is the same type as the ones on
the handle. Turn the clip off of the rod and lift the rod out of the clip. Flip the
rod end for end so the bent part of the rod is closer to the driver side latch.
The rod will run along the top part of the tailgate as shown in the picture.
Insert the rod end into the latch clip and snap the clip onto the rod. (The rod
will not get clipped back into the center black clip)
Step 2: Remove the latch rods from the plastic clips. Do this by turning the clips
off of the rod and lift the rod out of the clip.
-If truck has a back up camera, remove the two 10mm bolts that hold the camera
and holder onto the OEM handle.
-Remove the two 10mm bolts that hold the handle into the tailgate. Hold the
handle in place to prevent the handle from falling out.
-Push the two plastic tabs of the gasket in towards the handle past the sheet metal
and remove the handle from the tailgate.
Page 2
LIMITED WARRANTY TERMS AND CONDITIONS
(1) Installation. Pop & Lock™, LLC (and Pop & Lock™ Corporation) is not responsible for installing the Pop &
Lock™ or for the harm suffered by any person as a result installing it.
(2) Warranties.
a. Customer acknowledges that it is unreasonable to believe that any device whatever will prevent a theft in the
case of every attempt and that the most that can be expected from a so-called anti-theft or security device is
that it will deter many thieves.
b. POP & LOCK™ LLC. (and Pop & Lock™ Corporation) MAKES, AND CUSTOMER RECEIVES, NO
WARRANTY, EXPRESSED OR IMPLIED, EXCEPT THE WARRANTIES OF TITLE TO THE POP &
LOCK™ AND THEIR MERCHANTABILITY, PARTICULARILY NO WARRANTY OF FITNESS FOR
A PARTICULAR USE OR PURPOSE OR AGAINST INFRINGEMENT.
c. As Customer’s only remedy, Pop & Lock™, LLC (and Pop & Lock™ Corporation) will repair or replace, at its
option and without charge, any lock that is defective in material or workmanship when received by
Customer and is returned to Pop & Lock™ LLC (and Pop & Lock™ Corporation), FOB Pop & Lock™
Corporation’s offices, within one (1) year after it’s receipt by the Customer. Pop & Lock LLC will ship all
replacement, or repaired, Locks to Customer, FOB Pop & LockTM’s shipping point.
d. Factory support is only available for Pop & Lock™ products purchased as new through an Authorized Pop &
Lock™
dealer.
Please Note: Pop & Lock™ Products purchased on auction sites such as Ebay, Amazon and
Craigslist, to name a few, will not be covered under factory warranty under any circumstance. Pop &
Lock™, LLC (and Pop & Lock™ Corporation) is unable to verify whether products sold through
Auction Sites are new, used, or refurbished, and as such, Pop & Lock, LLC (and Pop & Lock™
Corporation) is unable to warranty such purchases. Pop & Lock, LLC advises using extreme caution
when buying through auction sites as you'll be doing so at your own risk.
(3) No Liability. Pop & Lock™ Corporation is not liable for any loss or damage claimed by Customer or any third person
to have been suffered or incurred as a result or, or related to, the Locks purchased under this Agreement, regardless
of the circumstances or form of action, except any bodily injury or death for which Pop & Lock™ is liable under
products-liability law. Without limiting the generality of the foregoing, in no event will Pop & Lock™ LLC be liable to
Customer for any indirect, special, or consequential damages, regardless of the circumstances or the cause of
action, particularly not for the value of a vehicle, or any other money damages in the event that a tailgate is stolen
either notwithstanding the use of a Pop
& Lock™ or when it has been returned for repair or replacement.
END OF TERMS AND CONDITIONS
Please Mail Completed Warranty Form (below) In Self Addressed Envelope To:
POP & LOCK LLC 1271 CONTRACT DRIVE GREEN BAY, WI USA 54304
Additional Install Instructions and answers to technical questions can be found on our website at www.popnlock.net or by
calling
Technical Support 1-800-342-5911
Monday – Friday 8am to 5pm CST
