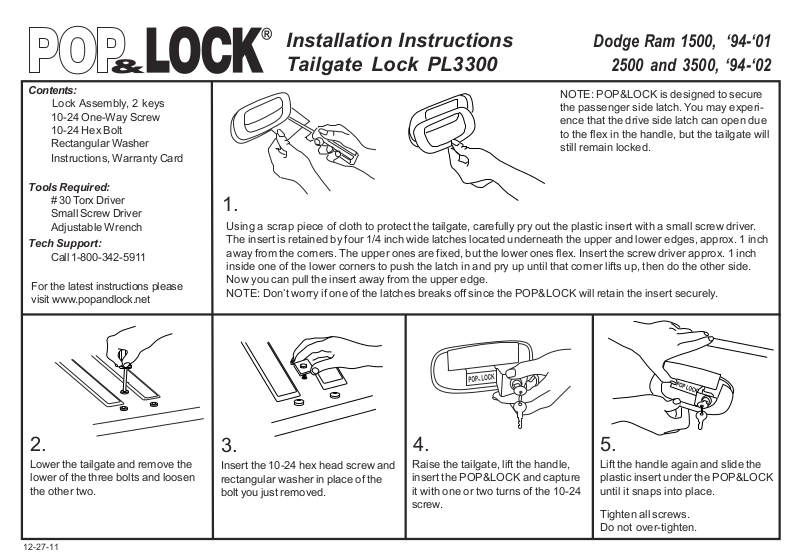

Installation Instructions Dodge Ram 1500, ‘94-‘01
Tailgate Lock PL3300 2500 and 3500, ‘94-‘02
Contents:
Lock Assembly, 2 keys
10-24 One-Way Screw
10-24 Hex Bolt
Rectangular Washer
Instructions, Warranty Card
Tools Required:
# 30 Torx Driver
Small Screw Driver
Adjustable Wrench
Tech Support:
Call 1-800-342-5911
For the latest instructions please
visit www.popandlock.net
NOTE: POP&LOCK is designed to secure
the passenger side latch. You may experience that the drive side latch can open due
to the flex in the handle, but the tailgate will
still remain locked.
1.
Using a scrap piece of cloth to protect the tailgate, carefully pry out the plastic insert with a small screw driver.
The insert is retained by four 1/4 inch wide latches located underneath the upper and lower edges, approx. 1 inch
away from the corners. The upper ones are fixed, but the lower ones flex. Insert the screw driver approx. 1 inch
inside one of the lower corners to push the latch in and pry up until that corner lifts up, then do the other side.
Now you can pull the insert away from the upper edge.
NOTE: Don’t worry if one of the latches breaks off since the POP&LOCK will retain the insert securely.
2.
Lower the tailgate and remove the
lower of the three bolts and loosen
the other two.
12-27-11
3.
Insert the 10-24 hex head screw and
rectangular washer in place of the
bolt you just removed.
4.
Raise the tailgate, lift the handle,
insert the POP&LOCK and capture
it with one or two turns of the 10-24
screw.
5.
Lift the handle again and slide the
plastic insert under the POP&LOCK
until it snaps into place.
Tighten all screws.
Do not over-tighten.
Page 2
POP & LOCK™ LIMITED WARRANTY FORM
Please complete and mail this form to record your warranty with the manufacturer.
NAME _______________________________________
ADDRESS_____________________________________
CITY_________________________________________
STATE________ZIP_________________
TELEPHONE #_________________________________
EMAIL ADDRESS ______________________________
POP & LOCK™ MODEL ________________________
VEHICLE YEAR ____________
VEHICLE MAKE/MODEL _______________________
REASON FOR RETURN (continue on other side):
Please Mail Completed Warranty Form (below) In Self Addressed Envelope To:
POP & LOCK LLC 1271 CONTRACT DRIVE GREEN BAY, WI USA 54304
Additional Install Instructions and answers to technical questions can be found on our website at www.popnlock.net or by calling
Technical Support 1-800-342-5911
Monday – Friday 8am to 5pm CST
LIMITED WARRANTY TERMS AND CONDITIONS
(1) Installation. Pop & Lock™, LLC (and Pop & Lock™ Corporation) is not responsible for installing the Pop & Lock™ or for the
harm suffered by any person as a result installing it.
(2) Warranties.
a. Customer acknowledges that it is unreasonable to believe that any device whatever will prevent a theft in the case
of every attempt and that the most that can be expected from a so-called anti-theft or security device is that it will
deter many thieves.
b. POP & LOCK™ LLC. (and Pop & Lock™ Corporation) MAKES, AND CUSTOMER RECEIVES, NO WARRANTY,
EXPRESSED OR IMPLIED, EXCEPT THE WARRANTIES OF TITLE TO THE POP & LOCK™ AND THEIR
MERCHANTABILITY, PARTICULARILY NO WARRANTY OF FITNESS FOR A PARTICULAR USE OR PURPOSE OR
AGAINST INFRINGEMENT.
c. As Customer’s only remedy, Pop & Lock™, LLC (and Pop & Lock™ Corporation) will repair or replace, at its option
and without charge, any lock that is defective in material or workmanship when received by Customer and is
returned to Pop & Lock™ LLC (and Pop & Lock™ Corporation), FOB Pop & Lock™ Corporation’s offices, within one
(1) year after it’s receipt by the Customer. Pop & Lock LLC will ship all replacement, or repaired, Locks to
Customer, FOB Pop & Lock™’s shipping point.
d. Factory support is only available for Pop & Lock™ products purchased as new through an Authorized Pop & Lock™
dealer.
Please Note: Pop & Lock™ Products purchased on auction sites such as Ebay, Amazon and Craigslist, to name a
few, will not be covered under factory warranty under any circumstance. Pop & Lock™, LLC (and Pop & Lock™
Corporation) is unable to verify whether products sold through Auction Sites are new, used, or refurbished, and
as such, Pop & Lock, LLC (and Pop & Lock™ Corporation) is unable to warranty such purchases. Pop & Lock, LLC
advises using extreme caution when buying through auction sites as you'll be doing so at your own risk.
(3) No Liability. Pop & Lock™ Corporation is not liable for any loss or damage claimed by Customer or any third person to have
been suffered or incurred as a result or, or related to, the Locks purchased under this Agreement, regardless of the
circumstances or form of action, except any bodily injury or death for which Pop & Lock™ is liable under products-liability
law. Without limiting the generality of the foregoing, in no event will Pop & Lock™ LLC be liable to Customer for any
indirect, special, or consequential damages, regardless of the circumstances or the cause of action, particularly not for the
value of a vehicle, or any other money damages in the event that a tailgate is stolen either notwithstanding the use of a Pop
& Lock™ or when it has been returned for repair or replacement.
END OF TERMS AND CONDITIONS
