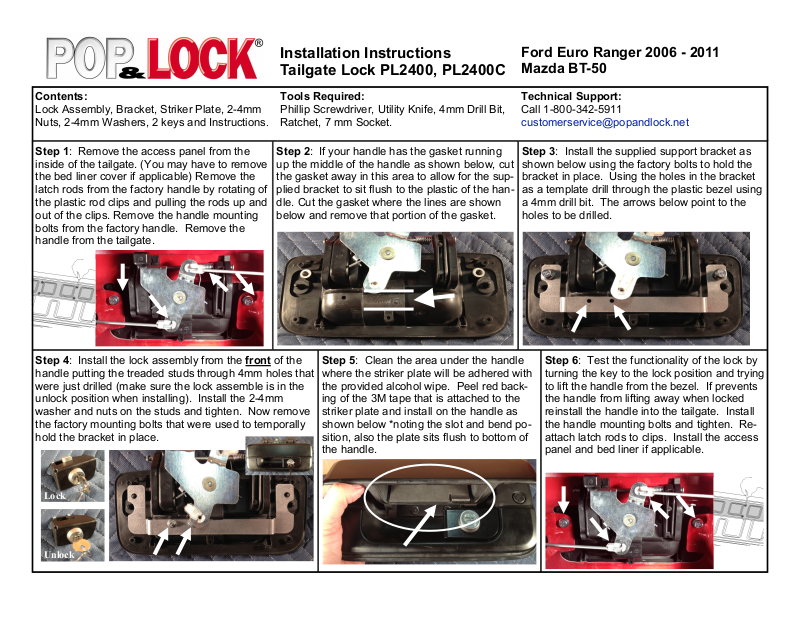

Installation Instructions
Tailgate Lock PL2400, PL2400C
Ford Euro Ranger 2006 - 2011
Mazda BT-50
Contents:
Lock Assembly, Bracket, Striker Plate, 2-4mm
Nuts, 2-4mm Washers, 2 keys and Instructions.
Step 1: Remove the access panel from the
inside of the tailgate. (You may have to remove
the bed liner cover if applicable) Remove the
latch rods from the factory handle by rotating of
the plastic rod clips and pulling the rods up and
out of the clips. Remove the handle mounting
bolts from the factory handle. Remove the
handle from the tailgate.
Step 4: Install the lock assembly from the front of the
handle putting the treaded studs through 4mm holes that
were just drilled (make sure the lock assemble is in the
unlock position when installing). Install the 2-4mm
washer and nuts on the studs and tighten. Now remove
the factory mounting bolts that were used to temporally
hold the bracket in place.
Tools Required:
Phillip Screwdriver, Utility Knife, 4mm Drill Bit,
Ratchet, 7 mm Socket.
Step 2: If your handle has the gasket running
up the middle of the handle as shown below, cut
the gasket away in this area to allow for the supplied bracket to sit flush to the plastic of the handle. Cut the gasket where the lines are shown
below and remove that portion of the gasket.
Technical Support:
Call 1-800-342-5911
Step 3: Install the supplied support bracket as
shown below using the factory bolts to hold the
bracket in place. Using the holes in the bracket
as a template drill through the plastic bezel using
a 4mm drill bit. The arrows below point to the
holes to be drilled.
Step 5: Clean the area under the handle
where the striker plate will be adhered with
the provided alcohol wipe. Peel red backing of the 3M tape that is attached to the
striker plate and install on the handle as
shown below *noting the slot and bend position, also the plate sits flush to bottom of
the handle.
Step 6: Test the functionality of the lock by
turning the key to the lock position and trying
to lift the handle from the bezel. If prevents
the handle from lifting away when locked
reinstall the handle into the tailgate. Install
the handle mounting bolts and tighten. Reattach latch rods to clips. Install the access
panel and bed liner if applicable.
Lock
Unlock
Page 2
POP & LOCK™ LIMITED WARRANTY FORM
Please complete and mail this form to record your warranty with the manufacturer.
NAME _______________________________________
ADDRESS_____________________________________
CITY_________________________________________
STATE________ZIP_________________
TELEPHONE #_________________________________
EMAIL ADDRESS ______________________________
POP & LOCK™ MODEL ________________________
VEHICLE YEAR ____________
VEHICLE MAKE/MODEL _______________________
REASON FOR RETURN (continue on other side):
Please Mail Completed Warranty Form (below) In Self Addressed Envelope To:
POP & LOCK LLC 1271 CONTRACT DRIVE GREEN BAY, WI USA 54304
Additional Install Instructions and answers to technical questions can be found on our website at www.popnlock.net or by calling
Technical Support 1-800-342-5911
Monday – Friday 8am to 5pm CST
LIMITED WARRANTY TERMS AND CONDITIONS
(1) Installation. Pop & Lock™, LLC (and Pop & Lock™ Corporation) is not responsible for installing the Pop & Lock™ or for the
harm suffered by any person as a result installing it.
(2) Warranties.
a. Customer acknowledges that it is unreasonable to believe that any device whatever will prevent a theft in the case
of every attempt and that the most that can be expected from a so-called anti-theft or security device is that it will
deter many thieves.
b. POP & LOCK™ LLC. (and Pop & Lock™ Corporation) MAKES, AND CUSTOMER RECEIVES, NO WARRANTY,
EXPRESSED OR IMPLIED, EXCEPT THE WARRANTIES OF TITLE TO THE POP & LOCK™ AND THEIR
MERCHANTABILITY, PARTICULARILY NO WARRANTY OF FITNESS FOR A PARTICULAR USE OR PURPOSE OR
AGAINST INFRINGEMENT.
c. As Customer’s only remedy, Pop & Lock™, LLC (and Pop & Lock™ Corporation) will repair or replace, at its option
and without charge, any lock that is defective in material or workmanship when received by Customer and is
returned to Pop & Lock™ LLC (and Pop & Lock™ Corporation), FOB Pop & Lock™ Corporation’s offices, within one
(1) year after it’s receipt by the Customer. Pop & Lock LLC will ship all replacement, or repaired, Locks to
Customer, FOB Pop & Lock™’s shipping point.
d. Factory support is only available for Pop & Lock™ products purchased as new through an Authorized Pop & Lock™
dealer.
Please Note: Pop & Lock™ Products purchased on auction sites such as Ebay, Amazon and Craigslist, to name a
few, will not be covered under factory warranty under any circumstance. Pop & Lock™, LLC (and Pop & Lock™
Corporation) is unable to verify whether products sold through Auction Sites are new, used, or refurbished, and
as such, Pop & Lock, LLC (and Pop & Lock™ Corporation) is unable to warranty such purchases. Pop & Lock, LLC
advises using extreme caution when buying through auction sites as you'll be doing so at your own risk.
(3) No Liability. Pop & Lock™ Corporation is not liable for any loss or damage claimed by Customer or any third person to have
been suffered or incurred as a result or, or related to, the Locks purchased under this Agreement, regardless of the
circumstances or form of action, except any bodily injury or death for which Pop & Lock™ is liable under products-liability
law. Without limiting the generality of the foregoing, in no event will Pop & Lock™ LLC be liable to Customer for any
indirect, special, or consequential damages, regardless of the circumstances or the cause of action, particularly not for the
value of a vehicle, or any other money damages in the event that a tailgate is stolen either notwithstanding the use of a Pop
& Lock™ or when it has been returned for repair or replacement.
END OF TERMS AND CONDITIONS
