Page 1

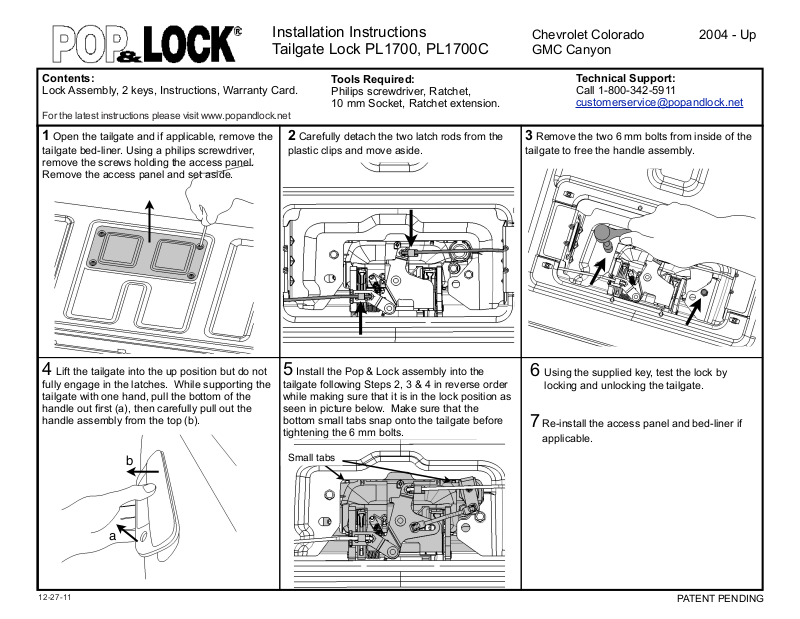

Installation Instructions
b
a
Tailgate Lock PL1700, PL1700C
Chevrolet Colorado 2004 - Up
GMC Canyon
Contents:
Lock Assembly, 2 keys, Instructions, Warranty Card.
For the latest instructions please visit www.popandlock.net
1
Open the tailgate and if applicable, remove the
tailgate bed-liner. Using a philips screwdriver,
remove the screws holding the access panel.
Remove the access panel and set aside.
4
Lift the tailgate into the up position but do not
fully engage in the latches. While supporting the
tailgate with one hand, pull the bottom of the
handle out first (a), then carefully pull out the
handle assembly from the top (b).
2
plastic clips and move aside.
5 Install the Pop & Lock assembly into the
tailgate following Steps 2, 3 & 4 in reverse order
while making sure that it is in the lock position as
seen in picture below. Make sure that the
bottom small tabs snap onto the tailgate before
tightening the 6 mm bolts.
Tools Required:
Philips screwdriver, Ratchet,
10 mm Socket, Ratchet extension.
Carefully detach the two latch rods from the
Technical Support:
Call 1-800-342-5911
3
Remove the two 6 mm bolts from inside of the
tailgate to free the handle assembly.
6
Using the supplied key, test the lock by
locking and unlocking the tailgate.
7 Re-install the access panel and bed-liner if
applicable.
12-27-11
Small tabs
PATENT PENDING
Page 2
POP & LOCK™ LIMITED WARRANTY FORM
Please complete and mail this form to record your warranty with the manufacturer.
NAME _______________________________________
ADDRESS_____________________________________
CITY_________________________________________
STATE________ZIP_________________
TELEPHONE #_________________________________
EMAIL ADDRESS ______________________________
POP & LOCK™ MODEL ________________________
VEHICLE YEAR ____________
VEHICLE MAKE/MODEL _______________________
REASON FOR RETURN (continue on other side):
Please Mail Completed Warranty Form (below) In Self Addressed Envelope To:
POP & LOCK LLC 1271 CONTRACT DRIVE GREEN BAY, WI USA 54304
Additional Install Instructions and answers to technical questions can be found on our website at www.popnlock.net or by calling
Technical Support 1-800-342-5911
Monday – Friday 8am to 5pm CST
LIMITED WARRANTY TERMS AND CONDITIONS
(1) Installation. Pop & Lock™, LLC (and Pop & Lock™ Corporation) is not responsible for installing the Pop & Lock™ or for the
harm suffered by any person as a result installing it.
(2) Warranties.
a. Customer acknowledges that it is unreasonable to believe that any device whatever will prevent a theft in the case
of every attempt and that the most that can be expected from a so-called anti-theft or security device is that it will
deter many thieves.
b. POP & LOCK™ LLC. (and Pop & Lock™ Corporation) MAKES, AND CUSTOMER RECEIVES, NO WARRANTY,
EXPRESSED OR IMPLIED, EXCEPT THE WARRANTIES OF TITLE TO THE POP & LOCK™ AND THEIR
MERCHANTABILITY, PARTICULARILY NO WARRANTY OF FITNESS FOR A PARTICULAR USE OR PURPOSE OR
AGAINST INFRINGEMENT.
c. As Customer’s only remedy, Pop & Lock™, LLC (and Pop & Lock™ Corporation) will repair or replace, at its option
and without charge, any lock that is defective in material or workmanship when received by Customer and is
returned to Pop & Lock™ LLC (and Pop & Lock™ Corporation), FOB Pop & Lock™ Corporation’s offices, within one
(1) year after it’s receipt by the Customer. Pop & Lock LLC will ship all replacement, or repaired, Locks to
Customer, FOB Pop & Lock™’s shipping point.
d. Factory support is only available for Pop & Lock™ products purchased as new through an Authorized Pop & Lock™
dealer.
Please Note: Pop & Lock™ Products purchased on auction sites such as Ebay, Amazon and Craigslist, to name a
few, will not be covered under factory warranty under any circumstance. Pop & Lock™, LLC (and Pop & Lock™
Corporation) is unable to verify whether products sold through Auction Sites are new, used, or refurbished, and
as such, Pop & Lock, LLC (and Pop & Lock™ Corporation) is unable to warranty such purchases. Pop & Lock, LLC
advises using extreme caution when buying through auction sites as you'll be doing so at your own risk.
(3) No Liability. Pop & Lock™ Corporation is not liable for any loss or damage claimed by Customer or any third person to have
been suffered or incurred as a result or, or related to, the Locks purchased under this Agreement, regardless of the
circumstances or form of action, except any bodily injury or death for which Pop & Lock™ is liable under products-liability
law. Without limiting the generality of the foregoing, in no event will Pop & Lock™ LLC be liable to Customer for any
indirect, special, or consequential damages, regardless of the circumstances or the cause of action, particularly not for the
value of a vehicle, or any other money damages in the event that a tailgate is stolen either notwithstanding the use of a Pop
& Lock™ or when it has been returned for repair or replacement.
END OF TERMS AND CONDITIONS
