Contents:
Lock Assembly, 2 keys
1/4-20 One-Way Screw (2)
1/4-20 Hex Bolt (2)
Small Washer (2) ID 0.32”OD 0.75”
Instructions, Warranty Card

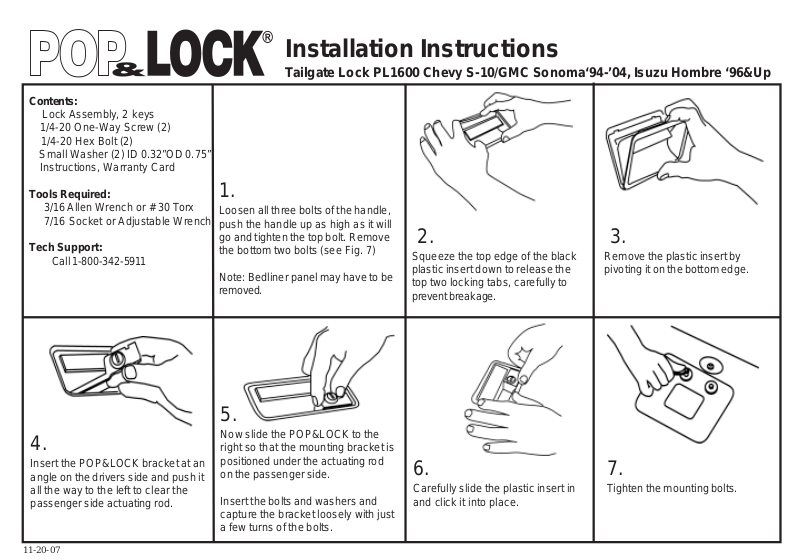

Installation Instructions
Tailgate Lock PL1600 Chevy S-10/GMC Sonoma‘94-’04, Isuzu Hombre ‘96&Up
Tools Required:
3/16 Allen W rench or # 30 Torx
7/16 Socket or Adjustable Wrench
Tech Support:
Call 1-800-342-591 1
4.

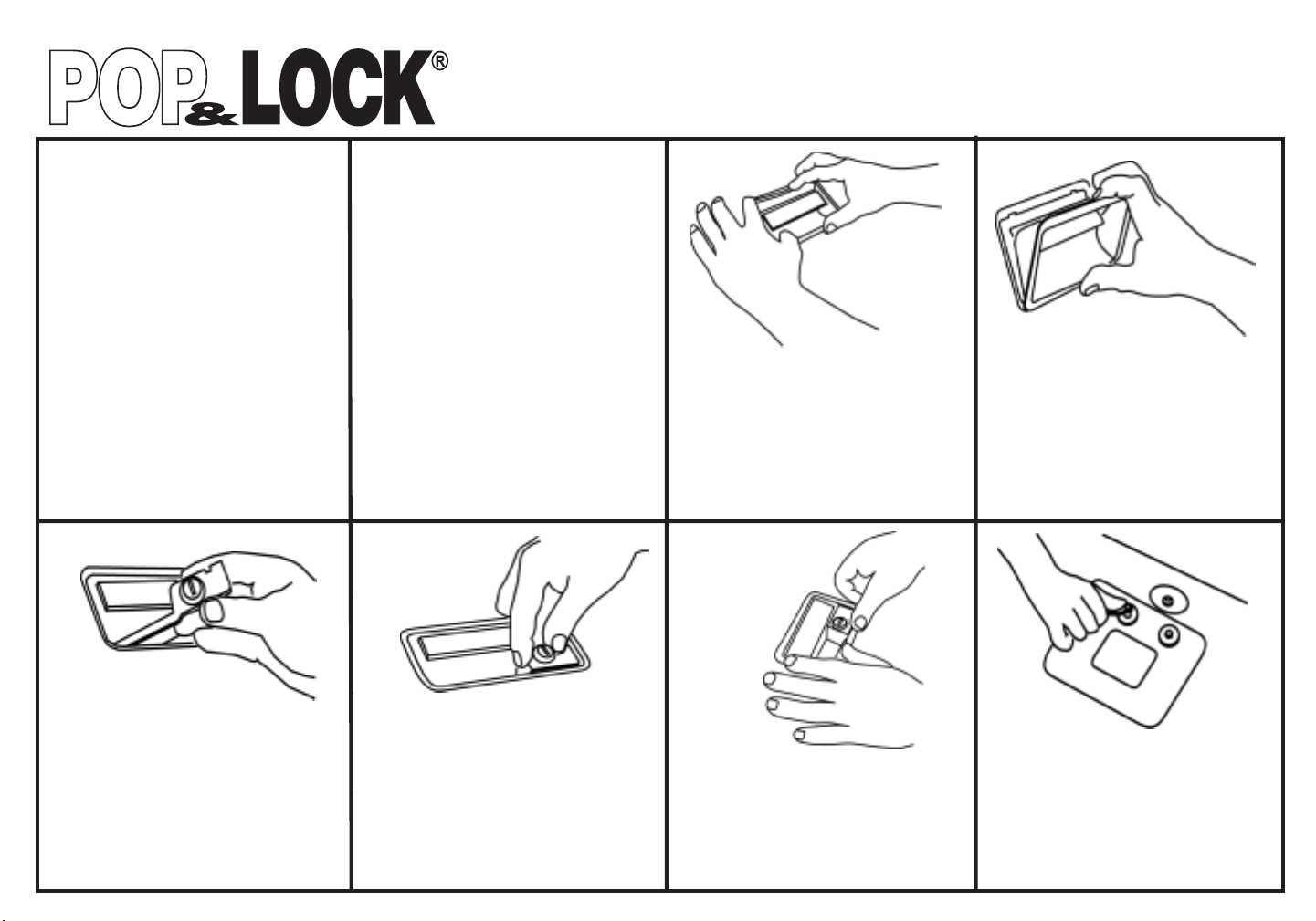

Insert the POP&LOCK bracket at an
angle on the drivers side and push it
all the way to the left to clear the
passenger side actuating rod.
1.
Loosen all three bolts of the handle,
push the handle up as high as it will
go and tighten the top bolt. Remove
the bottom two bolts (see Fig. 7)
Note: Bedliner panel may have to be
removed.
5.
Now slide the POP&LOCK to the
right so that the mounting bracket is
positioned under the actuating rod
on the passenger side.
Insert the bolts and washers and
capture the bracket loosely with just
a few turns of the bolts.
2.
Squeeze the top edge of the black
plastic insert down to release the
top two locking tabs, carefully to
prevent breakage.
6.
Carefully slide the plastic insert in
and click it into place.
3.
Remove the plastic insert by
pivoting it on the bottom edge.
7.
Tighten the mounting bolts.
11-20-07
