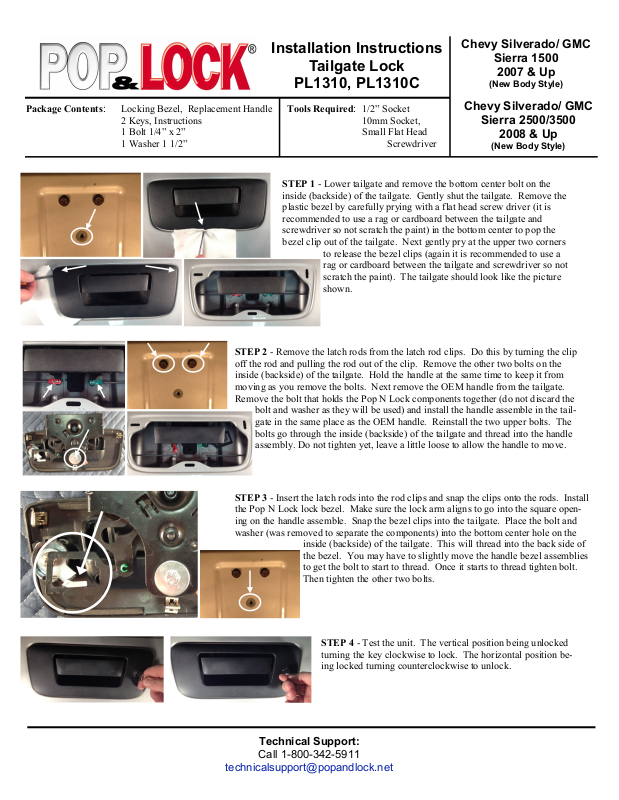

Page 1
Package Contents:
Locking Bezel, Replacement Handle
2 Keys, Instructions
1 Bolt 1/4” x 2”
1 Washer 1 1/2”
Installation Instructions
Chevy Silverado/ GMC
Sierra 1500
Tailgate Lock
PL1310, PL1310C
Tools Required:
STEP 1 - Lower tailgate and remove the bottom center bolt on the
inside (backside) of the tailgate. Gently shut the tailgate. Remove the
plastic bezel by carefully prying with a flat head screw driver (it is
recommended to use a rag or cardboard between the tailgate and
screwdriver so not scratch the paint) in the bottom center to pop the
bezel clip out of the tailgate. Next gently pry at the upper two corners
to release the bezel clips (again it is recommended to use a
rag or cardboard between the tailgate and screwdriver so not
scratch the paint). The tailgate should look like the picture
shown.
1/2” Socket
10mm Socket,
Small Flat Head
Screwdriver
Chevy Silverado/ GMC
2007 & Up
(New Body Style)
Sierra 2500/3500
2008 & Up
(New Body Style)
STEP 2 - Remove the latch rods from the latch rod clips. Do this by turning the clip
off the rod and pulling the rod out of the clip. Remove the other two bolts on the
inside (backside) of the tailgate. Hold the handle at the same time to keep it from
moving as you remove the bolts. Next remove the OEM handle from the tailgate.
Remove the bolt that holds the Pop N Lock components together (do not discard the
bolt and washer as they will be used) and install the handle assemble in the tailgate in the same place as the OEM handle. Reinstall the two upper bolts. The
bolts go through the inside (backside) of the tailgate and thread into the handle
assembly. Do not tighten yet, leave a little loose to allow the handle to move.
STEP 3 - Insert the latch rods into the rod clips and snap the clips onto the rods. Install
the Pop N Lock lock bezel. Make sure the lock arm aligns to go into the square opening on the handle assemble. Snap the bezel clips into the tailgate. Place the bolt and
washer (was removed to separate the components) into the bottom center hole on the
inside (backside) of the tailgate. This will thread into the back side of
the bezel. You may have to slightly move the handle bezel assemblies
to get the bolt to start to thread. Once it starts to thread tighten bolt.
Then tighten the other two bolts.
STEP 4 - Test the unit. The vertical position being unlocked
turning the key clockwise to lock. The horizontal position being locked turning counterclockwise to unlock.
Technical Support:
Call 1-800-342-5911
Page 2
POP & LOCK™ LIMITED WARRANTY FORM
Please complete and mail this form to record your warranty with the manufacturer.
NAME _______________________________________
ADDRESS_____________________________________
CITY_________________________________________
STATE________ZIP_________________
TELEPHONE #_________________________________
EMAIL ADDRESS ______________________________
POP & LOCK™ MODEL ________________________
VEHICLE YEAR ____________
VEHICLE MAKE/MODEL _______________________
REASON FOR RETURN (continue on other side):
Please Mail Completed Warranty Form (below) In Self Addressed Envelope To:
POP & LOCK LLC 1271 CONTRACT DRIVE GREEN BAY, WI USA 54304
Additional Install Instructions and answers to technical questions can be found on our website at www.popnlock.net or by calling
Technical Support 1-800-342-5911
Monday – Friday 8am to 5pm CST
LIMITED WARRANTY TERMS AND CONDITIONS
(1) Installation. Pop & Lock™, LLC (and Pop & Lock™ Corporation) is not responsible for installing the Pop & Lock™ or for the
harm suffered by any person as a result installing it.
(2) Warranties.
a. Customer acknowledges that it is unreasonable to believe that any device whatever will prevent a theft in the case
of every attempt and that the most that can be expected from a so-called anti-theft or security device is that it will
deter many thieves.
b. POP & LOCK™ LLC. (and Pop & Lock™ Corporation) MAKES, AND CUSTOMER RECEIVES, NO WARRANTY,
EXPRESSED OR IMPLIED, EXCEPT THE WARRANTIES OF TITLE TO THE POP & LOCK™ AND THEIR
MERCHANTABILITY, PARTICULARILY NO WARRANTY OF FITNESS FOR A PARTICULAR USE OR PURPOSE OR
AGAINST INFRINGEMENT.
c. As Customer’s only remedy, Pop & Lock™, LLC (and Pop & Lock™ Corporation) will repair or replace, at its option
and without charge, any lock that is defective in material or workmanship when received by Customer and is
returned to Pop & Lock™ LLC (and Pop & Lock™ Corporation), FOB Pop & Lock™ Corporation’s offices, within one
(1) year after it’s receipt by the Customer. Pop & Lock LLC will ship all replacement, or repaired, Locks to
Customer, FOB Pop & Lock™’s shipping point.
d. Factory support is only available for Pop & Lock™ products purchased as new through an Authorized Pop & Lock™
dealer.
Please Note: Pop & Lock™ Products purchased on auction sites such as Ebay, Amazon and Craigslist, to name a
few, will not be covered under factory warranty under any circumstance. Pop & Lock™, LLC (and Pop & Lock™
Corporation) is unable to verify whether products sold through Auction Sites are new, used, or refurbished, and
as such, Pop & Lock, LLC (and Pop & Lock™ Corporation) is unable to warranty such purchases. Pop & Lock, LLC
advises using extreme caution when buying through auction sites as you'll be doing so at your own risk.
(3) No Liability. Pop & Lock™ Corporation is not liable for any loss or damage claimed by Customer or any third person to have
been suffered or incurred as a result or, or related to, the Locks purchased under this Agreement, regardless of the
circumstances or form of action, except any bodily injury or death for which Pop & Lock™ is liable under products-liability
law. Without limiting the generality of the foregoing, in no event will Pop & Lock™ LLC be liable to Customer for any
indirect, special, or consequential damages, regardless of the circumstances or the cause of action, particularly not for the
value of a vehicle, or any other money damages in the event that a tailgate is stolen either notwithstanding the use of a Pop
& Lock™ or when it has been returned for repair or replacement.
END OF TERMS AND CONDITIONS
