Pope 101PHT25 Operator's Manual

To reduce the risk of injury, the user must read and understand the operator’s manual.
Save this manual.

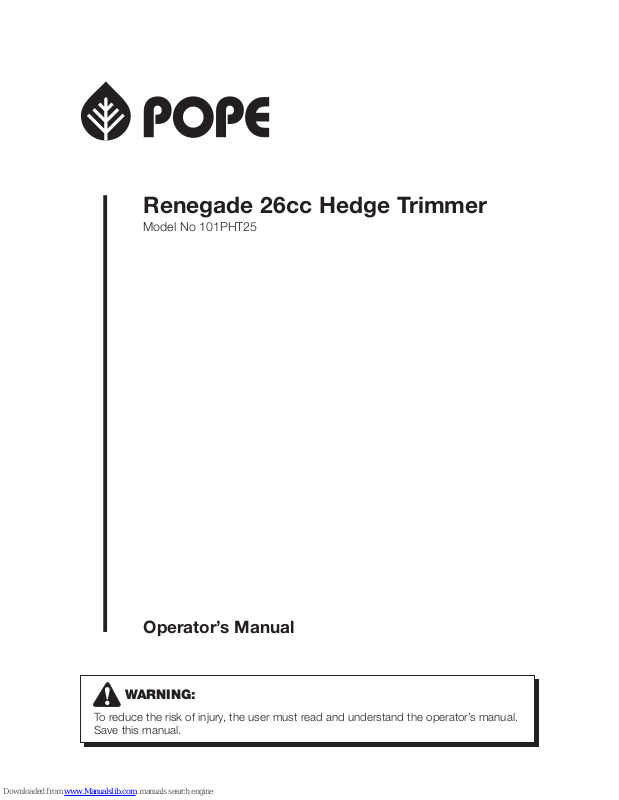

Renegade 26cc Hedge Trimmer

Model No 101PHT25

Operator’s Manual

WARNING:

Before you use your new hedge trimmer, read this manual carefully to learn how
to operate and maintain your product correctly. Reading this manual will help
you and others avoid personal injury and damage to the product. Although
Pope designs safe state-of-the-art products, you are responsible for using the
product properly and safely. You are also responsible for training persons you
allow to use the product about safe operation.

READ THIS INFORMATION

STOP

Introduction

Thank you for purchasing a Pope®product.

We would like you to be completely satisfied with your new product, so feel free to contact an
authorised service dealer for help with service, genuine Pope parts or other information you
may require. Or phone the Pope Customer Service Centre for details of your nearest dealer
on 1300 134 880.

The Pope warning system in this manual identifies potential hazards and special safety messages
that help you and others avoid personal injury, even death. DANGER, WARNING and CAUTION are
signal words that identify the level of hazard. However, regardless of the hazard, be extremely careful.
Two other words “Important” and “Note” highlight other valuable information.

Signal Word Explanation

DANGER Indicates an imminently hazardous situation which, if not avoided,

will result in death or serious injury.

WARNING Indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION Indicates a potentially hazardous situation which if not avoided,

could result in death or serious injury.

Important Advises you of important information or instructions vital to the

operation or maintenance of the equipment.

Note Advises you of additional information concerning the operation or

maintenance of the equipment.

Contents

Safety Rules ............................................................................................................................................. 4

Symbols

..................................................................................................................................................... 5

Specifications ......................................................................................................................................... 6

Applications ............................................................................................................................................. 6

Features

..................................................................................................................................................... 7

Assembly.................................................................................................................................................... 8

Unpacking

................................................................................................................................................ 9

Operation .................................................................................................................................................. 10

Mixing the Fuel ................................................................................................................................... 10

Filling the Tank .................................................................................................................................... 10

To Start a Cold Engine ..................................................................................................................... 11

Starting a Warm Engine ................................................................................................................... 12

Switching Off the Engine ................................................................................................................. 12

Adjusting the Handle ........................................................................................................................ 12

Operating the Hedge Trimmer ....................................................................................................... 13

Maintenance ........................................................................................................................................... 14

Cleaning the Product ....................................................................................................................... 15

Maintaining the Blades .................................................................................................................... 15

Cleaning the Air Filter ....................................................................................................................... 16

Replacing the Spark Plug ............................................................................................................... 17

Storing the Product .............................................................................................................................. 17

Troubleshooting .................................................................................................................................... 18

Warranty ................................................................................................................................................... 19

■ Physical Condition of the Operator. Do

not operate this product when tired, ill or
under the influence of alcohol, drugs or
medication.

■ Clothing Requirements. Always wear long

heavy pants, boots and gloves. Do not wear
loose clothing, jewellery, short pants, sandals
or go barefoot. Secure hair so that it is above
shoulder level to avoid entanglement in
moving parts.

■ Protective Accessories Requirements.

Wear safety eye protection and thick work
gloves when operating this product. Wear
hearing protection during extended periods
of operation.

■ Condition of Product Before Use. Inspect

the product before each use, particularly the
throttle trigger, stop switch, and cutting tool.
Replace damaged parts. Check for fuel
leaks. Make sure all fasteners are in place
and secure. Replace blades or parts that are
cracked, chipped or damaged in any way.
Always keep the blade sharp. Make sure the
safety guard is properly installed and in the
position recommended by the manufacturer.

■ Proper Stance. Keep firm footings and

balance. Do not overreach. Keep the hedge
trimmer away from all parts of your body and
away from hot surfaces.

■ Exhaust Gases. Never start or run the

product inside a closed room or building:
breathing exhaust fumes can cause illness or
death.

■ Fuelling. Mix and pour fuel outdoors where

there are no sparks or flames. Slowly remove
the fuel cap only after stopping the engine.
Do not smoke while fuelling or mixing fuel.
Wipe spilled fuel from the product. Move at
least 9 m from the fuelling source and site
before starting the engine.

■ Use of product. Never allow children or

infirm persons to use the tool. Never allow
other persons who are unfamiliar with the
operating instructions to use the tool.

■ Work Area. Clear the area to be cut before

each use. Remove all objects such as nails,
wire, string or any obstacles which might get
in the way while working. Clear the area of
bystanders, pets and children. At a minimum,
keep all bystanders, pets and children
outside a 15 m radius. Because there still
may be a risk to bystanders from thrown
objects, bystanders should be encouraged to
wear eye protection. If you are approached
while operating the product, stop the engine.

■ Dangerous Environments. To avoid falling,

do not use the product in damp or wet
locations.

■ Use the Right Product. Use the product for

the intended purpose only – i.e. for trimming
leaves and branches from trees, shrubs and
hedges.

■ Use the Equipment Correctly. Do not grip

any part of the hedge trimmer apart from the
handles during operation. Never raise the
hedge trimmer above waist height.

■ Kick back. Kick back may occur when the

blade contacts a solid object in the cutting
area. Ensure that the cutting blades are kept
clear of fences, posts, wires etc. This is more
likely to occur in areas where it is difficult to
see the material being cut.

■ Stopping the Product. A coasting blade

can cause injury while it continues to spin
after the engine is stopped or the throttle is
released. Maintain proper control until the
blade has completely stopped moving.

■ Use the Blade Cover whenever

transporting, or when the hedge trimmer is
being stored or is not in use.

Safety Rules

Read and understand all instructions. Failure to follow all instructions may result in

serious personal injury as well as damage to product.

4

WARNING:

Save These Instructions

Symbols

The following symbols are located on the product. Please study them and learn their meaning.
Proper interpretation of these symbols allows you to operate the product better and safer.

Symbol Name Explanation

Safety Alert Indicates danger, warning or caution. Attention is

required in order to avoid serious personal injury.
May be used in conjunction with other symbols or
pictographs.

Wear Gloves Protect your hands with gloves when handling the

hedge trimmer. Heavy duty non-slip gloves will provide
extra safety and help to improve your grip.

Read Operator’s Read the Operator’s Manual before starting or
Manual operating this product. Failure to follow operating

instructions and safety precautions in the Operator’s
Manual can result in serious injury.

Eye and Ear Thrown objects can cause severe eye injury.
Protection Wear eye protection when operating this product.

Wear hearing protection during extended periods
of operation.

Wet Weather or It is recommended for the user’s safety that this
Wet Working equipment is not used in wet operating conditions.
Conditions Take care in damp locations as this can increase the

likelihood you may slip and can result in serious injury.

Wear Solid It is recommended you wear appropriate footwear with
Footwear non-slip soles.

5

6

Specifications

Applications

Use this product for the following applications:

■ Trimming and shaping topiary.

■ Regular trimming of bushes and shrubs.

■ Shaping and pruning bushes and shrubs.

Model 101PHT25
Renegade 26cc
Hedge Trimmer

Engine: 26 cc Full Crank

Blade Cutting Length: 520 mm

Cutting Style: Dual action

Weight (Dry): 5.5 kg

Fuel Tank Capacity: 0.5 litres

Maximum Cutting Diameter: 19 mm
