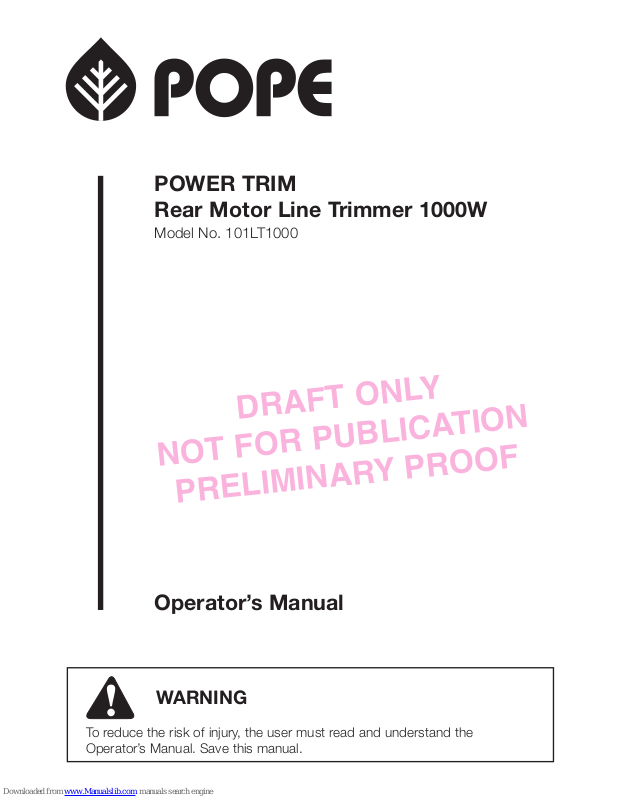

POWER TRIM
Rear Motor Line Trimmer 1000W
Model No. 101LT1000
Operator’s Manual
To reduce the risk of injury, the user must read and understand the
Operator’s Manual. Save this manual.
WARNING
DRAFT ONLY
NOT FOR PUBLICATION
PRELIMINARY PROOF
Introduction
Thank you for purchasing a Pope product.
We would like you to be completely satisfied with your new product, so feel free to contact
Pope for help with any information you require.
Pope's Customer Service centre number is 1300 134 880.
Please read this manual carefully to learn how to operate and maintain your product correctly.
It is important to consult these instructions in order to acquaint yourself with the tool, its proper
use and safety precautions.
Please observe the general maximum operating times as well as local regulations for tool
operation.
Should this product require repair under the conditions of the warranty, please return it to the
place of purchase. You will need to provide proof of purchase to obtain a free of charge repair,
or a replacement.
Keep these instructions in a safe place.
For your records, attach your receipt here.
2
SAFETY RULES
• Physical Condition of the Operator. Do not operate this product when tired, ill or under the
influence of alcohol, drugs or medication.
• Clothing Requirements. Always wear long heavy pants, boots and gloves. Do not wear
loose clothing, jewellery, short pants, sandals or go barefoot. Secure hair so that it is above
shoulder level to avoid entanglement in moving parts.
• Protective Accessories Requirements. Wear safety eye protection when operating this
product. Wear hearing protection during extended periods of operation.
• Condition of Product Before Use. Inspect condition of the product before use. Only operate
the tool when it is in good working order and is not damaged in any way. Damaged parts have
to be replaced immediately by a qualified electrician. Never use the tool if any of its safety
devices or guards are damaged or missing.
• Proper Stance. Keep firm footings and balance. Do not overreach.
• Dangerous Environments. Do not use the product in damp or wet locations. Do not expose
the tool to wet conditions.
• Work Area. Clear the area to be cut before each use. Remove all objects such as rocks,
broken glass, nails, wire, or string that can be thrown or become entangled in the cutting
attachment. Clear the area of bystanders, pets and children. At a minimum, keep all
bystanders, pets and children outside a 15 m radius. Because there still may be a risk to
bystanders from thrown objects, bystanders should be encouraged to wear eye protection.
If you are approached while operating the product, stop the motor and ensure the line trimmer
head has stopped moving.
• Condition of Line Trimmer before use. The Line Trimmer shall be assembled according to
the manufacturer's instructions. Failure to use the proper parts may cause product failure or
increase the risk of injury to the user.
• Use the Right Product. This line trimmer should be used exclusively for trimming grass,
weeds and light undergrowth. Do not use it for any other purpose.
• Use of Product. Never allow children to use the tool. Never allow other persons who are not
familiar with the operating instructions to use the tool. Never use the tool when there are
people, particularly children or pets nearby.
• Responsibility. The user is responsible for any accidents or hazards suffered by third parties
or their property.
• Maintenance. Switch off the tool and pull plug from the socket before carrying out any
cleaning or maintenance work.
• Outdoor Use. When working outdoors, use only extension cables which are approved for
outdoor use.
• Plugs. Plug connections must have earthing contacts and be protected from water.
Read and understand all instructions. Failure to follow all instructions
may result in serious personal injury as well as damage to the product.
WARNING
3
4
Applications
Use this product for the following applications:
• Cutting grass, weeds and light undergrowth.
The Pope POWER TRIM 1000W Electric Line Trimmer is designed to be used around the home
and should only be operated within its design limitations. Tools of this category which are
designed for home and garden use and should only be operated in such settings. Tools of this
category are not suitable for use in public facilities, parks and sports centres, on farms or in the
forestry sector.
Unpacking
• Carefully remove the product from the box.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until you have carefully inspected and satisfactorily
operated the product.
• If any parts are damaged or missing please call the Pope Customer Service Centre on
1300 134 880 for assistance.
Packing List
Line trimmer motor Shaft (1)
Lower Shaft (1)
Auxiliary handle (1)
Auxiliary handle bolt assembly (1)
Grass Deflector Guard (1)
Shoulder Strap (1)
Fixing Screws (2)
Operator's Manual (1)
Product Layout and Descriptions
See Fig 1
1. Control Handle
2. Trigger
3. Cord Hook
4. Motor Housing
5. Auxiliary Handle
6. Upper Shaft
7. Lower Shaft
8. Shoulder Strap
9. Grass Deflector
Guard
10. Cutting Line
11. Coupler
SPECIFICATIONS
Name Pope POWER TRIM 1000W Electric Line Trimmer
Model Number 101LT1000
AC Motor 230V / 50Hz
Cutting Diameter 370 mm
Rated power 1000W
Cutting line thickness 1.5 mm
ASSEMBLY
5
Fig 1
11
ASSEMBLY – continued
6
Connecting the Shaft
See Fig 2
Follow these instructions to connect the lower shaft to the upper shaft.
The coupler (11) connects the lower
shaft (7) to the upper shaft (6).
1. Loosen the wing nut (12) by
turning it counterclockwise.
2. Remove the end cap from the
lower shaft.
3. Align the button with the guide
recess on the upper shaft.
4. Slide the lower shaft (7) into the
upper shaft (6) until the
attachment shaft clicks into
place.
NOTE: If the button does not release completely in the positioning hole, the shafts are not locked.
Slightly rotate the lower shaft until the button is locked into place.
Tighten the wing nut securely by turning it clockwise.
NOTE: During operation, periodically check the wing nut and tighten as necessary.
Removing the Attachment from the Upper Shaft
See Fig 2
Follow these instructions to disconnect the upper shaft and lower shaft for storage.
1. Unplug the trimmer.
2. Loosen the wing nut (12) by turning it counterclockwise.
3. Push the button, while pulling out the attachment.
Fig 2
6
11
7
12
Attaching the Auxiliary Handle
See Fig 3
Follow these instructions to attach the auxiliary handle to the upper shaft.
1. Place the auxiliary handle
(5) onto the upper shaft
(6) so that the handle is
angled toward the trigger
handle (1).
2. Slide the auxiliary handle
along the upper shaft to
a position that allows for
comfortable operation.
3. Insert the bolt (13)
through the holes in the
front handle.
4. Slide the washer (14)
onto the bolt.
5. Place the knob nut (15)
onto the bolt and tighten
the knob nut securely.
Attaching the Grass Deflector Guard
See Fig 4
Follow these instructions to attach the grass deflector guard
1. Place the safety guard (9)
on the bracket.
2. Install the screws (16)
through the holes and
tighten the safety guard.
ASSEMBLY – continued
7
Fig 3
Fig 4
15
16
9
14
13
Using the Cord Hook
See Fig 5
Follow these instructions to use the cord hook.
The extension cord hook (3) is located on the main cord. This provides strain relief for the power
cord, preventing unwanted disconnection.
1. Always use the cord hook when
connecting the extension cord to
the trimmer preventing undue
strain on the electrical input to
the trimmer and to prevent
premature disconnection.
Use only an approved
extension cord.
2. Loop the extension cord through
the cable hook located on the
main cord.
3. Place the loop of extension cord
around tongue and pull firmly to
secure.
4. Attach the extension cord to the
plug on trimmer.
Using the Shoulder Strap
See Fig 6
Follow these instructions to use the
Shoulder Strap.
1. A shoulder strap (8) is supplied
for greater comfort during
operation.
2. Attach the clip (17) of the
shoulder strap onto the loop (18)
at the front of the motor housing.
OPERATION
8
Fig 5
Fig 6
Never use the trimmer without the guard. This guard is essential for safety
and for the correct operation of the tool.
WARNING
17
18
OPERATION – continued
9
Operating the Trimmer
Follow these instructions to operate the Line Trimmer.
NOTE: Keep a firm grip with both hands during operation.
1. Plug the trimmer cord into an extension cord approved for outdoor use.
2. Put the shoulder strap (8) over your shoulder opposite side to the unit. Adjust shoulder strap
to most comfortable length.
3. Hold the trimmer with both hands – one hand on the trigger handle and the other hand on the
auxiliary handle.
4. Place the trimmer on the side of your body with the motor behind and away from your body.
5. Press the trigger to start the trimmer. The trimmer will build up speed steadily.
6. Trim grass and weeds in a right-to-left sweeping motion with the line parallel to the ground.
7. To switch off the line trimmer, simply release the trigger.
NOTE: If the machine becomes overloaded, thermal protection inside the unit will cut off the
trimmer. Release the trigger and leave the trimmer for about 10 minutes before turning it ON again.
The trimmer should then restart.
WARNING: After switching off, the nylon cutting line will continue to rotate for a
few seconds. Take care until the line completely stops.
Cutting Tips
• Inspect and clear the area to be trimmed for any rocks, broken glass or wire that could be
thrown or become entangled in the cutting line. Trim only when grass or weeds are dry.
Keep the cutting line parallel to the ground.
• Cut grass or weeds over 20 cm tall from the top to the bottom in small amounts. This will
prevent grass becoming wrapped around the trimmer head assembly, which may result in
damage due to overheating. If grass becomes wrapped around the trimmer head assembly,
stop the trimmer, unplug it and remove the grass.
• Move the trimmer slowly in and out of the area you are cutting, keeping the trimmer at the
desired cutting height.
• Use the tip of the line to do the cutting. Do not force the trimmer head assembly into uncut
grass.
• The tip of the cutting line will wear during use; this reduces the cutting swath. If the line is not
advanced occasionally, it will wear down to the eyelet. When the trimmer stops, the line tends
to relax and may retract into the trimmer head assembly. Should this occur, unplug the
trimmer, remove the spool, re-feed the line through the eyelets and reassemble the spool.
• Avoid hitting objects with the line, such as chain-link fences or concrete, as this causes
rapid wear.
• Never drag the trimmer head assembly on the ground while trimming.
WARNING The line trimmer may throw objects during
operation, causing injury to the operator or to bystanders.
Always wear suitable eye protection, boots, gloves and long,
heavy trousers while operating the product.
Advancing the Cutting Line
Follow these steps to advance the cutting line automatically.
• This line trimmer uses a standard bump feed system.
• Tap the bump knob lightly on the ground while the motor is running. Do not hold the bump
knob on the ground.
To Replace the Line Spool
See Fig 7
Follow these steps to replace the line spool
1. Disconnect the Line Trimmer from the
power source.
2. Hold the spool holder in one hand.
3. Remove the bump knob by turning it
counterclockwise.
4. Remove the empty spool (19).
5. Clean the trimmer head (20) thoroughly.
Inspect the trimmer head for any
damaged or worn parts.
6. Hold the spool so that its tabbed side is
positioned upward.
NOTE: On the new spool, the ends of the lines are secured in slots on tabs.
7. Release the line from the tabs, unwind approximately 15 cm of line and re-secure the lines in
the tabs.
8. Insert the lines on the new spool into the eyelets in the trimmer head.
9. Place the spool on the drive shaft (21).
NOTE: To install the spool, you may need to rotate it slightly to ensure that it is fully seated.
NOTE: If the line should tangle or break at the eyelets, remove the spool, re-feed the line through
the eyelets and reassemble the spool on the trimmer.
10. Release the lines from the tabs by sharply pulling each line while pushing down on the spool.
11. Push down on the spool to reveal the drive shaft.
12. Replace the bump knob on the drive shaft.
OPERATION – continued
10
WARNING
Make sure the trimmer head stops rotating.
Contact with a rotating trimmer head could cause personal injury.
Fig 7
21
20
19
11
MAINTENANCE
Follow these general maintenance guidelines before each use.
• Check that all nuts, bolts and screws are securely tightened in order to be sure that the
machine is in a safe working condition.
• Frequently check the grass catching devices for signs of wear and deformation.
• Only use replacement cutters of the correct type.
• For your own safety, replace worn or damaged parts without delay.
Cleaning
IMPORTANT! All maintenance, service and cleaning work must be performed after the power
cord has been disconnected from the socket.
• Do not use high-pressure cleaners or running water to clean the product.
• Do not use any aggressive cleaning agents.
• Remove deposited matter from the protective guard using a brush.
• Use a damp rag to wipe dirt marks off of the product.
• Dirt and grime can make the switch more difficult to operate as a result of the material that
swirls up off the ground. When this occurs, simply depress the switch a few times, which
should bring it back to normal.
Storage
Electric tools should be kept in a dry place when not in use.
When using electric gardening appliances, basic safety precautions
should always be followed to reduce the risk of fire, electric shock
and personal injury, including the following:
WARNING
12
WARRANTY
You must keep your receipt as proof of purchase for return of the product under the
terms of this warranty.
Your Pope product is guaranteed to be free from defects in materials or workmanship for a period
of 24 months from the date of purchase provided the product has been used in accordance with
the manufacturer's recommendations.
If the product becomes defective within the warranty period we guarantee to either replace or
repair the product at our option, provided that:
• The product is returned to the place of purchase with evidence of purchase i.e. the receipt.
• The product is used for general household use only, where household use means use of the
product on the same lot as your home. Use at more than one location is considered
commercial use and no warranty applies for commercial use.
• The product has not been used for hire purposes.
• Repairs, alterations or modifications have not been attempted to the product.
• The failure is not as a result of normal wear and tear.
Failures due to the following are not covered:
• Replacing worn or damaged blades, nylon line or chains or cables damaged in storage or
during use. These are regarded as replacement items which wear during normal usage.
• Failures as a result of sudden impact or obvious abuse.
• Failures due to usage not in accordance with instructions and recommendations contained in
this manual.
To the fullest extent permitted by law Toro Australia Pty Ltd is not liable for any indirect, incidental,
or consequential loss or damage in connection with the use of the Pope product covered by this
warranty or for any cost or expense of providing substitute equipment or service during any period
of malfunction or non-use pending completion of repairs under this warranty.
The above warranty does not exclude any condition or warranty implied by the Trade Practices Act
1974 or any other relevant legislation which implies any condition which cannot be excluded.
Pope
®
is a Registered Trademark of Toro Australia Pty Ltd
53 Howards Rd Beverley South Australia 5009
Made in China to Pope's Specifications
Loading...
