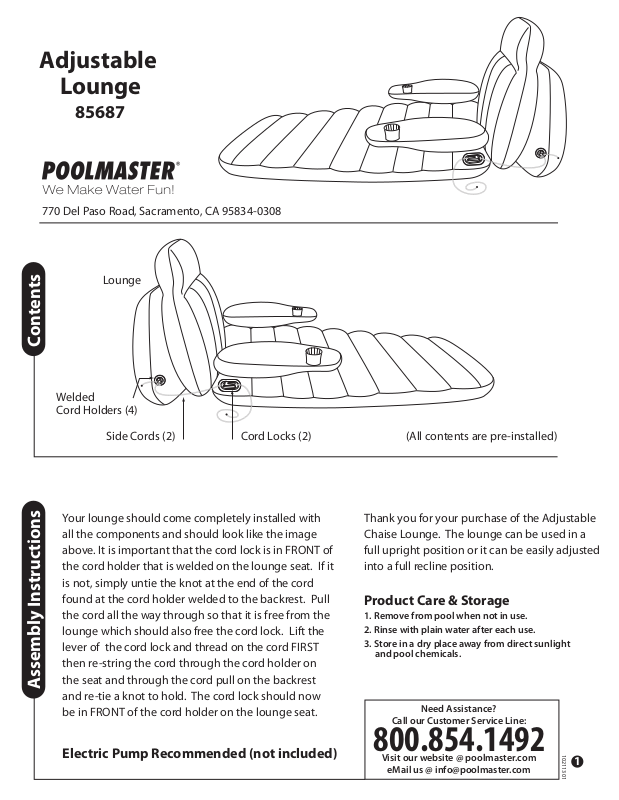

Page 1
Adjustable
Lounge
85687
770 Del Paso Road, Sacramento, CA 95834-0308
Lounge
Welded
Cord Holders (4)
Side Cords (2) Cord Locks (2)
Your lounge should come completely installed with
all the components and should look like the image
above. It is important that the cord lock is in FRONT of
the cord holder that is welded on the lounge seat. If it
is not, simply untie the knot at the end of the cord
found at the cord holder welded to the backrest. Pull
the cord all the way through so that it is free from the
lounge which should also free the cord lock. Lift the
lever of the cord lock and thread on the cord FIRST
then re-string the cord through the cord holder on
the seat and through the cord pull on the backrest
Assembly Instructions Contents
and re-tie a knot to hold. The cord lock should now
be in FRONT of the cord holder on the lounge seat.
(All contents are pre-installed)
Thank you for your purchase of the Adjustable
Chaise Lounge. The lounge can be used in a
full upright position or it can be easily adjusted
into a full recline position.
Product Care & Storage
1. Remove from pool when not in use.
2. Rinse with plain water after each use.
3. Store in a dry place away from direct sunlight
and pool chemicals.
Need Assistance?
Call our Customer Service Line:
Electric Pump Recommended (not included)
800.854.1492
Visit our website @ poolmaster.com
eMail us @ [email protected]
10211301
1
Page 2
Assembly Instructions
The cord lock is easy to use.
Lift the rope up and adjust the cord to the
desired position by pulling the rope
through the Cord Lock. (Figure A)
Lock the rope into position by lowering the
rope back down into resting position on the
Cord Lock. (Figure B)
(Figure A)
(Figure B)
NOTE: If adjusting the lounge to the upright position, the
lounge will not sit upright until it is in the pool and you are
sitting on the lounge.
poolmaster.com
2
