Page 1

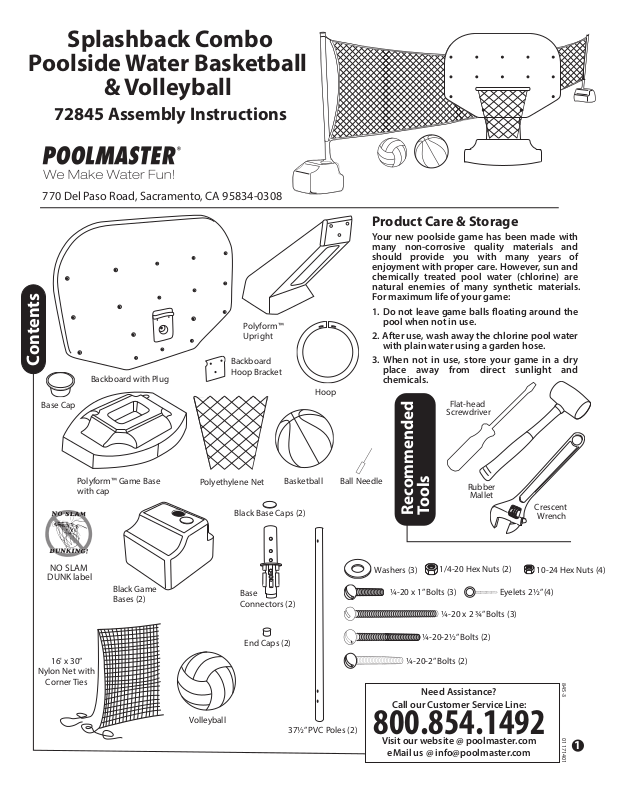

Splashback Combo
Poolside Water Basketball
& Volleyball
72845 Assembly Instructions
770 Del Paso Road, Sacramento, CA 95834-0308
Polyform™
Upright

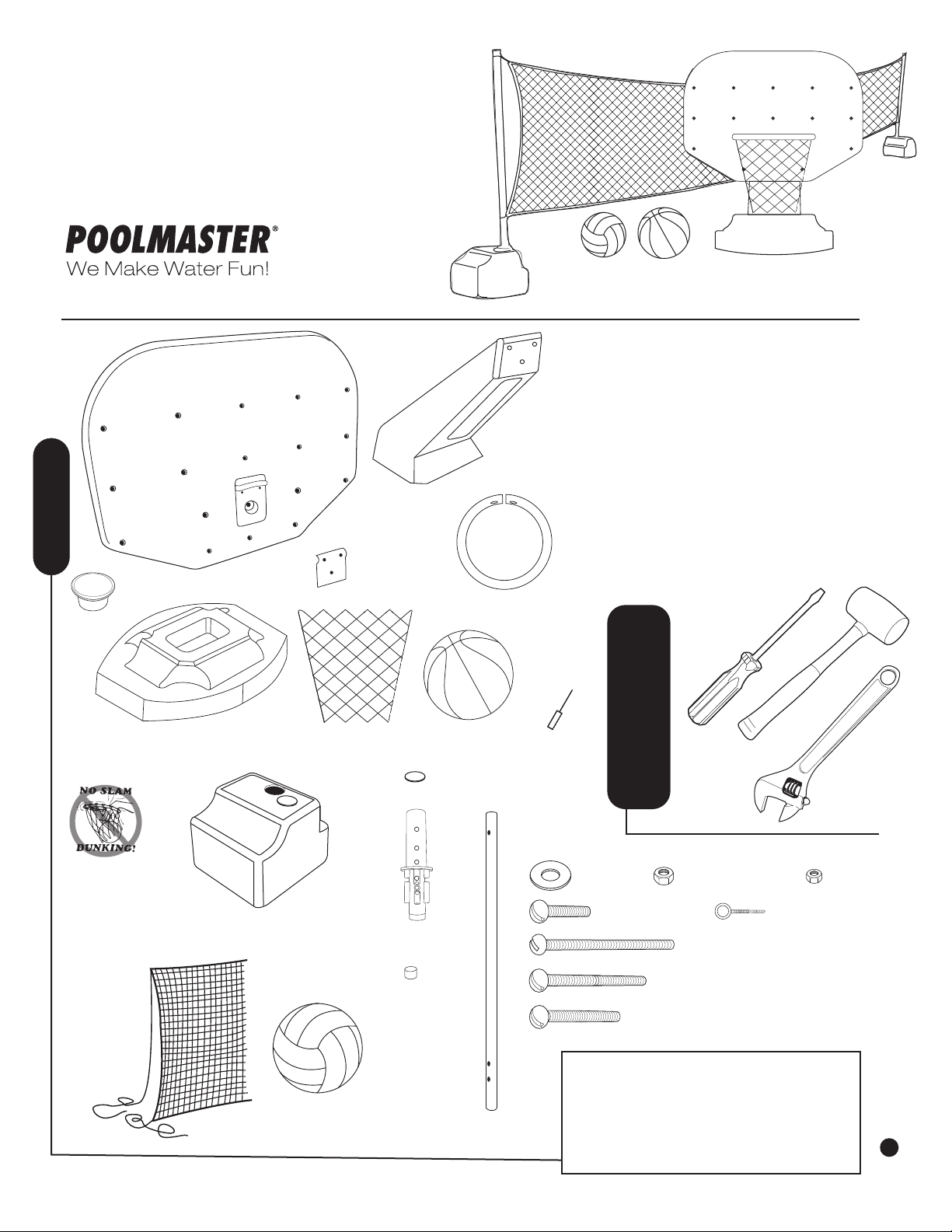

Contents
Backboard with Plug
Base Cap
Backboard
Hoop Bracket
Product Care & Storage
Your new poolside game has been made with
many non-corrosive quality materials and
should provide you with many years of
enjoyment with proper care. However, sun and
chemically treated pool water (chlorine) are
natural enemies of many synthetic materials.
For maximum life of your game:
1. Do not leave game balls oating around the
pool when not in use.
2. After use, wash away the chlorine pool water
with plain water using a garden hose.
3. When not in use, store your game in a dry
place away from direct sunlight and
chemicals.
Hoop
Flat-head
Screwdriver
Polyform™ Game Base
with cap
NO SLAM
DUNK label
16' x 30”
Nylon Net with
Corner Ties
Black Game
Bases (2)
Polyethylene Net
Black Base Caps (2)
Volleyball
Basketball
Base
Connectors (2)
End Caps (2)
Ball Needle
37½” PVC Poles (2)
Rubber
Mallet
Recommended
Tools
Washers (3)
¼-20 x 1” Bolts (3)
¼-20-2” Bolts (2)
Call our Customer Service Line:
1/4-20 Hex Nuts (2)
¼-20 x 2 ¾” Bolts (3)
¼-20-2½” Bolts (2)
Need Assistance?
Eyelets 2½” (4)
Crescent
Wrench
10-24 Hex Nuts (4)
800.854.1492
Visit our website @ poolmaster.com
eMail us @ [email protected]
01171401845-3
1
Page 2

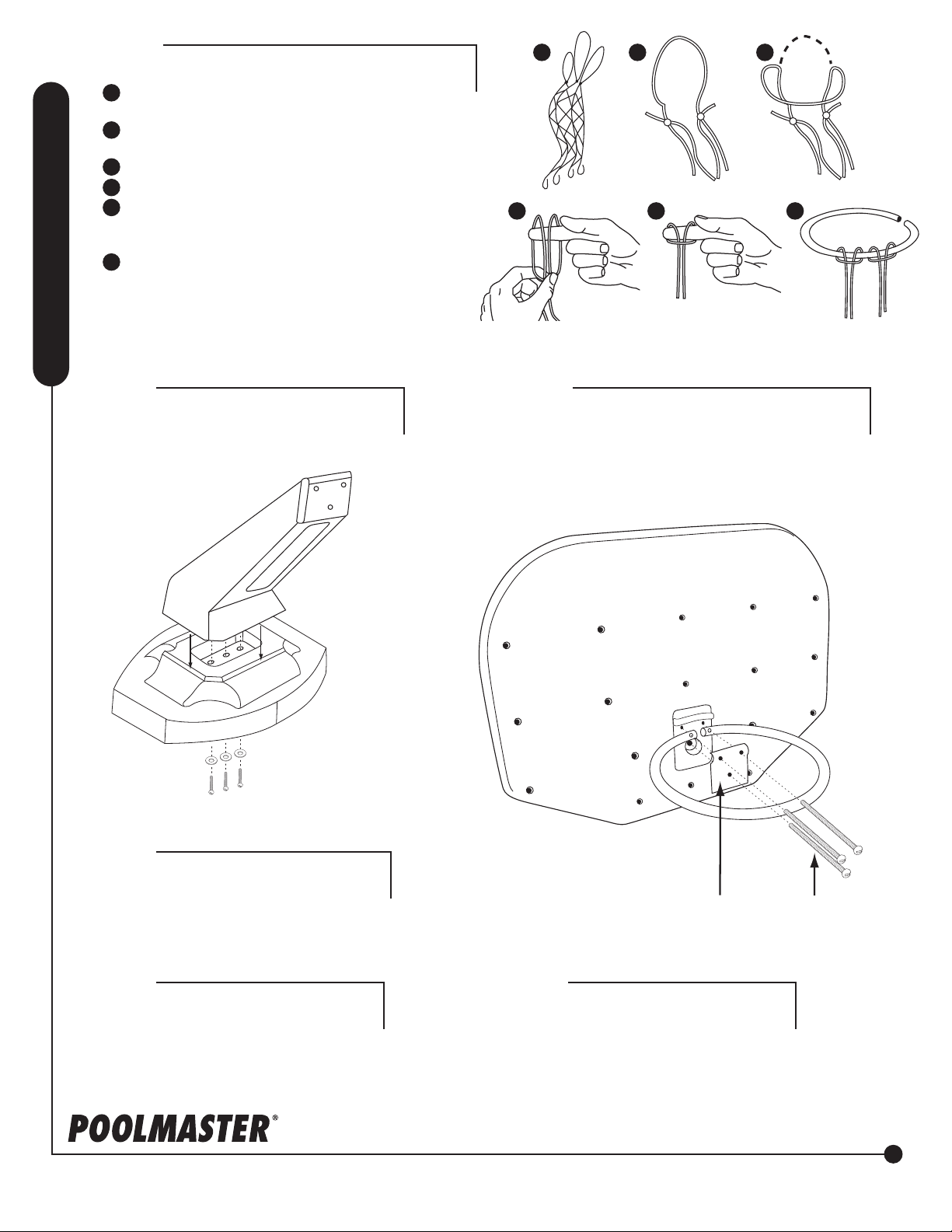

Step 1
Thread Net on PVC Hoop.
This is the net right out of the package.
1
You will be working with the longer looped end.
This is a close-up of the circled portion on diagram 1.
2
This is one loop.
3
Fold the loop toward you, creating two loops.
Insert your nger through the two loops.
4
5
Release the thumb holding the loop in place and pull
on the two middle strings. The loop should slide up
and catch your ngers.
6
Take the loop from your nger and slide onto the
basketball hoop. Continue this process with each
loop until all loops are on the hoop.
Assembly Instructions
Step 2
•Insert Upright into Base. Secure with
(3) 1/4 - 20 x 1" Bolts and Washers.
1
4
2
5
3
6
Step 3
•Attach the Hoop and Hoop Bracket to the
Backboard and Backboard to the Upright by
inserting (3) 1/4 x 20 x 2 3/4" Bolts through
the Hoop Bracket, Hoop, Backboard and
into Upright. Secure tight.
1
" Bolts (3)
Step 4
•Fill Base with water or sand and
cover up opening with Base Cap.
For best results, use sand to ll base.
Step 5
•Use Ball Needle and a hand pump
(not included) to inate Ball.
Backboard
Hoop
Bracket
Step 6
•Place NO SLAM DUNK label
on front of Base
2
¾"
Bolts (3)
poolmaster.com
2
Page 3

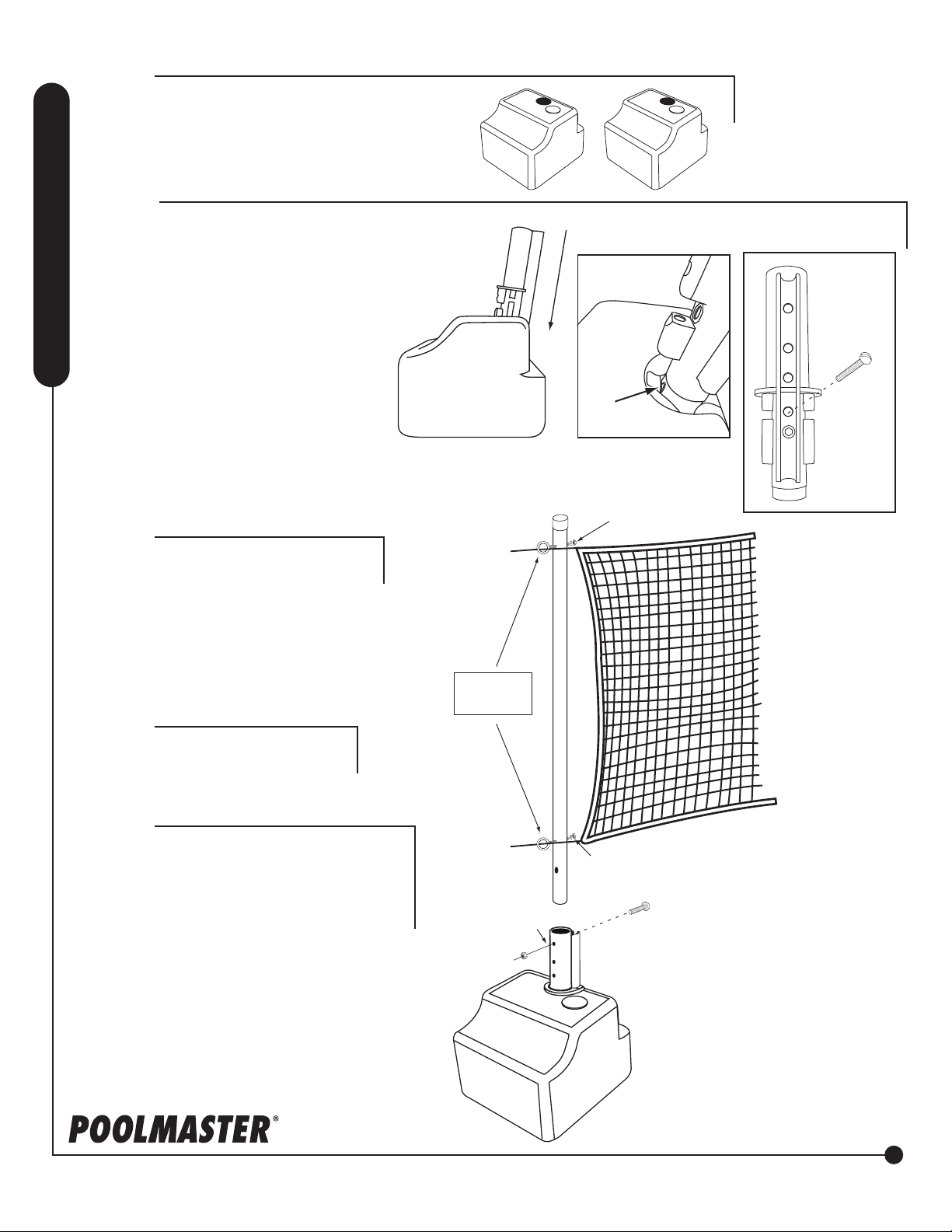

Volleyball Game
Step 1
• Fill both bases with water or sand
and cover openings with caps.
Step 2
•Insert the PVC Support into the
Base AT AN ANGLE. (Diagram A)
While pushing Support into the
Base, keep it pulled back a bit to
make sure that Support CLEARS
the metal washer that is built
into the Base at the opening
Assembly Instructions
(Diagram B). Use a Rubber Mallet
if necessary.
•Once the Support is inserted
into the Base, secure through the
2nd hole from the bottom with one
2½” Bolt (Diagram C).
Step 3
•Insert Pole with two holes on
bottom into Base Connector. (Tap
with rubber mallet if needed and
secure with one 2” bolt in upper
hole of the Base Connector and
secure with Hex Nut). Repeat for
second Base.
Step 4
•Place End Caps on top of Poles
DIAGRAM A
Corner Ties
to eyelets
DIAGRAM B
Washer
10-24 Hex Nut
DIAGRAM C
2½"Bolt
Step 5
•Secure eyelets with 10-24 Hex Nuts as
shown. Insert Corner Ties of Net
through Eyelets and secure to each
pole.
• The Net can be shortened by rolling
on Poles or lengthened by extending
the Corner Ties. (for extra stability
secure rope ends beyond Bases with
tent stakes [not included])
Base
Connector
Game Base
10-24 Hex Nut
2" Bolt
poolmaster.com
3
