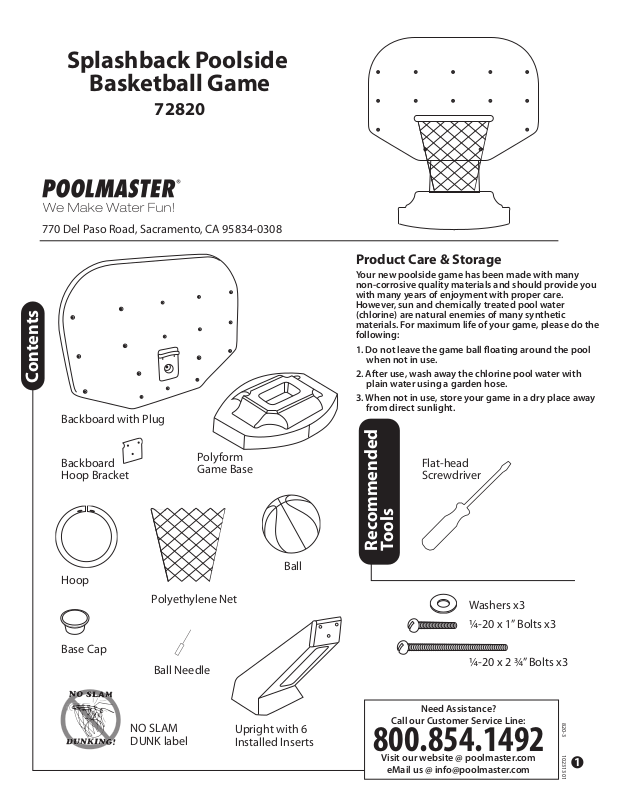

Page 1
Splashback Poolside
Basketball Game
72820
770 Del Paso Road, Sacramento, CA 95834-0308
Contents
Backboard with Plug
Product Care & Storage
Your new poolside game has been made with many
non-corrosive quality materials and should provide you
with many years of enjoyment with proper care.
However, sun and chemically treated pool water
(chlorine) are natural enemies of many synthetic
materials. For maximum life of your game, please do the
following:
1. Do not leave the game ball oating around the pool
when not in use.
2. After use, wash away the chlorine pool water with
plain water using a garden hose.
3. When not in use, store your game in a dry place away
from direct sunlight.
Backboard
Hoop Bracket
Hoop
Base Cap
Polyethylene Net
Ball Needle
NO SLAM
DUNK label
Polyform
Game Base
Upright with 6
Installed Inserts
Ball
Flat-head
Screwdriver
Recommended
Tools
Washers x3
¼-20 x 1” Bolts x3
¼-20 x 2 ¾” Bolts x3
Need Assistance?
Call our Customer Service Line:
800.854.1492
Visit our website @ poolmaster.com
eMail us @ [email protected]
10231301820-3
1
Page 2
Step 1
Thread Net on PVC Hoop.
This is the net right out of the package.
1
You will be working with the longer looped end.
This is a close-up of the circled portion on diagram 1.
2
This is one loop.
3
Fold the loop toward you, creating two loops.
Insert your nger through the two loops.
4
5
Release the thumb holding the loop in place and pull
on the two middle strings. The loop should slide up
and catch your ngers.
6
Take the loop from your nger and slide onto the
basketball hoop. Continue this process with each
loop until all loops are on the hoop.
Assembly Instructions
Step 2
•Insert Upright into Base. Secure with
(3) 1/4 - 20 x 1" Bolts and Washers.
1
4
2
5
3
6
Step 3
•Attach the Hoop and Hoop Bracket to the
Backboard and Backboard to the Upright by
inserting (3) 1/4 x 20 x 2 3/4" Bolts through
the Hoop Bracket, Hoop and Backboard.
1
" Bolts x3
Step 4
•Fill Base with water or sand and
cover up opening with Base Cap.
For best results, use sand to ll base.
Step 5
•Use Ball Needle and a hand pump
(not included) to inate Ball.
Backboard
Hoop
Bracket
Step 6
•Place NO SLAM DUNK label
on front of Base
2
¾"
Bolts x3
poolmaster.com
2
