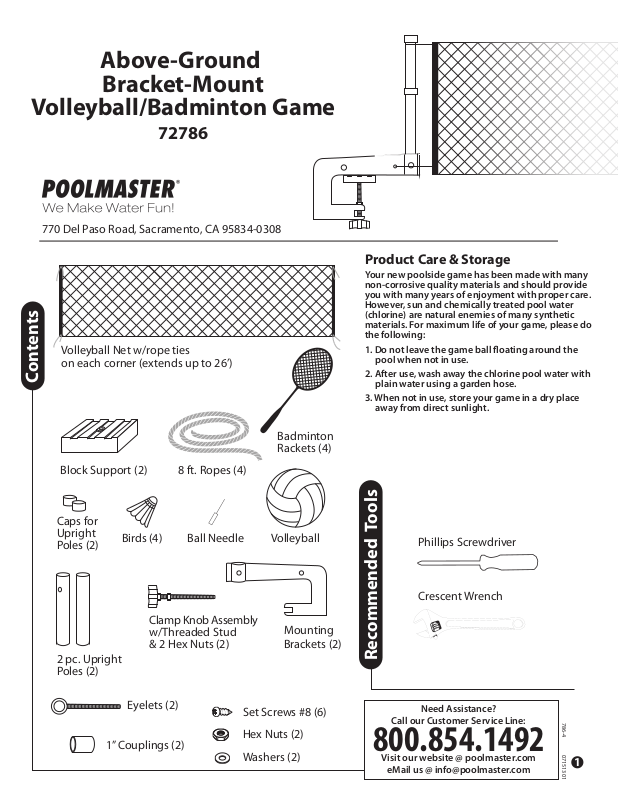

Above-Ground
Bracket-Mount
Volleyball/Badminton Game
72786
770 Del Paso Road, Sacramento, CA 95834-0308
Volleyball Net w/rope ties
on each corner (extends up to 26’)

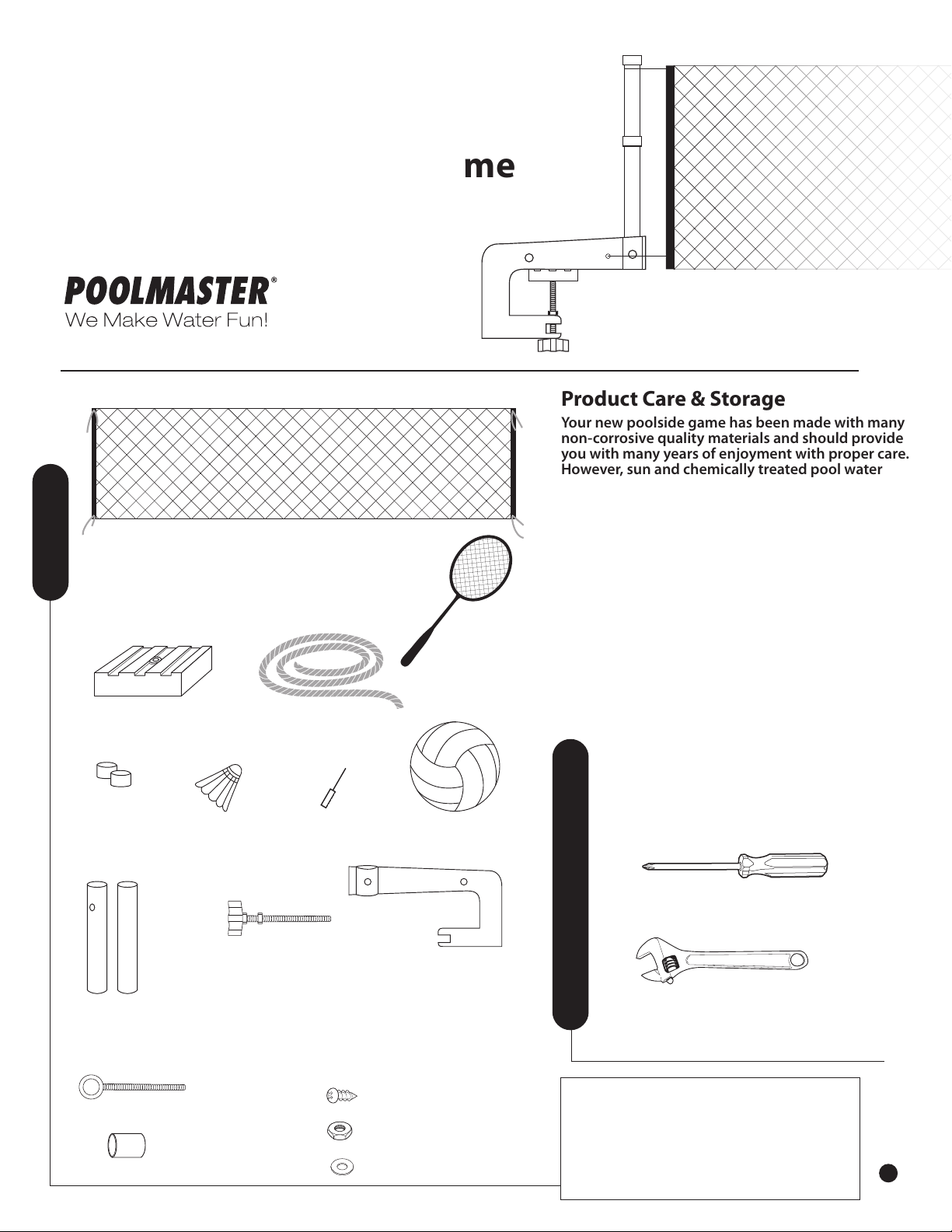

Contents
Product Care & Storage
Your new poolside game has been made with many
non-corrosive quality materials and should provide
you with many years of enjoyment with proper care.
However, sun and chemically treated pool water
(chlorine) are natural enemies of many synthetic
materials. For maximum life of your game, please do
the following:
1. Do not leave the game ball oating around the
pool when not in use.
2. After use, wash away the chlorine pool water with
plain water using a garden hose.
3. When not in use, store your game in a dry place
away from direct sunlight.
Block Support (2)
Caps for
Upright
Poles (2)
2 pc. Upright
Poles (2)
Eyelets (2)
1” Couplings (2)
8 ft. Ropes (4)
Clamp Knob Assembly
w/Threaded Stud
& 2 Hex Nuts (2)
Set Screws #8 (6)
Hex Nuts (2)
Washers (2)
Badminton
Rackets (4)
VolleyballBall NeedleBirds (4)
Mounting
Brackets (2)
Phillips Screwdriver
Crescent Wrench
Recommended Tools
Need Assistance?
Call our Customer Service Line:
800.854.1492
Visit our website @ poolmaster.com
eMail us @ [email protected]
07151301786-4
1
Page 2
Cap
6

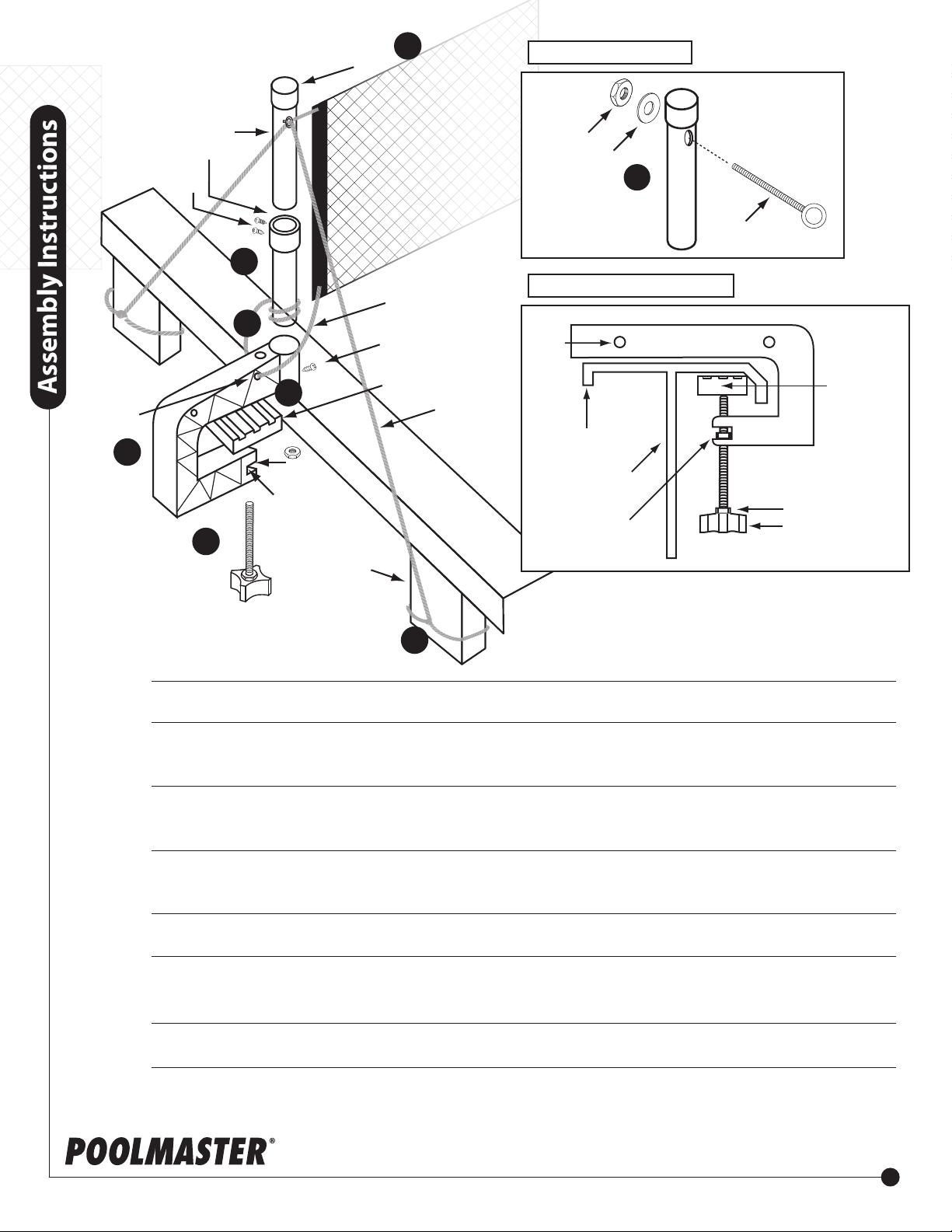

Upright Pole Detail
Assembly Instructions
Front
Hole
Mounting
Bracket
#8 Set
Screws
3
Clamp Knob
Upright
Pole
1” Coupling
2
1
5
7
Hex
Nut
Notch
Pool Upright
Support
Net
Net
Ties
#8 Set Screw
Block
Support
Rope
Hex Nut
Washer
4
Mounting Bracket Detail
Front
Hole
Pool
Top Rail
Pool Wall
Notch
with Hex
Nut inserted
Pool
Top Rail
Eyelet
Block
Support
Hex Nut
Clamp Knob
with threaded stud
8
Step 1
•Secure Coupling between two upright poles and secure with 2 Set Screws. Repeat for other set.
Step 2
• Remove top Hex Nut from Clamp Knob assembly, insert into notch in Mounting Bracket, insert Clamp
Knob into hole in bottom of Mounting Bracket and thread Clamp Knob up through Hex Nut.
Step 3
• Slide the Mounting Bracket over the top rail of pool as shown. Place Block Support between
underside of rail and clamp knob bolt and tighten.
Step 4
•Insert Eyelet into the top holes on the Upright Pole Support and fasten with Washer and Hex Nut
(repeat for other side).
Step 5
1
•Insert the Upright Pole into the 1
Step 6
•Extend the Net across the pool, pull tight and tie top Net Ropes to the top of each pole through the
Eyelets. Net can be shortened by rolling on pole or lengthened by extending the Rope Ties.
Step 7
•Tie bottom Net Ropes to the bottom of each pole and through the front hole in the Mounting Bracket.
Step 8
•Tie two 8’ ropes to the Eyelet at the top of the Upright Pole and extend diagonally to tie around pool
top rail, as shown (repeat for other side).
/8'' hole in the Mounting Bracket, secure with set screw. Repeat for other side).
