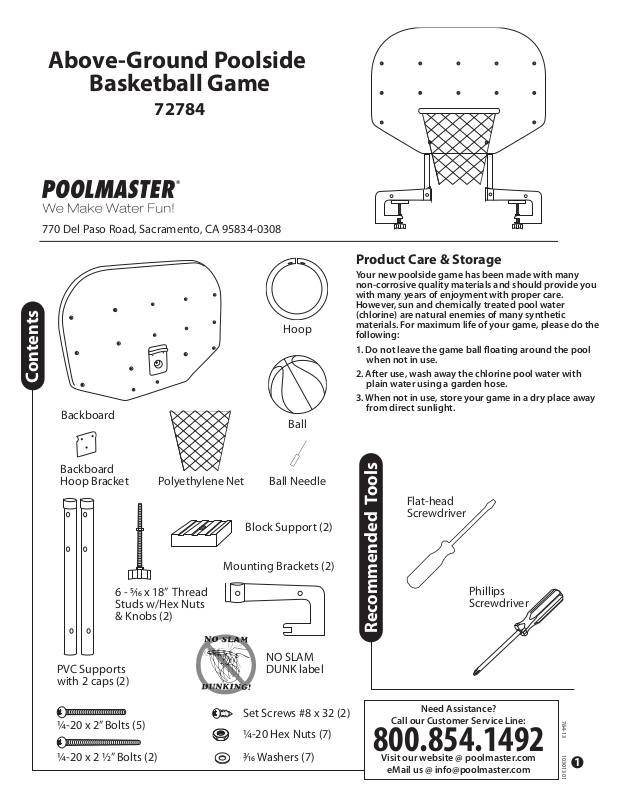

Above-Ground Poolside
Basketball Game
72784
770 Del Paso Road, Sacramento, CA 95834-0308

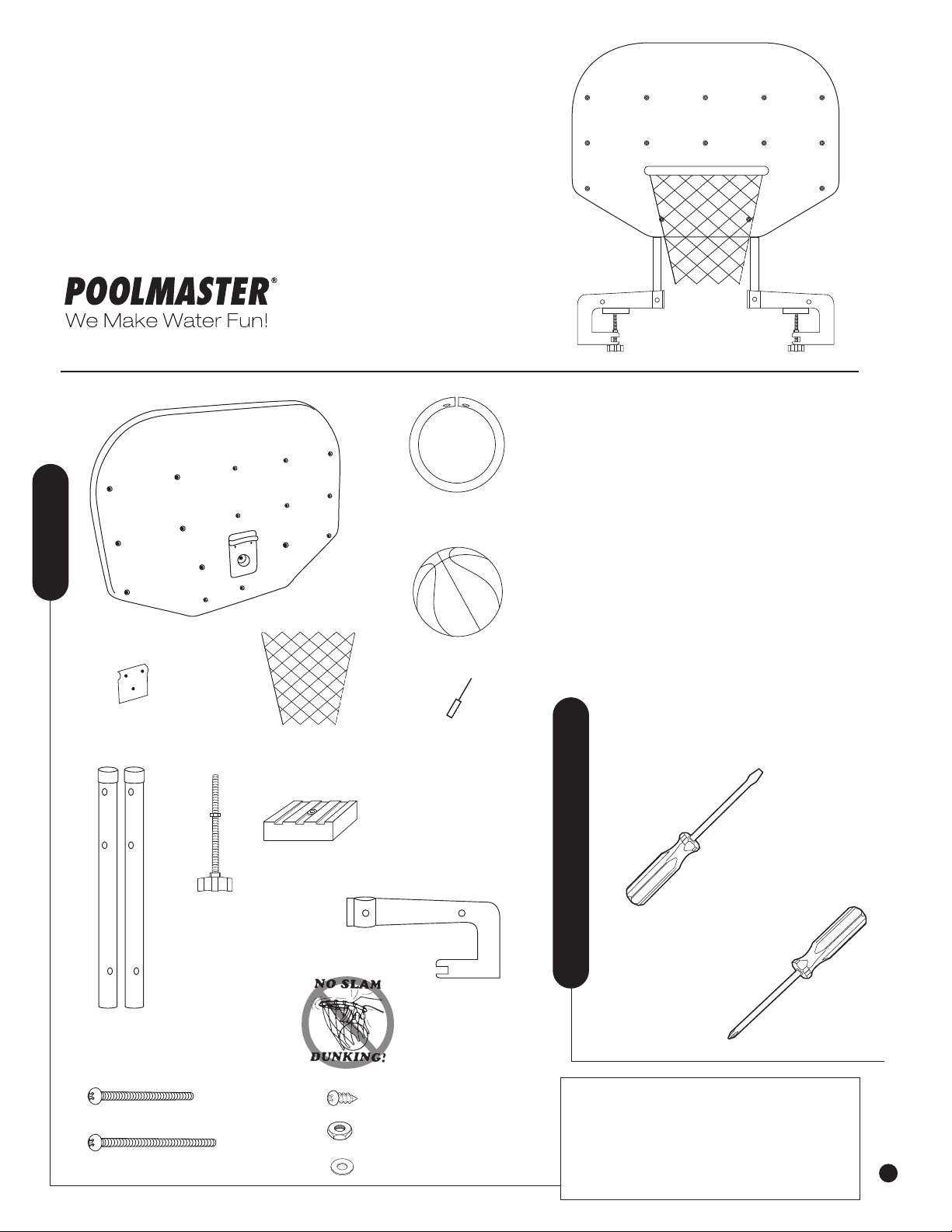

Contents
Backboard
Hoop
Ball
Product Care & Storage
Your new poolside game has been made with many
non-corrosive quality materials and should provide you
with many years of enjoyment with proper care.
However, sun and chemically treated pool water
(chlorine) are natural enemies of many synthetic
materials. For maximum life of your game, please do the
following:
1. Do not leave the game ball oating around the pool
when not in use.
2. After use, wash away the chlorine pool water with
plain water using a garden hose.
3. When not in use, store your game in a dry place away
from direct sunlight.
Backboard
Hoop Bracket
6 - ⁄x 18” Thread
Studs w/Hex Nuts
& Knobs (2)
PVC Supports
with 2 caps (2)
¼-20 x 2” Bolts (5)
¼-20 x 2 ½” Bolts (2)
Polyethylene Net
Mounting Brackets (2)
Ball Needle
Block Support (2)
NO SLAM
DUNK label
Set Screws #8 x 32 (2)
¼-20 Hex Nuts (7)
⁄ Washers (7)
Flat-head
Screwdriver
Phillips
Screwdriver
Recommended Tools
Need Assistance?
Call our Customer Service Line:
800.854.1492
Visit our website @ poolmaster.com
eMail us @ [email protected]
10301301784-13
1
Page 2

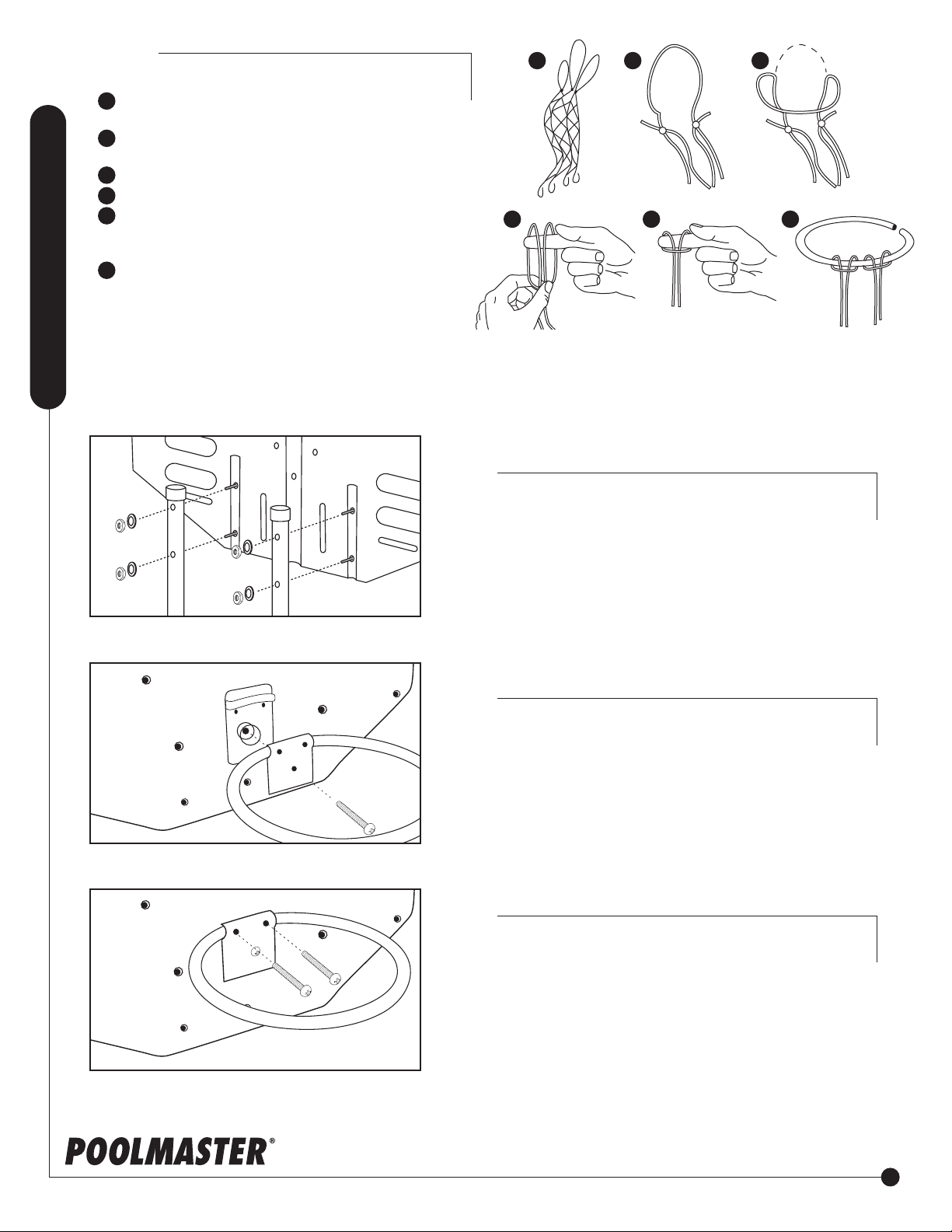

Step 1
Thread Net on PVC Hoop.
This is the net right out of the package.
1
You will be working with the longer looped end.
This is a close-up of the circled portion on diagram 1.
2
This is one loop.
3
Fold the loop toward you, creating two loops.
Insert your nger through the two loops.
4
5
Release the thumb holding the loop in place and pull
on the two middle strings. The loop should slide up
and catch your ngers.
6
Take the loop from your nger and slide onto the
basketball hoop. Continue this process with each
loop until all loops are on the hoop.
Assembly Instructions
1
4
2
5
3
6
Step 2
•Attach the (2) PVC Upright Supports to the Backboard
using (4) 2" Bolts and secure with Washers & Hex Nuts.
(Ensure the Caps are facing up on the PVC Supports)
Step 3
•Attach the hoop to the Backboard by inserting (1) 2’’
Bolt through center hole of the backboard hoop
bracket and secure with washers and hex nuts.
Do not tighten yet.
Step 4
• Complete the attachment of the Hoop to the
Backboard by inserting (2) 2 ½’’ Bolts through the
top two holes of the Hoop Bracket. Secure with
washers and hex nuts.
poolmaster.com
2
Page 3

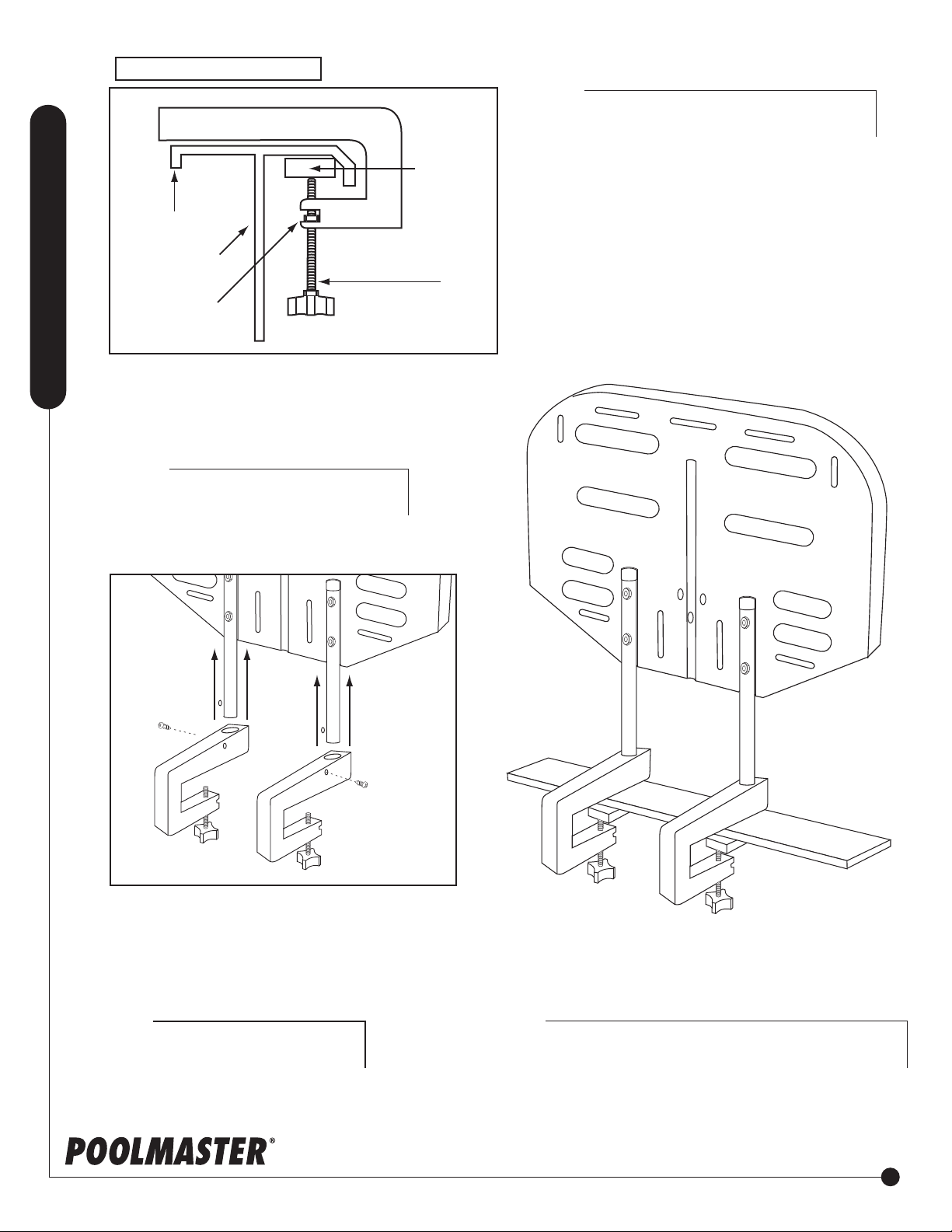

Mounting Bracket Detail
Pool
Top Rail
Pool Wall
Block
Support
Step 5
• Slide the Mounting Brackets over the top
rail. Attach with Clamp Knob making sure
Block Support is between clamp knob
and underneath top rail. Loosely tighten
as you may have to adjust placement
during Step 6.
Assembly Instructions
Notch
with Nut
inserted
Clamp Knob
with threaded
stud
Step 6
•Place the pre-assembled Brackets on
the Uprights and secure at the desired
position using the Set Screws.
Step 7
•Use Ball Needle and a hand
pump(not included) to inate.
Step 8
•Place "Warning! No Slam Dunking!" on rail between
PVC Upright Supports.
poolmaster.com
3
