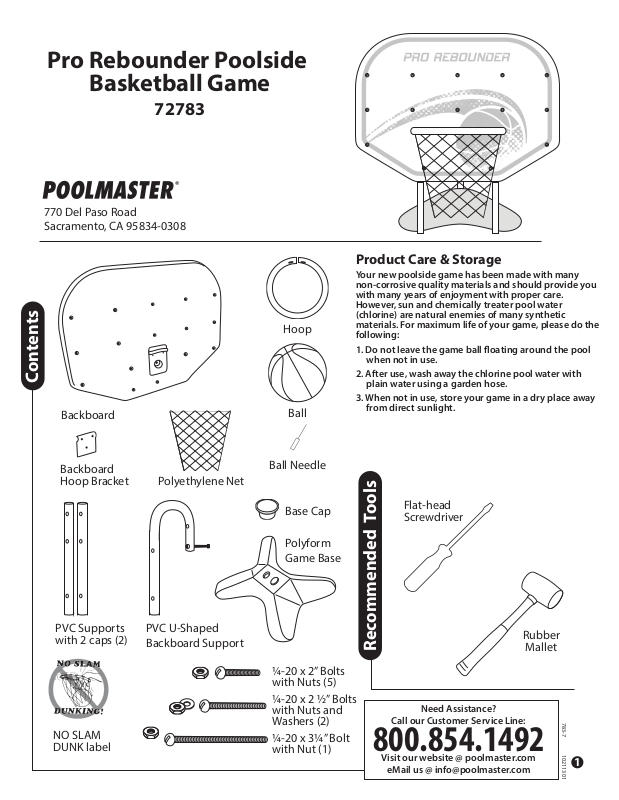

Page 1
Pro Rebounder Poolside
Basketball Game
72783
770 Del Paso Road
Sacramento, CA 95834-0308
Hoop
Contents
Backboard
Ball
Product Care & Storage
Your new poolside game has been made with many
non-corrosive quality materials and should provide you
with many years of enjoyment with proper care.
However, sun and chemically treater pool water
(chlorine) are natural enemies of many synthetic
materials. For maximum life of your game, please do the
following:
1. Do not leave the game ball oating around the pool
when not in use.
2. After use, wash away the chlorine pool water with
plain water using a garden hose.
3. When not in use, store your game in a dry place away
from direct sunlight.
Backboard
Hoop Bracket
PVC Supports
with 2 caps (2)
NO SLAM
DUNK label
Polyethylene Net
PVC U-Shaped
Backboard Support
Ball Needle
Base Cap
Polyform
Game Base
¼-20 x 2” Bolts
with Nuts (5)
¼-20 x 2 ½” Bolts
with Nuts and
Washers (2)
¼-20 x 3¼” Bolt
with Nut (1)
Flat-head
Screwdriver
Rubber
Recommended Tools
Need Assistance?
Call our Customer Service Line:
Mallet
800.854.1492
Visit our website @ poolmaster.com
eMail us @ [email protected]
10211301783-7
1
Page 2
Step 1
Thread Net on PVC Hoop.
This is the net right out of the package.
1
You will be working with the longer looped end.
This is a close-up of the circled portion on diagram 1.
2
This is one loop.
3
Fold the loop toward you, creating two loops.
Insert your nger through the two loops.
4
5
Release the thumb holding the loop in place and pull
on the two middle strings. The loop should slide up
and catch your ngers.
6
Take the loop from your nger and slide onto the
basketball hoop. Continue this process with each
loop until all loops are on the hoop.
Assembly Instructions
1
4
Note: Caution should be taken in the following steps to avoid
drilling holes in liner and/or having drilling debris fall in pool.
This debris may harm the liner if it falls into the pool.
2
5
3
6
Backboard
Hoop
Bracket
2
½"
Bolts x2
Step 2
•Attach the Hoop to the Backboard by
inserting (2) 2 ½" Bolts through the Hoop
Bracket, Hoop and Backboard as pictured
and secure with Washers and Hex Nuts.
Step 3
•Attach the 2 PVC Upright Supports (with caps on
the bottom end) to the Backboard using (4) 2'' Bolts
inserted through the front of the Backboard through
the matching holes on the PVC Uprights. Secure with
Hex Nuts.
poolmaster.com
2
Page 3
Front View
Back View
Assembly Instructions
2" Bolt 3 ¼" Bolt
3 ¼" Bolt
2
" Bolt
Step 4
•Remove the 2’’ pre-threaded Bolt from the U-Shaped
Upright and thread it through the front of the
backboard into the hole below the hoop bracket
and back into the bottom hole of the U-Shaped
backboard support and secure with hex nut.
•Attach the 3 ¼’’ bolt through the center hole in the
hoop bracket and into the top hole of the PVC
U-Shaped Support. Secure with hex nut.
Step 5
•Insert the U-Shaped Support into the Base. Fill Base
with water or sand and cover up opening with Cap.
•May need rubber mallet to push U-Shaped Upright
through Base opening.
Step 6
•Use Ball Needle and a hand pump (not included) to inate
the Ball to 26 ½" circumference (approx. 8 ½" diameter).
Step 7
•Place "Warning! No Slam Dunking!" on base between
PVC Upright Supports.
poolmaster.com
3
