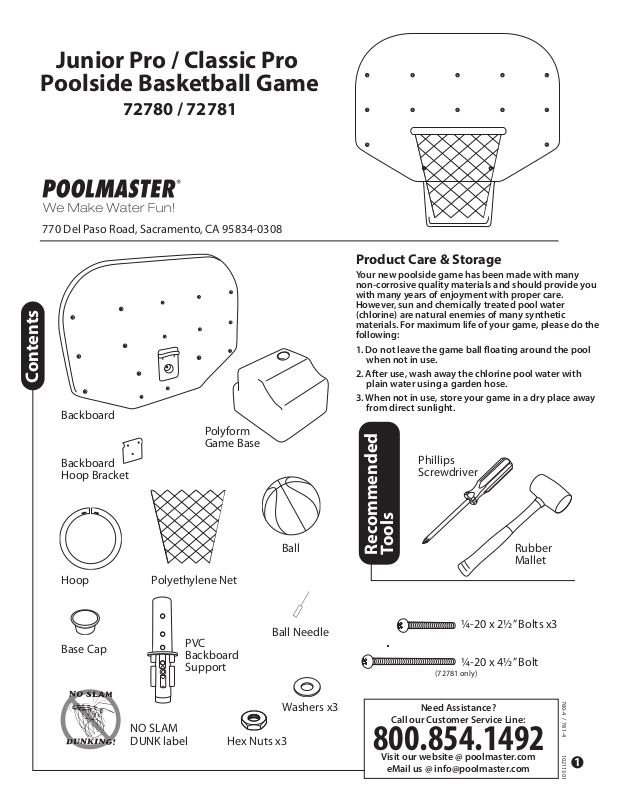

Page 1
Junior Pro / Classic Pro
Poolside Basketball Game
72780 / 72781
770 Del Paso Road, Sacramento, CA 95834-0308
Contents
Backboard
Polyform
Game Base
Backboard
Hoop Bracket
Product Care & Storage
Your new poolside game has been made with many
non-corrosive quality materials and should provide you
with many years of enjoyment with proper care.
However, sun and chemically treated pool water
(chlorine) are natural enemies of many synthetic
materials. For maximum life of your game, please do the
following:
1. Do not leave the game ball oating around the pool
when not in use.
2. After use, wash away the chlorine pool water with
plain water using a garden hose.
3. When not in use, store your game in a dry place away
from direct sunlight.
Phillips
Screwdriver
Hoop Polyethylene Net
Base Cap
NO SLAM
DUNK label
PVC
Backboard
Support
Hex Nuts x3
Ball
Ball Needle
Washers x3
Recommended
Tools
¼-20 x 2½” Bolts x3
¼-20 x 4½” Bolt
(72781 only)
Need Assistance?
Call our Customer Service Line:
Rubber
Mallet
800.854.1492
Visit our website @ poolmaster.com
eMail us @ [email protected]
10211301780-4 / 781-4
1
Page 2
Step 1
Thread Net on PVC Hoop.
This is the net right out of the package.
1
You will be working with the longer looped end.
This is a close-up of one loop.
2
Fold the loop toward you, creating two loops.
3
Insert your nger through the two loops.
4
Release the thumb holding the loop in place and pull
5
on the two middle strings. The loop should slide up
and catch your ngers.
Take the loop from your nger and slide onto the
6
basketball hoop. Continue this process with each
loop until all loops are on the hoop.
1
4
2
5
3
6
Assembly Instructions
Backboard
Hoop
Bracket
Step 3
•Insert the PVC Backboard Support into the Base
AT AN ANGLE. (Diagram A) While pushing Support
into the base, keep it pulled back a bit to make sure
that Support CLEARS the metal washer that is built
into the base at the opening (Diagram B). Use a
Rubber Mallet if necessary.
•Once the Support is inserted into the base, secure
through the 2nd hole from the bottom with (1) 2 ½”
bolt. (Diagram C)
DIAGRAM C
2 ½"
Bolts x2
Step 4
•Attach the PVC Backboard Support to
the Backboard using (1) 4 ½'' bolt
through the bottom hole of the
Backboard Hoop Bracket and into the
third hole from the bottom of the PVC
Backboard Support.
Step 2
•Attach the Hoop to the Backboard by inserting
(2) 2 ½" Bolts through the Hoop Bracket, Hoop
and Backboard as pictured and secure with
Washers and Hex Nuts.
DIAGRAM A DIAGRAM B
Washer
Second
Hole
Down
2 ½"
Bolt
Step 5
•Fill Base with water or sand and
cover up opening with Base Cap.
Step 6
•Use Ball Needle and a hand
pump(not included) to inate.
Base Cap
4 ½" Bolt
(72781 only)
poolmaster.com
2
