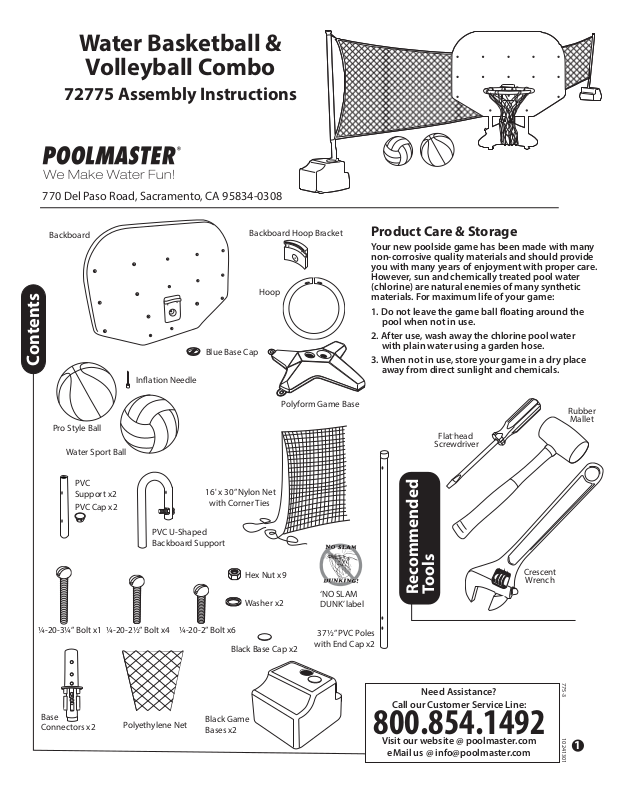

Page 1
Water Basketball &
Volleyball Combo
72775 Assembly Instructions
770 Del Paso Road, Sacramento, CA 95834-0308
Backboard

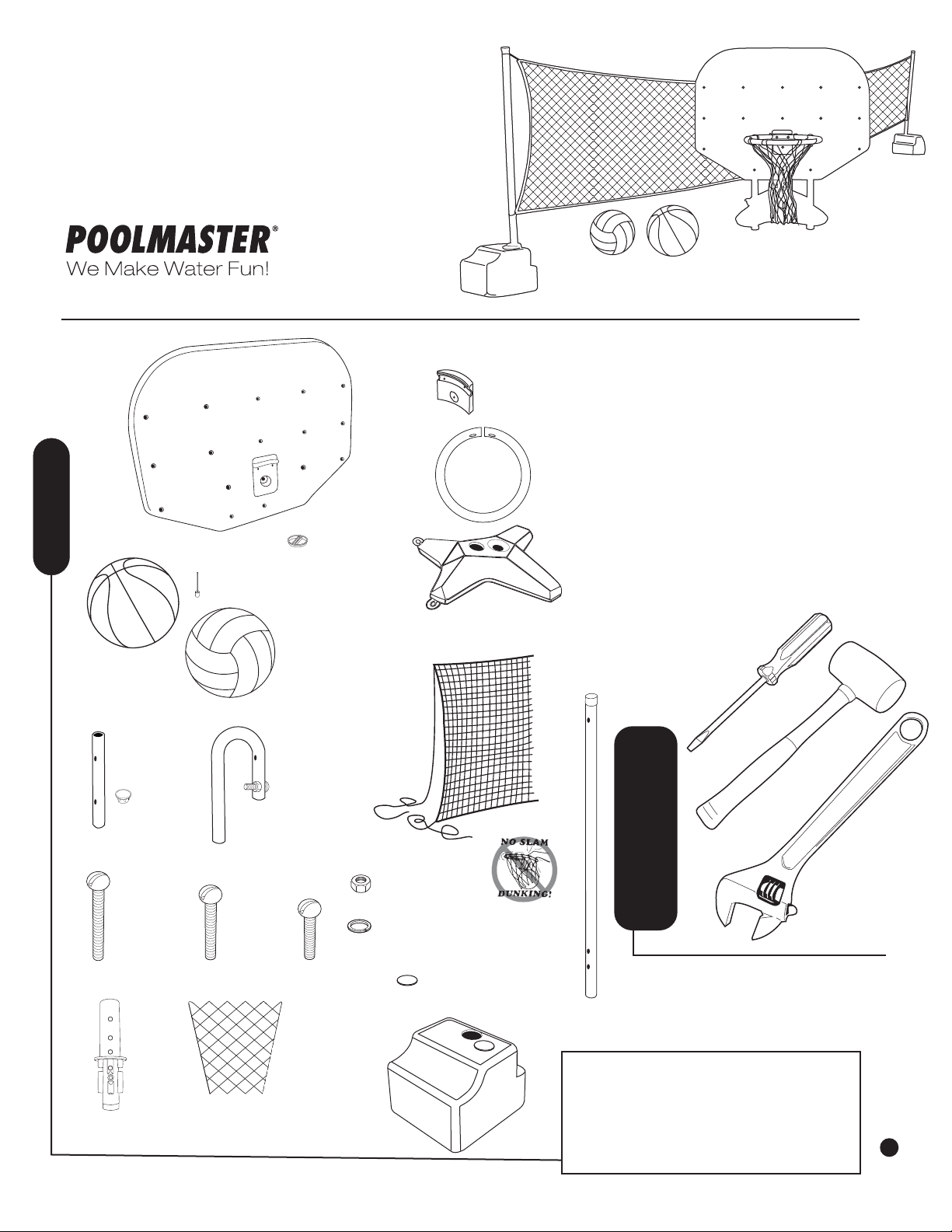

Contents
Pro Style Ball
Water Sport Ball
PVC
Support x2
PVC Cap x2
Ination Needle
Backboard Hoop Bracket
Hoop
Blue Base Cap
16' x 30” Nylon Net
with Corner Ties
Polyform Game Base
Product Care & Storage
Your new poolside game has been made with many
non-corrosive quality materials and should provide
you with many years of enjoyment with proper care.
However, sun and chemically treated pool water
(chlorine) are natural enemies of many synthetic
materials. For maximum life of your game:
1. Do not leave the game ball oating around the
pool when not in use.
2. After use, wash away the chlorine pool water
with plain water using a garden hose.
3. When not in use, store your game in a dry place
away from direct sunlight and chemicals.
Rubber
Mallet
Flathead
Screwdriver
¼-20-3¼” Bolt x1
Base
Connectors x2
PVC U-Shaped
Backboard Support
¼-20-2½” Bolt x4
Polyethylene Net
¼-20-2” Bolt x6
Black Game
Bases x2
Hex Nut x9
Washer x2
Black Base Cap x2
‘NO SLAM
DUNK’ label
37½” PVC Poles
with End Cap x2
Crescent
Wrench
Recommended
Tools
Need Assistance?
Call our Customer Service Line:
800.854.1492
Visit our website @ poolmaster.com
eMail us @ [email protected]
10241301775-3
1
Page 2

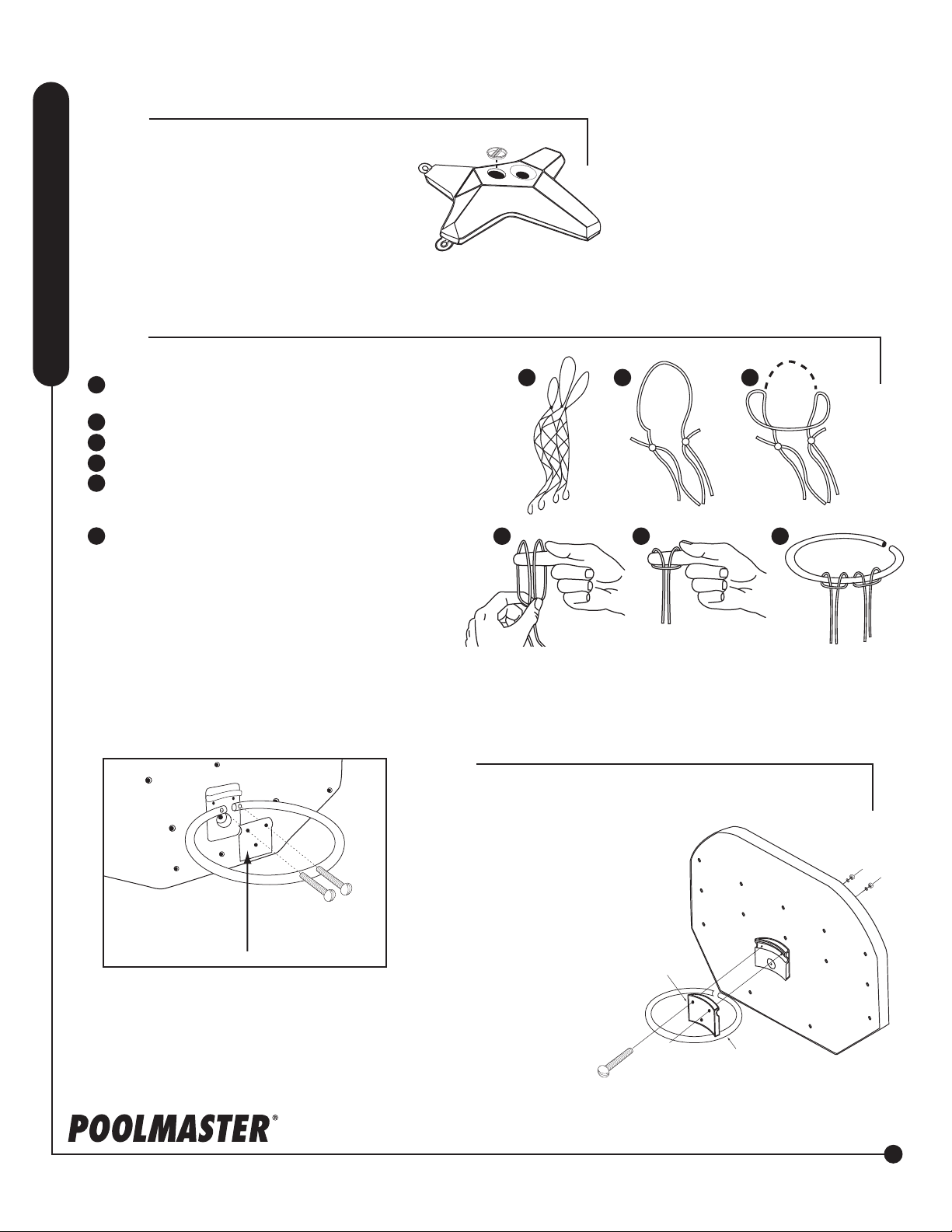

Basketball Game
Step 1
•Fill the Base with water or sand and
cover opening with Cap.
Step 2
Thread Net on PVC Hoop.
Assembly Instructions
a
This is the net right out of the package.
You will be working with the longer looped end.
This is a close-up of one loop.
b
c
Fold the loop toward you, creating two loops.
Insert your nger through the two loops.
d
e
Release the thumb holding the loop in place and pull
on the two middle strings. The loop should slide up
and catch your ngers.
f
Take the loop from your nger and slide onto the
basketball hoop. Continue this process with each
loop until all loops are on the hoop.
Base & Cap
a
d
b
e
c
f
Backboard
Hoop
Bracket
2½"
Bolts x2
Step 3
•Attach the Hoop to
the Backboard by
inserting (2) 2½" Bolts
through the Hoop
Bracket, Hoop and
Backboard as pictured
and secure with
Washers and Hex
Nuts.
2½"
Bolts
Br acket
Hoop
poolmaster.com
Washers
& Hex nuts
2
Page 3

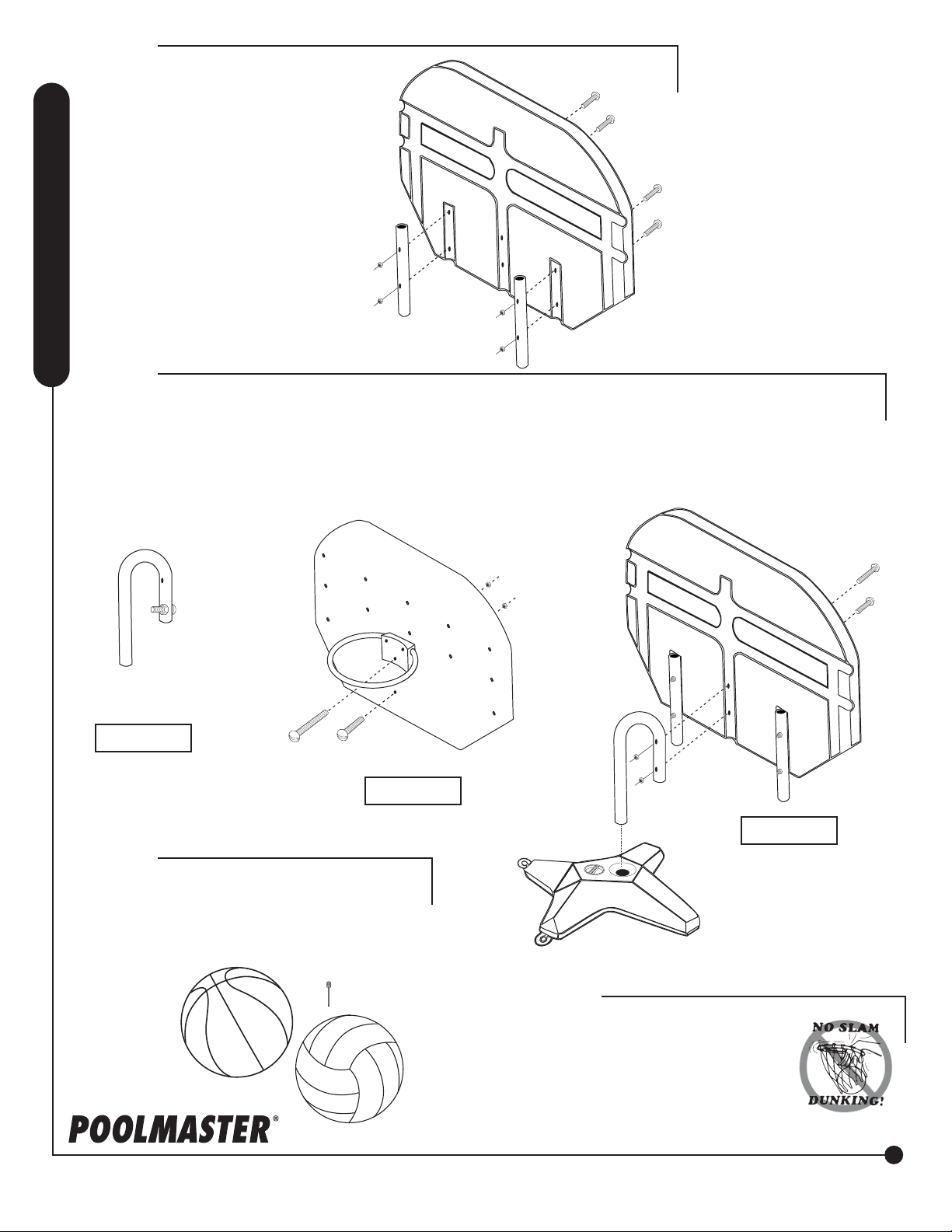

Step 4
•Attach two PVC Upright Supports
(with Caps on the bottom ends) to
the Backboard using four 2” Bolts
and secure with Hex Nuts
Hex Nuts
2" Bolts
PVC Support
Assembly Instructions
Step 5
Hex Nuts
PVC Support
•Undo the pre-threaded 2” Bolt and Hex Nut on the PVC U-Shaped Backboard Support (see Diagram
“A”) and thread the Bolt from the front of the backboard through the hole below the Backboard
Hoop Bracket into the lowest hole of the PVC U-Shaped Backboard Support. (see Diagram “B”).
Attach one 3¼” Bolt through the only remaining hole of the Backboard Hoop Bracket into the
upper hole of the PVC U-Shaped Backboard Support. Secure and tighten both Bolts with Hex Nuts.
Insert U-Shaped Support into Base (see Diagram “C”).
Hex nuts
2" Bolt
Diagram A
3¼"Bolt
2" Bolt
Diagram B
PVC U-Shaped Base
Backboard Support
3¼"Bolt
2" Bolt
Step 6
•Use Ball Needle and hand pump (not
included) to inate the Pro Style Ball
or the Water Sport Ball. Do not
over-inate
Ination Needle
Base & Cap
Diagram C
Step 7
•Place NO SLAM DUNK label
on front of Base
NO SLAM
DUNK label
poolmaster.com
3
Page 4

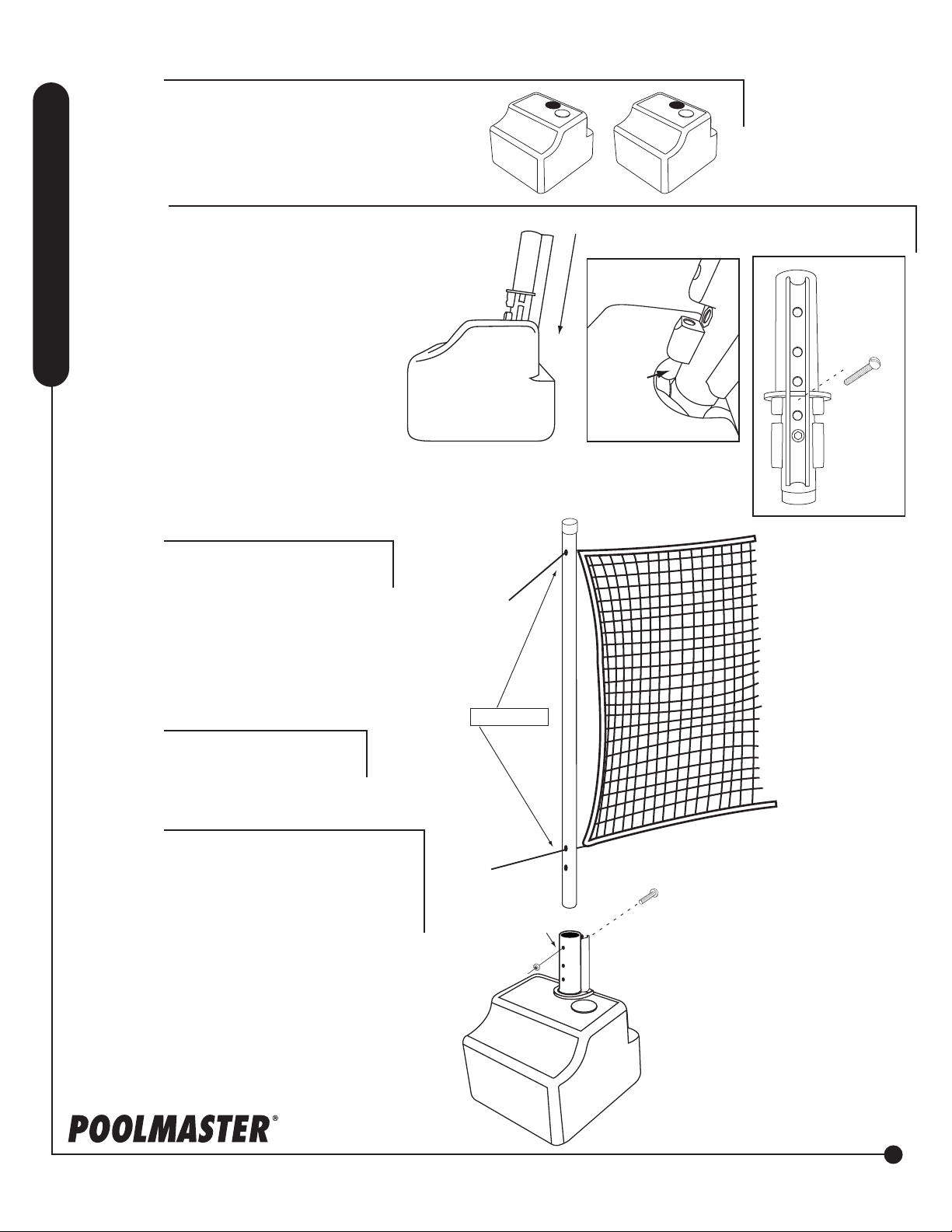

Volleyball Game
Step 1
• Fill both bases with water or sand
Step 2
•Insert the PVC Support into the
Assembly Instructions
•Once the Support is inserted
and cover openings with caps.
Base AT AN ANGLE. (Diagram A)
While pushing Support into the
Base, keep it pulled back a bit to
make sure that Support CLEARS
the metal washer that is built
into the Base at the opening
(Diagram B). Use a Rubber Mallet
if necessary.
into the Base, secure through the
2nd hole from the bottom with one
2½” Bolt (Diagram C).
DIAGRAM A
DIAGRAM B
Washer
DIAGRAM C
2½"Bolt
Step 3
•Insert Pole into Base Connector.
(Tap with rubber mallet if needed
and secure with one 2” bolt in
upper hole of the Base Connector
and secure with Hex Nut. Repeat
for second Base.
Step 4
•Place End Caps on top of Poles
Step 5
•Insert Corner Ties of Net through
holes shown and secure to each Pole.
The Net can be shortened by rolling
on Poles or lengthened by extending
the Corner Ties. (for extra stability
secure rope ends beyond Bases with
tent stakes [not included])
Corner Ties
2" Bolt
Base
Connector
Game Base
poolmaster.com
4
