Above-Ground Poolside
Basketball Game
72774
770 Del Paso Road
Sacramento, CA 95834-0308

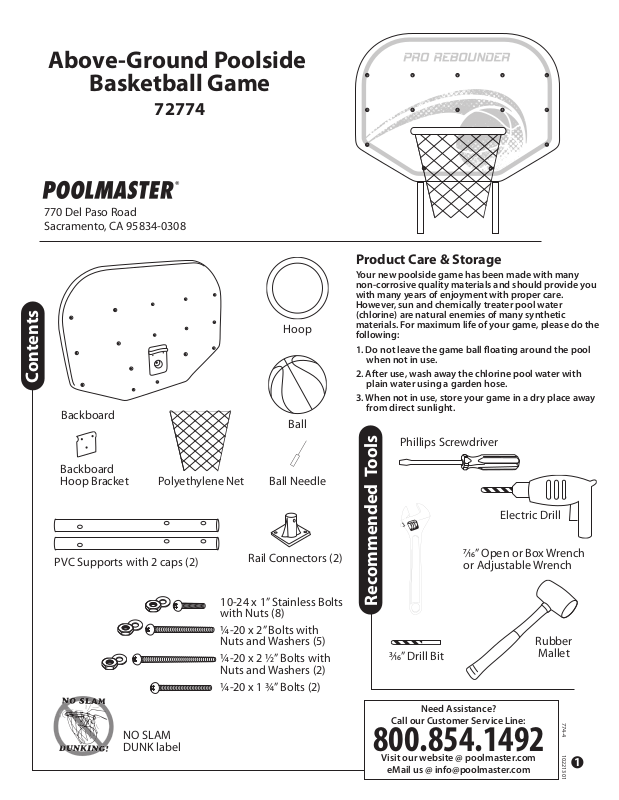

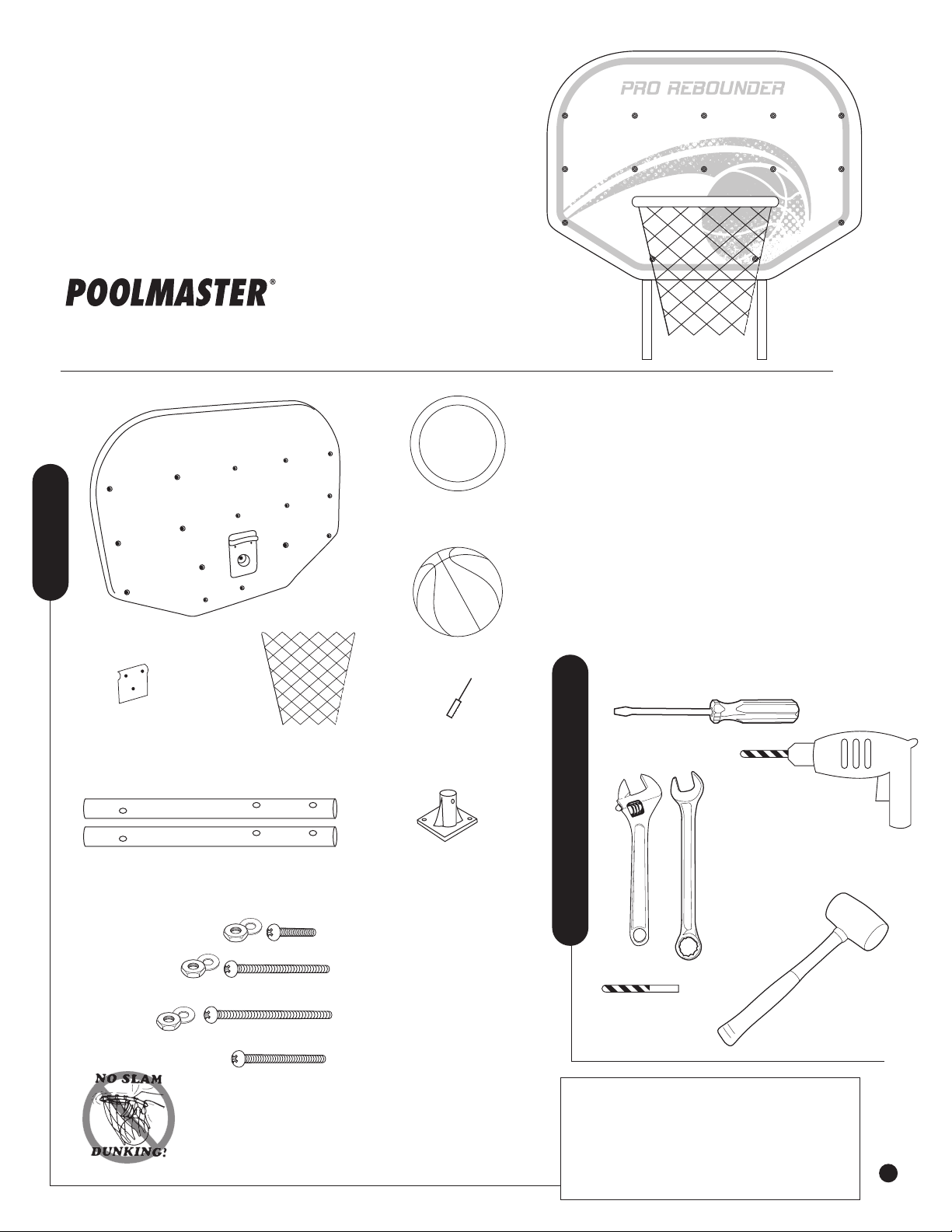

Contents
Backboard
Hoop
Ball
Product Care & Storage
Your new poolside game has been made with many
non-corrosive quality materials and should provide you
with many years of enjoyment with proper care.
However, sun and chemically treater pool water
(chlorine) are natural enemies of many synthetic
materials. For maximum life of your game, please do the
following:
1. Do not leave the game ball oating around the pool
when not in use.
2. After use, wash away the chlorine pool water with
plain water using a garden hose.
3. When not in use, store your game in a dry place away
from direct sunlight.
Phillips Screwdriver
Backboard
Hoop Bracket
PVC Supports with 2 caps (2)
NO SLAM
DUNK label
Polyethylene Net
Ball Needle
Rail Connectors (2)
10-24 x 1” Stainless Bolts
with Nuts (8)
¼-20 x 2” Bolts with
Nuts and Washers (5)
¼-20 x 2 ½” Bolts with
Nuts and Washers (2)
¼-20 x 1 ¾” Bolts (2)
Electric Drill
⁄” Open or Box Wrench
or Adjustable Wrench
Recommended Tools
Rubber
⁄” Drill Bit
Need Assistance?
Call our Customer Service Line:
800.854.1492
Visit our website @ poolmaster.com
eMail us @ [email protected]
Mallet
10221301774-4
1
Page 2
Step 1

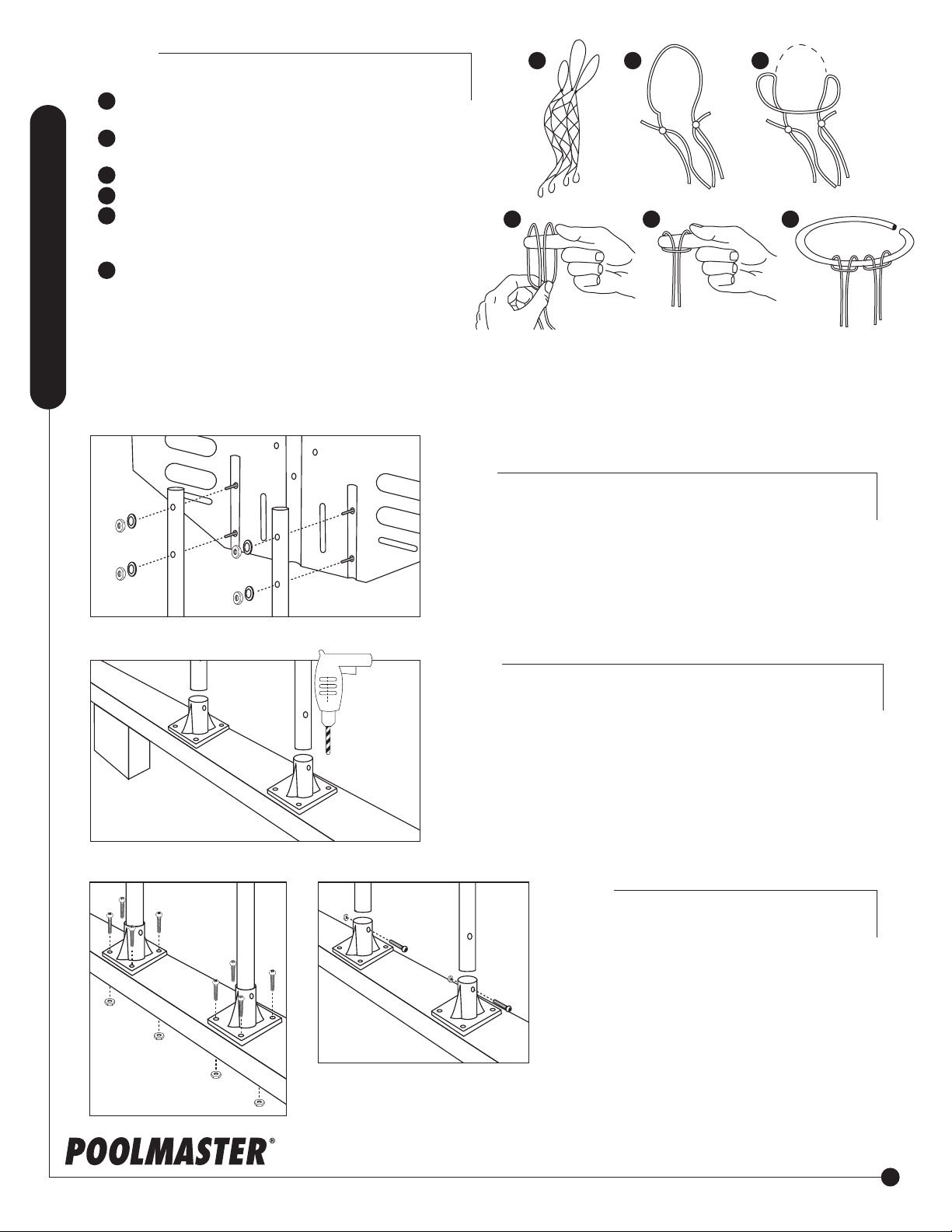

Thread Net on PVC Hoop.
This is the net right out of the package.
1
You will be working with the longer looped end.
This is a close-up of the circled portion on diagram 1.
2
This is one loop.
3
Fold the loop toward you, creating two loops.
Insert your nger through the two loops.
4
5
Release the thumb holding the loop in place and pull
on the two middle strings. The loop should slide up
and catch your ngers.
6
Take the loop from your nger and slide onto the
basketball hoop. Continue this process with each
loop until all loops are on the hoop.
Assembly Instructions
1
4
Note: Caution should be taken in the following steps to avoid
drilling holes in liner and/or having drilling debris fall in pool.
This debris may harm the liner if it falls into the pool.
2
5
3
6
Step 2
•Attach the (2) PVC Upright Supports to the Backboard
using (4) 2'' Bolts inserted through the front of the
Backboard through the matching holes on the PVC
Uprights. Secure with Hex Nuts.
Diagram A Diagram B
Step 3
•Situate the game on the pool rail at your desired location.
Using the holes in the Rail Connectors as guides, drill
(8) ⁄" holes in Top Rail - (4) holes per connector.
•Attach the Connectors to the pool rail and secure with
(8) 10-24 Stainless Bolts and Nuts. (Diagram A)
Step 4
•Insert the (2) Rail Connectors to the (2)
Uprights and secure with (2) ¼ x 1 ¾
Bolts and Nuts (2). (Diagram B)
poolmaster.com
2
Page 3
Assembly Instructions
Backboard
Hoop
Bracket
” Bolts
2
2
Step 6
•Use Ball Needle and a hand pump (not included) to inate
the Ball to 26 1/2" circumference (approx. 8 1/2" diameter).
Step 5

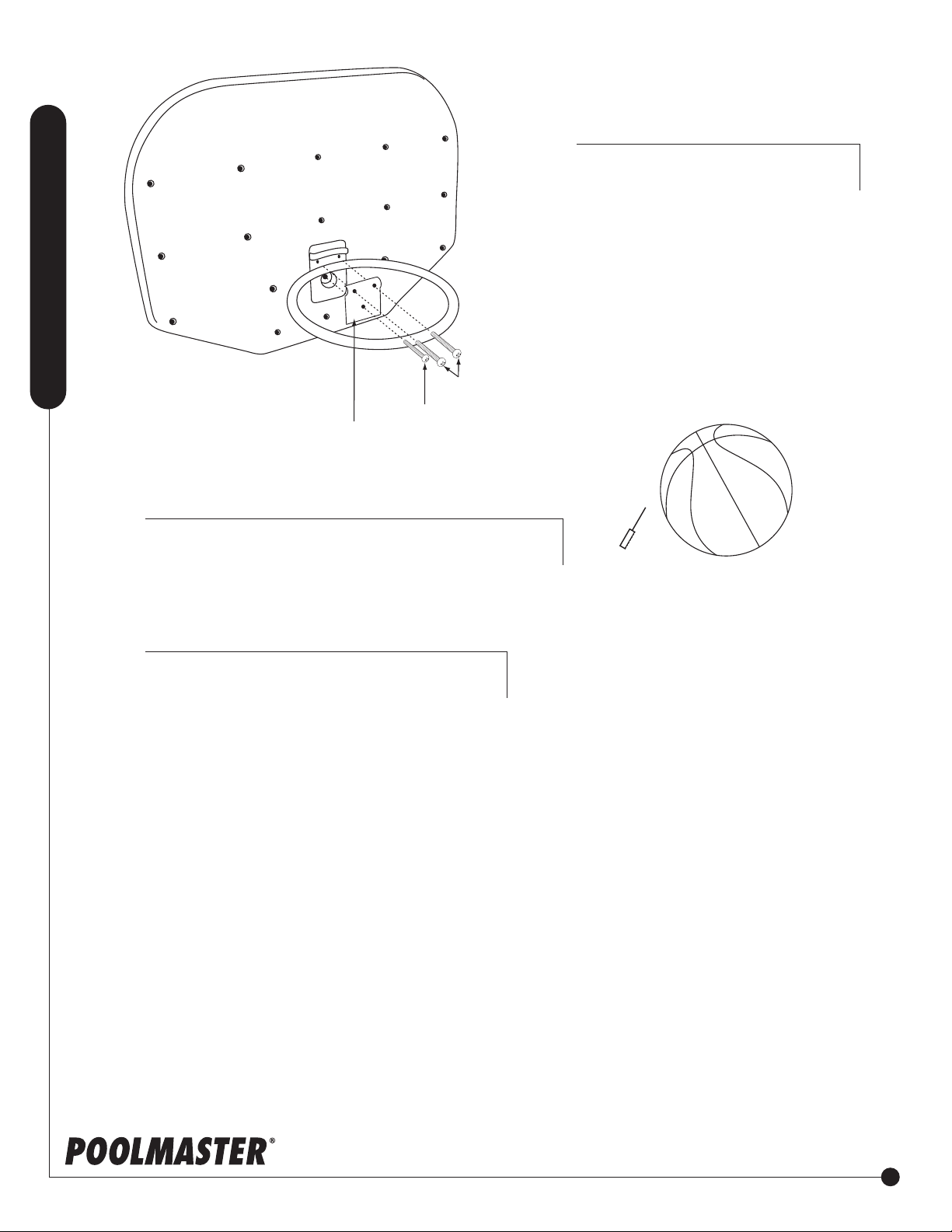

•Attach the hoop to the Backboard by
inserting (2) 2 ½" Bolts through the hoop
Bracket, Hoop and Backboard and secure
with Washers and Hex Nuts. Insert 2'' Bolt
into the bottom hole of the Backboard
Hoop Bracket ans secure with Washer &
Hex Nut.
½" Bolts x2
Step 7
•Place "Warning! No Slam Dunking!" on rail between
PVC Upright Supports.
poolmaster.com
3
