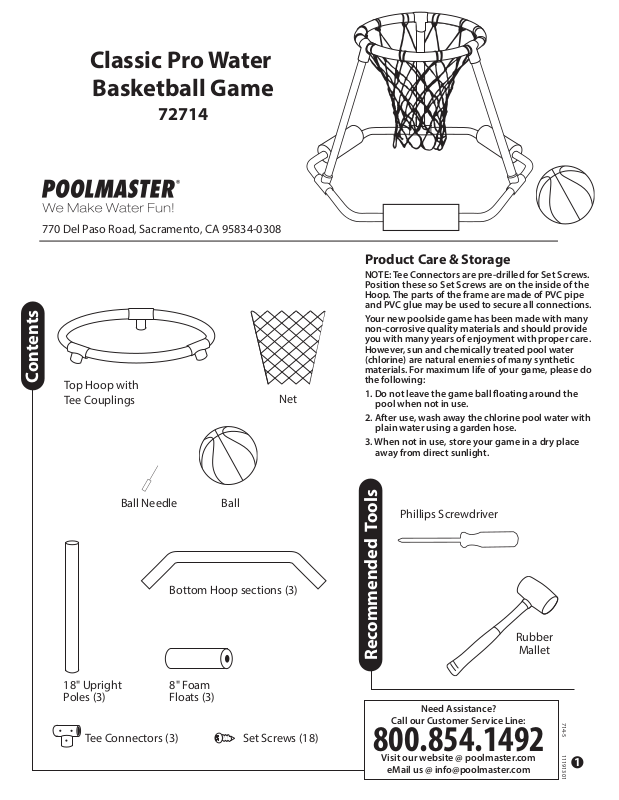

Page 1
Classic Pro Water
Basketball Game
72714
770 Del Paso Road, Sacramento, CA 95834-0308
Contents
Top Hoop with
Tee Couplings
Net
Product Care & Storage
NOTE: Tee Connectors are pre-drilled for Set Screws.
Position these so Set Screws are on the inside of the
Hoop. The parts of the frame are made of PVC pipe
and PVC glue may be used to secure all connections.
Your new poolside game has been made with many
non-corrosive quality materials and should provide
you with many years of enjoyment with proper care.
However, sun and chemically treated pool water
(chlorine) are natural enemies of many synthetic
materials. For maximum life of your game, please do
the following:
1. Do not leave the game ball oating around the
pool when not in use.
2. After use, wash away the chlorine pool water with
plain water using a garden hose.
3. When not in use, store your game in a dry place
away from direct sunlight.
18" Upright
Poles (3)
Tee Connectors (3)
BallBall Needle
Bottom Hoop sections (3)
8" Foam
Floats (3)
Set Screws (18)
Phillips Screwdriver
Rubber
Recommended Tools
Need Assistance?
Call our Customer Service Line:
Mallet
800.854.1492
Visit our website @ poolmaster.com
eMail us @ [email protected]
11191301714-5
1
Page 2
Set Screws
6
OPEN
END
3
Set Screws
Assembly Instructions
4
2
1
Step 1
•Twist 8" Foam Floats onto Bottom Hoop Sections.
Step 2
•Place Tee Couplings on Bottom Hoop Sections making sure that pre-drilled holes face inside the
hoop (orient as shown).
Step 3
•Insert Uprights into Tees.
Step 4
•Secure bottom couplings and uprights with Set Screws.
Step 5
• Locate the red dot that states ‘Open End’ to allow the net to be installed properly by threading loops
around the Top Hoop.
Thread Net on PVC Hoop.
1
This is the net right out of the package.
You will be working with the longer looped end.
2
This is a close-up of the circled portion on diagram 1.
This is one loop.
3
Fold the loop toward you, creating two loops.
4
Insert your nger through the two loops.
5
Release the thumb holding the loop in place and pull
on the two middle strings. The loop should slide up
and catch your ngers.
6
Take the loop from your nger and slide onto the
basketball hoop. Continue this process with each
loop until all loops are on the hoop.
1
4
2
5
3
6
5
Step 6
• Insert top hoop couplings onto uprights and secure with set screws (holes located on inside of hoop).
Step 7
• Inate game ball using Ball Needle and a hand pump (not included) to inate Ball to “9” diameter.
Do not over inate.
poolmaster.com
