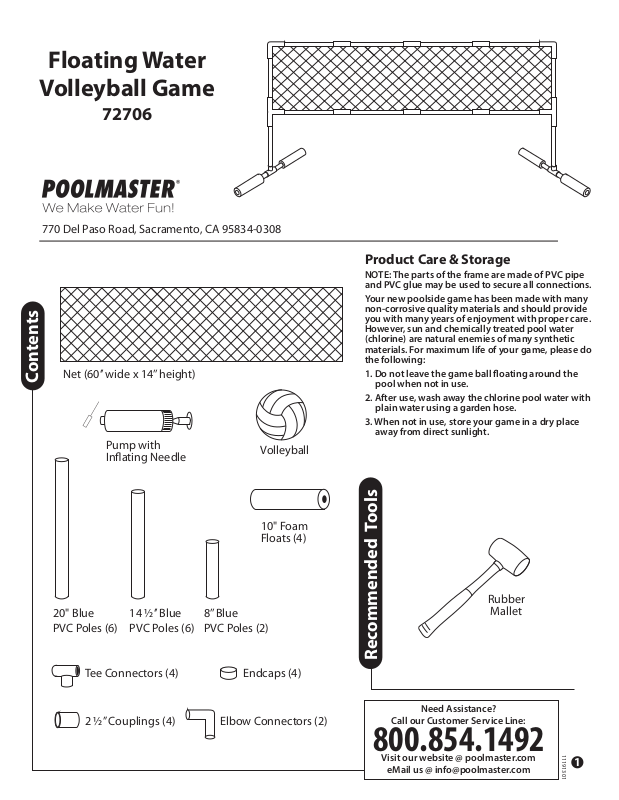

Floating Water
Volleyball Game
72706
770 Del Paso Road, Sacramento, CA 95834-0308
Net (60’’ wide x 14’’ height)
Contents
Pump with
Inating Needle
Volleyball
Product Care & Storage
NOTE: The parts of the frame are made of PVC pipe
and PVC glue may be used to secure all connections.
Your new poolside game has been made with many
non-corrosive quality materials and should provide
you with many years of enjoyment with proper care.
However, sun and chemically treated pool water
(chlorine) are natural enemies of many synthetic
materials. For maximum life of your game, please do
the following:
1. Do not leave the game ball oating around the
pool when not in use.
2. After use, wash away the chlorine pool water with
plain water using a garden hose.
3. When not in use, store your game in a dry place
away from direct sunlight.
20" Blue
PVC Poles (6)
2 ½” Couplings (4)
14 ½’’ Blue
PVC Poles (6)
10" Foam
Floats (4)
8’’ Blue
PVC Poles (2)
Endcaps (4)Tee Connectors (4)
Elbow Connectors (2)
Rubber
Mallet
Recommended Tools
Need Assistance?
Call our Customer Service Line:
800.854.1492
Visit our website @ poolmaster.com
eMail us @ [email protected]
11191301
1
Page 2
Step 1
•Connect a 20’’ Blue PVC Pole to a 2.5’’ Coupling. Connect another 20’’ Blue PVC Pole to the
• Repeat previous steps to ensure that there are 2 dierent sets of poles with connectors
Step 2
Assembly Instructions
•Take 1 of the sets previously assembled and place an Elbow Connector on each end.
• Take the second of the sets previously assembled and place a Tee Connector on each end.
open side of the coupling hole and place another coupling at the end of the second pole.
Connect a third 20’’ Blue PVC Pole to the open hole of the previous coupling.
approximately 60’’ long.
(Diagram A)
(Diagram B)
Diagram A
Diagram B
Step 3
• The set with the Elbow Connectors will be the
top frame. The set with the Tee Connectors will
be the bottom frame. Take the net and slide onto
the poles from the top frame.
Step 4
• Insert a 14.5’’ Blue PVC Pole on each end of the Elbow Connectors. Take the net and slide
onto the 14.5’’ Blue PVC poles.
poolmaster.com
2
Page 3
Step 5
•Take the bottom frame and slide net loops around poles. Connect the bottom frame tee
Assembly Instructions
Step 6
•Connect the 8’’ Blue PVC Pole to each opening of the Tee Connectors.
• Place a Tee Connector on the bottom of each 8’’ Blue PVC Poles.
Step 7
•Connect (2) 14.5’’ Blue PVC Poles on each end of the Tee Connectors. Place End Caps on
connectors to the top frame.
each end of the 14.5’’ Blue PVC Poles.
•Slide and twist (2) Foam Floats per side onto the 14.5’’ Blue PVC Poles. Inate ball and play.
poolmaster.com
3
