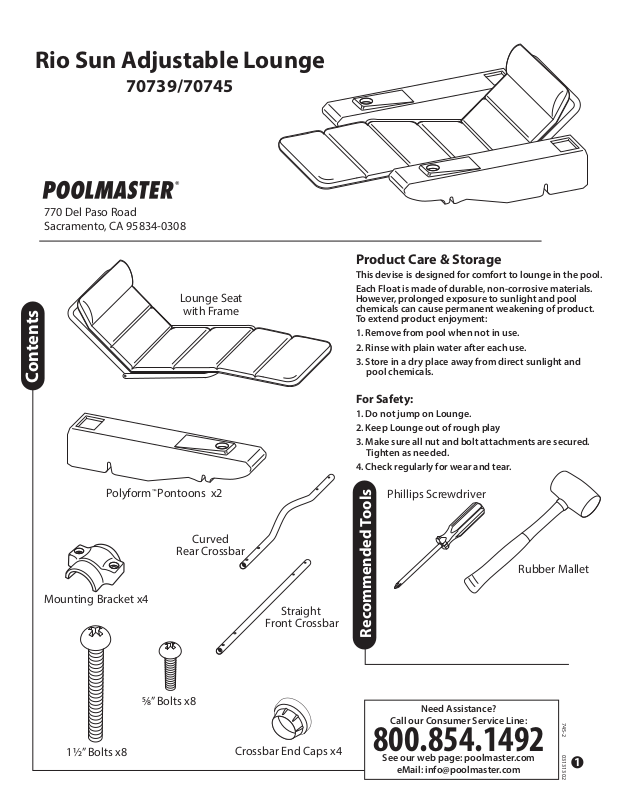

Rio Sun Adjustable Lounge
70739/70745
770 Del Paso Road
Sacramento, CA 95834-0308
Lounge Seat
with Frame

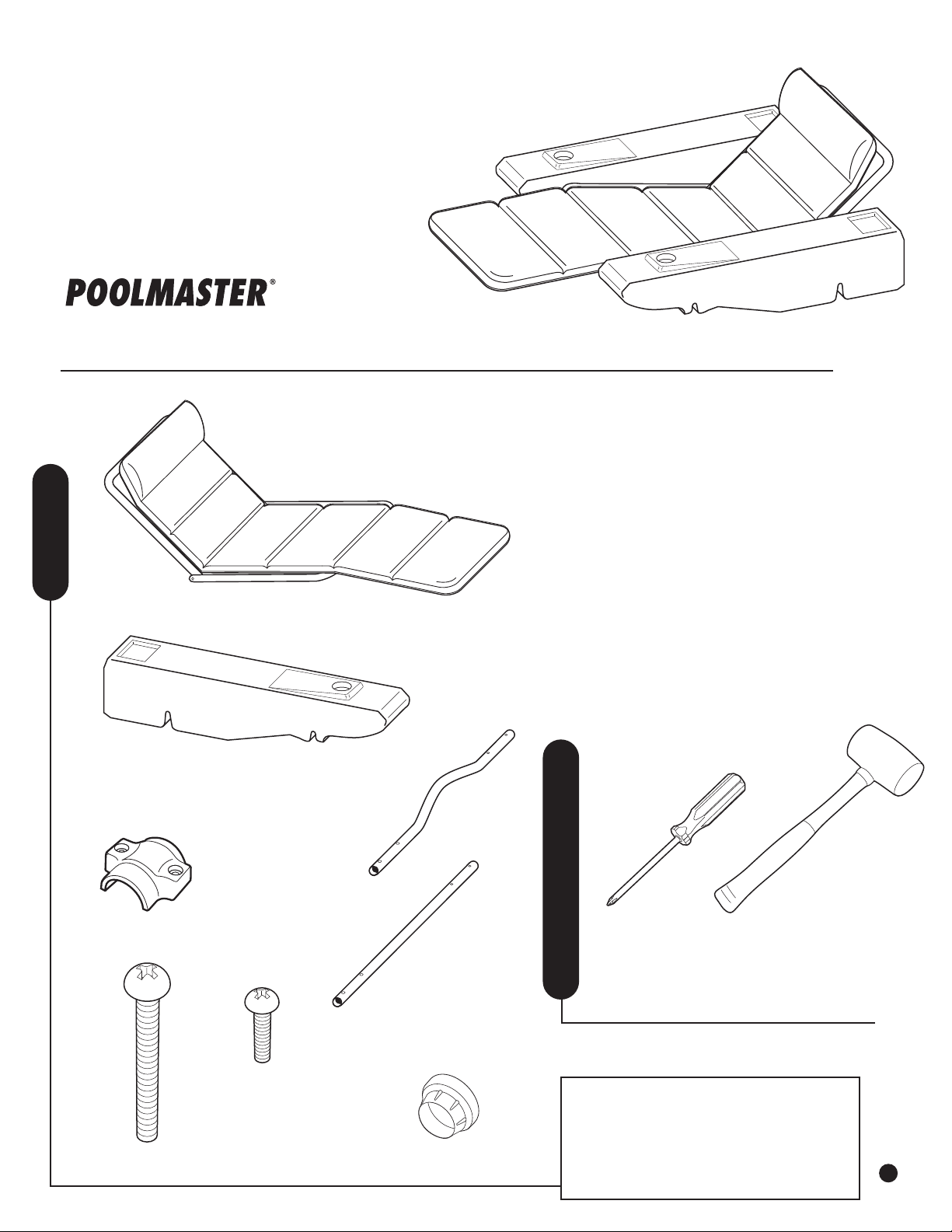

Contents
Product Care & Storage
This devise is designed for comfort to lounge in the pool.
Each Float is made of durable, non-corrosive materials.
However, prolonged exposure to sunlight and pool
chemicals can cause permanent weakening of product.
To extend product enjoyment:
1. Remove from pool when not in use.
2. Rinse with plain water after each use.
3. Store in a dry place away from direct sunlight and
pool chemicals.
Polyform™ Pontoons x2
Mounting Bracket x4
For Safety:
1. Do not jump on Lounge.
2. Keep Lounge out of rough play
3. Make sure all nut and bolt attachments are secured.
Tighten as needed.
4. Check regularly for wear and tear.
Phillips Screwdriver
Curved
Rear Crossbar
Rubber Mallet
Straight
Front Crossbar
Recommended Tools
1½” Bolts x8
⁄” Bolts x8
Crossbar End Caps x4
Need Assistance?
Call our Consumer Service Line:
800.854.1492
See our web page: poolmaster.com
eMail: [email protected]
03131302745-2
1
Page 2

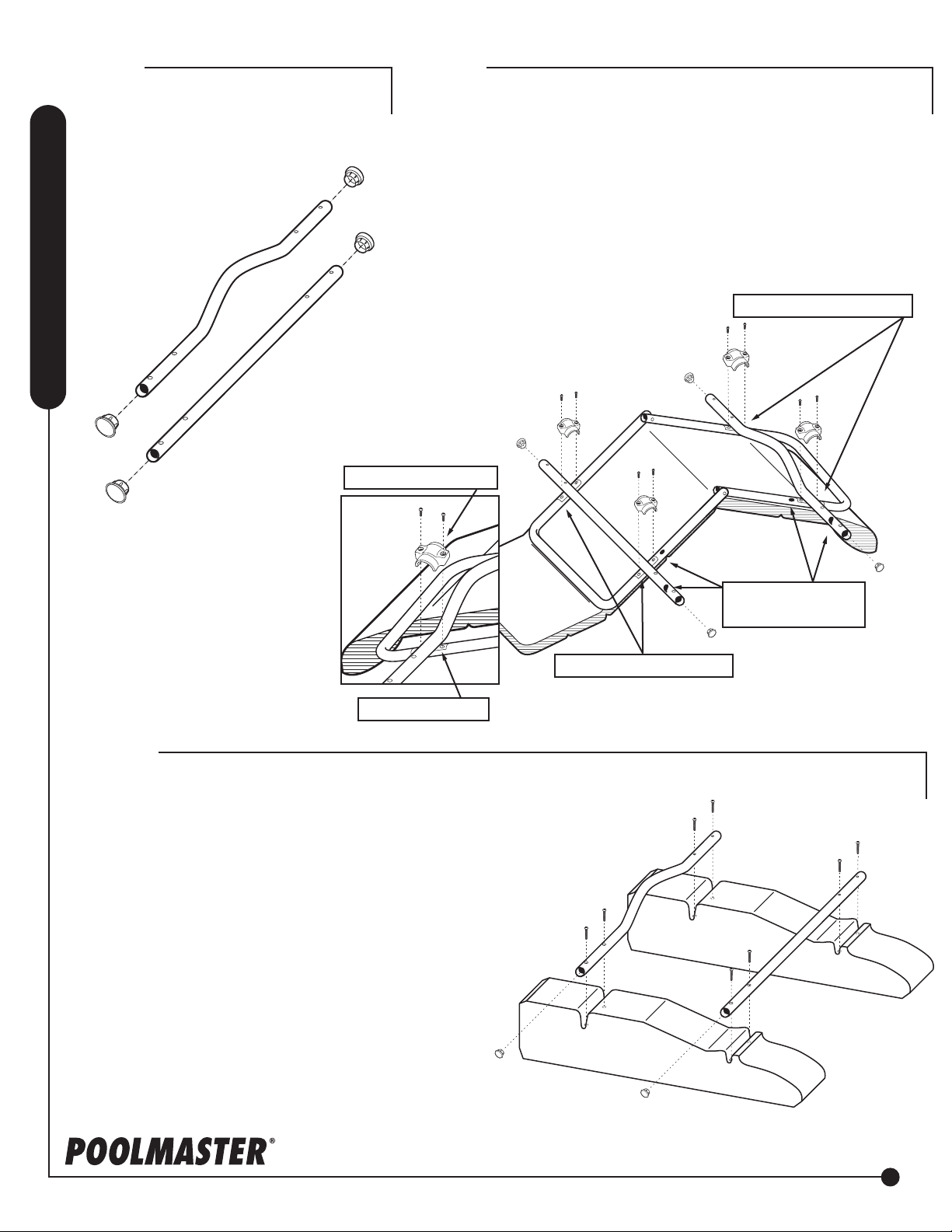

Step 1
• Insert End Caps Into each
end of both Cross Bars
Tip: Soften caps in warm water if dicult to insert
Assembly Instructions
Step 2
• Turn the Lounge Seat upside down
• Attach Curved Rear Crossbar into pre-installed Mounting Slide
on Lounge back.
NOTE: for proper alignment, match Red Dots on the curved
rear crossbar to the back of the Lounge.
• Place Mounting Brackets on top and secure with two ⁄” Bolts
as shown.
• Repeat Step 2 with front Crossbar on front mounting slides.
Rear Mounting Slides
Mounting Bracket
Head
Head
Foot
Mounting Slide
Step 3
• Place Pontoons face down on at surface beside
each other as shown.
• Place the ends of the Front Straight Crossbar into
the channels of each small end of the Pontoon
and align the mounting holes as shown.
• Place the ends of the Rear Curved Crossbar into
the channels of the large end of the Pontoon and
align the mounting holes as shown.
• Insert the four 1½“ bolts through the inside holes
(closest to the seat) on both sides and into the
molded nuts of the Polyform™ Pontoon Float.
Do not tighten.
• Insert the remaining four 1½“ bolts thought the
outside holes of both crossbars and into the
molded nuts.
• Tighten all bolts, and enjoy.
Note: Red Dots
(On Right hand Sides)
Front Mounting Slides
Note: Complete lounge seat
assembly from step 2 not shown.
poolmaster.com
2
