ITEM NO. 52507
P.O. Box 340308
Sacramento, CA 95834-0308
PARTS LIST
A - Tripod Legs - 3 pc.
B - Tripod Hub - 1 pc.
C - Lower Upright with Valve
Assembly - 1 pc.
D - Middle Upright - 1 pc.
E - Upper Upright with Shower
Head - 1 pc.
F - Quick Disconnect - 1 pc.

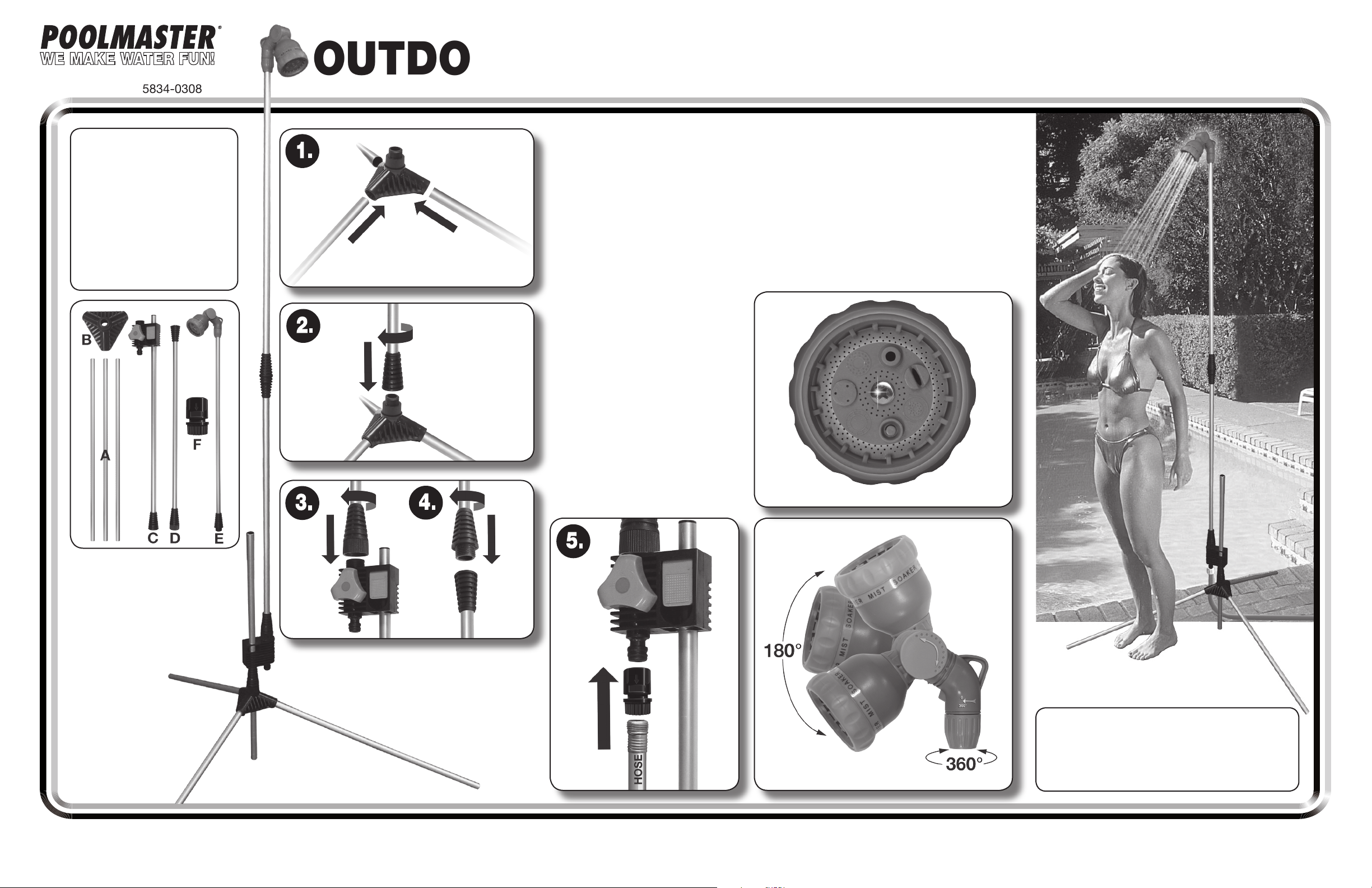

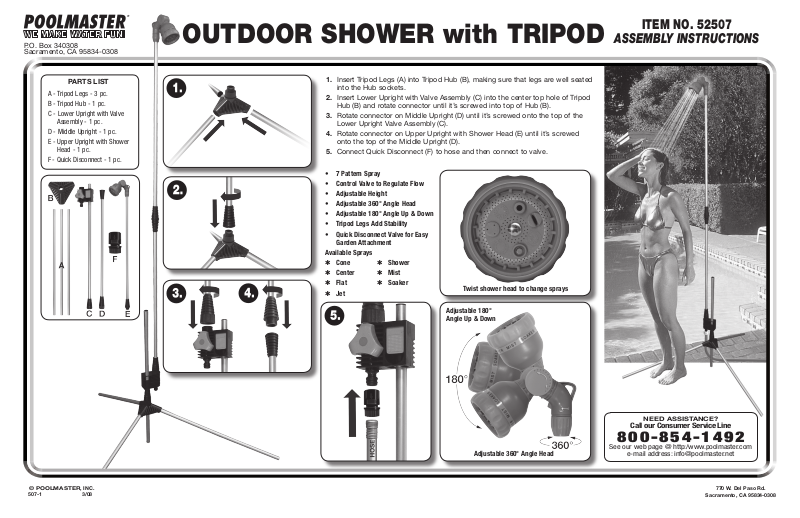

OUTDOOR SHOWER with TRIPOD
1. Insert Tripod Legs (A) into Tripod Hub (B), making sure that legs are well seated
into the Hub sockets.
2. Insert Lower Upright with Valve Assembly (C) into the center top hole of Tripod
Hub (B) and rotate connector until it’s screwed into top of Hub (B).
3. Rotate connector on Middle Upright (D) until it’s screwed onto the top of the
Lower Upright Valve Assembly (C).
4. Rotate connector on Upper Upright with Shower Head (E) until it’s screwed
onto the top of the Middle Upright (D).
5. Connect Quick Disconnect (F) to hose and then connect to valve.
• 7 Pattern Spray
• Control Valve to Regulate Flow
• Adjustable Height
• Adjustable 360° Angle Head
• Adjustable 180° Angle Up & Down
• Tripod Legs Add Stability
• Quick Disconnect Valve for Easy
Garden Attachment
Available Sprays
Q Cone
Q Center
Q Flat
Q Jet
Q Shower
Q Mist
Q Soaker
Twist shower head to change sprays
ASSEMBLY INSTRUCTIONS
© POOLMASTER
507-1 3/08
, INC.
4.
4.
Adjustable 180°
Angle Up & Down
Adjustable 360° Angle Head
NEED ASSISTANCE?
Call our Consumer Service Line
8 0 0 - 8 5 4 - 1 4 9 2
See our web page @ http:/www.poolmaster.com
e-mail address: [email protected]
770 W. Del Paso Rd.
Sacramento, CA 95834-0308
