Page 1
®
POOL FROG
Cycler
Instruction Manual
Mineral Pool-Care Cycler
for Pools up to 40,000 Gallons
Cleaner
because it kills bacteria two ways
Clearer
because it helps keep pH in range
Softer
because it reduces chlorine use up to 50%*
Easier
with pre-lled pacs for no mess,
no guess and no stress
POOL FROG Cycler comes with the
POOL FROG Mineral Reservoir
®
Patented Mineral Disinfectant
Customer Service 800-222-0169
frogproducts.com
Ver la versión en español de este manual en frogproducts.com/product/pool-frog-model-5400
WARNING
To minimize the risk of serious injury, death or
damage, before installing or first using this
equipment, read Instruction Manual and all safety
labels and follow all safety instructions and
precautions. Save manual for future reference.
1
Page 2
TABLE OF CONTENTS
POOL FROG Introduction 3
Notes and Safety Information 4
Safety Labels on Cycler 5
Installation Tips to Ensure Proper Performance 6
In-Line Installation - 5400 Model 7

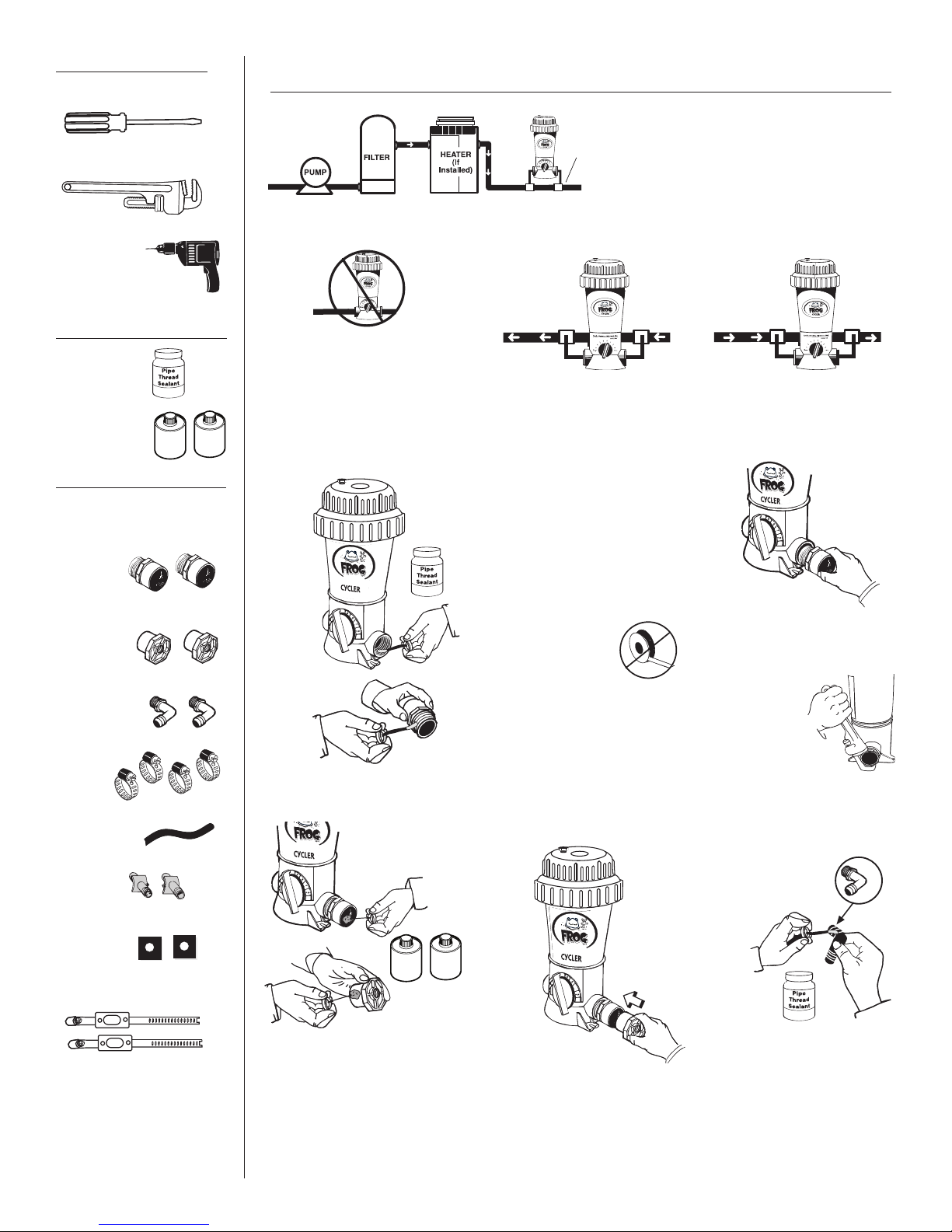

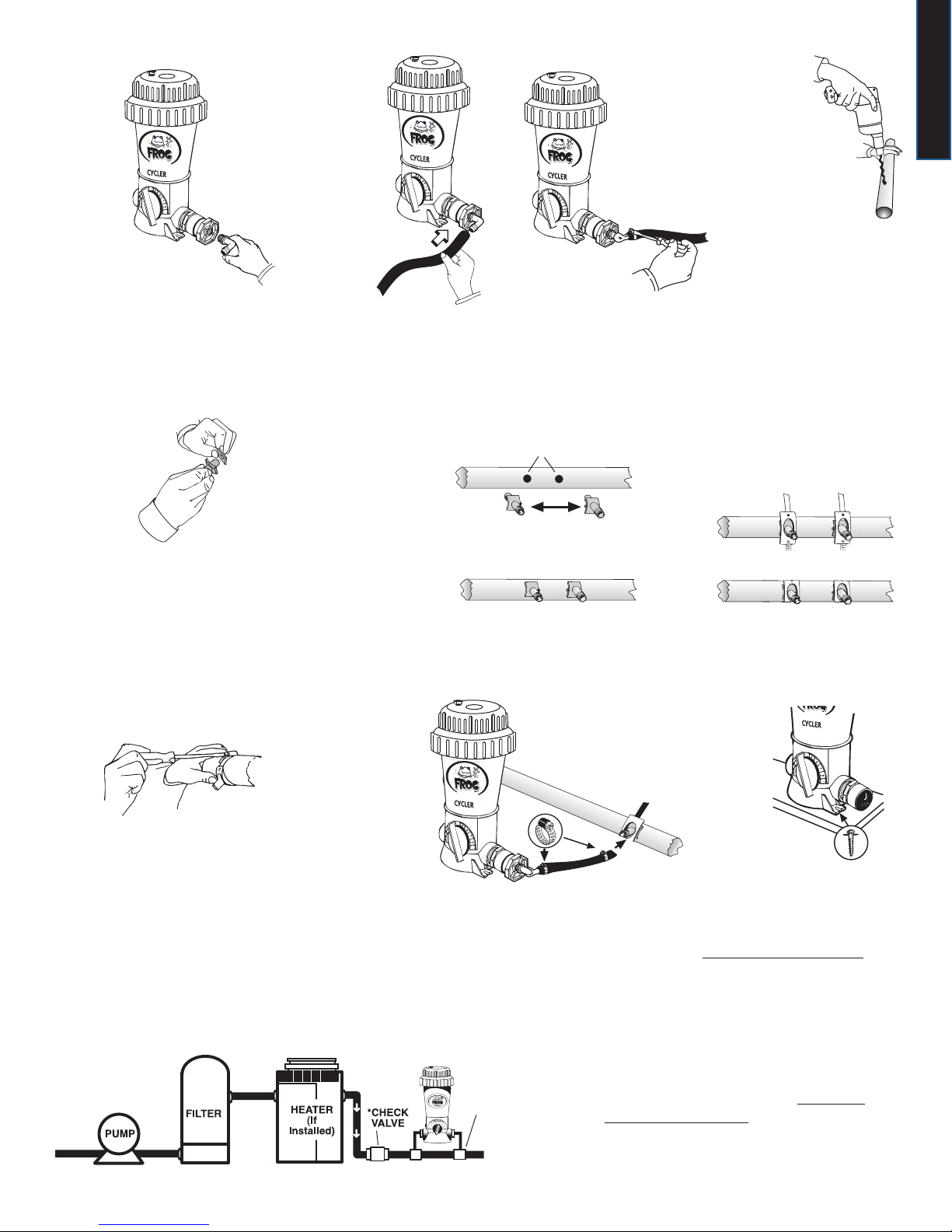

Off-Line Installation - 5430 Model 8-9

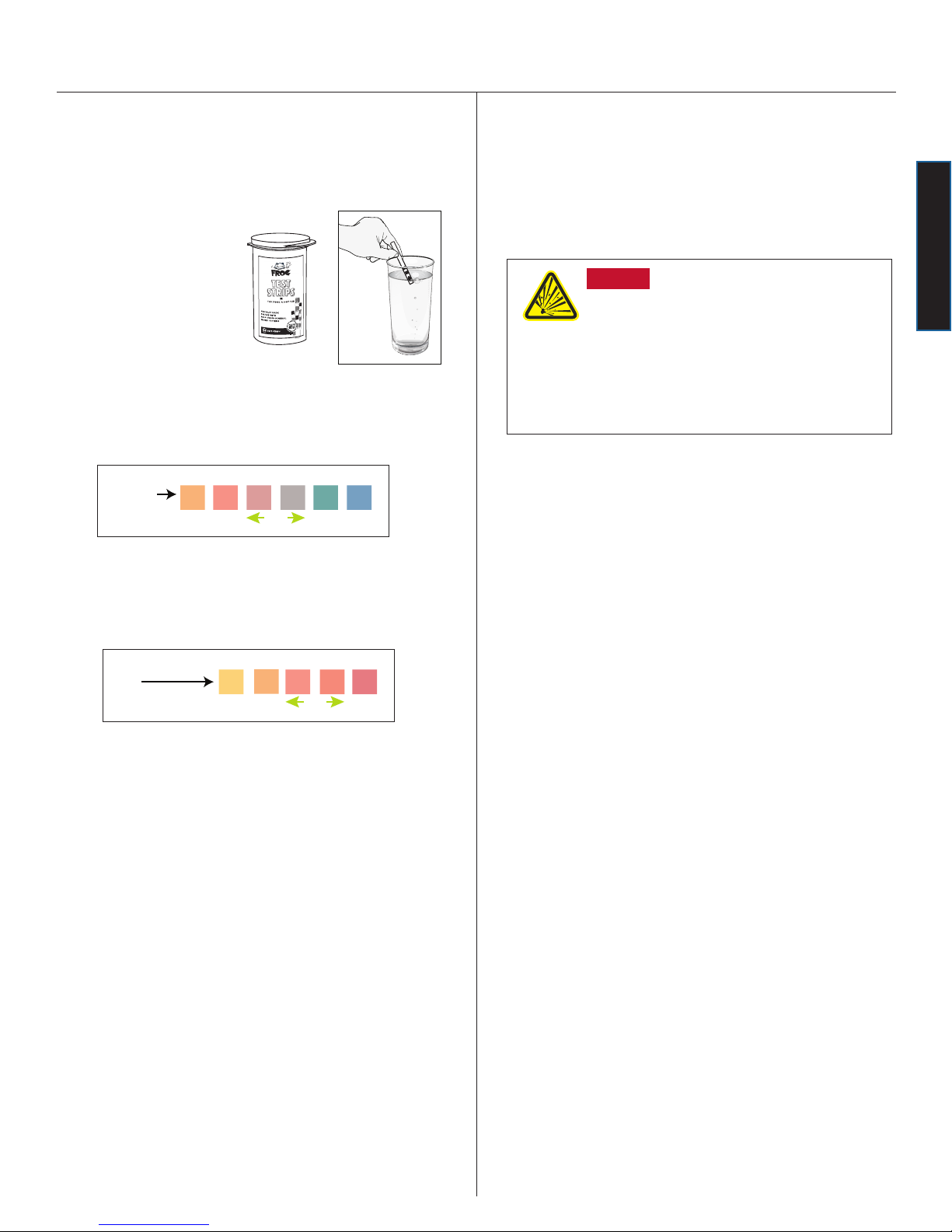

Step 1: Preparing the Pool 10-11
Step 2: Putting the System to Work 12

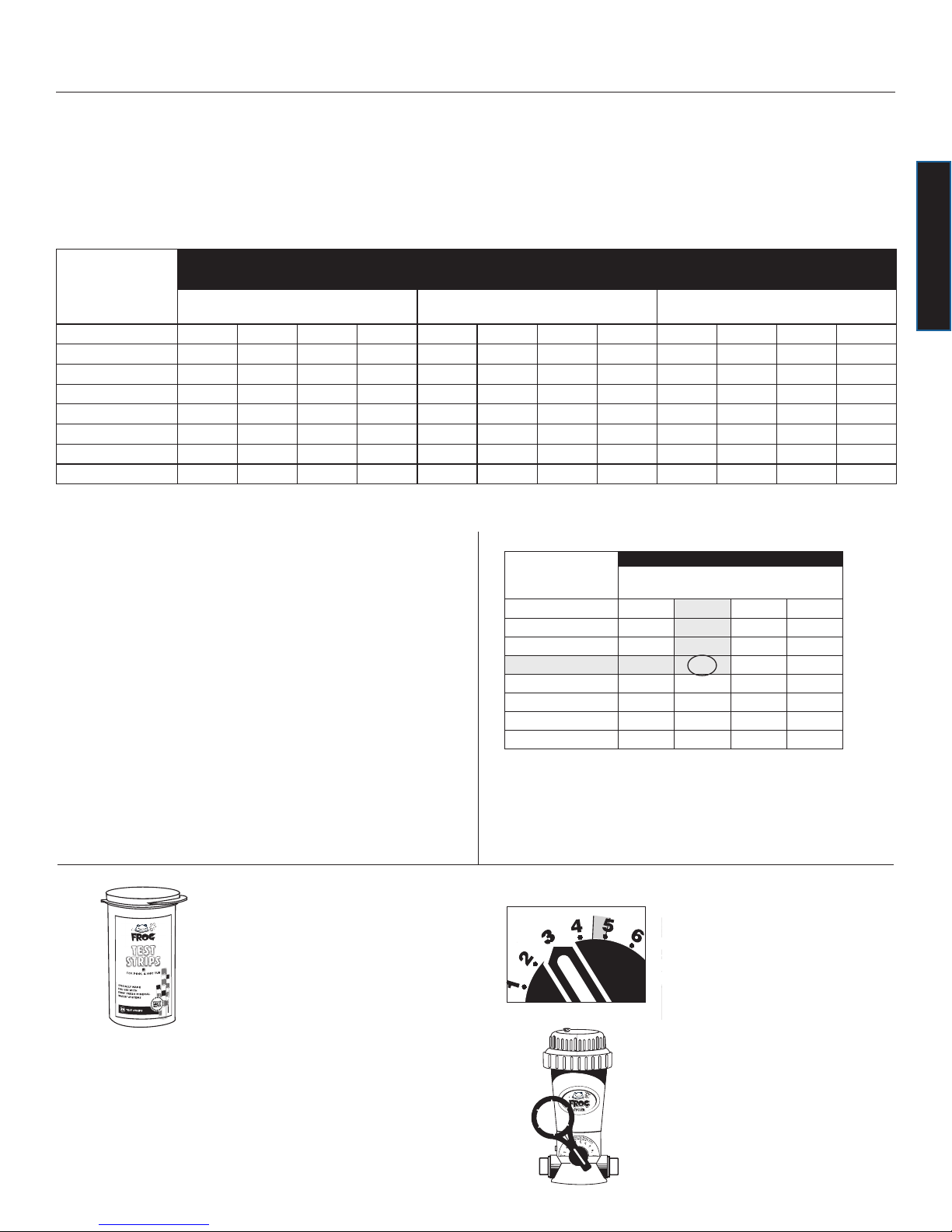

Step 3: Setting the Control Dial 13

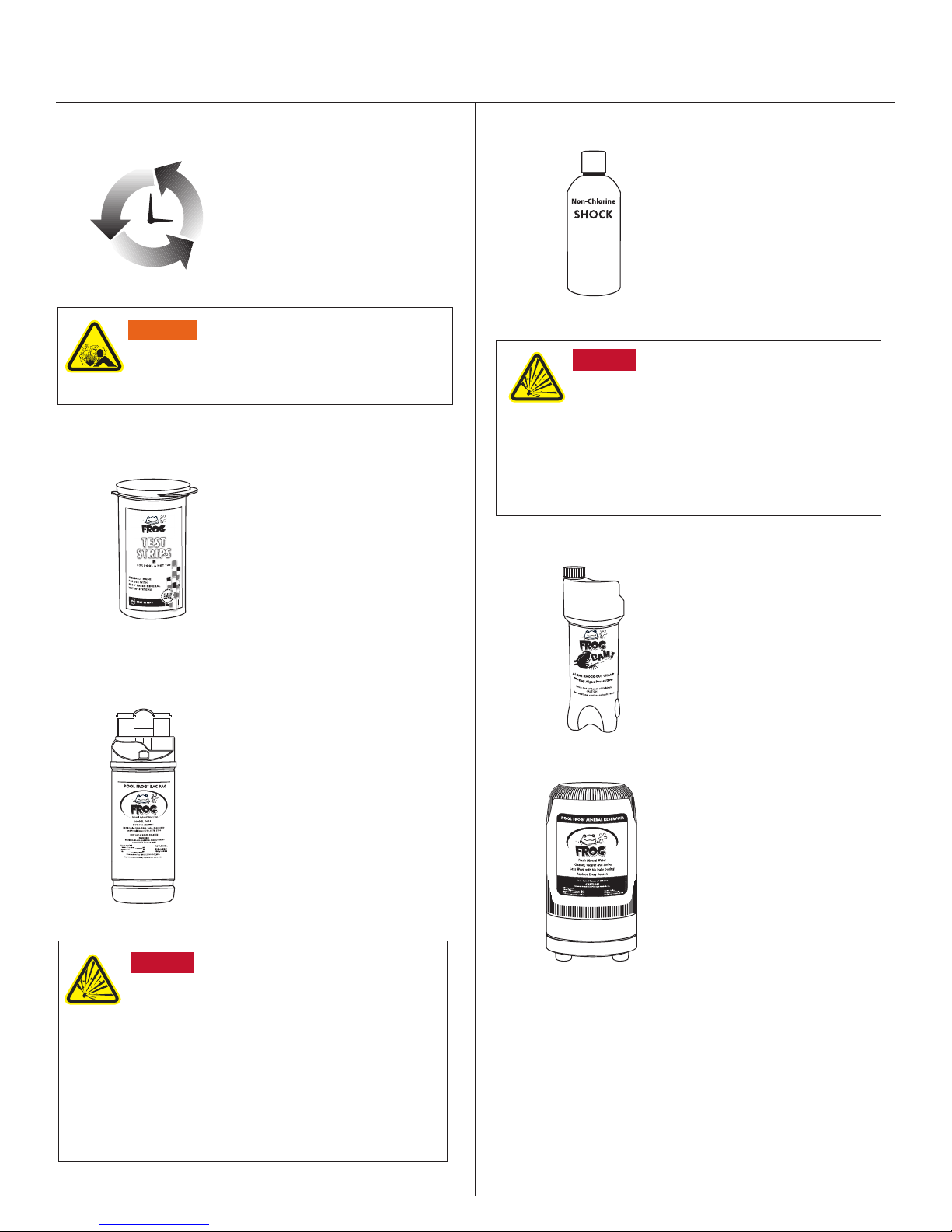

Step 4: Routine Pool Care 14

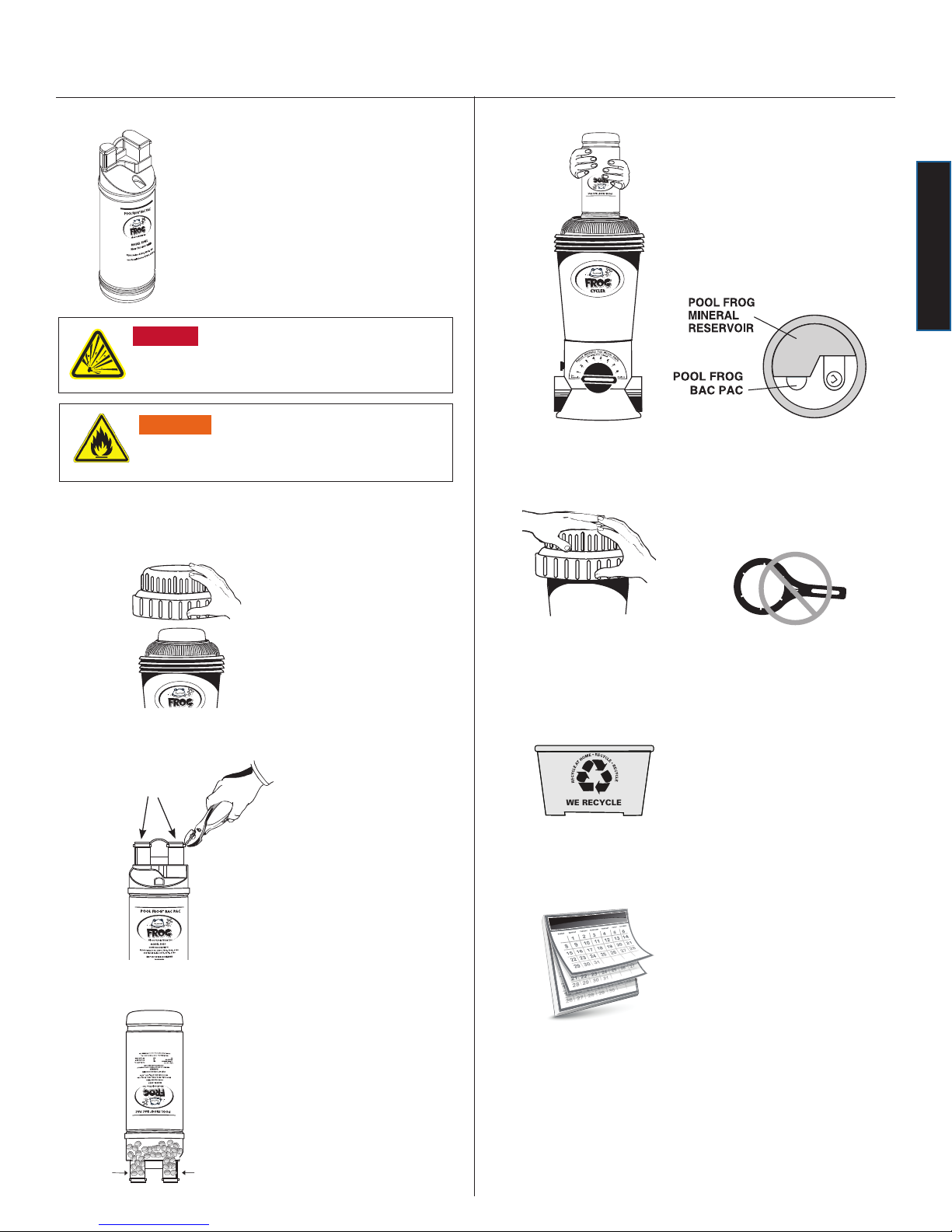

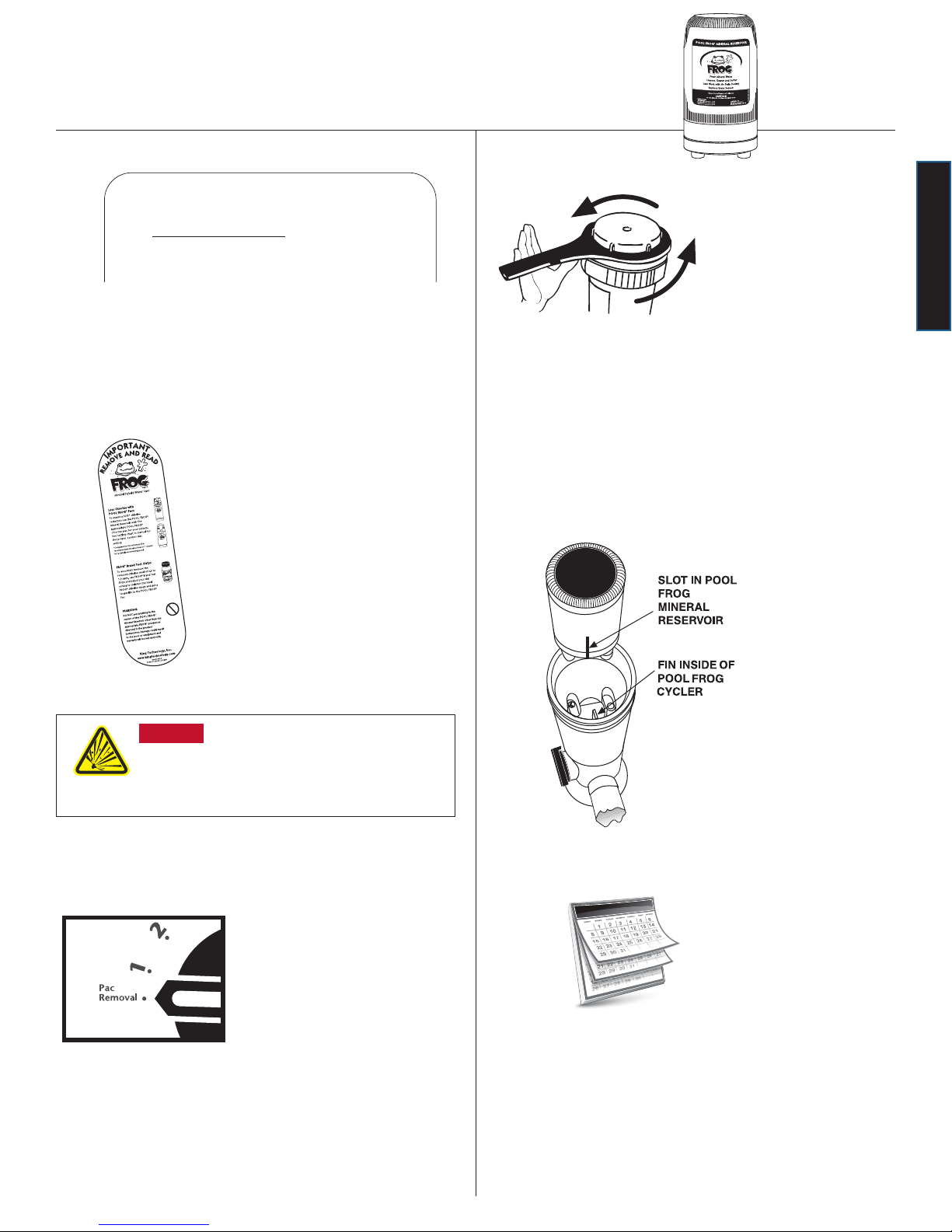

Replacing POOL FROG Mineral Reservoir 15
®
Using FROG BAM

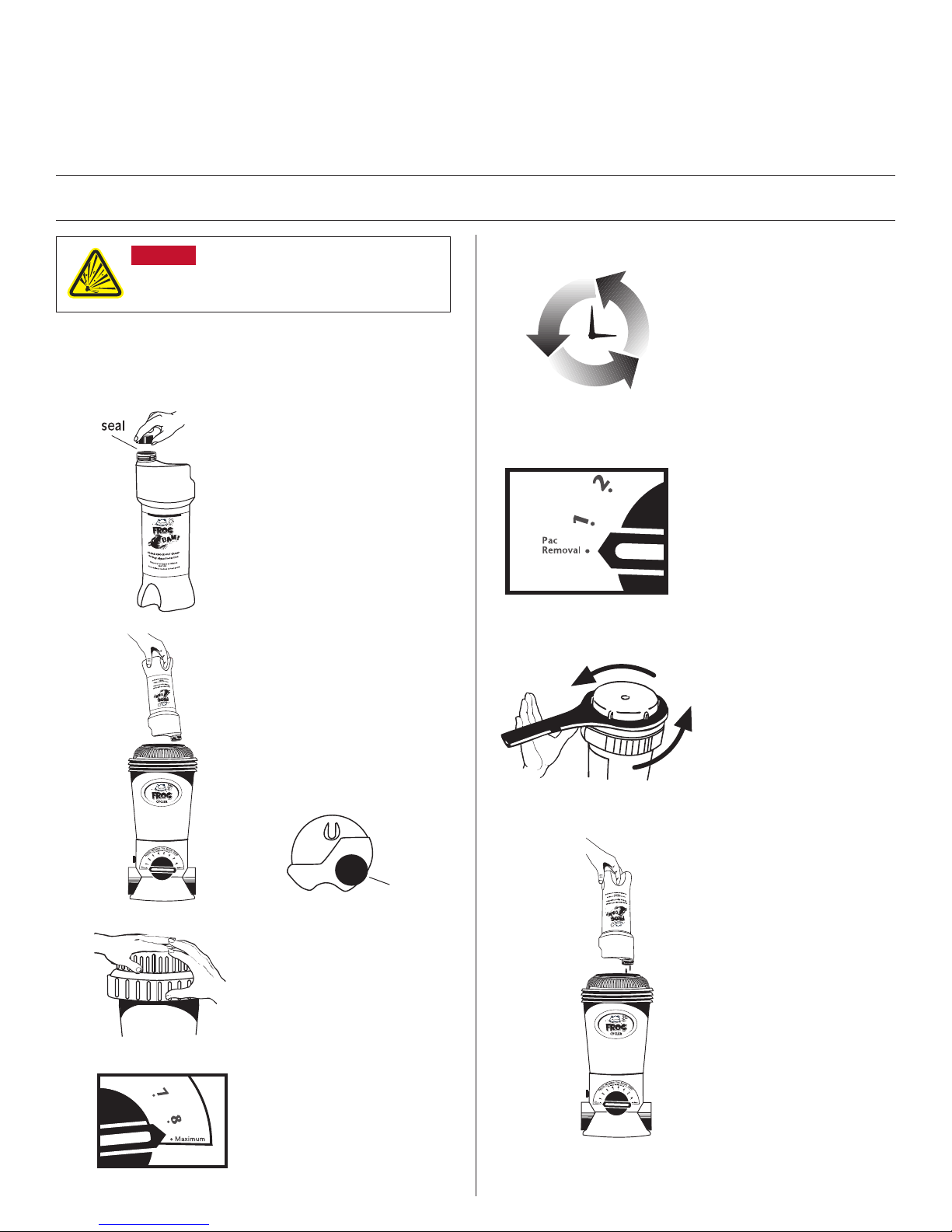

Using POOL FROG Bac Pac
16
®
17
Winterizing 18
Troubleshooting 19

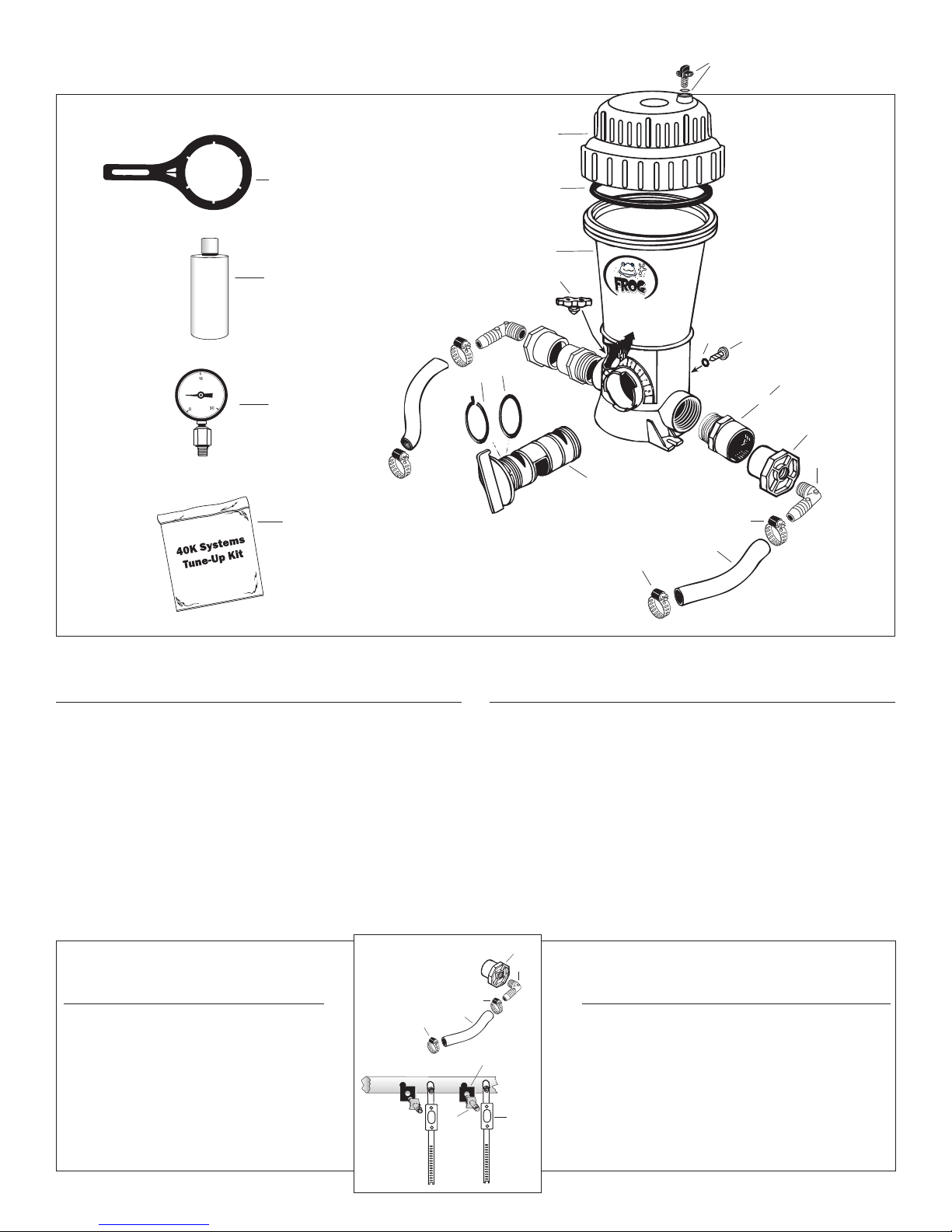

Parts List 20

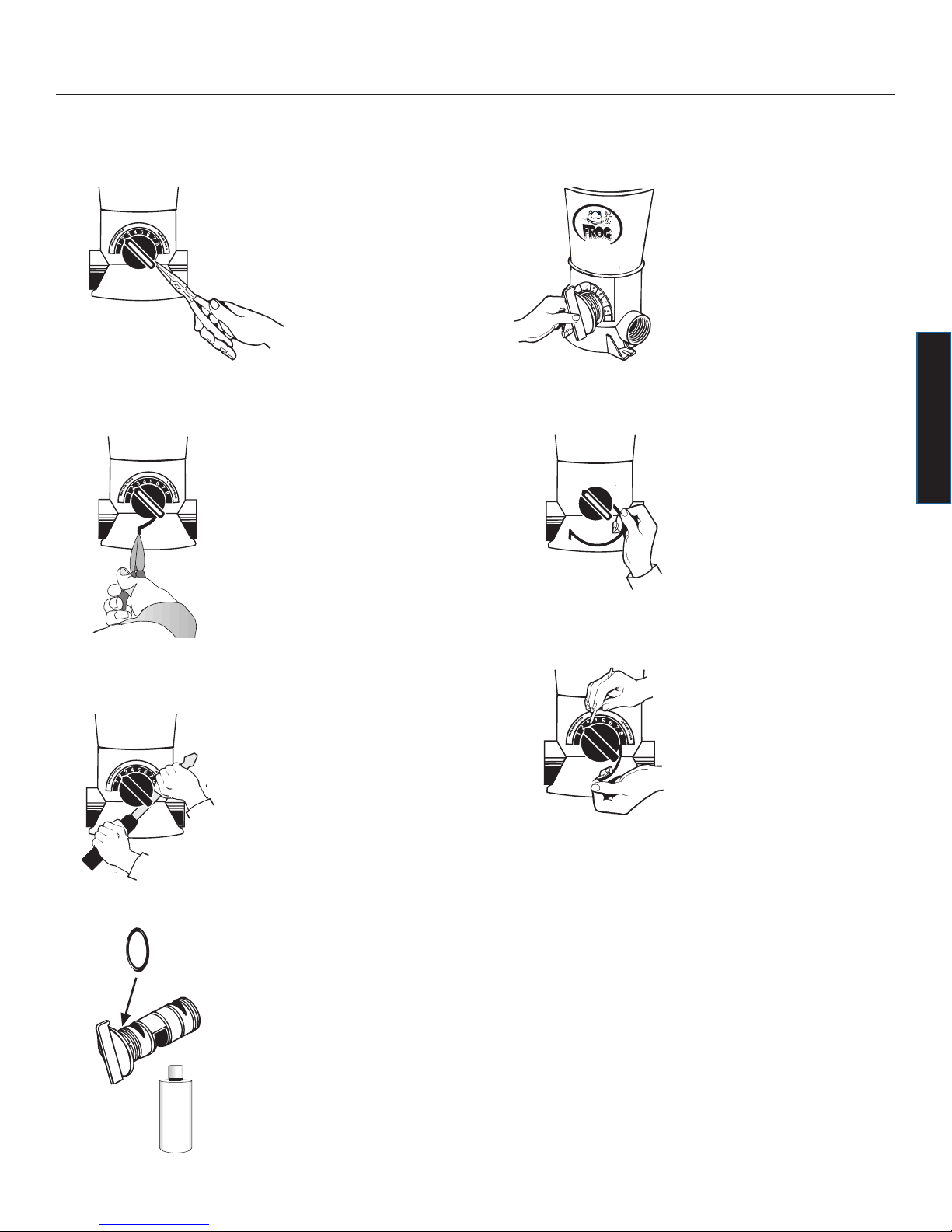

Maintenance - Replacing Control Dial O-Rings 21

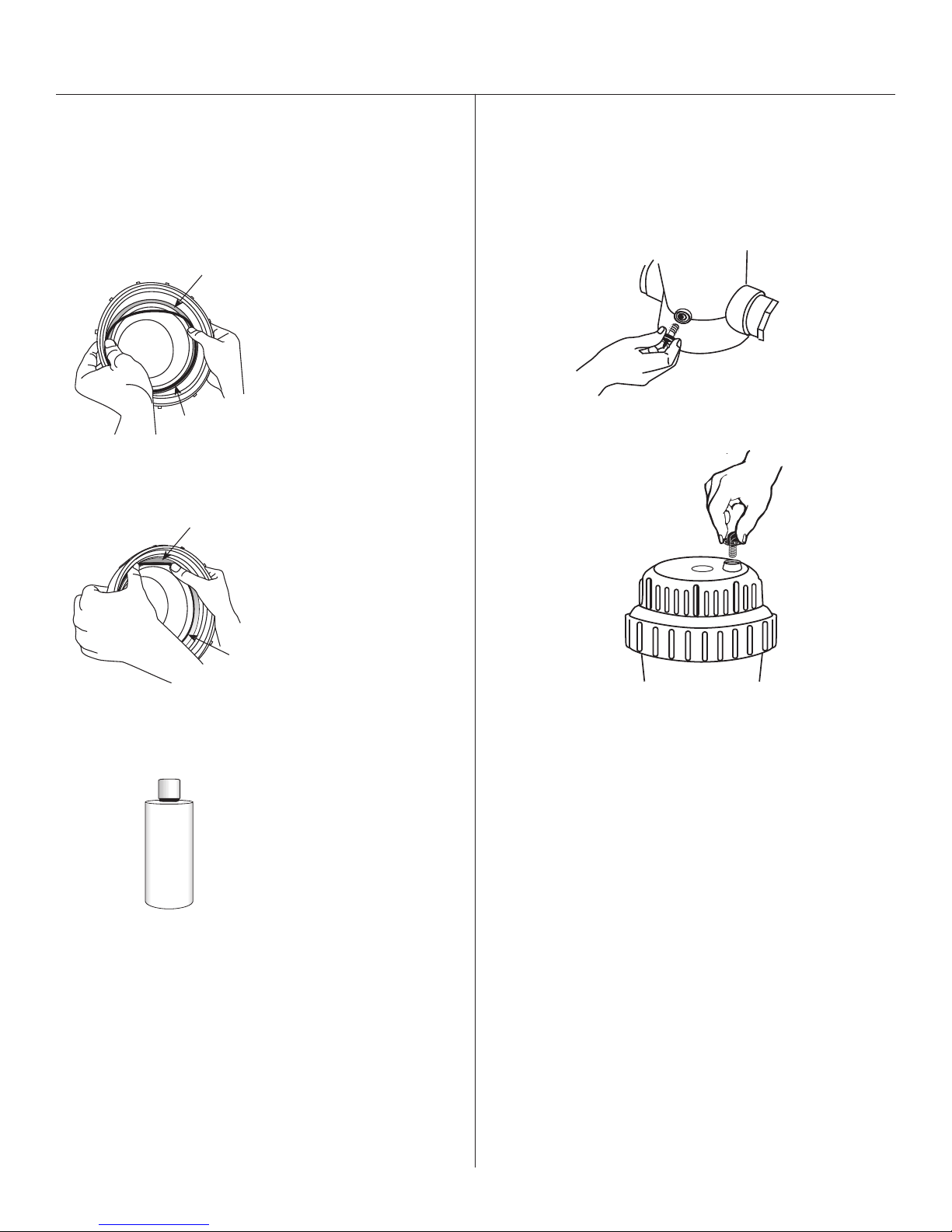

Maintenance - Replacing Cap O-Rings and Knobs 22
Warranty 23
For information on King Technology’s entire product
line, visit our website at frogproducts.com
2
Page 3
Welcome to easier pool care courtesy of POOL
FROG. With POOL FROG, your pool water will look
and feel better without a lot of work or a lot of
chlorine. This system† controls bacteria using a
combination of minerals and reduced chlorine
levels–up to 50%* less.

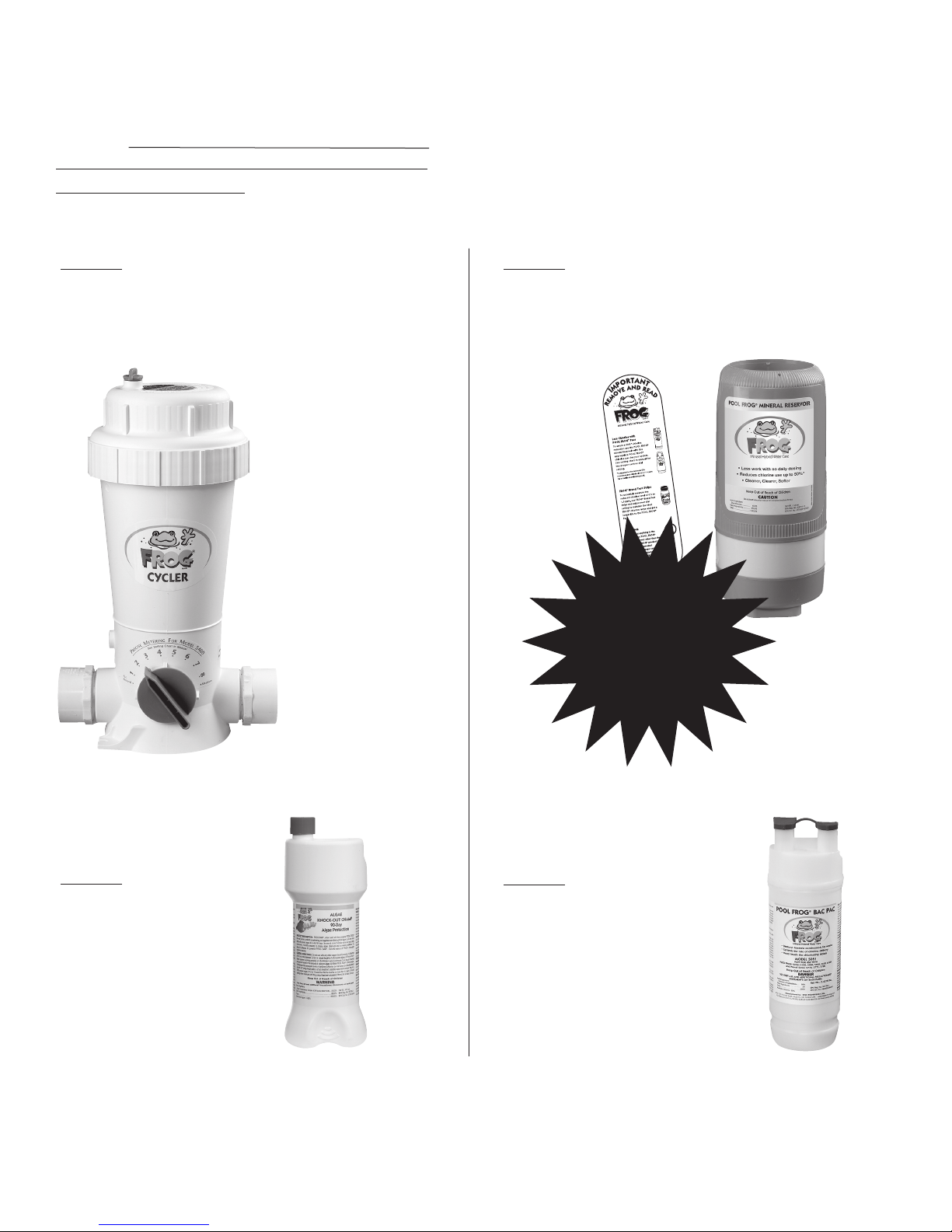

There are 4 parts to the POOL FROG System:
1. Model 5400 POOL FROG Cycler
2. POOL FROG Mineral Reservoir
3. FROG BAM 90-day Algae-Preventative
4. POOL FROG Bac Pac.
Part 1
POOL FROG
The water treatment center that controls the ow of
water to each part of the POOL FROG System.
Cycler
For pools 7,000 to
40,000 gallons.
Model 5400 In-Line
Product # 01-01-5480
Model 5300 Off-Line
Product # 01-01-5490
Part 2
POOL FROG Mineral Reservoir
Holds the minerals and ts inside the POOL FROG Cycler.
Product # 01-12-5462
THE POOL FROG
MINERAL RESERVOIR
MUST BE REPLACED
EVERY SIX MONTHS
OR AFTER ONE POOL
SEASON WHICHEVER
IS SHORTER.
Part 3
FROG BAM
Use with the POOL FROG
Cycler for a 90-Day
Algae-Protection Guarantee.
One bottle is good for
15,000 gallons.
Product # 01-10-5060
POOL FROG Mineral Reservoir comes inside POOL FROG
†
POOL FROG Mineral System consists of the FROG minerals silver chloride and carbonate used in conjunction with 0.5 ppm chlorine.
The POOL FROG Mineral Reservoir must be used in conjunction with the POOL FROG Bac Pac (EPA Reg. No.: 53735-2),
POOL FROG Bac Pac and FROG BAM also sold separately.
an EPA registered chlorine pool product or a chlorine delivery device.
*Compared to the minimum EPA recommended chlorine level of 1.0 ppm for a stabilized swimming pool.
Part 4
POOL FROG Bac Pac
Pre-lled with chlorine tablets and
ts inside the POOL FROG Mineral
Reservoir.
Product # 01-03-5880
Cycler and is also sold separately.
3
Page 4
Notes and Safety Information
General Notes
These instructions contain information for the safe and proper
operation of this Cycler. Observe the following principles:
• Ensure that everyone using this Cycler follows the
instructions and safety precautions.
• Keep the instructions nearby and available for reference
throughout the service life of this Cycler.
These instructions do not provide for every possible contingency
that might be encountered in connection with installation, opera-
tion or maintenance of this equipment. Should further informa-
tion be desired or should particular issues arise which are not
covered sufciently in this manual, contact King Technology at
800-222-0169.
Explanation of the signal words
Signal words, which depict the probability and severity of harm, are used in these instructions. They are dened as follows:
Signal Word
DANGER
WARNING
Meaning
Indicates an imminently hazardous situation which, if not avoided, will result in death, serious injury
or major property damage.
Indicates a hazardous situation which, if not avoided, could result in serious injury, death, or major
property damage.
NOTICE
Indicates special instructions that are important but not related to physical injury hazards.
Explanation of the safety pictographs
The following pictographs illustrate the type of hazard.
Pictograph Type of Danger
Safety Alert/General Hazard
Explosion Risk
Hazardous Pressure
Flammable Fire Hazard
Identication of warnings
Warnings are intended to help you recognize risks and avoid
death, injury or property damage. This is how warnings are identied:
Signal Word
Pictographs
Description of danger.
Consequences if ignored.
a The arrow signals a safety precaution to be taken to
eliminate or reduce the risk.
4
Page 5
Safety Label on Cycler
Review this label before installing or operating this Cycler. Contact King Technology at 800-222-0169 if this label is missing from your POOL FROG Cycler.
Fire, explosion and high pressure hazards
To minimize the risk of serious injury, death or property damage while using the POOL FROG Cycler:
a Read, understand and follow all instructions and safety precautions in the manual, and on this Cycler and on any label for
chemicals used with this Cycler including POOL FROG Bac Pacs, POOL FROG Mineral Reservoir and FROG BAM Algae Preventative.
DANGER
a Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the POOL FROG Cycler.
a Never mix Trichlor chlorine tablets with Calcium Hypochlorite, or with any other form of concentrated chlorine or other chemicals.
a Never add any other types of chlorine, pH adjusters, shock treatments or algaecides through the skimmer.
These products should be added directly into the pool if required.
a
Do not contaminate the POOL FROG Cycler, POOL FROG Mineral Reservoir, POOL FROG Bac Pac or FROG BAM with dirt, organic matter, pool
chemicals (such as calcium hypochlorite or pool shocks), fertilizers or other household chemicals. Contact between any of these substances
and the POOL FROG Cycler, POOL FROG Mineral Reservoir, POOL FROG Bac Pac or FROG BAM, will result in a chemical reaction with the
generation of heat, liberation of hazardous gasses and re or explosion.
WARNING
a Use only POOL FROG Bac Pacs, POOL FROG Mineral Reservoir, and FROG BAM in the POOL FROG Cycler. Never use bulk chemicals.
a To prevent the build up of gas pressure in the POOL FROG Cycler, be sure the pool return line valves are open –
except when opening or servicing the unit.
a Do not inhale fumes from the POOL FROG Cycler or POOL FROG Bac Pac.
a Avoid sparks, smoking, or any open ame near POOL FROG Cycler or chemicals.
a Do not exceed maximum operating pressure of 50 psi or maximum temperature of 104º F.
a Do not remove the cap while under pressure. Always turn off pump and bleed off pressure before opening POOL FROG Cycler.
a Do not install automatic or fast shut off valves downstream of POOL FROG Cycler.
a Always install the POOL FROG Cycler AFTER a heater (if applicable) on the return line.
a Always install any additional sanitizing equipment AFTER and NEVER BEFORE the POOL FROG Cycler is installed on the return line.
a Do not permit children to use or climb on this product. This product must be positioned to prevent children from using it as a
means of access to the pool.
a Always stand clear of the POOL FROG Cycler during pump start-up.
a Replace POOL FROG Cycler if you see signs of cracks, damage or degradation to the Cycler body or cap.
a Prior to pressurizing, check with your dealer to ensure your plumbing connections meet building codes.
a Failure to properly winterize your POOL FROG Cycler could result in freeze damage. (See page 18 for winterizing details.)
NOTICE
5
Page 6

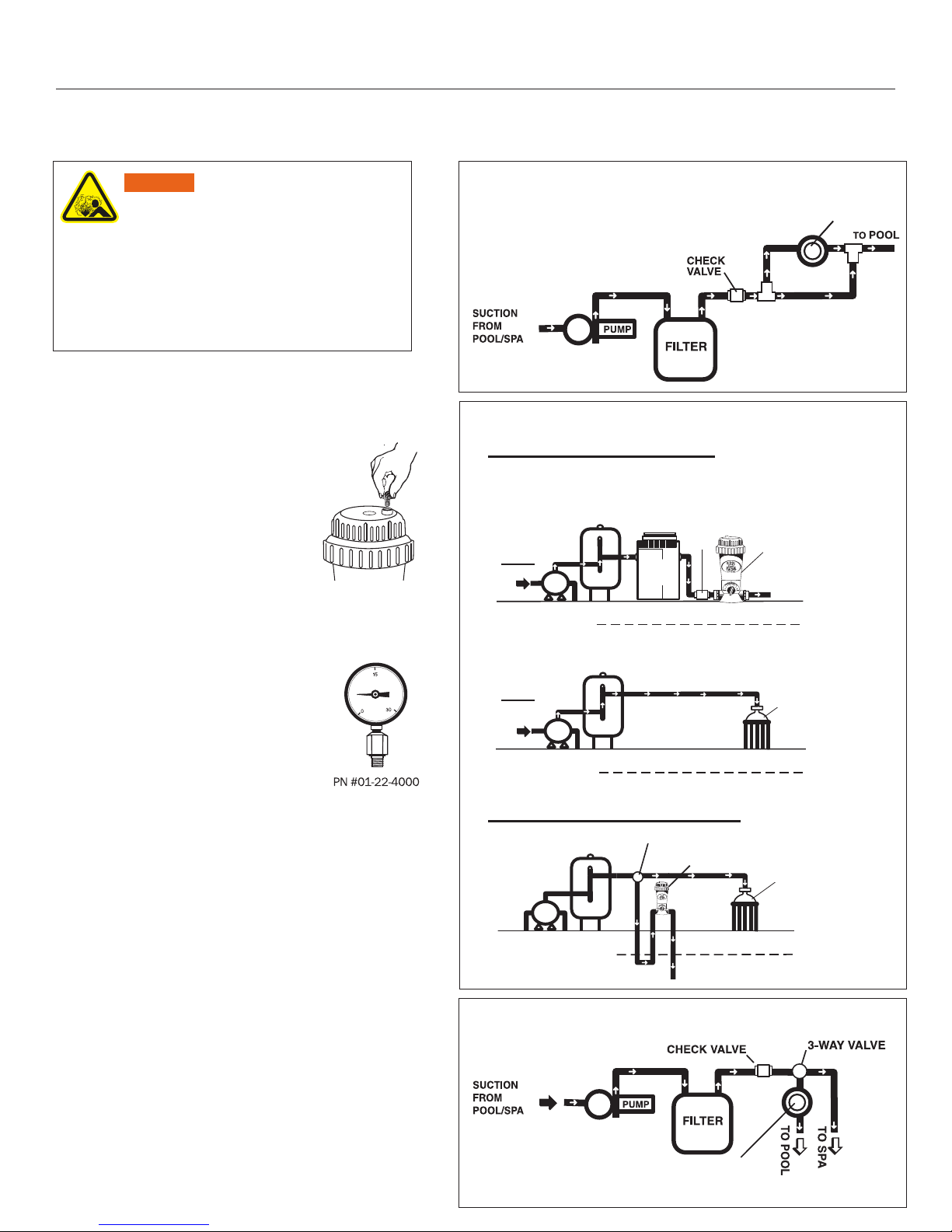

Installation Tips to Ensure Proper Performance
POOL FROG
B. With In-floor Cleaners
Before installing, read all directions carefully and contact your dealer for installation support
WARNING
• Do not exceed maximum operating pressure of 50 psi.
• Do not install automatic or fast shut off valves
downstream of feeder.
• Always install the POOL FROG Cycler AFTER the
heater (if applicable) on the return line.
• Always install any additional sanitizing equipment
AFTER and NEVER BEFORE the POOL FROG Cycler is
installed on the return line.
1) If using a multi-speed pump, run pump for at least
6 hours per day at high speed (at least 40 gpm).
If the pump will run on low speed 24
hours per day or less than 6 hours per
day on high speed, you must bleed the
air while the pump is on by unscrewing
the cap knob until water appears. Then
screw the knob back on. Repeat this
process each time the cap is removed
for any reason.
A. With High Flow Rate (greater than 80 gpm)
Install T-ttings exactly as shown.
CYCLER
B. With In-Floor Cleaner - TWO OPTIONS
OPTION 1- A Two-Line Installation
The best option is to have two lines. One line with pump, lter, heater and
POOL FROG Cycler and a second line with a separate pump for the in-oor
cleaning system (lter optional).
CHECK
Line 1
Flow
FLOW
PUMP
FILTER
HEATER
Check
Valve
VALVE
✙
✙
✙
✙
POOL FROG
POOL FROG®
CYCLER
CYCLER
POOL RETURN
2) Install Cycler with 4-8 psi back pressure.
Lower back pressures could result in
under chlorination. Change the eyeball
ttings in the return jets to a smaller size
to increase back pressure. Contact King
Technology at 800-222-0169 for a specially
designed Cycler pressure gauge to
determine back pressure at pool start-up.
3) Special installation Requirements:
IMPORTANT: Over chlorination or damage to the POOL
FROG Cycler or other equipment could result if special
installations A, B or C are not used in these situations.
• If water ow is higher than 80 gallons per minute (gpm),
see diagram A.
• If an in-oor cleaner is included with pool,
see diagram B, with two options. Preferred
installation is Option 1 with two separate lines.
• If set-up is a pool and spa combination with
common equipment, see diagram C.
POOL WATER LEVEL
POOL WATER LEVEL
Line 2
FLOW
Flow
PUMP
FILTER
POOL WATER LEVEL
✙
OPTION 2 - A 3-Way Valve Installation
3-way manual valve or 3-way motor valve plus controls
POOL FROG
CYCLER
FILTER
PUMP
POOL WATER LEVEL
C. Pool and Spillover Spa Combination
IN-FLOOR
In-floor
cleaner valve
CLEANER VALVE
IN-FLOOR
CLEANER VALVE
Questions? Call Customer Service at 800-222-0169
Monday thru Friday, 8 am to 5 pm central standard time.
6
POOL FROG
CYCLER
Page 7
TOOLS NEEDED
W
a
t
e
r
C
Y
C
L
E
R
M
e
t
e
r
e
d
P
o
o
l
P
u
r
i
f
i
e
r
Hacksaw
Tape Measure
Install

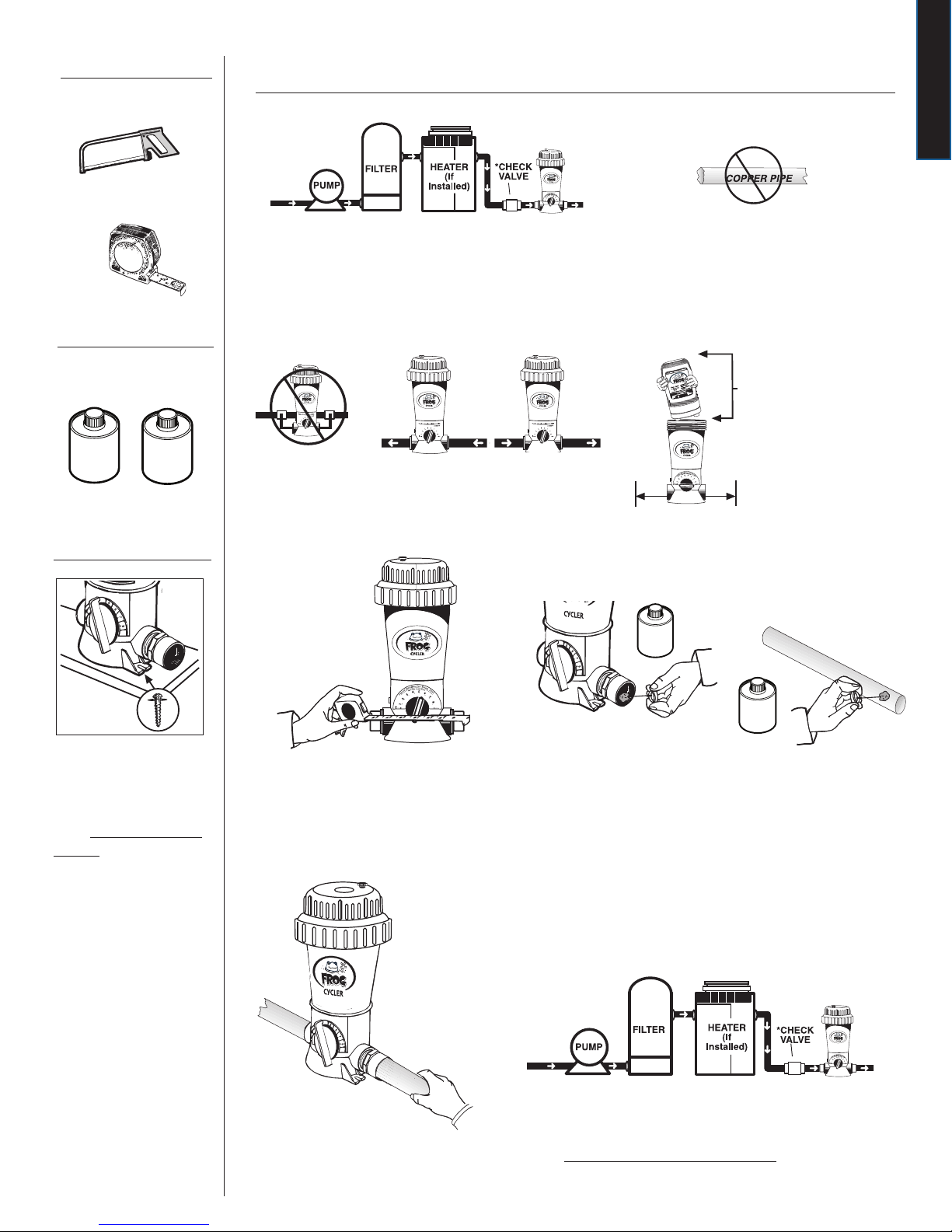

In-Line Installation - 5400 Model For pools 7,000 to 40,000 gallons
MATERIALS NEEDED
Primer and PVC Cement
P
C
P
r
r
e
i
m
V
C
t
n
e
e
m
SECURE CYCLER
The POOL FROG Cycler should always be installed
between the lter and pool (or between heater and
pool if applicable). Never install POOL FROG Cycler
before the heater or damage to the heater could
occur.
OR
\
Do NOT install
this POOL FROG
Cycler off-line.
Bi-ow valve design allows installation
in either ow direction.
[
Do NOT install in copper pipe if
using POOL FROG Bac Pac as
chemical corrosion could lead to
pipe failure.
Allow a minimum
of 12” above and
12"
on each side of
POOL FROG Cycler
to ensure room for
easy replacement
of POOL FROG
12"
12"
Mineral Reservoir
and POOL FROG
Bac Pac.
P
r
r
e
i
m
For better stability,
POOL FROG Cycler
may be mounted on
a treated wood base
using Phillips pan head
1.
Measure the distance between
the outside adapters and cut out
a section of pipe 3” less than
that dimension.
screws, one in front
and one in back. If you
have questions about
stability, please contact
your dealer or King
Technology.
3. 4.
Insert PVC pipe into adapters
with a twisting action. Hold in
place 5 to 10 seconds to bond.
P
C
V
C
t
n
e
e
m
2.
Following Primer directions, brush Primer on the inside of the
adapters and to ends of pipe. Repeat this process with PVC
cement following manufacturer’s directions on that product.
To prevent damage to heaters or lters, see your dealer about
installing a corrosion resistant check valve which will reduce
the back ow of chlorine gas when the Cycler is turned off.
7
Page 8
W
a
t
TOOLS NEEDED
Screwdriver
Pipe Wrench
Battery
Operated Drill
with 5/8” or
19/32” Bit
Off-Line Installation - 5430 Model
The POOL FROG Cycler should always be
SCOOPS
2” – 36” APART
installed between the lter and pool (or
between heater and pool if applicable).
Never install POOL FROG Cycler before
the heater or damage to the heater
could occur.
MATERIALS NEEDED
Pipe Thread
Sealant
Primer and
PVC Cement
P
C
P
V
r
r
e
i
m
C
e
e
m
OFF-LINE KIT
Included with the
POOL FROG Cycler
Two Male
Adapters
Two Reducer
Bushings
Two 90-Degree
Elbows
Four Hose
Clamps
Do NOT install an off-line POOL
\
OR
[
FROG Cycler in-line as this
POOL FROG Cycler is different
Bi-ow valve design allows installation in either ow direction.
than an in-line unit.
t
n
1. 2.
directions, brush sealant onto
Following pipe thread sealant
®
B
RAN
D
POOL FROG Cycler threads in
both ports and on both male
adapters.
DO NOT USE PIPE THREAD
TAPE as the threads
on these units are
not suitable for
this use and
Screw a male adapter into
each port of POOL FROG
Cycler and hand tighten.
leaking or tting
failure could result.
Completely
tighten
turning 1 to 2
revolutions
with a pipe wrench.
DO NOT OVER TIGHTEN.
6’ of Tubing
e
r
C
Y
C
L
E
R
M
e
t
e
r
e
d
P
o
o
r
l
e
i
P
f
i
r
u
4
0
0
S
E
R
I
E
S
Two
Scoops
Two Scoop
Gaskets
Two Scoop Clamps
3.
Following Primer directions, brush
Primer on reducer bushings
and inside of male adapters.
Repeat this process with PVC
cement following manufacturer’s
8
directions on that product.
D
e
l
i
v
e
r
y
S
Y
S
T
E
P
C
P
V
r
r
e
i
m
C
t
n
e
e
m
4.
Insert reducer bushing into
male adapter on both sides
with a twisting action. Hold in
M
5.
Following pipe thread sealant
directions, brush sealant onto
elbow threads.
place 5 to 10 seconds to bond.
Page 9
Install
6.
W
a
t
e
r
C
Y
C
L
E
R
M
e
t
e
r
e
d
P
o
o
r
l
e
i
P
f
i
r
u
4
0
0
S
E
R
I
E
S
Screw elbow into reducer
bushings on both sides.
10.
Attach a gasket to
each scoop.
7.
8.
9.
When pipe is
Cut tubing
to size for
each POOL
FROG Cycler
connection
and attach one
to each elbow
with clamps.
W
a
t
e
r
C
Y
C
L
E
R
M
e
t
e
r
e
d
P
o
o
r
l
e
i
P
f
i
r
u
4
0
0
S
E
R
I
E
S
W
a
t
e
r
C
Y
C
L
E
R
M
e
t
e
r
e
d
P
o
o
r
l
e
i
P
f
i
r
u
4
0
0
S
E
R
I
E
S
Tighten clamps
totally dry, drill two
19/32” or 5/8”
holes, between
2” - 36” apart, on
the return line. Be
careful not to go
through other side
of pipe.
with screwdriver.
11. 12.
Place scoops inside
holes so the inlet
scoop faces the water
ow and the outlet
scoop faces away
from the water ow.
Scoop arrows should
be facing each other
when correct.
2” – 36” apart on straight pipe
Arrows on scoops must
face each other.
Attach scoop clamps over the
scoops and around the pipe.
13.
Tighten scoop clamps with a
screwdriver.
16.
14. 15.
Attach each hose to
venturi scoop male
nipple with a small
clamp and tighten
with screwdriver.
For better stability, POOL FROG
Cycler may be mounted on
a treated wood base using
Phillips pan head screws, one
in front and one in back. If you
have questions about stability,
please contact your dealer or
King Technology.
SCOOPS 2”– 36”
APART ON STRAIGHT
PIPE
To prevent damage to heaters or lters, see
your dealer about installing a corrosion
resistant check valve which will reduce the
back ow of chlorine gas when the Cycler is
turned off.
W
M
a
t
e
r
C
Y
C
L
E
R
e
t
e
r
e
d
P
o
r
o
l
e
i
P
i
f
u
r
9
Page 10

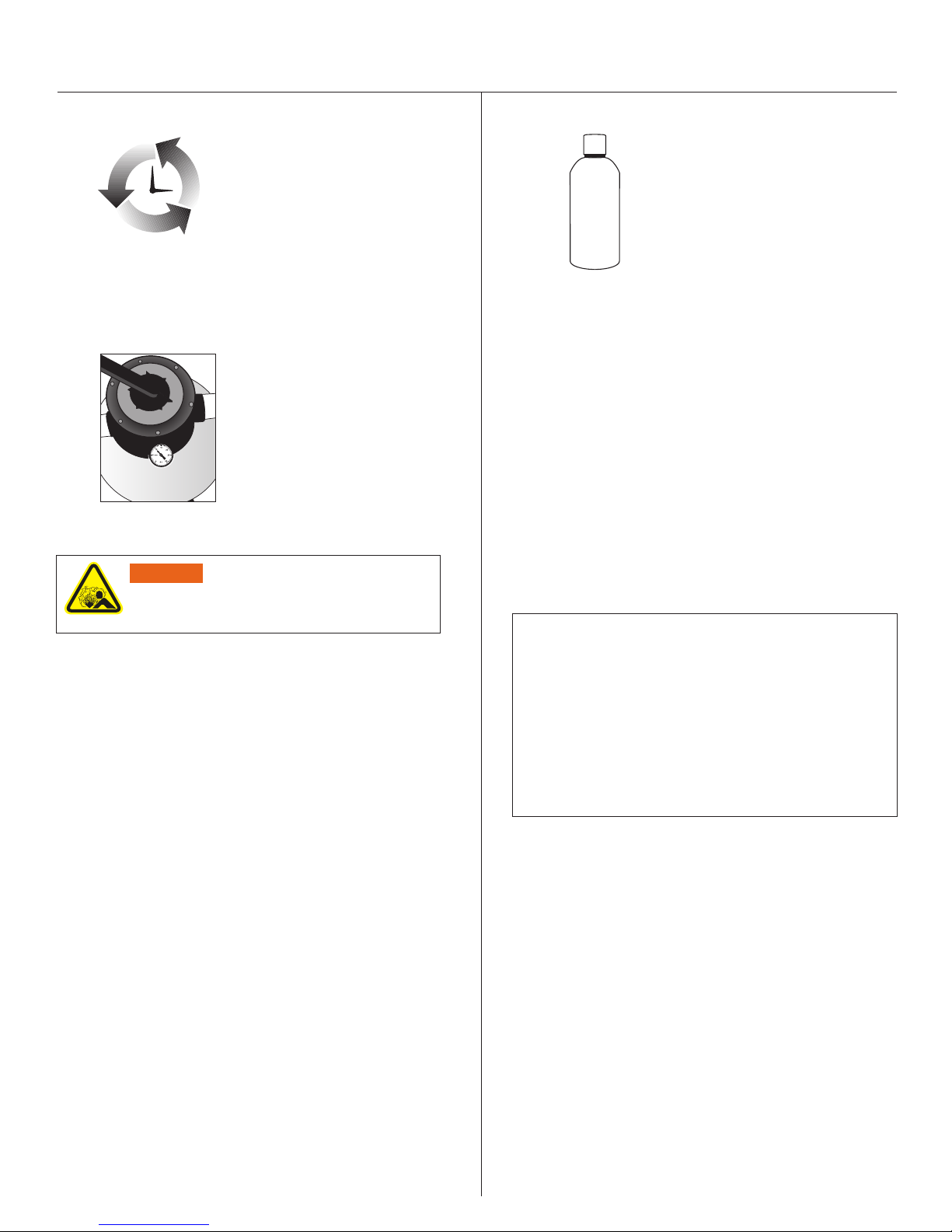

Step 1: Preparing the Pool
1.
2.
Make sure the pool has adequate
circulation. The total volume of pool
water must completely circulate
through the pump and lter at least
1 to 2 times per day. This usually
requires 8 to 12 hours of circulation.
Check with your dealer for the
proper circulation time for your pool.
Check the pool’s lter gauge often
and periodically clean lter per
the manufacturer’s directions.
A dirty lter will slow the ow of
water which could hamper proper
circulation.
WARNING
Do not exceed maximum operating
pressure of 50 psi.
4.
5.
Check for metals in the pool such
Metal
Out
Before beginning with any pool care program, you
must rst balance your pool water. Take a water
sample to your local pool professional (or use a
complete test kit) to test for the important Water
Balance Guidelines.
IMPORTANT: Always follow printed instructions on
the balancing chemical packages. Add balancing
chemicals in small increments one at a time
with circulation running. For best results, wait
8-12 hours before testing again and adding any
additional balancing chemicals.
as iron or copper. Before attempting
water balance, these should be
removed. See your dealer for a metal
out or sequesterant and follow the
label directions carefully.
Check the Water Hardness of your ll water before
3.
adding to the pool. If calcium content is higher than
400 ppm, nd a soft water source to ll your pool
instead; otherwise water balance will be very difcult.
Water Balance Guidelines
pH: 7.2 – 7.8
Total Alkalinity: 80 – 120 ppm
Calcium Hardness: 200 – 400
Total Dissolved Solids: <1500
Stabilizer: 20 – 80 ppm
Free Chlorine: 0.5 – 1.0 ppm
10
Page 11
Continue... Step 1: Preparing the Pool
SmartChlor
Out Indicator
Active Chlorine
If lighter color,
check Smart
Chlor catridge
If darker
color, OK
If lighter color,
turn cartridge
setting up
1 number
If darker color,
turn cartridge
setting down
1 number
6.2 6.8 7.2 7.8 8.4
LOW
BAJO
VERY LOW
MUY BAJO
HIGH
ALTO
SmartChlor
Out Indicator
Active Chlorine
pH
If lighter color,
check Smart
Chlor catridge
If darker
color, OK
If lighter color,
turn cartridge
setting up
1 number
If darker color,
turn cartridge
setting down
1 number
IDEAL
For best results in achieving water balance, follow
steps 5a through 5e in order.
5a. Take a water sample
from the pool and dip a
FROG Test Strip into it.
5b. Look at the Total Alkalinity reading rst. Adjustments
should be made to bring the Total Alkalinity in the range of
80 – 120 ppm prior to making any adjustments to pH even
if it throws pH off further.
Total Alkalinity
(ppm)
Alcalinidad Total
(mg/L)
0 40 80 120 180 240
LOW
VERY LOW
MUY BAJO
IDEAL
BAJO
HIGH
ALTO
VERY HIGH
MUY ALTO
5c. After Total Alkalinity is in range, test for pH. It should
be between 7.2 and 7.8. If higher or lower, add a pH
adjuster.
Initially shock the pool with a chlorine shock only to
6.
rid the water of contaminants and establish a chlorine
residual. Always follow the manufacturer’s directions
carefully. See the DANGER box below for important
guidance on shocking.
DANGER
• Never add any other types of chlorine, pH adjusters,
shock treatments or algaecides through the skimmer.
These products should be added directly into the
pool if required.
• Never use fast dissolving chlorine tablets, liquid
bleach, or calcium hypochlorite in the POOL FROG
Cycler.
Operate
6.2 6.8 7.2 7.8 8.4
pH
LOW
VERY LOW
MUY BAJO
IDEAL
BAJO
HIGH
ALTO
5d. Then test your Water Hardness again. If lower than
200 ppm, add Calcium Increaser. Always maintain 200-400
ppm.
5e. Lastly, test for stabilizer or conditioner levels. Add
conditioner if the level is below 20 ppm. This will prevent
chlorine burn off. If stabilizer level is above 80 ppm,
partially drain water and re-ll.
11
Page 12

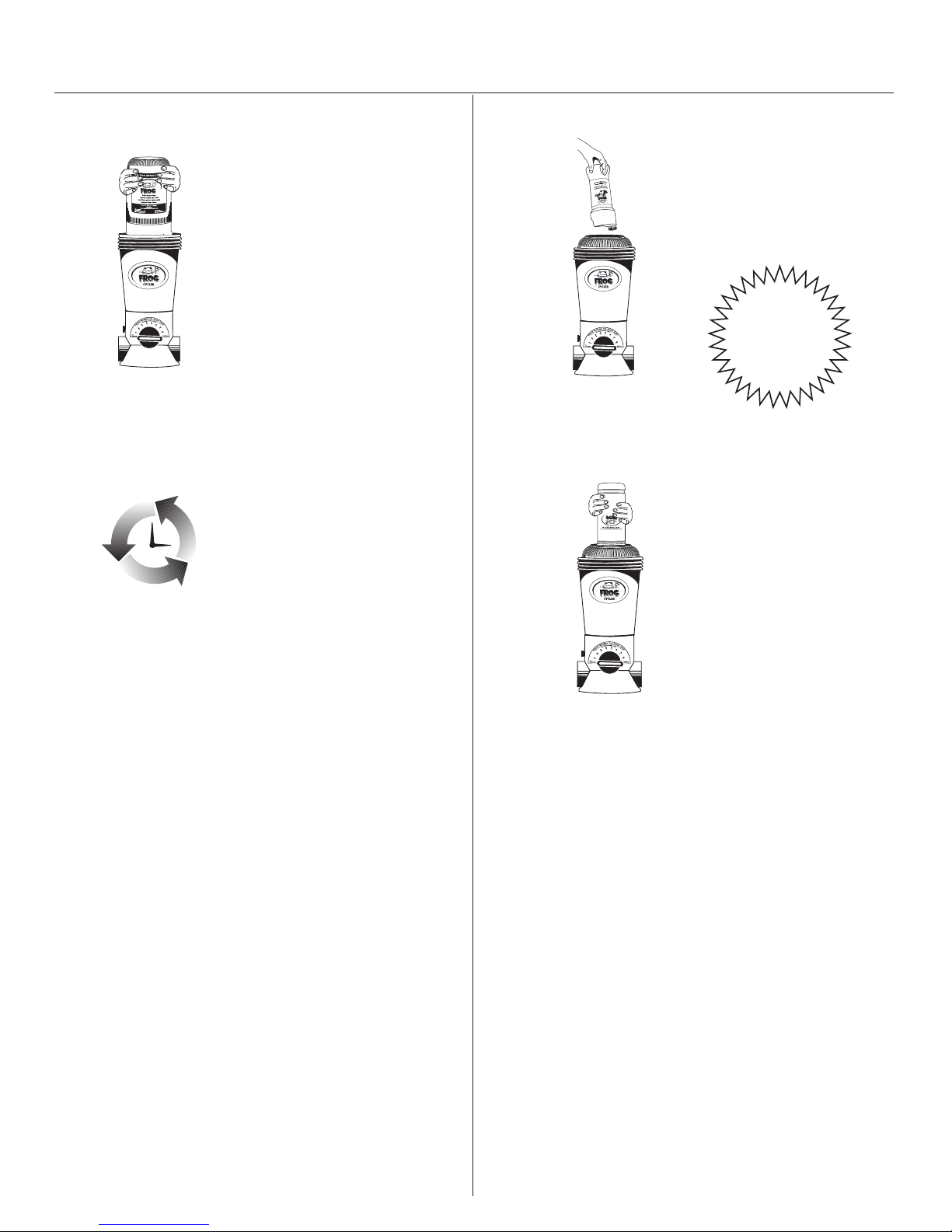

Step 2: Putting the System to Work
1.
2.
Install a POOL FROG Mineral
Reservoir into the POOL
FROG Cycler. (See page 15 for
directions.)
IMPORTANT:
Replace the POOL FROG Mineral
Reservoir every 6 months
or after one pool season,
whichever is shorter. After that
time, you will hear the spent
media inside, however it is no
longer effective and must be
replaced.
Replace cap and run POOL
FROG Cycler, with POOL FROG
Mineral Reservoir inserted,
for 10 minutes on Setting
Maximum.
3.
4.
Insert FROG BAM into the
open center of the POOL FROG
Mineral Reservoir in the POOL
FROG Cycler. (See page 16 for
directions.)
Use FROG BAM
for a 90-day
Algae Protection
Guarantee!
BRAND
®
When chlorine reading is down
to 1.0 ppm, which may take a
few days, insert POOL FROG
Bac Pac into the open center
of the POOL FROG Mineral
Reservoir. (See page 17 for
directions.)
12
Page 13
Step 3: Setting the Control Dial
This system is designed to work effectively with a variety of pool equipment as long as the following procedures are followed.
1.
Set control dial by matching up the parameters of your pool on the chart below. THIS IS A STARTING POINT ONLY and may need
to be adjusted to t your individual pool needs. See #2 below for adjusting directions. IMPORTANT: If using a multi-speed pump,
pump-run times of at least 6 hours per day at high speed are recommended for proper performance.
If running the pump at low speed only or on high speed less than 6 hours, please follow the 24 hour low-speed
directions below.
SINGLE-SPEED PUMP OR HIGH-SPEED PUMP RUN TIME
POOL SIZE
Gallons
3/4 hp 1 hp 1 1/2 hp 2 hp
7,000 4.0
9,000 4.5
12,000 5.0
18,000 NR
25,000 NR
30,000 NR
35,000 NR
40,000 NR
^ – Bypass installation recommended. See “Installation Tips” on page 6. NR – This pump size is not recommended for this size pool.
6 HOUR PUMP RUN TIME
PUMP SIZE
3/4 hp 1 hp 1 1/2 hp 2 hp
3.5 3.0 3.0^ 3.0 2.5 4.0^ 3.5^ 1.5 3.5^ 3.0^ 2.5^
4.0 3.5 3.0 3.5 3.0 2.5 4.0^ 2.5 4.0^ 3.5^ 3.0^
4.5 4.0 3.5 4.0 3.5 3.0 2.5 3.0 2.5 1.5 3.5^
5.0 4.5 4.0 5.0 4.0 3.5 3.0 3.5 3.0 2.5 2.0
NR 5.0 4.0 NR 5.0 4.0 3.5 4.0 3.5 3.0 2.5
NR 6.0 5.0 NR 5.5 5.0 4.0 4.5 4.0 3.5 3.0
NR 7. 0 6.0 NR 6.5 5.5 5.0 5.5 4.5 4.0 3.5
NR NR 7.0 NR NR 6.5 5.5 6.5 5.5 4.5 4.0
12 HOUR PUMP RUN TIME
PUMP SIZE
3/4 hp 1 hp 1 1/2 hp 2 hp
24 HOUR PUMP RUN TIME
PUMP SIZE
Operate
24 HOUR, LOW-SPEED PUMP-RUN TIME
In order to ensure proper performance when running the
pump on low speed for 24 hours per day or high speed less
than 6 hours per day, bleed the air while the pump is on by
unscrewing the cap knob until water appears. Then screw
the knob back on. Repeat this process each time the cap is
removed for any reason. Set the control dial at 6 and follow
the adjustment directions below to determine the correct
setting for your pool.
2.
For the rst week test the pool water
daily for free chlorine with FROG Test
Strips to ensure correct dial setting.
Continue to test weekly throughout the
season.
IMPORTANT: Control dial settings in excess of these
recommendations could result in excess trichlor levels being
discharged into the pool. This can result in bleaching or
discoloration of areas around the pool inlet or in some cases
bleaching or discoloration of the entire pool liner or paint. In
addition, excess trichlor in the pool can create health hazards
to bathers.
EXAMPLE
POOL SIZE
Gallons
7,000 4.0
9,000 4.5
12,000 5.0
18,000 NR
25,000 NR
30,000 NR
35,000 NR
40,000 NR
Find your starting dial setting by matching up the parameters of your
pool on the above chart. An In ground pool with approximately 18,000
gallons with a 1 horse power pump running 6 hours a day at high
speed would require a starting dial setting of 5.
3/4 hp 1 hp 1 1/2 hp 2 hp
6 HOUR PUMP RUN TIME
PUMP SIZE
3.5 3.0 3.0^
4.0 3.5 3.0
4.5 4.0 3.5
5.0 4.5 4.0
NR 5.0 4.0
NR 6.0 5.0
NR 7.0 6.0
NR NR 7. 0
After each testing, adjust the dial up
by 1/2 increment if the free chlorine
reading has dropped below 0.5 ppm
or adjust down by 1/2 increment
if the reading has risen above 1.0
ppm. Continue this process each
day until the free chlorine reading
stabilizes to at least 0.5 ppm.
Remember to adjust dial by
1/2 increments only in order to
prevent over chlorination which
may bleach pool surfaces.
Use the handle end of cap tool if
the dial is hard to turn.
13
Page 14
Step 4: Routine Pool Care
1.
2.
Run ltration Cycler enough hours to
circulate all water 1 to 2 times per
day. More than that could result in
over chlorination.
WARNING
To prevent the build up of gas pressure in the POOL FROG
Cycler, be sure the pool return line valves are open –except
when opening or servicing the unit.
Regularly test water with FROG Test
Strips to maintain pH and Total
Alkalinity.
NOTE: Water balance is affected
by bather load, chemical usage,
evaporation and the makeup of
source water, so maintaining water
balance regularly is important.
4.
5.
Shock the pool every other week or
as needed. We recommend a nonchlorine shock as reducing chlorine
use is the goal of FROG products.
However, using a chlorine shock is
OK too.
DANGER
• Never add any other types of chlorine, pH adjusters,
shock treatments or algaecides through the skimmer.
These products should be added directly into the
pool if required.
• Never use fast dissolving chlorine tablets, liquid
bleach, or calcium hypochlorite in the POOL FROG
Cycler.
Before closing the pool for winter,
use FROG BAM following the
directions on page 16.
3.
Maintain 0.5 to 1.0 ppm free
chlorine level at all times.
Note: These lower chlorine levels
®
B R AN D
are only acceptable when using
FROG minerals.
DANGER
Do not contaminate the POOL FROG Cycler, POOL
FROG Mineral Reservoir, POOL FROG Bac Pac or FROG
BAM with dirt, organic matter, pool chemicals (such as
calcium hypochlorite or pool shocks), fertilizers or other
household chemicals. Contact between any of these
substances and the POOL FROG Cycler, POOL FROG
Mineral Reservoir, POOL FROG Bac Pac or FROG BAM,
will result in a chemical reaction with the generation
of heat, liberation of hazardous gasses and re or
explosion.
6.
Remember to replace POOL FROG
Mineral Reservoir and all other
POOL FROG replacements as
directed.
14
Page 15
Replacing a POOL FROG Mineral Reservoir
Series 5400 (01-12-5462)
source of chlorine such as the POOL FROG Bac Pac (EPA Reg. No. 53735-2) or a chlorine delivery device. Using the POOL
Must be replaced every 6 months or after one pool season.
POOL FROG® MINERAL RESERVOIR
1.
Serial No.
Product Description:
The patented mineral formula in the POOL FROG Mineral Reservoir also neutralizes acids, which helps keep the pH in an
acceptable range with less monitoring. The controlled release of minerals provides an optimum level of protection in your
pool. The FROG Mineral System
Check the top of the box and back label of product to make sure
you have the correct POOL FROG Mineral Reservoir to t your
POOL FROG Cycler.
IMPORTANT: The POOL FROG Mineral Reservoir must be
replaced every 6 months or after one pool season whichever
is shorter.
2.
The Complete Low-Chlorine Alternative
www.FrogProducts.com • 800-222-0169
The POOL FROG Mineral Reservoir is the heart of an advanced pool care system that destroys bacteria.
+
reduces chlorine use up to 50%*. Simply use with at least 0.5 ppm of an EPA registered
IMPORTANT: Remove and read the
information card.
Please note: Complete instructions for
inserting a POOL FROG Mineral Reservoir,
FROG BAM and POOL FROG Bac Pac are
included inside the POOL FROG Mineral
Reservoir
+
FOR POOLS UP TO 40,000 GALLONS
4.
Open POOL FROG Cycler
Cap. Use the cap tool
included with POOL FROG
Cycler to loosen cycler cap
by hitting the handle with
the at of your hand counter
clockwise.
5.
Remove the POOL FROG Bac Pac and if not empty, set to the
side or store for winter. Then remove the POOL FROG
Reservoir and discard if it has been used for one pool season
or 6 months whichever is shorter.
Find slot on side of
6.
POOL FROG Mineral
Reservoir and line
up with n inside the
POOL FROG Cycler.
Lower POOL FROG
Mineral Reservoir into
POOL FROG Cycler
until secure.
Mineral
Operate
DANGER
• Never use fast dissolving chlorine tablets,
liquid bleach, or calcium hypochlorite in
the POOL FROG Cycler.
3.

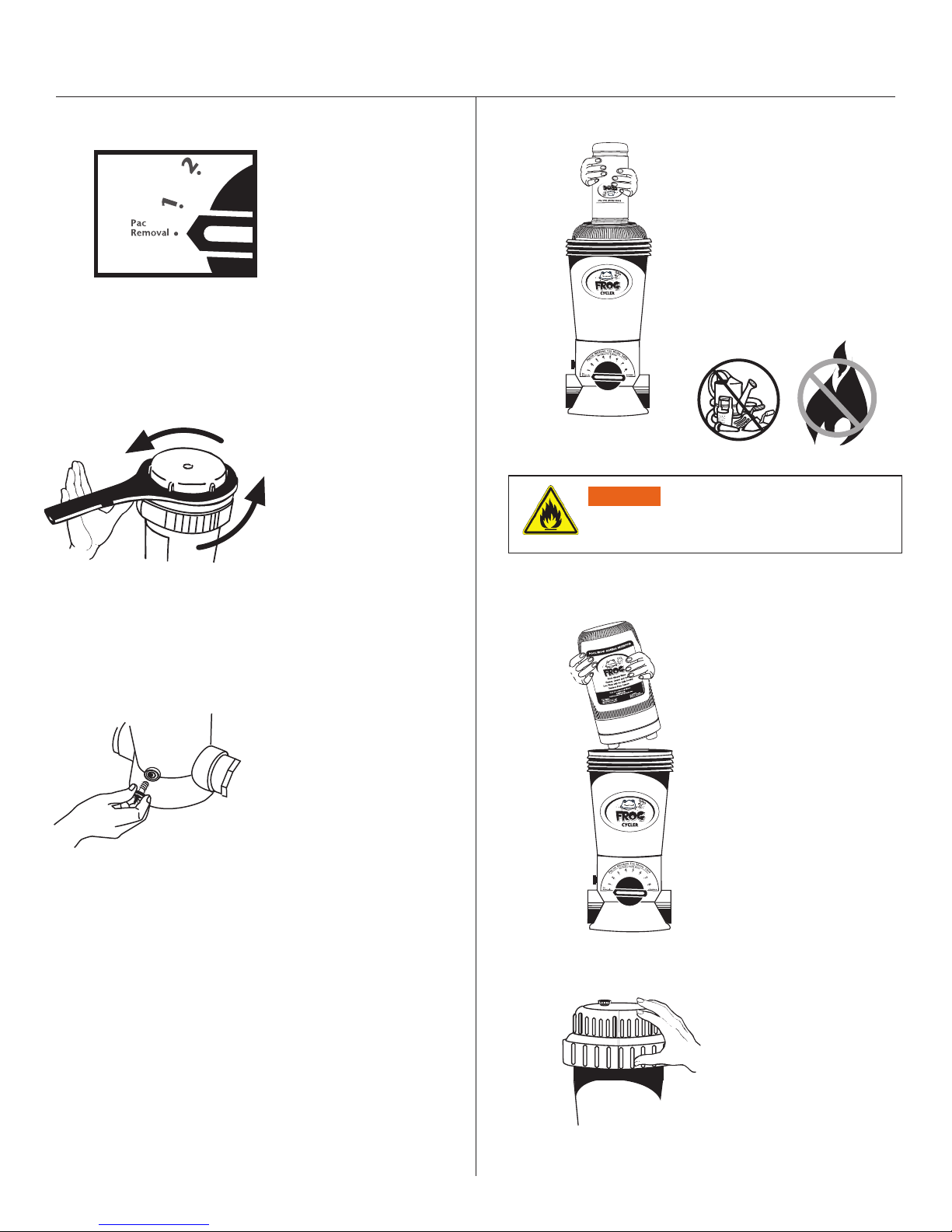

Turn off pump. Turn dial to Pac
Removal. This reduces the ow
of water into the unit when the
cap is open.
7.
Replace the POOL
FROG Bac Pac inside
the POOL FROG
Mineral Reservoir to
continue operating
system. (See directions
on page 17.)
Mark your calendar ahead for
the six month replacement
of the POOL FROG Mineral
Reservoir. Once wetted,
the time-released mineral
coating of this product
is effective up to 6
consecutive months or one
pool season, whichever is
shorter. After that time you
will hear the spent media
inside, however, it is no
longer effective and must
be replaced.
15
Page 16
Using FROG BAM for an Algae-Protection Guarantee
If you are not using FROG BAM, refer to page 17 for Using the
POOL FROG Bac Pac. See FROG BAM product labeling for
complete directions for use (EPA Reg. No. 53735-9).
NOTE: If using directly after a shock treatment, test the water rst to ensure the pH is in the proper range of 7.2-7.8 and the chlorine
level is no more than 4.0 ppm. Avoid using other chemicals until this product has been circulated (ltered) for at least 24 hours.
DANGER
Never use fast dissolving chlorine tablets, liquid bleach,
or calcium hypochlorite in the POOL FROG Cycler.
Important: If storing FROG BAM prior to use, always keep in
a cool, dry place away from children and pets.
1.
Remove cap from FROG BAM
without removing seal.
Turn off pump. Turn control
dial to Pac Removal. Open
POOL FROG Cycler cap.
Stand back to let any chlorine
fumes dissipate.
For a preventive dose add:
•One FROG BAM for pools up to 15,000 gallons.
•Two FROG BAM for pools between 15,000 and 30,000 gallons.
•Three FROG BAM for pools between 30,000 and 40,000 gallons.
5.
Turn pump on for 90 minutes
allowing FROG BAM to circulate
through pool.
6.
To remove expended FROG
BAM bottle, turn pump off
and turn dial to Pac Removal.
2.
3.
4.
16
Insert upside down into the
open center of the POOL FROG
Mineral Reservoir pushing down
rmly on FROG BAM bottle
allowing key in POOL FROG
Cycler to puncture seal.
Looking down at top of bottle
Replace cap by hand only.
DO NOT OVER TIGHTEN.
Turn control dial on POOL FROG
Cycler to Maximum.
seal
7.
8.
Remove POOL FROG Cycler cap.
Lift FROG BAM up and allow
any water in the container to
drain through the POOL FROG
Cycler before discarding in trash
or offering for recycling. Do not
reuse or rell this container.
NOTE: If water shows more than
a hint of blue inside POOL FROG
Cycler, replace the POOL FROG
Cycler cap, turn dial to Maximum
and run the pump for one
minute.
8a. If pool size requires
additional FROG BAM, repeat
steps 1-8.
8b. When water is clear in the
POOL FROG Cycler, insert a
POOL FROG Bac Pac according
to the instructions on page 17.
Page 17
Using POOL FROG Bac Pac
POOL FROG Bac Pac is required
to assure up to 50% reduction in
chlorine use*. POOL FROG Bac Pac
sold separately.
®
B R AN D
(EPA Reg. No. 53735-2)
DANGER
Never use fast dissolving chlorine tablets, liquid bleach,
or calcium hypochlorite in the POOL FROG Cycler.
WARNING
Avoid sparks, smoking, or any open ame near
POOL FROG Cycler or chemicals.
IMPORTANT: Read the label on the POOL FROG Bac Pac carefully
before using.
Turn pump off. Turn
1.
control dial to Pac
Removal. Remove cap
from POOL FROG Cycler
and stand back to let any
chlorine fumes dissipate.
4.
5.
Line up the small leg of the POOL
BRAND
®
FROG Bac Pac with the small
opening in the POOL FROG Mineral
Reservoir and the large leg with the
large opening. Lower POOL FROG
Operate
Bac Pac into POOL FROG Mineral
Reservoir until secure.
Top View
Replace cap by hand only. DO NOT
OVER TIGHTEN.
DO NOT USE CAP TOOL TO
TIGHTEN CAP. Use for removal
only.
2.
Colored Caps
Remove colored caps
by grabbing on to the lip
of one cap with a pliers
and pulling up until cap
releases. Repeat the
process for the other cap.
®
BRAND
Invert POOL FROG Bac Pac
3.
BRAND
®
PAC
TOWERS
PAC
TOWERS
and shake slightly until
chlorine tablets fall into
tower areas.
6.
7.
WE RECYCLE
The chlorine pac container is made
of HDPE plastic. Non-rellable
container. Do not reuse or rell
this container. Offer for recycling if
available. Rinse thoroughly before
recycling or discarding in trash.
Mark your calendar ahead for the
approximate replacement times for
the POOL FROG Bac Pac.
17
Page 18
Winterizing
1.
2.
Turn pump off and turn dial
to Pac Removal.
Remove cap.
4.
BRAND
®
WARNING
Avoid sparks, smoking, or any open ame near
POOL FROG Cycler or chemicals.
If POOL FROG Bac Pac still
contains chlorine, wrap in
plastic bag and store in shed or
cool, dry, well-ventilated location
away from children, pets, cars,
motorcycles or anything metal
that can rust, pit, etc.
If empty, rinse and recycle.
3.
Unscrew knob in the back of
POOL FROG Cycler. Allow all
water to drain.
5.
6.
Remove the POOL FROG
Mineral Reservoir and discard in
trash. You will hear spent media
inside, however it is no longer
effective.
Replace the cap and knob
loosely.
18
Page 19
Troubleshooting
For more in-depth troubleshooting, go to frogproducts.com or call King Technology at 800-222-0169.
Problem Remedy
1.
2.
3.
4.
What do I do
if the water looks
cloudy?
What do I do
if the water turns
color?
What do I do
if algae forms in or
on my pool?
What do I do
if I am under
chlorinating with
the POOL FROG
Bac Pac?
1. Make sure your ltration
system is working properly (i.e.
clean lter, skimmer and pump
basket).
2. Make sure circulation time
is adequate – increase pump
1. Algae may be trying to form
– shock the pool, increase
circulation time if needed and
clean the lter.
1. Use FROG BAM or an
effective algaecide per the
directions on the bottle and
brush the sides of the pool
often.
1. If you are unable to
maintain 0.5 to 1.0 ppm, rst
make sure there are chlorine
tablets in the tower areas of
the POOL FROG Bac Pac and
it is installed properly. If a
correction was made, test the
water in 24 hours.
2. If still low, turn the dial up
one setting and test the water
again in 24 hours. Continue
raising the setting by one
time if not.
3. Make sure the pool is
properly balanced.
4. Shock the water to eliminate
build up of any organic matter.
2. Metals in the ll water may
have been oxidized. Have the
pool tested. See pool dealer
if a metal control product is
required.
2. Clean the lter and shock
the pool with chlorine daily
until water clarity returns.
3. If you are in an area of the
country that struggles with
algae growth, see your dealer
increment each day until the
proper reading is achieved.
3. Shock the pool if the reading
has been lower than 0.5 ppm
for more than one day.
4. Make sure pump run time
is at least 6 hours on high
speed (40 gpm or higher) or if
not, bleed the air from the cap
knob each time cap is open.
(See page 10.)
5. Make sure pool has a
free chlorine reading of
0.5 to 1.0 ppm.
6. Check with your dealer
for more information.
3. Check with your dealer for
more information.
regarding a 90-day Algae
Protection Guarantee using
FROG BAM. See product hang
tag for guarantee details.
4. Check with your dealer for
more information.
5. Contact your dealer to have
your back pressure tested. If
under 4 psi consider a smaller
eye-ball tting in the return jet.
6. Check for a suction side
leak by looking for air bubbles
in your pump basket or at the
return jet. Contact dealer for
help in correcting this situation.
7. Contact King Technology’s
Customer Service Department
at 800-222-0169.
Troubleshoot
1. If the chlorine reading is
What do I do
5.
if I am over
chlorinating with
the POOL FROG
Bac Pac?
over 3.0 ppm, remove the
POOL FROG Bac Pac from the
POOL FROG Mineral Reservoir
and test the water daily until
the reading is down to 1.0
ppm.
2. Reinsert the POOL FROG
Bac Pac, lower the dial one
setting and test the water
again in 24 hours. If the
reading has risen, lower
the dial one setting again.
Continue this process until
proper reading is achieved.
3. If over-chlorinating at
the lowest possible setting,
consider decreasing the
circulation time. Depending on
your pump size, you may be
circulating the water more than
is necessary.
4. Contact your dealer to have
your back pressure tested. If
over 8 psi consider a larger
eye-ball tting in the return jet.
5. Check to see if the pressure
relief valve is loose or missing
and replace. It is a clear plastic
piece approximately 1” long
installed inside near the base. If
loose or missing, it can provide
another avenue for water to
reach the chlorine.
6. Contact King Technology’s
Customer Service Department
at 800-222-0169.
19
Page 20
Parts List Models 5400 and 5430
8 & 9
1
18
S
I
L
E
C
I
O
N
L
U
T
B
N
I
C
R
A
19
6
7
20
21
2
3
4
CYCLER
®
B
RAN
D
9 8
See your dealer or
hardware store for
10
a replacement.
11
12
5
13
14
13
INCLUDED WITH THE POOL FROG Model 5400
REF. # DESCRIPTION QTY. INCLUDED
1 & 2 Cap w/O-Ring 1
3 Body 1
4 Pressure Relief Valve 1
5, 6, 7 Control Dial with O-Ring
& Snap Ring 1
8 & 9 Knob with O-Ring 2
10 2” Male Adapter 2
18 Cap/Control Dial Tool 1
19 Silicone Lubricant 3/4 oz. 1
OFF-LINE PARTS Included with Model 5430
REF. # DESCRIPTION QTY. INCLUDED
Off-line parts
11 to 17
11* 2” x 1/2” Bushing 2
12 90° Elbow 2
13 Small Clamp 4
14 6’ PVC Tubing 1
15 Scoop Gasket 2
16 Venturi Scoop 2
17 Scoop Clamp 2
OUTLET
After filter
and
heater (if
heater
installed)
13
2” to 36” apart on
straight pipe
REPLACEMENT PARTS FOR POOL FROG Model 5400
REF. # PART NUMBER DESCRIPTION
1 & 2 01-22-9417 Cap w/O-Ring
2 01-22-9926 Cap O-Ring
4 01-22-9486 Pressure Relief Valve
5, 6, 7 01-22-9448 Control Dial
with O-Ring & Snap Ring
6 & 7 01-22-9456 O-Ring Kit for Control Dial
8 & 9 01-22-9628 Knob with O-Ring
18 01-22-8870 Cap/Control Dial Tool
19 01-22-9970 Silicone Lubricant 3/4 oz.
20 01-22-4000 Pressure Gauge
21 01-22-9950 40k Tune-Up Kit
11
12
13
14
REPLACEMENT PARTS FOR OFF-LINE Model 5430
REF. # PART NUMBER DESCRIPTION
11* 01-22-8620 2” x 1/2” Bushing
15
12 01-22-7800 90° Elbow
13 01-22-7690 Small Clamp
14 01-22-7700 6’ PVC Tubing
16
INLET
Between
pump
and filter
17
15 01-22-7850 Scoop Gasket
16 01-22-7790 Venturi Scoop
17 01-22-7910 Scoop Clamp
20
Page 21
POOL FROG Cycler Maintenance
Replacing the Control Dial O-Rings
1.
2.
Using a needle nose pliers, nd
the snap ring tail located at
approximately the ve o’clock
position under the control dial.
Pull down and out of the groove.
5.
6.
B
R
CYCLER
Push control dial completely
into the housing and turn the
®
AN
D
dial to setting 2.
Troubleshoot
Insert the non-lipped end
of snap ring into the groove
opening beginning at the 5
o’clock position and push it up
so that it threads itself around
the control dial.
3.
4.
7.
Using a small screwdriver or
pointed tool to help guide it,
make sure the snap ring stays
in the groove as it is inserted.
Using a large screwdriver, loosen
the control dial. Carefully pry the
dial until it pulls out.
Carefully replace the rubber
O-ring without stretching it. Apply
silicone lubricant, that came with
your POOL FROG Cycler,
on O-ring.
S
I
L
E
C
I
O
N
L
U
T
B
N
I
C
R
A
Product # 01-22-9970
21
Page 22
continued... POOL FROG Cycler Maintenance
Replacing the Cap O-Ring
1.
2.
3.
Remove old O-ring.
Top half of
groove
Bottom half
of groove
Top half of
groove
Place new O-ring in bottom
half of groove.
Place your thumbs on each
side of the cap over the
O-ring in the groove.
Roll your thumbs back and
forth over the O-ring while
pushing upward until the
O-ring falls into the top of
the groove.
Replacing Knobs
To replace, simply unscrew old knob and replace with the
new one.
Back of Cycler
Top of Cap
4.
S
I
L
E
C
I
O
N
L
U
T
B
N
I
C
R
A
Product # 01-22-9970
Bottom half
of groove
Lubricate O-ring every
couple of months with
silicone lubricant that
came with your POOL
FROG Cycler.
DO NOT USE petroleum
based lubricants.
22
Page 23
POOL FROG Cycler Two-Year Limited Warranty
Register your warranty today at frogproducts.com/reg and extend the standard 2-year warranty to
10 years of coverage.
King Technology, Inc. will warrant this unit with a complete replacement for the original purchaser, should it prove defective by reason
of improper workmanship and/or material for a period of two (2)
years from the date of original purchase/installation. This warranty
covers body, cap and control dial excluding O-rings. King Technology
holds the option of replacing any defective part without charge if it
is determined to be all that is needed to correct any situation. Parts
used for replacement, with the exception of O-rings, are warranted
for the remainder of the original warranty.
1. To obtain warranty service, you must deliver product to King Technology or its nearest authorized dealer. Shipping expenses are the
purchaser’s responsibility. The name of the nearest authorized dealer can be obtained at frogproducts.com/nd-a-dealer or by calling
King Technology at 1-800-222-0169. Proof of purchase is required
when requesting warranty service. Purchaser must present the sales
receipt or other document which establishes proof of purchase. To
extend your warranty to 10 years, go to frogproducts.com/reg.
2. This warranty does not cover defects caused by: modication,
alteration, repair or service of the product contrary to the accompanying instructions; physical abuse to or misuse of the product or
operation or installation in a manner contrary to the accompanying
instructions. This warranty also excludes all costs arising from the
installation, adjustment, removal or replacement of defective units
or parts. This warranty also excludes any and all claims arising out
of the chemicals used in the product or their characteristics.
3. Any express warranty not provided for herein, and any remedy
for breach of warranty or breach of contract which, but for this
provision, might arise by implication or operation of law, is hereby
expressly excluded and disclaimed. The implied warranties of merchantability and of tness for any particular purpose are expressly
limited to a term of two years. Some states do not allow limitation
on how long an implied warranty lasts, so the above limitation may
not apply to you.
4. Under no circumstance shall King Technology be liable to purchaser or any other person for any damage or loss incurred because
of any chemicals used in the product or their physical characteristics, or interruption of service of the product, or any special, incidental or consequential damages or losses, whether arising out of
breach of warranty, breach of contract or otherwise. Some states
do not allow the exclusion or limitation of incidental consequential
damages, so the above limitation or exclusion may not apply to you.
5. Misuse or failure to use the proper POOL FROG Mineral Reservoir
and POOL FROG Bac Pac may cause damage to equipment or personal injury. All warranty null and void if this product is not used with
the recommended POOL FROG Mineral Reservoir and POOL FROG
Bac Pac.
Don’t forget to register your warranty and sign up to receive emails on special offers and helpful
water care tips. Visit frogproducts.com/reg
Made in U.S.A.
Patents: kingtechnology.com/IP
23
Page 24
MANUFACTURED BY
© King Technology. The following are trademarks of King Technology
®
FROG
POOL FROG
®
POOL FROG XL PRO
®
FROG BAM® SmartChlor
FROG Serene™ FROG Jump Start
FROG Filter Mate™ Fresh Mineral Water
Flippin’ FROG® INSTANT FROG® New Water
®
®
Flippin’ FROG XL® FROG @ease® Perform-Max
530 11TH AVE S, HOPKINS, MN 55343 | 800.222.0169 | frogproducts.com
®
®
24
20-48-0164 553111843R8N
Loading...
