This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be
reproduced without written consent of the author.
The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.
All other product names used in this manual are the properties of their respective owners and are acknowledged.
Part Number – 3534166000 revA
— i —
DLP Projector – User’s Manual
Important Safety Information
Important:
It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.
Keep this manual for future reference.
Symbols Used
Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
The following styles are used in this manual to alert you to important information.
Note:
Provides additional information on the topic at hand.
Important:
Provides additional information that should not be overlooked.
Caution:
Alerts you to situations that may damage the unit.
Warning:
Alerts you to situations that may damage the unit, create a hazardous environment, or cause personal injury.
Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
“Push the Menu button on the remote control to open the Main menu.”
General Safety Information
Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in
the unit. For servicing, contact qualified service personnel.
Follow all warnings and cautions in this manual and on the unit case.
The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the
lens when the lamp is on.
Do not place the unit on an unstable surface, cart, or stand.
Avoid using the system near water, in direct sunlight, or near a heating device.
Do not place heavy objects such as books or bags on the unit.
— ii —
Projector Installation Notice
Place the projector in a horizontal position
The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in
any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically.
Allow at least 50 cm clearance around the exhaust vent.
Preface
Ensure that the intake vents do not recycle hot air from the exhaust vent.
When operating the projector in an enclosed space, ensure that the surrounding air temperature
within the enclosure does not exceed 5 – 40°C while the projector is running, and the air intake and
exhaust vents are unobstructed.
All enclosures should pass a certified thermal evaluation to ensure that the projector does not
recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is
with the acceptable 5 – 40°C range.
– iii –
DLP Projector – User’s Manual
Power Safety
Only use the supplied power cord.
Do not place anything on the power cord. Place the power cord where it will not be in the way of
foot traffic.
Remove the batteries from the remote control when storing or not in use for a prolonged period.
Replacing the Lamp
Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 38
for clear and safe instructions for this procedure. Before replacing the lamp:
Unplug the power cord.
Allow the lamp to cool for about one hour.
Caution:
In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards
to be discharged outward from the rear exhaust vent.
Do not inhale or do not touch glass dust or shards. Doing so could result in injury.
Always keep your face away from the exhaust vent so that you do not suffer from the gas and broken shards of the lamp.
Cleaning the Projector
Unplug the power cord before cleaning. See Cleaning the Projector page 41.
Allow the lamp to cool for about one hour.
Regulatory Warnings
Before installing and using the projector, read the regulatory notices in the Regulatory Compliance on
page 52.
Important Recycle Instructions:
Lamp(s) inside this product contain mercury. This product may contain other electronic waste that
can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal
Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG
. For lamp
specific disposal information check WWW.LAMPRECYCLE.ORG.
Symbol Explanations
DISPOSAL: Do not use household or municipal waste collection services for
disposal of electrical and electronic equipment. EU countries require the use
of separate recycling collection services.
— iv —
Main Features
Lightweight unit, easy to pack away and transport.
Compatible with all major video standards including NTSC, PAL, and SECAM.
A high brightness rating allows for presentations in daylight or in lit rooms.
Supports resolutions up to UXGA at 16.7 million colors to deliver crisp, clear images.
Flexible setup allows for front, rear projections.
Line-of-vision projections remain square, with advanced keystone correction for angled
projections.
Input source automatically detected.
About this Manual
This manual is intended for end users and describes how to install and operate the DLP projector. Wherever possible, relevant information—such as an illustration and its description—has been kept on one
page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting
the environment. It is suggested that you only print sections that are relevant to your needs.
VIEWS OF PROJECTOR PARTS............................................................................................................................................... 2
REMOTE CONTROL PARTS ................................................................................................................................................... 5
REMOTE CONTROL OPERATING RANGE ............................................................................................................................... 7
PROJECTOR AND REMOTE CONTROL BUTTONS.................................................................................................................... 7
SETUP AND OPERATION................................................................................................................................................. 8
INSERTING THE REMOTE CONTROL BATTERIES ................................................................................................................... 8
STARTING AND SHUTTING DOWN THE PROJECTOR............................................................................................................. 10
SETTING AN ACCESS PASSWORD (SECURITY LOCK) .......................................................................................................... 12
ADJUSTING THE KEYSTONE ............................................................................................................................................... 14

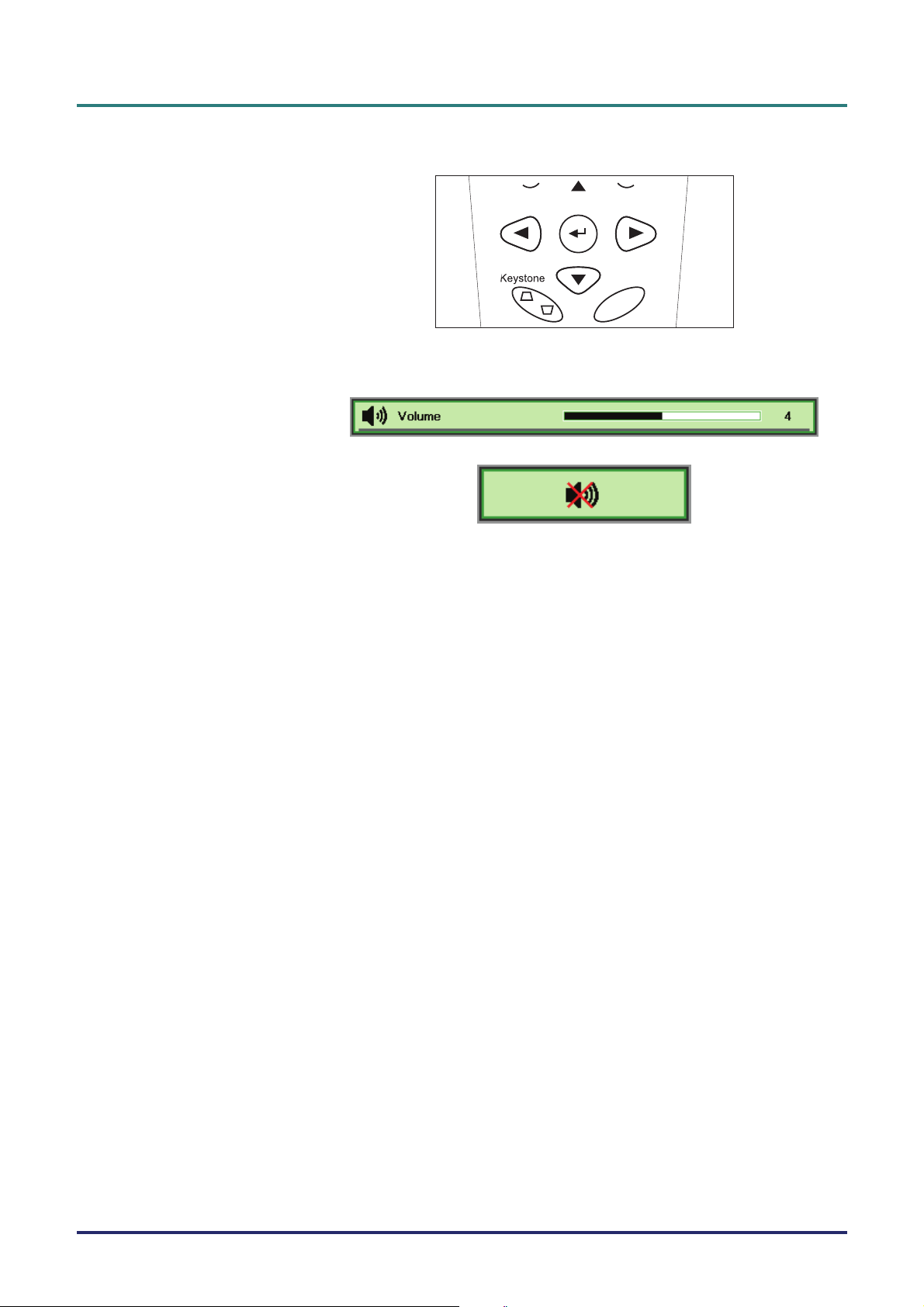

ADJUSTING THE VOLUME .................................................................................................................................................. 15

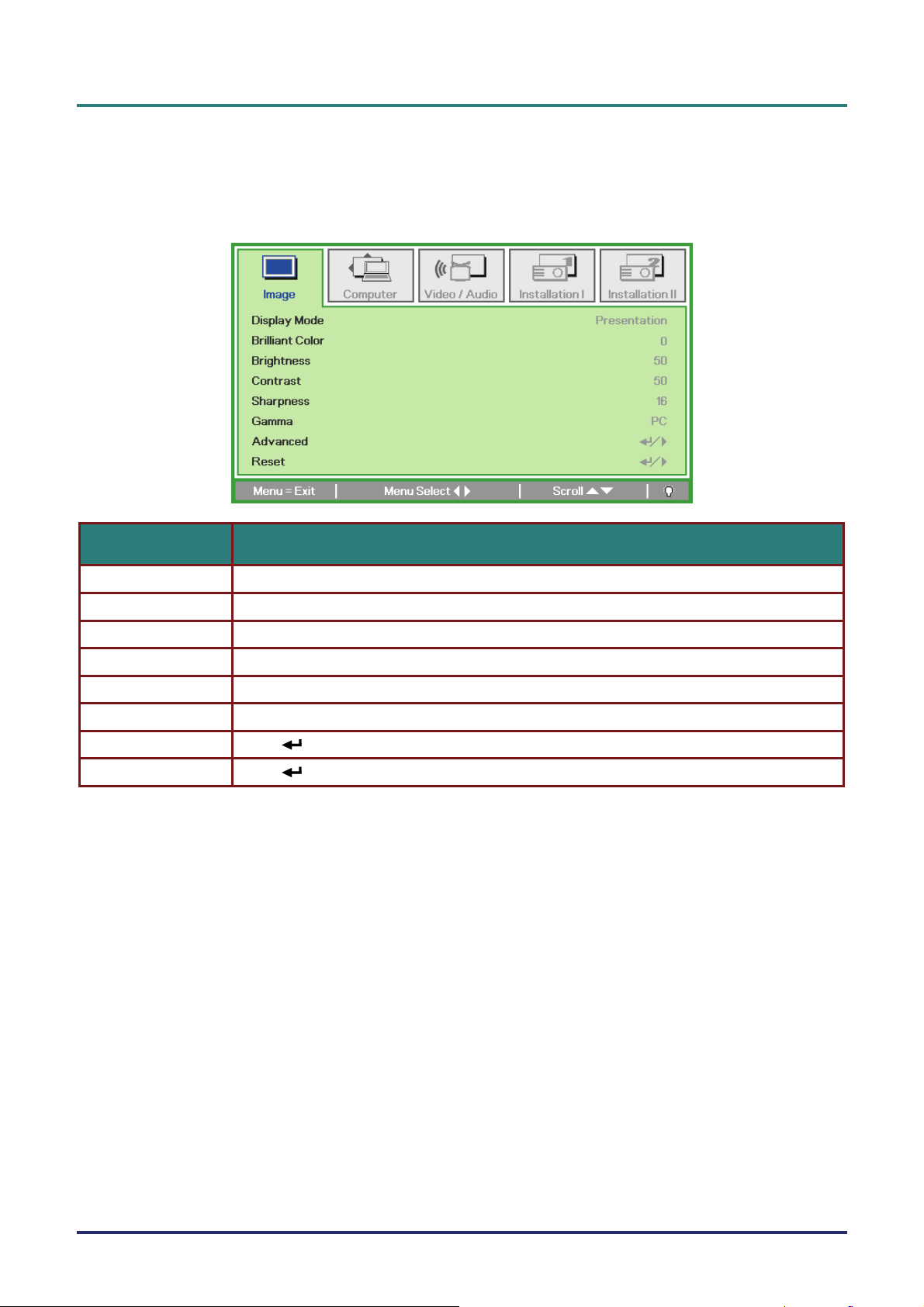

ON-SCREEN DISPLAY (OSD) MENU SETTINGS....................................................................................................... 16
Navigating the OSD ...................................................................................................................................................... 16
SETTING THE OSDLANGUAGE .......................................................................................................................................... 17
Color Manager.............................................................................................................................................................. 22

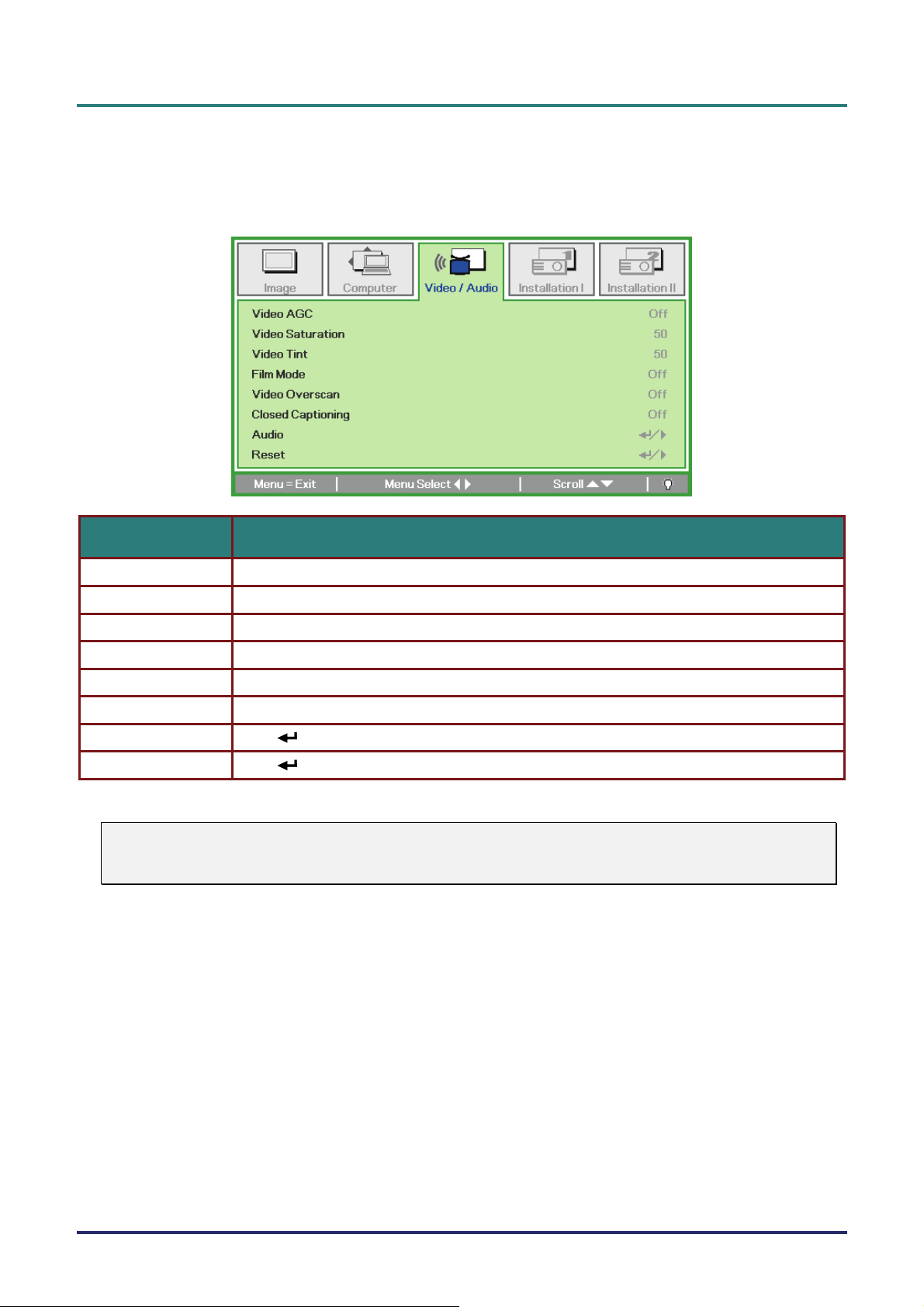

VIDEO/AUDIO MENU ......................................................................................................................................................... 24

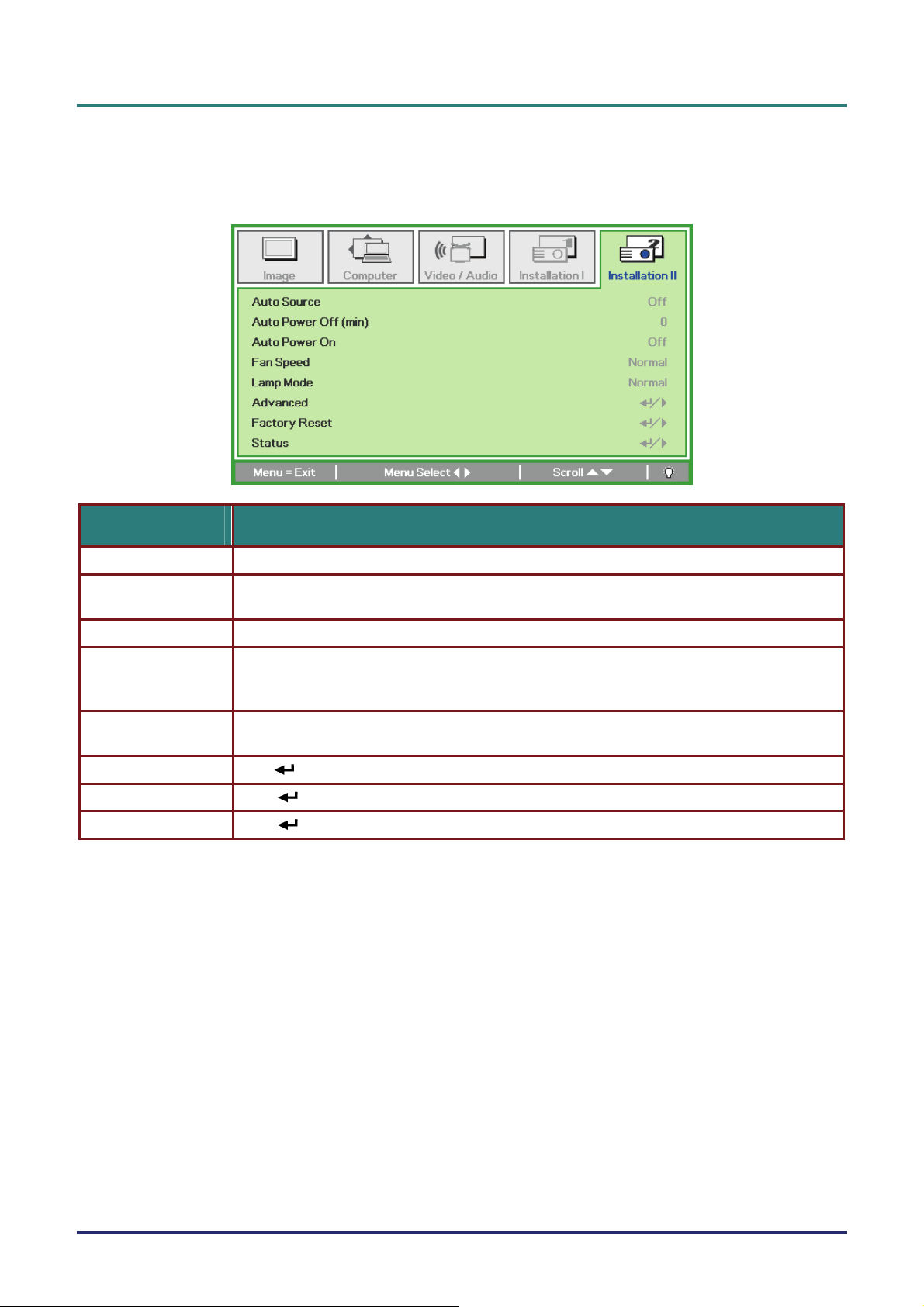

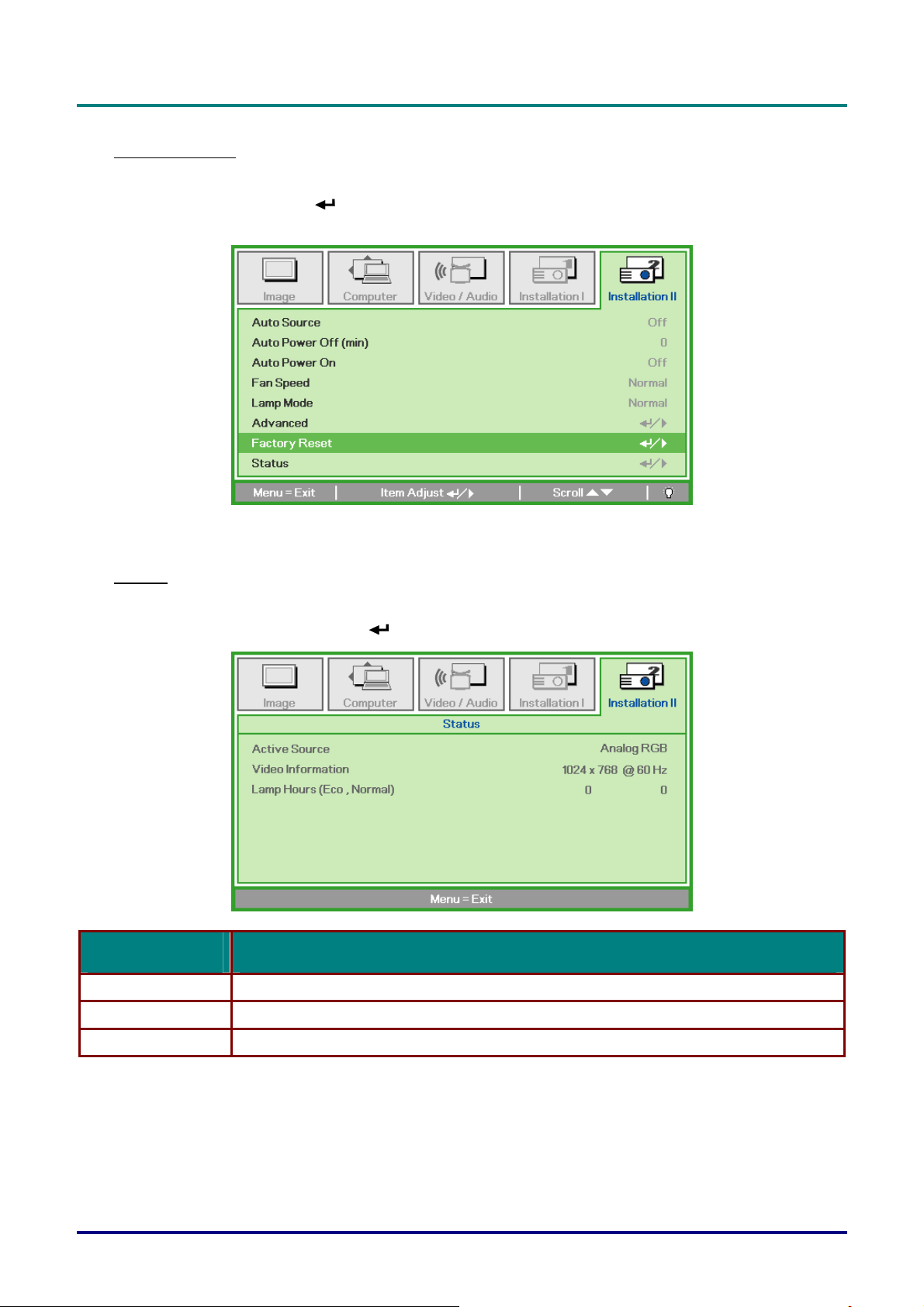

INSTALLATION IMENU ...................................................................................................................................................... 26

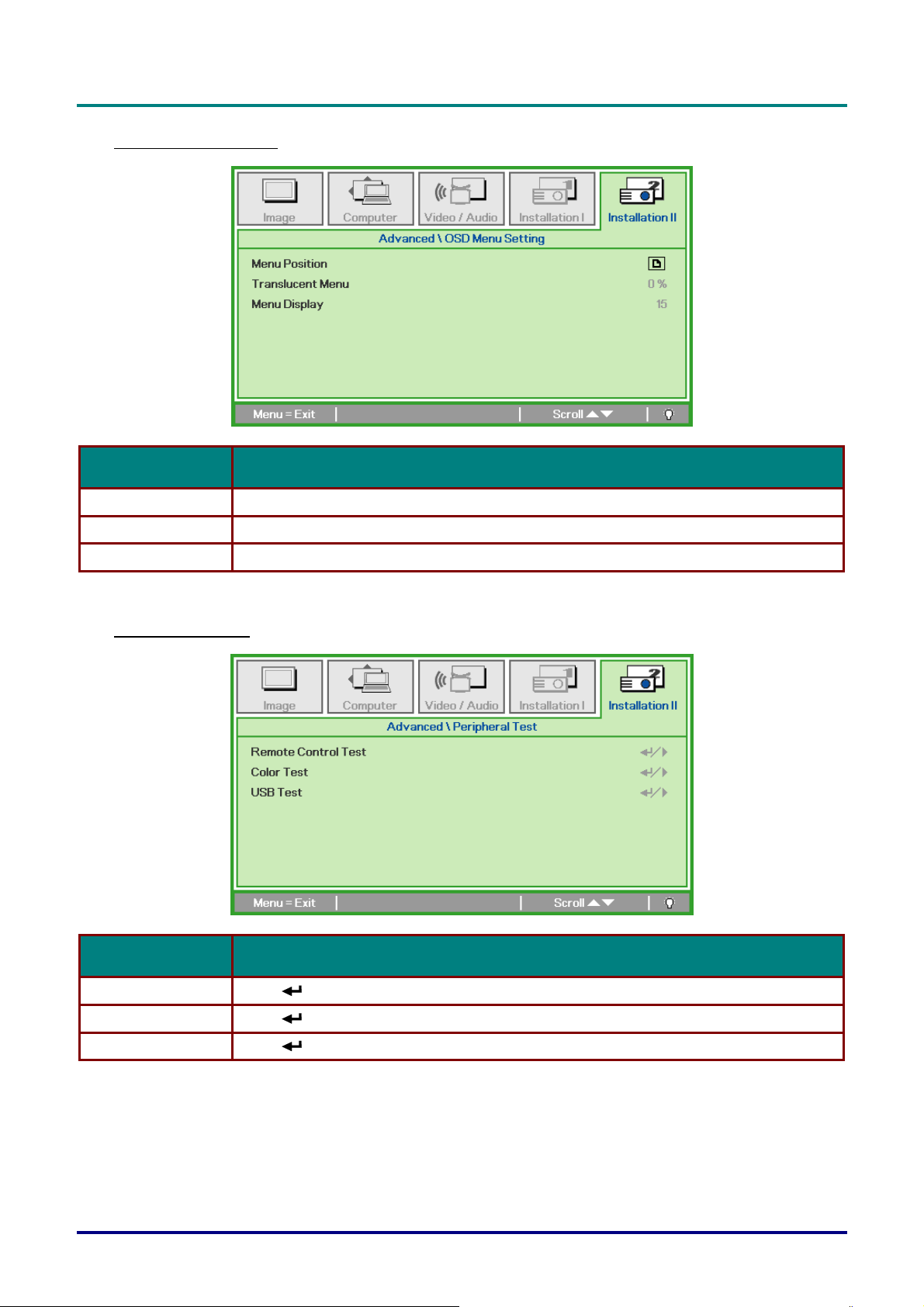

OSD Menu Setting......................................................................................................................................................... 30
3D ................................................................................................................................................................................. 31
MAINTENANCE AND SECURITY................................................................................................................................. 38
REPLACING THE PROJECTION LAMP................................................................................................................................... 38

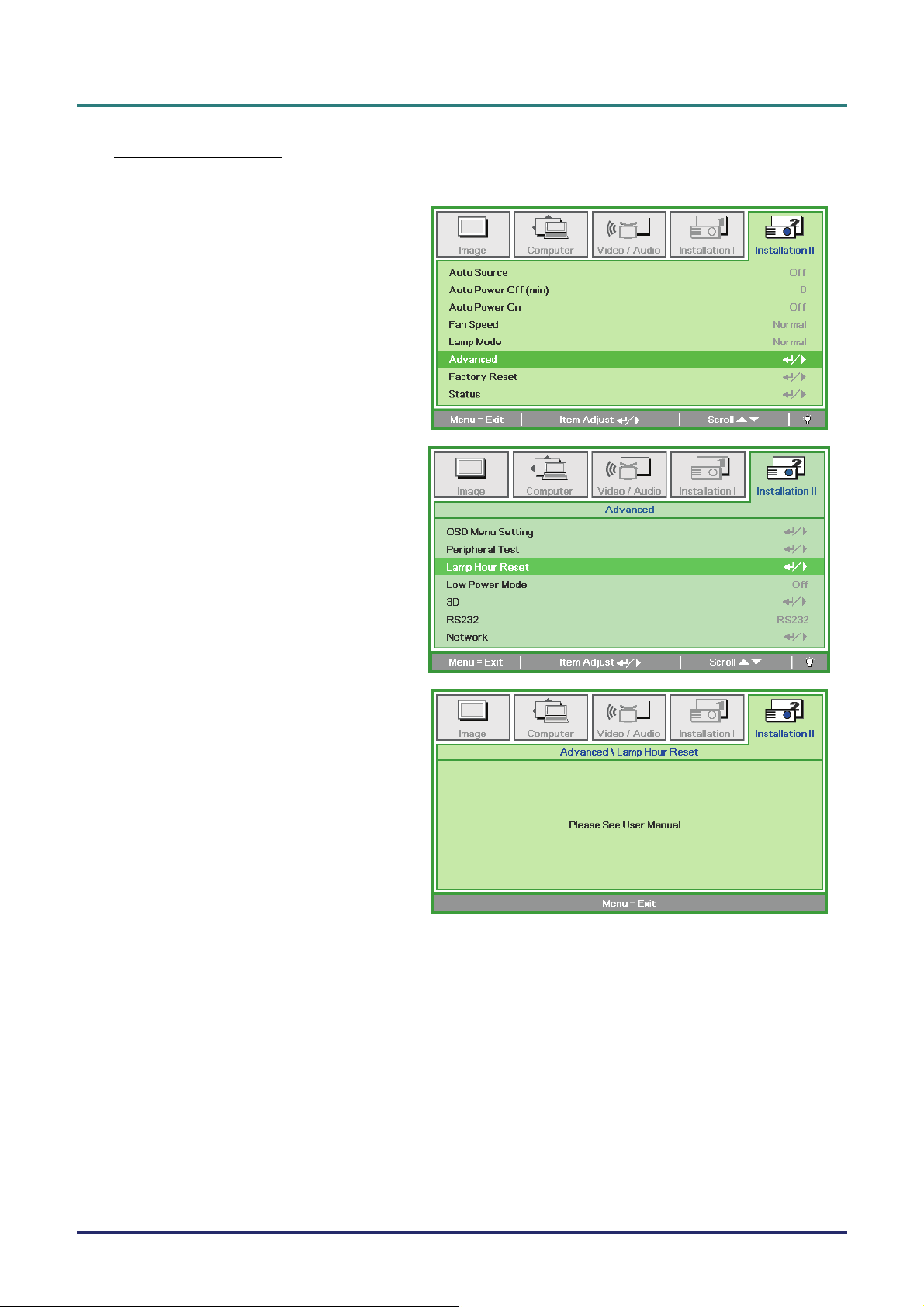

Resetting the Lamp........................................................................................................................................................ 40
CLEANING THE PROJECTOR................................................................................................................................................ 41
Cleaning the Lens ......................................................................................................................................................... 41
Cleaning the Case......................................................................................................................................................... 41

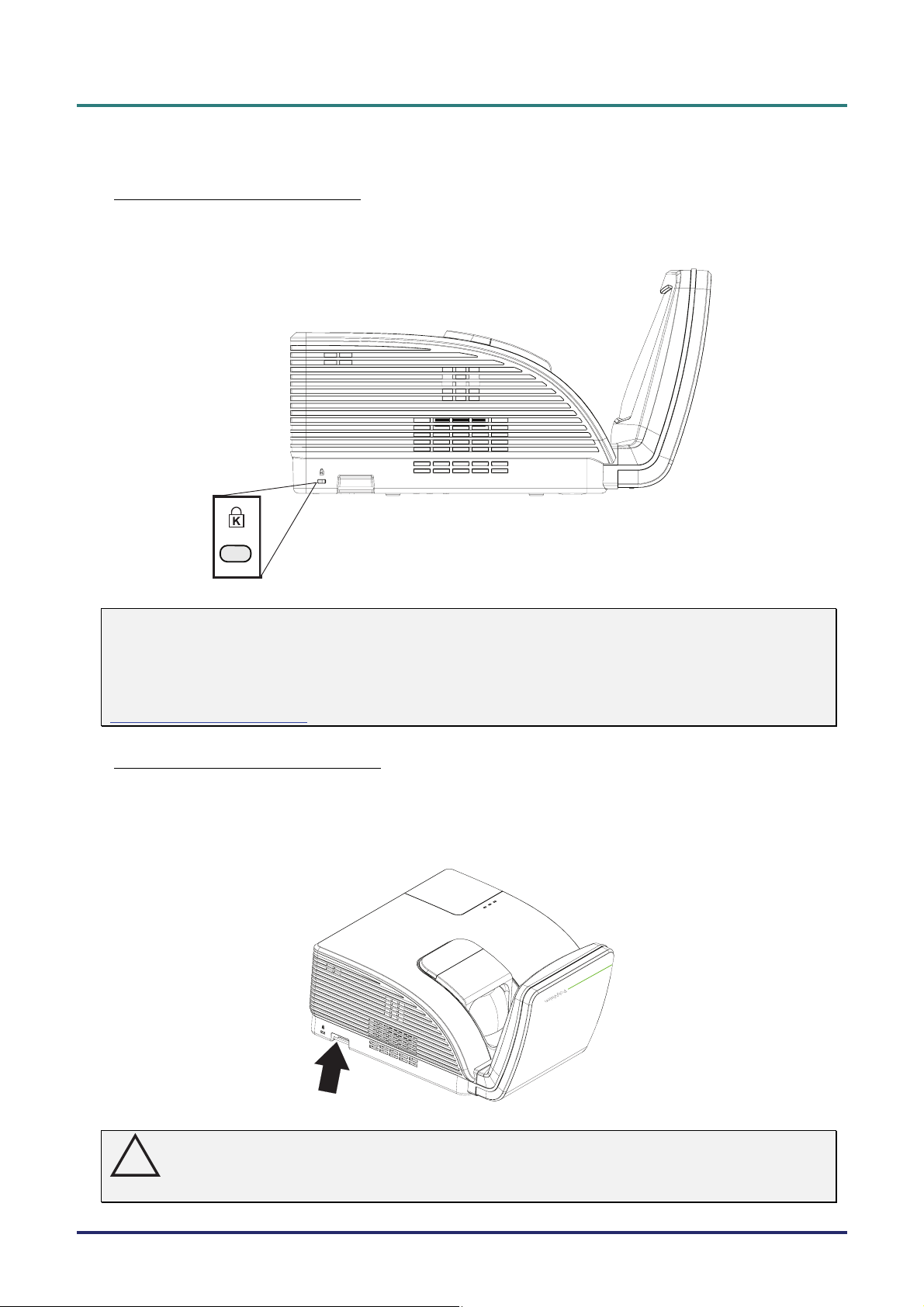

USING THE PHYSICAL LOCK .............................................................................................................................................. 42
Using the Kensington® Lock ......................................................................................................................................... 42
Using the Security Chain Lock...................................................................................................................................... 42
COMMON PROBLEMS AND SOLUTIONS ............................................................................................................................... 43
TIPS FOR TROUBLESHOOTING ............................................................................................................................................ 43
REMOTE CONTROL PROBLEMS .......................................................................................................................................... 45
HAVING THE PROJECTOR SERVICED .................................................................................................................................. 45
APPENDIX I ....................................................................................................................................................................... 53

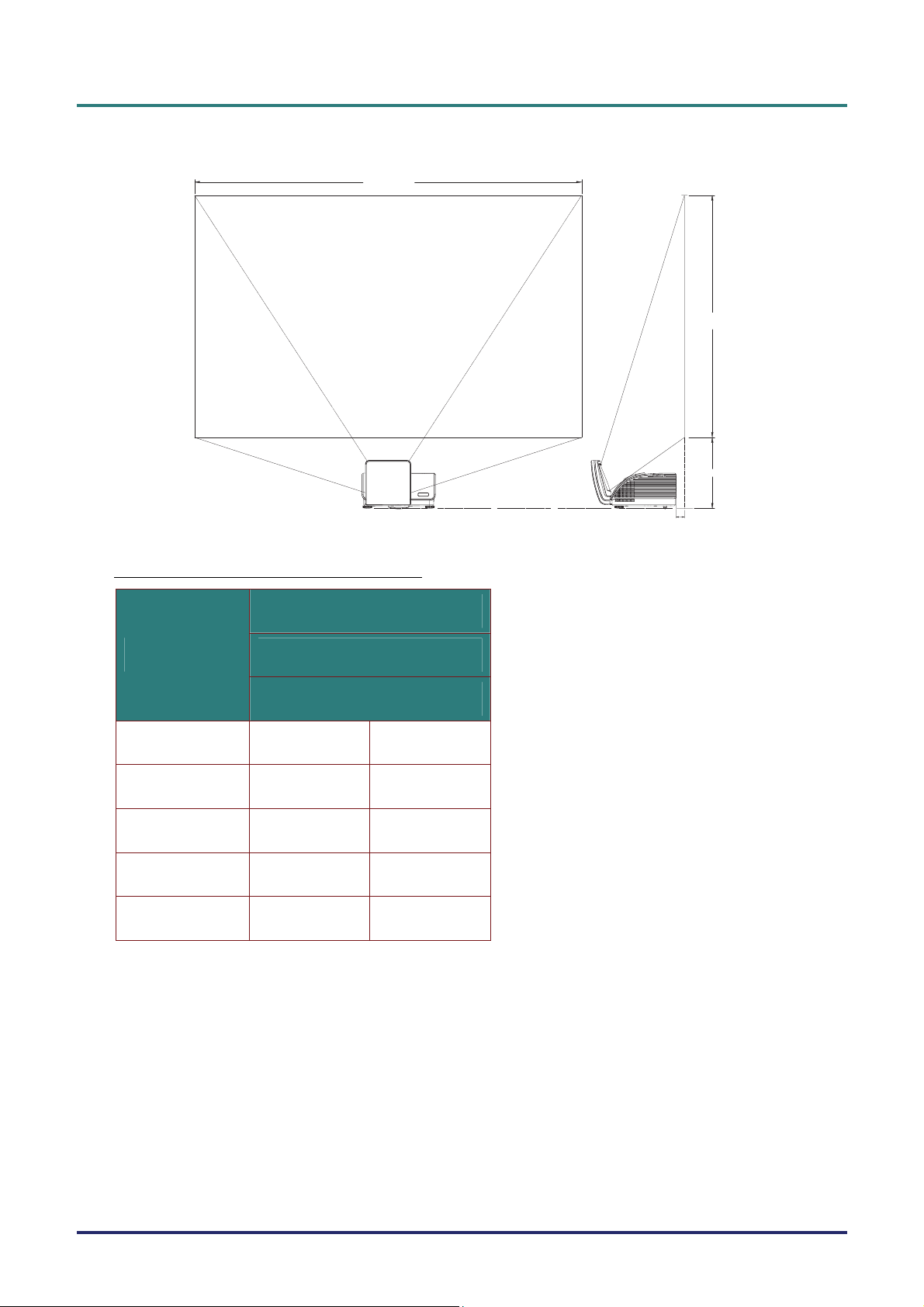

Projection Distance and Size Table.............................................................................................................................. 48
– vii –
DLP Projector – User’s Manual
G
Packing Checklist
Carefully unpack the projector and check that the following items are included:
ETTING STARTED
DLPPROJECTOR
CABLEVGA CABLE POWER CORD
(WITH TWO AAA BATTERIES)
USB
R
EMOTE CONTROL
I
CON STRIP
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It
is recommend that you keep the original packing material should you ever need to return the equipment
for warranty service.
Caution:
Avoid using the projector in dusty environments.
– 1 –
DLP Projector – User’s Manual
Views of Projector Parts
Front-right View
ITEMLABELDESCRIPTIONSEE PAGE:
1.
2.
3.
4.
5.
6.
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
Lamp cover Removes cover to replace lamp
Kensington lock
Security bar For security and authorized usage
Lens Projection Lens
Aspheric mirror Reflects images
WARNING LED Red Error code
LAMP LED
POWER LED Flashing Error code
Secure to permanent object with a Kensington®
Lock system
Red Error code
Flashing
Lamp not ready (Warm-up/shutting down/cooling)
(see LED Error Messages on page 44)
42
– 2 –
Rear view
DLP Projector – User’s Manual
ITEMLABELDESCRIPTIONSEE PAGE:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
VGA OUT
RS-232 Connect RS-232 serial port cable for remote control
VGA – 1
VGA – 2
RJ – 45 Connect a LAN CABLE from Ethernet
S-VIDEO IN Connect the S-VIDEO CABLE from a video device
VIDEO IN Connect the COMPOSITE CABLE from a video device
USB Connect the USB CABLE from a computer
AC IN Connect the POWER CABLE
HDMITM Connect the HDMITM CABLE from a HDMITM device
AUDIO IN Connect an audio cable from the input device
Connect the RGB CABLE to a display
(Loop Thru only for VGA IN-1)
Connect the RGB CABLE from a computer and
components
Connect the RGB CABLE from a computer and
components
9
10
9
12.
Note:
If your video equipment has various input sources, it is recommended to connect in priority of
HDMITM/DVI, component (thru VGA), S-Video, Composite for better picture quality.
AUDIO OUT Connect an audio cable from the output device
– 3 –
DLP Projector – User’s Manual
Bottom view
ITEMLABELDESCRIPTIONSEE PAGE:
1.
2.
Note:
When installing, ensure that you use only UL Listed ceiling mounts.
For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw
depth of 12 mm (0.47 inch).
The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount
load capacity must exceed the weight of the installed equipment, and as an additional precaution
be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a
period of 60 seconds.
Security bar Helps protect the projector from unauthorized use
Ceiling support holes Contact your dealer for information on mounting the projector on a ceiling
42
– 4 –
Remote Control Parts
DLP Projector – User’s Manual
28
27
26
25
24
23
22
21
20
1
2
3
4
5
6
7
8
9
10
11
19
18
17
15
16
Important:
1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluo-
rescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain
reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on
the remote control. This user’s manual describes the functions based on the remote control.
12
13
14
– 5 –
DLP Projector – User’s Manual
ITEMLABELDESCRIPTIONSEE PAGE:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
IR transmitter Transmits signals to projector
Status LED Lights when the remote control is used
Laser Press to operate the on-screen pointer
Up Up arrow when connected through USB to a PC
Right Right arrow when connected through USB to a PC
Down Down arrow when connected through USB to a PC
Page Down Page down when connected through USB to a PC
Up cursor
Right cursor
Down cursor
Volume +/- Adjusts volume
Mute Mutes the built-in speaker
Zoom+ Zoom in
Navigates and changes settings in the OSD
16
15
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
Zoom- Zoom out
Freeze Freeze/unfreezes the on-screen picture
Blank Makes the screen blank
Source Detects the input device
Auto Auto adjustment for phase, tracking, size, position
Left cursor Navigates and changes settings in the OSD
Enter
Page Up Page up when connected through USB to a PC
Left Left arrow when connected through USB to a PC
Enter Enter key when connected through USB to a PC
Opens the OSD Status menu (the menu only opens when an
input device is detected)
Changes settings in the OSD
16
37
14
16
27.
28.
Power Turns the projector on or off
Laser Use as on-screen pointer. DO NOT POINT IN EYES.
– 6 –
10
DLP Projector – User’s Manual
Remote Control Operating Range
The remote control uses infrared transmission to control the projector. It is not necessary to point the
remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or
the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and
15 degrees above or below the projector level. If the projector does not respond to the remote control,
move a little closer.
Projector and Remote Control Buttons
The projector can be operated using the remote control or the buttons on the top of the projector. All
operations can be carried out with the remote control; however, the buttons on the projector are limited in use.
– 7 –
DLP Projector – User’s Manual
Inserting the Remote Control Batteries
Remove the battery compartment cover
1.
by sliding the cover in the direction of
the arrow.
Insert the battery with the positive side
2.
facing up.
S
ETUP AND OPERATION
Replace the cover.
3.
Caution:
1. Only use AAA batteries (Alkaline batteries are recommended).
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the projector for prolonged periods.
– 8 –
DLP Projector – User’s Manual
Connecting Input Devices
A PC or notebook computer and video devices can be connected to the projector at the same time. Video
devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras.
Check the user manual of the connecting device to confirm it has the appropriate output connector.
.
ITEMLABELDESCRIPTION
A
B
C
D
E
F
G
H
I
VGA OUT
RS-232 Connect RS-232 serial port cable for remote control
VGA – 1
VGA – 2
RJ – 45 Connect a LAN CABLE from Ethernet
HDMITM Connect the HDMITM CABLE from a HDMITM device
S-VIDEO IN Connect the S-VIDEO CABLE from a video device
VIDEO IN Connect the COMPOSITE CABLE from a video device
USB Connect the USB CABLE from a computer
Connect the RGB CABLE to a display
(Loop Thru only for VGA IN-1)
Connect the RGB CABLE from a computer and
components
Connect the RGB CABLE from a computer and
components
J
K
!
As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.
AUDIO IN Connect an audio cable from the input device
AUDIO OUT Connect an audio cable from the output device
Warning:
– 9 –
DLP Projector – User’s Manual
Starting and Shutting down the Projector
Connect the power cord to the projector.
1.
Connect the other end to a wall outlet.
The POWER LED on the projector
light.
Turn on the connected devices.
2.
Ensure the POWER LED displays a
3.
solid orange. Then press the POWER
button
jector.
The projector splash screen displays and
connected devices are detected.
See Setting an Access Password
(Security Loc
lock is enabled.
If more than one input device is con-
4.
nected, press the SOURCE button
the remote
among devices.
(Component is supported through the
RGB to COMPONENT ADAPTER.)
of the remote to turn on the pro-
k) on page 12 if security
and use ▲▼ to scroll
of
VGA 1/VGA 2: Analog RGB
Component: DVD input YCbCr / YPbPr, or
HDTV input YPbPr via HD15 connector
Composite Video: Traditional composite video
S-Video: Super video (Y/C separated)
HDMITM: HDMITM, DVI
– 10 –
DLP Projector – User’s Manual
When the “Power Off? /Press Power
5.
again” message appears, press the
POWER button. The projector turns
off.
Caution:
Do not unplug the power cord until the POWER LED change to orange–indicating the projector
has cooled down.
– 11 –
DLP Projector – User’s Manual
Setting an Access Password (Security Lock)
You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector.
When enabled, the password must be entered after you power on the projector. (See Navigating the OSD on page 16 and Setting the OSD Language on page 17 for help on using OSD menus.)
Important:
Keep the password in a safe place. Without the password, you will not be able to use the projector.
If you lose the password, contact your reseller for information on clearing the password.
Press the MENU button to open the OSD
1.
menu.
Press the cursor ◄► button to move to
2.
the Installation I menu, press the cursor
▲▼ button to select Advanced.
Press the cursor ▲▼ button to select
3.
Security Lock.
Press the cursor ◄► button to enable or
4.
disable security lock function.
A password dialog box automatically
appears.
– 12 –
You can use the cursor buttons ▲▼◄►
5.
either on keypad or IR remote control for
password entry. You can use any
combination including the same arrow five
times, but not less than five.
Press the cursor buttons in any order to set
the password. Push the MENU button to
exit the dialog box.
The password confirm menu appears when
6.
user presses the power-on key in case the
Security Lock is enabled.
Enter the password in the order you set it
at step 5. In case you forget the password,
please contact the service center.
The service center will validate the owner
and help reset the password.
DLP Projector – User’s Manual
– 13 –
DLP Projector – User’s Manual
Adjusting the Keystone
Use the KEYSTONE
1.
buttons the remote control
to correct image-trapezoid
(wider top or bottom)
effect.
The keystone control
2.
appears on the display.
Volume
+
-
– 14 –
Adjusting the Volume
Press the Volume +/-
1.
buttons on the remote
control.
The volume control
appears on the display.
Press the MUTE button to
2.
turn off the volume
DLP Projector – User’s Manual
Volume
+
-
– 15 –
DLP Projector – User’s Manual
ON-S
CREEN DISPLAY
(OSD) M
ENU SETTINGS
OSD Menu Controls
The projector has an OSD that lets you make image adjustments and change various settings.
Navigating the OSD
You can use the remote control cursor buttons to navigate and make changes to the OSD.
1. To enter the OSD, press the
MENU button.
2. There are five menus. Press
the cursor ◄► button to
move through the menus.
3. Press the cursor ▲▼ button
to move up and down in a
menu.
4. Press ◄► to change values
for settings.
5. Press MENU to close the
OSD or leave a submenu.
Note:
Depending on the video source, not all items in the OSD are available. For example, the Horizontal/Vertical Position items in the Computer menu can only be modified when connected to a PC.
Items that are not available cannot be accessed and are grayed out.
– 16 –
Setting the OSD Language
Set the OSD language to your preference before continuing.
1. Press the MENU button. Press the cursor ◄► button to navigate to Installation I.
2. Press the cursor ▲▼ button until Language is highlighted.
DLP Projector – User’s Manual
3. Press the cursor ◄► button until the language you want is highlighted.
4. Press the MENU button twice to close the OSD.
– 17 –
DLP Projector – User’s Manual
OSD Menu Overview
Use the following illustration to quickly find a setting or determine the range for a setting.
– 18 –
OSD Sub-Menu Overview
DLP Projector – User’s Manual
– 19 –
DLP Projector – User’s Manual
Image Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Image
Menu. Press the cursor ▲▼ button to move up and down in the Image menu. Press ◄► to change
values for settings.
ITEMDESCRIPTION
Display Mode Press the cursor ◄► button to set the Display Mode.
Brilliant Color Press the cursor ◄► button to adjust the Brilliant Color value.
Brightness Press the cursor ◄► button to adjust the display brightness.
Contrast Press the cursor ◄► button to adjust the display contrast.
Sharpness Press the cursor ◄► button to adjust the display sharpness level.
Gamma Press the cursor ◄► button to adjust the gamma correction of the display.
Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 21.
Reset Press (Enter) / ► to reset all settings to default values.
– 20 –
DLP Projector – User’s Manual
Advanced Feature
Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲
to move to the Advanced menu and then press Enter or ►. Press ▼▲ to move up and down in the
Advanced menu.
ITEMDESCRIPTION
Color Space
Color Temperature
Color Manager
Press the cursor
Press the cursor
Press
Color Manager.
◄► button to adjust the color space.
◄► button to adjust the color temperature.
(Enter) / ► to enter the color manager menu. See page 22 for more information on
– 21 –
DLP Projector – User’s Manual
Color Manager
Press (Enter) / ► to enter the Color Manager sub menu.
ITEMDESCRIPTION
Red
Green
Blue
Cyan
Magenta
Yellow
White
Select to enter the Red Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.
Select to enter the Green Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.
Select to enter the Blue Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.
Select to enter the Cyan Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.
Select to enter the Magenta Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.
Select to enter the Yellow Color Manager.
Press the◄► buttons to adjust the Hue, Saturation, and Gain.
Select to enter the White Color Manager.
Press the ◄► buttons to adjust the Red, Green, and Blue.
– 22 –
DLP Projector – User’s Manual
Computer Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Computer menu. Press the cursor ▲▼ button to move up and down in the computer menu. Press ◄► to
change values for settings.
ITEMDESCRIPTION
Horizontal Position Press the cursor ◄► button to adjust the display position to left or right.
Vertical Position Press the cursor ◄► button to adjust the display position to up or down.
Frequency Press the cursor ◄► button to adjust the A/D sampling clock.
Tracking Press the cursor ◄► button to adjust the A/D sampling dot.
Auto Image Press (Enter) / ► to automatically adjustment for phase, tracking, size and position.
– 23 –
DLP Projector – User’s Manual
Video/Audio Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
Video/Audio menu. Press the cursor ▲▼ button to move up and down in the Video/Audio menu.
Press ◄► to change values for settings.
ITEMDESCRIPTION
Video AGC Press the ◄► buttons to enable or disable the Automatic Gain Control for video source.
Video Saturation Press the ◄► buttons to adjust the video saturation.
Video Tint Press the ◄► buttons to adjust the video tint/hue.
Film Mode Press the ◄► buttons to select a different film mode.
Video Overscan Press the ◄► buttons to enable or disable video over scan.
Closed Captioning Press the ◄► buttons to enable or disable Closed Captioning
Audio Press (Enter) / ► to enter the Audio menu. See Audio on page 25.
Reset Press (Enter) / ► to reset all settings to default values.
Note:
Video jagging may occur when playing interlace video. To overcome this issue, open the
Video / Audio menu and adjust the Film Mode feature.
– 24 –
Audio
Press (Enter) / ► to enter the Audio sub menu.
ITEMDESCRIPTION
DLP Projector – User’s Manual
Volume Press the ◄► buttons to adjust the audio volume.
Mute Press the ◄► buttons to turn on or off the speaker.
Audio Input Press the cursor ◄► button to select audio input.
– 25 –
DLP Projector – User’s Manual
Installation I Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Installation I menu. Press the cursor ▲▼ button to move up and down in the Installation I menu. Press
◄► to change values for settings.
ITEMDESCRIPTION
Language Press the cursor ◄► button to select a different localization Menu.
Blank Screen Press the cursor ◄► button to select different color to blank the screen.
Projection Press the cursor ◄► button to choose from four projection methods:
Aspect Ratio Press the cursor ◄► button to adjust the video aspect ratio.
Keystone Press the cursor ◄► button to adjust the display keystone.
Digital Zoom Press the cursor ◄► button to adjust the Digital Zoom menu.
Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 27.
Reset
Press
(expect Language and Security Lock).
(Enter) / ► to reset all settings to default values
– 26 –
DLP Projector – User’s Manual
Advanced Feature
Press the Menu button to open the OSD menu. Press ◄► to move to the Installation I menu. Press
▲▼ to move to the Advanced menu and then press Enter or ►. Press ▲▼ to move up and down in
the Advanced menu. Press ◄► to change values for setting.
ITEMDESCRIPTION
Security Lock Press the cursor ◄► button to enable or disable security lock function.
Wall Color Press the cursor ◄► button to enable or disable wall color function.
Presentation Timer Press (Enter) / ► to the Presentation Timer menu. See Presentation Timer on page 27.
Logo Press ◄► to select the screen to display during startup.
Logo Capture Press (Enter) / ► to capture a displayed screen to use as the startup screen.
Presentation Timer
The Presentation Timer function can indicate the presentation time on the screen to help you achieve
better time management when giving presentations.
ITEMDESCRIPTION
Timer Press the cursor ◄► button to enable or disable presentation timer.
Timer Period Press the cursor ◄► button to select timer period.
Timer Reset Press (Enter) / ► to reset the timer settings.
– 27 –
DLP Projector – User’s Manual
Installation II Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Installation II menu. Press the cursor ▲▼ button to move up and down in the Installation II menu.
ITEMDESCRIPTION
Auto Source Press the cursor ◄► button to enable or disable automatic source detection.
Auto Power Off
(min.)
Auto Power On Press the cursor ◄► button to enable or disable automatic power On when AC power is supplied.
Fan Speed
Lamp Mode
Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 29.
Factory Reset Press (Enter) / ► to reset all items to factory preset values.
Status Press (Enter) / ► to enter the Status menu. See page 37 for more information on Status.
Press the cursor ◄► button to enable or disable automatic shutdown of lamp when no signal.
Press the cursor ◄► button to toggle between Normal and High fan speeds.
Note: We recommend selecting high speed in high temperatures, high humidity, or high
altitude areas.
Press the cursor ◄► button to select the lamp mode for higher brightness or lower brightness
to save lamp life.
– 28 –
DLP Projector – User’s Manual
Advanced Feature
Press the Menu button to open the OSD menu. Press ◄► to move to the Installation II menu.
Press ▲▼ to move to the Advanced menu and then press Enter or ►. Press ▲▼ to move up and
down in the Advanced menu. Press ◄► to change values for setting.
ITEMDESCRIPTION
OSD Menu Setting
Peripheral Test
Lamp Hour Reset
Low Power Mode Press ◄► to turn Low Power Mode on or off.
3D Press ◄► to disable or enable different 3D modes.
RS232
Network
Note:
To enjoy the 3D function, first enable the Play Movie in 3D setting found in your DVD
device under the 3D Disc Menu.
Press Enter / ► to enter the OSD setting menu. See page 30 for more information on OSD
Menu
Setting.
Press Enter/ ► to enter the Peripheral Test menu. See page 30 for more information on
Peripheral Test.
After replacing the lamp, this item should be reset. See page 31 for more information on Lamp
Ho
ur Reset.
Press ◄► to select RS232 (remote) or Network (LAN) mode depending on projector connection method.
Press
Network.
(Enter) / ► to enter the Network menu. See page 32 for more information on
– 29 –
DLP Projector – User’s Manual
OSD Menu Setting
ITEMDESCRIPTION
Menu Position Press ◄► button to select different OSD location.
Translucent Menu Press ◄► button to select OSD background translucent level.
Menu Display Press ◄► button to select OSD timeout delay.
Peripheral Test
ITEMDESCRIPTION
Remote Control Test Press (Enter) / ► to test the IR remote controller for diagnostic.
Color Test Press (Enter) / ► to select different colors on screen.
USB Test Press (Enter) / ► to test the USB connection with connected PC.
– 30 –
DLP Projector – User’s Manual
Lamp Hour Reset
Please refer to Lamp Hour Reset on page 40 to reset the lamp hour counter.
3D
ITEMDESCRIPTION
3D Press ◄► to select Off, DLP-Link or IR.
3D Sync Invert Press ◄► to turn 3D Sync Invert On or Off.
– 31 –
DLP Projector – User’s Manual
Network
ITEMDESCRIPTION
Network State Displays the network connection status.
Press ◄► to turn DHCP On or Off.
DHCP
Note: If you select DHCP Off, complete the IP Address, Subnet Mask, Gateway, and DNS
fields.
IP Address Enter a valid IP address if DHCP is turned off.
Subnet Mask Enter a valid Subnet Mask if DHCP is turned off.
Gateway Enter a valid Gateway address if DHCP is turned off.
DNS Enter a valid DNS name if DHCP is turned off.
Apply Press (Enter) / ► to confirm settings.
– 32 –
DLP Projector – User’s Manual
For simplicity and ease of operation, the projector provides diverse networking and remote management
features.
The LAN/RJ45 function of the projector through a network, such as remotely manage: Power On/Off,
Brightness and Contrast settings. Also, projector status information, such as: Video-Source, Sound-Mute,
.
etc
LAN_RJ45
1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop).
2. On the PC (Laptop), select Start → Control Panel → Network Connections.
– 33 –
DLP Projector – User’s Manual
3. Right-click on Local Area Connection, and select Properties.
4. In the Properties window, select the General tab, and select Internet Protocol (TCP/IP).
5. Click Properties.
6. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK.
– 34 –
7. Press the Menu button on the projector.
8. Select Installation II →Advanced→Network.
9. After getting into Network, input the following:
DHCP: Off
IP Address: 10.10.10.10
Subnet Mask: 255.255.255.0
Gateway: 0.0.0.0
DNS Server: 0.0.0.0
DLP Projector – User’s Manual
10. Press
Open a web browser
(for example, Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher).
11. In the Address bar, input the IP address: 10.10.10.10.
12. Press

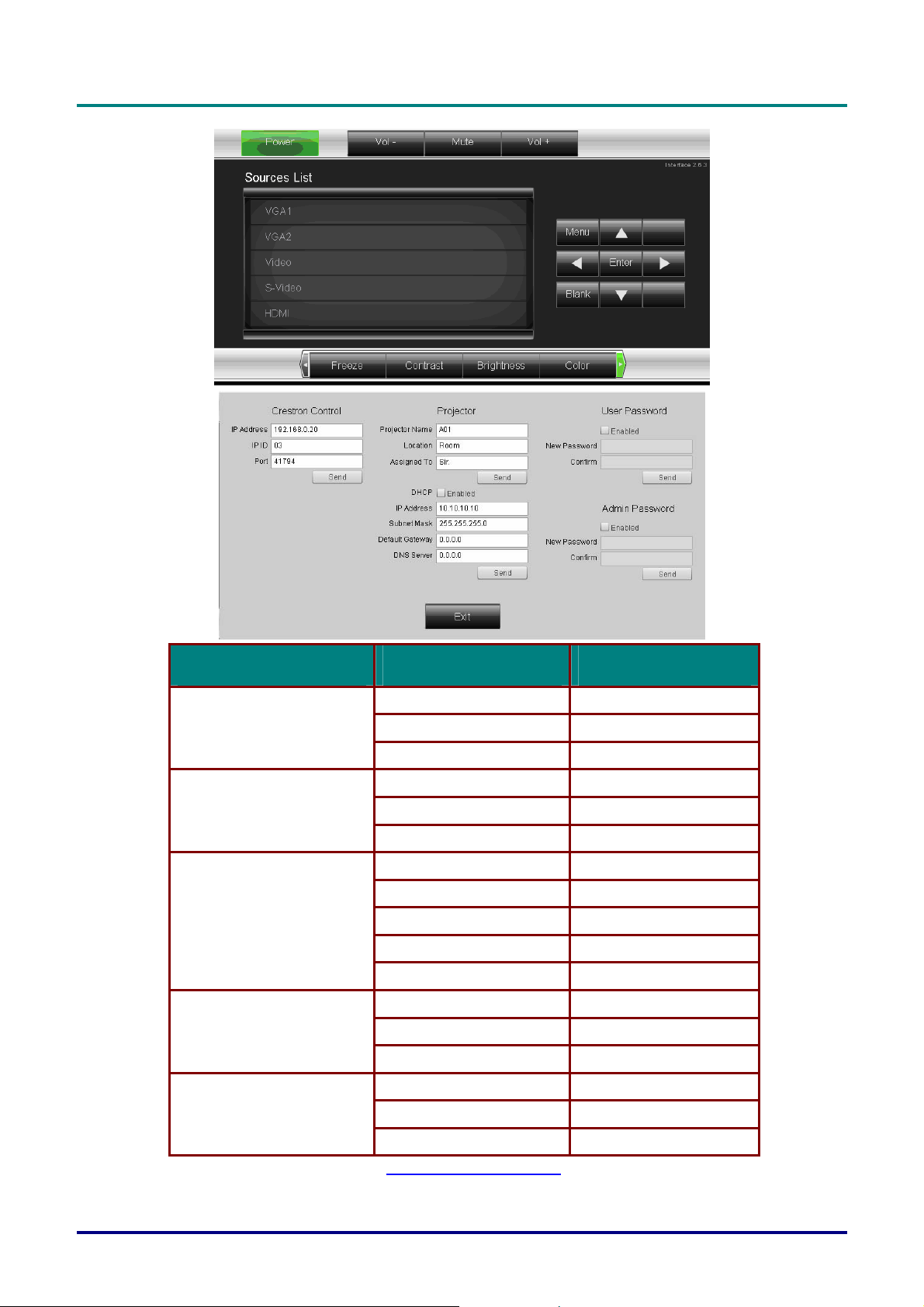

The projector is setup for remote management. The LAN/RJ45 function displays as follows.
Based on network web-page for the input-string in tools tab, the limitation for Input-Length is in
the below list (“space” and the other punctuation key included):
(Enter) / ► to confirm settings.
(Enter) / ►.
– 35
–
DLP Projector – User’s Manual
CATEGORYITEMINPUT-LENGTH
Crestron Control
Projector
Network Configuration
User Password
IP Address 14
IP ID 2
Port 5
Projector Name 10
Location 9
Assigned To 8
DHCP (Enabled) (N/A)
IP Address 15
Subnet Mask 15
Default Gateway 15
DNS Server 15
Enabled (N/A)
New Password 15
Confirm 15
Enabled (N/A)
Admin Password
New Password 15
Confirm 15
For more information, please visit http://www.crestron.com.
– 36 –
DLP Projector – User’s Manual
Factory Reset
Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the Factory
Reset sub menu and press
(expect Language and Security Lock).
(Enter) / ► to reset all the menu items to the factory default values
Status
Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the
Installation II sub menu and press
ITEMDESCRIPTION
Active Source Display the activated source.
Video Information Displays resolution/video information for RGB source and color standard for Video source.
(Enter) / ► to enter the Status sub menu.
Lamp Hours Lamp hour used information is displayed. Eco and Normal counters are separated.
– 37 –
DLP Projector – User’s Manual
M
AINTENANCE AND SECURITY
Replacing the Projection Lamp
The projection lamp should be replaced when it burns out. It should only be replaced with a certified
replacement part, which you can order from your local dealer.
Important:
a. The projection lamp used in this product contains a small amount of mercury.
b. Do not dispose this product with general household waste.
c. Disposal of this product must be carried out in accordance with the regulations of your local
authority.
Warning:
Be sure to turn off and unplug the projector at least 30 minutes before replacing the lamp. Failure to
do so could result in a severe burn.
Caution:
In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards
to be discharged outward from the rear exhaust vent.
Do not inhale or do not touch glass dust or shards. Doing so could result in injury.
Always keep your face away from the exhaust vent so that you do not suffer from the gas and broken shards of the lamp.
!
IF A LAMP EXPLODES
If a lamp explodes, the gas and broken shards may scatter inside the projector and they may come
out of the exhaust vent. The gas contains toxic mercury.
Open windows and doors for ventilation.
If you inhale the gas or the shards of the broken lamp enter your eyes or mouth, consult the doctor
immediately.
Remove the single screw on
1.
the lamp compartment cover.
– 38 –
Remove the lamp compart-
2.
ment cover.
Remove the two screws from
3.
the lamp module.
DLP Projector – User’s Manual
Lift the module handle up.
4.
Pull firmly on the module
5.
handle to remove the lamp
module.
Reverse steps 1 to 5 to install
6.
the new lamp module.
While installing, align the
lamp module with the
connector and ensure it is level
to avoid damage.
Note: The lamp module must
sit securely in place and the
lamp connector must be connected properly before
tightening the screws.
– 39 –
DLP Projector – User’s Manual
Resetting the Lamp
After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following:
Press the MENU button to open the
1.
OSD menu.
Press the cursor ◄► button to move
2.
to the Installation II menu. Press the
cursor button to move down to
Advanced.
Press the cursor ▼▲ button to move
3.
down to Lamp Hour Reset.
Press the cursor ► or Enter button.
4.
A message screen appears.
Press ▼▲◄► buttons to reset the
5.
lamp hour.
Press the MENU button to get back
6.
to Installation II.
– 40 –
DLP Projector – User’s Manual
Cleaning the Projector
Cleaning the projector to remove dust and grime will help ensure trouble-free operation.
Warning:
1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so
could result in a severe burn.
2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings
on the projector.
3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated
room for several hours before using.
4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.
Cleaning the Lens
You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the projector lens.
1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)
2. Lightly wipe the lens in a circular motion.
Caution:
1. Do not use abrasive cleaners or solvents.
2. To prevent discoloration or fading, avoid getting cleaner on the projector case.
Cleaning the Case
Refer to the following to clean the projector case.
1. Wipe off dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then wipe
the case.
3. Rinse all detergent from the cloth and wipe the projector again.
Caution:
To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.
– 41 –
DLP Projector – User’s Manual
Using the Physical Lock
Using the Kensington® Lock
If you are concerned about security, attach the projector to a permanent object with the Kensington
slot and a security cable.
Note:
Contact your vendor for details on purchasing a suitable Kensington security cable.
The security lock corresponds to Kensington’s MicroSaver Security System. If you have any comment, contact: Kensington, 2853 Campus Drive, San Mateo, CA 94403, U.S.A. Tel: 800-535-4242,
http://www.Kensington.com.
Using the Security Chain Lock
In addition to the password protection function and the Kensington lock, the Security Chain Opening
helps protect the PROJECTOR from unauthorized use.
See the following picture.
!
Caution:
Do NOT touch the aspheric mirror.
– 42 –
DLP Projector – User’s Manual
T
ROUBLESHOOTING
Common problems and solutions
These guidelines provide tips to deal with problems you may encounter while using the projector. If
the problem remains unsolved, contact your dealer for assistance.
Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.
Use some other electrical device to confirm that the electrical outlet is working.
Ensure the projector is turned on.
Ensure all connections are securely attached.
Ensure the attached device is turned on.
Ensure a connected PC is not in suspending mode.
Ensure a connected notebook computer is configured for an external display.
(This is usually done by pressing an Fn-key combination on the notebook.)
Tips for Troubleshooting
In each problem-specific section, try the steps in the order suggested. This may help you to solve the
problem more quickly.
Try to pin point the problem and thus avoid replacing non-defective parts.
For example, if you replace batteries and the problem remains, put the original batteries back and go
to the next step.
Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical support or for passing on to service personnel.
– 43 –
DLP Projector – User’s Manual
LED Error Messages
ERROR CODE MESSAGES
Power On 0 0 Blue
Power Off 0 0 Orange
Cooling 0 0 Flashing
Over Temperature ON 0 0
Thermal Break Sensor error 0 0 4
Burner Fan error 0 1 6
Lamp Fan error 0 2 6
Lamp Door Open 0 0 7
DMD error 0 0 8
In the event of an error, please disconnect the AC power cord and wait for one (1) minute before restarting the projector. If the Power or Lamp LEDs are still blinking or the Over Temp LED is lit, or any
other situation that isn't listed in the chart above
WARNING LED LAMP LED
BLINK
, pleasecontact your service center.
POWER LED
BLINK
Image Problems
Problem: No image appears on the screen
1. Verify the settings on your notebook or desktop PC.
2. Turn off all equipment and power up again in the correct order.
Problem: The image is blurred
1. Adjust the Focus on the projector.
2. Press the Auto button on the remote control or projector.
3. Ensure the projector-to-screen distance is within the 10-meter (33-feet) specified range.
4. Check that the projector lens is clean.
Problem: The image is wider at the top or bottom (trapezoid effect)
1. Position the projector so it is as perpendicular to the screen as possible.
2. Use the Keystone button on the remote control or projector to correct the problem.
Problem: The image is reversed
Check the Projection setting on the Installation I menu of the OSD.
Problem: The image is streaked
1. Set the Frequency and Tracking settings on the Computer menu of the OSD to the default settings.
2. To ensure the problem is not caused by a connected PC’s video card, connect to another
computer.
Problem: The image is flat with no contrast
Adjust the Contrast setting on the Image menu of the OSD.
Problem: The color of the projected image does not match the source image.
Adjust the Color Temperature and Gamma settings on the Image menu of the OSD.
– 44 –
Lamp Problems
Problem: There is no light from the projector
1. Check that the power cable is securely connected.
2. Ensure the power source is good by testing with another electrical device.
3. Restart the projector in the correct order and check that the Power LED is green.
4. If you have replaced the lamp recently, try resetting the lamp connections.
5. Replace the lamp module.
6. Put the old lamp back in the projector and have the projector serviced.
Problem: The lamp goes off
1. Power surges can cause the lamp to turn off. Re-plug power cord. When the Power LED
is on, press the power button.
2. Replace the lamp module.
3. Put the old lamp back in the projector and have the projector serviced.
Remote Control Problems
Problem: The projector does not respond to the remote control
1. Direct the remote control towards remote sensor on the projector.
2. Ensure the path between remote and sensor is not obstructed.
3. Turn off any fluorescent lights in the room.
4. Check the battery polarity.
5. Replace the batteries.
6. Turn off other Infrared-enabled devices in the vicinity.
7. Have the remote control serviced.
DLP Projector – User’s Manual
Audio Problems
Problem: There is no sound
1. Adjust the volume on the remote control.
2. Adjust the volume of the audio source.
3. Check the audio cable connection.
4. Test the source audio output with other speakers.
5. Have the projector serviced.
Problem: The sound is distorted
1. Check the audio cable connection.
2. Test the source audio output with other speakers.
3. Have the projector serviced.
Having the Projector Serviced
For problems operating the projector, please call PolyVision Technical Support. Please have your
model & serial number available (label on bottom of unit.) If it is determined that your unit requires
service, the Technical Support Agent will instruct you how and where to return the unit.
For US, the Americas and APAC
Tel.: 1-800-620-POLY(7659)
Email:
For UK only
Contact Anders+Kern UK Ltd.
Tel. +44(0)1638 510900
Email:
For rest of Europe & the Middle East
Tel.: +33-3 88 13 35 36
Email:
support@polyvision.com (works for the entire world, support in English & Spanish only)
support@anders-kern.co.uk
eu.support@polyvision.com
– 45 –
DLP Projector – User’s Manual
HDMITM Q & A
Q. What is the difference between a “Standard” HDMITM cable and a “High-Speed”
TM
HDMI
Q. How do I run HDMITM cables longer than 10 meters?
cable?
Recently, HDMITM Licensing, LLC announced that cables would be tested as Standard or
High-Speed cables.
․Standard (or “category 1”) HDMI
or up to 2.25Gbps, which is the equivalent of a 720p/1080i signal.
․High Speed (or “category 2”) HDMI
340Mhz or up to 10.2Gbps, which is the highest bandwidth currently available over an
TM
HDMI
depths and/or increased refresh rates from the Source. High-Speed cables are also able to
accommodate higher resolution displays, such as WQXGA cinema monitors (resolution of
2560 x 1600).
There are many HDMITM Adopters working on HDMITM solutions that extend a cable’s effective
distance from the typical 10 meter range to much longer lengths. These companies
manufacture a variety of solutions that include active cables (active electronics built into
cables that boost and extend the cable’s signal), repeaters, amplifiers as well as CAT5/6 and
fiber solutions.
cable and can successfully handle 1080p signals including those at increased color
TM
cables have been tested to perform at speeds of 75Mhz
TM
cables have been tested to perform at speeds of
Q. How can I tell if a cable is an HDMITM certified cable?
All HDMITM products are required to be certified by the manufacturer as part of the HDMITM
Compliance Test Specification. However, there may be instances where cables bearing the
TM
HDMI
investigates these instances to ensure that the HDMI
logo are available but have not been properly tested. HDMITM Licensing, LLC actively
TM
trademark is properly used in the
market. We recommend that consumers buy their cables from a reputable source and a
company that is trusted.
For more detail information check http://www.hdmi.org/learningcenter/faq.aspx#49
– 46 –
Specifications
Note:
For questions regarding product specifications, please contact your local distributor.
The projector can display several resolutions. The following table outlines the resolutions that can be
displayed by the projector.
SIGNALRESOLUTION
NTSC — 15.734 60.0 O
PAL/SECAM — 15.625 50.0 O
720 x 400 37.9 85.0 — — O O
640 x 480 31.5 60.0 — — O O
640 x 480 37.9 72.8 — — O O
640 x 480 37.5 75.0 — — O O
640 x 480 43.3 85.0 — — O O
800 x 600 35.2 56.3 — — O O
800 x 600 37.9 60.3 — — O O
800 x 600 46.9 75.0 — — O O
800 x 600 48.1 72.2 — — O O
VESA
Apple
Macintosh
SDTV
EDTV
800 x 600 53.7 85.1 — — O O
1024 x 768 48.4 60.0 — — O O
1024 x 768 56.5 70.1 — — O O
1024 x 768 60.0 75.0 — — O O
1024 x 768 68.7 85.0 — — O O
1280 x 800 49.7 59.8 — — O O
1280 x 1024 64.0 60.0 — — O O
1280 x 1024 80.0 75.0 — — O O
1280 x 1024 91.1 85.0 — — O O
1400 x 1050 65.3 60.0 — — O O
1600 x 1200 75.0 60 — — O O
640 x 480 35.0 66.7 — — O O
832 x 624 49.7 74.5 — — O O
1024 x 768 60.2 74.9 — — O O
1152 x 870 68.7 75.1 — — O O
480i 15.734 60.0 — O — O
576i 15.625 50.0 — O — O
576p 31.3 50.0 — O — O
480p 31.5 60.0 — O — O
H-SYNC
(KHZ)
V-SYNC
(HZ)
COMPOSITE
/S-VIDEO
COMPONENT
—
—
RGB
(ANALOG)
- -
- -
DVI/
HDMI
TM
(DIGITAL)
– 49 –
DLP Projector – User’s Manual
SIGNALRESOLUTION
720p 37.5 50.0 — O — O
720p 45.0 60.0 — O — O
1080i 33.8 60.0 — O — O
1080i 28.1 50.0 — O — O
HDTV
O: Frequency supported
—: Frequency not supported
1080p 27 24 — O — O
1080p 28 25 — O — O
1080p 33.7 30 — O — O
1080p 67.5 60.0 — O — O
1080p 56.3 50.0 — O — O
H-SYNC
(KHZ)
V-SYNC
(HZ)
COMPOSITE
/S-VIDEO
COMPONENT
RGB
(ANALOG)
DVI/
HDMI
TM
(DIGITAL)
– 50 –
Projector Dimensions (mm)
DLP Projector – User’s Manual
– 51 –
DLP Projector – User’s Manual
R
EGULATORY COMPLIANCE
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his/her own expense.
Changes or modifications not expressly approved by the parties responsible for compliance could
void the user’s authority to operate the equipment.
Canada
This class B digital apparatus complies with Canadian ICES-003.
The command is structured by the Header code, command code, data code and end
code. Most of the commands are structured except some for the compatibility issue
with other projectors.
None
None
DLP Projector – User’s Manual
A
PPENDIX
I
Header code Command code Data code End code
HEX 7Eh Command Data 0Dh
ASCII ‘~’ Command Data CR
Control Sequence
The projector may send a return code after it received a command. If the command isn’t
received correctly, the projector will not send the return code
Operation Command
The operation commands execute the basic operation setting of this projector.
Operation ASCII HEX
Power On ※ ~ P N CR ※ 7Eh 50h 4Eh 0Dh
Power Off ~ P F CR 7Eh 50h 46h 0Dh
Auto Image ~ A I CR 7Eh 41h 49h 0Dh
Lamp Hour Reset ~ R L CR 7Eh 52h 4Ch 0Dh
OSD Initialization ~ O I CR 7Eh 4Fh 49h 0Dh
Input Select RGB ~ S R CR 7Eh 53h 52h 0Dh
Input Select RGB2 ~ S G CR 7Eh 53h 47h 0Dh
Input Select Video ~ S V CR 7Eh 53h 56h 0Dh
Input Select S-Video ~ S S CR 7Eh 53h 53h 0Dh
Input Select HDMI ~ S H CR 7Eh 53h 48h 0Dh
※
※
Power On command will only work at system standby.
CR :
Carriage Return.
– 53 –
DLP Projector – User’s Manual
Remote Command
The remote commands simulate the code send from IR remote handset.
Button’s name ASCII HEX
UP arrow ~ r U CR 7Eh 72h 55h 0Dh
DOWN arrow ~ r D CR 7Eh 72h 44h 0Dh
LEFT arrow ~ r L CR 7Eh 72h 4Ch 0Dh
RIGHT arrow ~ r R CR 7Eh 72h 52h 0Dh
POWER ~ r P CR 7Eh 72h 50h 0Dh
INPUT~ r I CR7Eh 72h 49h 0Dh
AUTO ~ r A CR 7Eh 72h 41h 0Dh
KEYSTONE+ ~ r K CR 7Eh 72h 4Bh 0Dh
KEYSTONE- ~ r J CR 7Eh 72h 4Ah 0Dh
MENU ~ r M CR 7Eh 72h 4Dh 0Dh
STATUS ~ r S CR 7Eh 72h 53h 0Dh
MUTE ~ r T CR 7Eh 72h 54h 0Dh
ZOOM+ ~ r Z CR 7Eh 72h 5Ah 0Dh
ZOOM- ~ r Y CR 7Eh 72h 59h 0Dh
BLANK ~ r B CR 7Eh 72h 42h 0Dh
FREEZE ~ r F CR 7Eh 72h 46h 0Dh
VOLUME+ ~ r V CR 7Eh 72h 56h 0Dh
VOLUME- ~ r W CR 7Eh 72h 57h 0Dh
Enter ~ r N CR 7Eh 72h 4Eh 0Dh
Set Value Command
ITEM ASCII HEX
Brightness ~ s B ? CR ※ 7Eh 73h 42h ?h 0Dh
Contrast ~ s C ? CR 7Eh 73h 43h ?h 0Dh
Color ~ s R ? CR 7Eh 73h 52h ?h 0Dh
Tint ~ s N ? CR 7Eh 73h 4Eh ?h 0Dh
Scaling ~ s A ? CR 7Eh 73h 41h ?h 0Dh
Color Temperature ~ s T ? CR 7Eh 73h 54h ?h 0Dh
Projection Mode ~ s J ? CR 7Eh 73h 4Ah ?h 0Dh
Sharpness ~ s H ? CR 7Eh 73h 48h ?h 0Dh
Lamp Mode ~ s E ? CR 7Eh 73h 45h ?h 0Dh
Lamp Gain ~ s I ? CR 7Eh 73h 49h ?h 0Dh
※
Data Range
Attention: Data range may be different for different models
Example 1. Adjust Brightness value to 100
Send Command : ~sB100CR
? : ASCII Data
ITEM Set Data Range Source
Brightness 0 ~ 100 ALL
Contrast 0 ~ 100 ALL
Color 0 ~ 100 Video/S-
Tint 0 ~ 100 Video/S-
Scaling 0: Fill 1: 4:3 2: 16:9 3 :Letter Box
Color Temperature 0:Cold 1:Normal 2:Warm ALL
Projection Mode 0:Front 1:Rear 2:Rear+Ceiling
Sharpness 0 ~ 31 ALL
Lamp Mode 0 ~ 1 ALL
Lamp Gain 0 ~ 100 ALL
Video/Com
ponent
Video/Com
ponent
ALL
4 :Native
ALL
3:Ceiling
– 54 –
Example 2. Adjust Color Temperature to Warm
Send Command : ~sT2CR
Query Command
ITEM ASCII HEX
Software Version ~ q V CR 7Eh 71h 56h 0Dh
Power State ~ q P CR 7Eh 71h 50h 0Dh
Input Select ~ q S CR 7Eh 71h 53h 0Dh
Lamp Hours ~ q L CR 7Eh 71h 4Ch 0Dh
Lamp Mode ~ q E CR 7Eh 71h 45h 0Dh
Lamp Gain ~ q I CR 7Eh 71h 49h 0Dh
Brightness ~ q B CR 7Eh 71h 42h 0Dh
Contrast ~ q C CR 7Eh 71h 43h 0Dh
Color (Video) ~ q R CR 7Eh 71h 52h 0Dh
Tint (Video) ~ q N CR 7Eh 71h 4Eh 0Dh
Scaling ~ q A CR 7Eh 71h 41h 0Dh
Color Temperature ~ q T CR 7Eh 71h 54h 0Dh
Projection Mode ~ q J CR 7Eh 71h 4Ah 0Dh
Sharpness ~ q H CR 7Eh 71h 48h 0Dh
Volume ~ q M CR 7Eh 71h 4Dh 0Dh
Freeze Status ~ q Z CR 7Eh 71h 60h 0Dh
Mute Status ~ q U CR 7Eh 71h 55h 0Dh
Blank Status ~ q K CR 7Eh 71h 4Bh 0Dh
Response message
ITEM Response Message examples
Software Version …..
Power State On Off
Input Select RGB1 RGB2 Video S-
Video
HDMI
Lamp Hours 2000
Brightness 100
Contrast 100
Color (Video) 100
Tint (Video) 100
Scaling Fill 4:3 16:9 LetterBox Native
Color Temperature Cold Normal Warm
Projection Mode Front Rear+Ceiling Rear Ceiling
Sharpness 31
Volume 8
Freeze Status On Off
Mute Status On Off
Blank Status On Off
Example 1. Get Brightness value
Send Command : ~qBCR
Response : 100
Example 2. Get Color Temperature
Send Command : ~qTCR
Response : Warm
TE Request Command
ITEM ASCII HEX
T1 Temp Red ~ T E 0 1 CR 7Eh 54h 45h 30h 31h 0Dh
Fan1 Fan Speed Red ~ T E 0 2 CR 7Eh 54h 45h 30h 32h 0Dh
Fan2 Fan Speed Red ~ T E 0 3 CR 7Eh 54h 45h 30h 33h 0Dh
Fan3 Fan Speed Red ~ T E 0 4 CR 7Eh 54h 45h 30h 34h 0Dh
DLP Projector – User’s Manual
– 55 –
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
