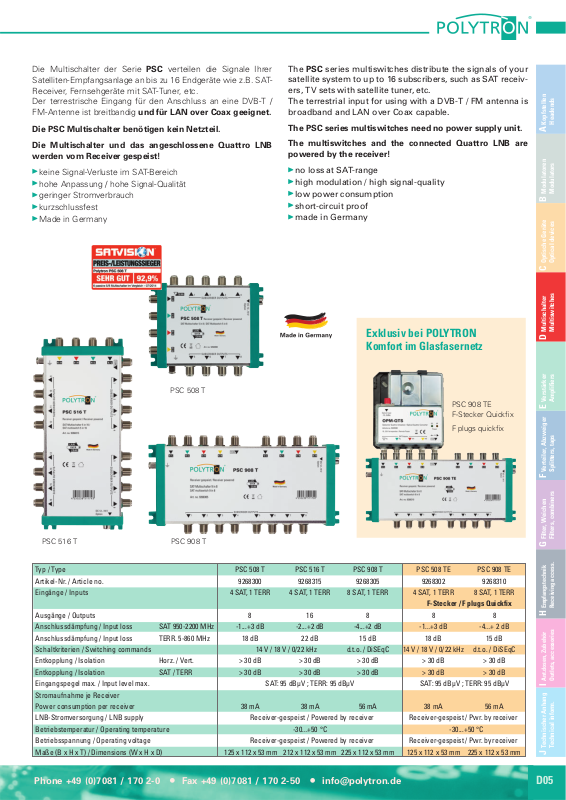

Die Multischalter der Serie PSC verteilen die Signale Ihrer
Satelliten-Empfangsanlage an bis zu 16 Endgeräte wie z.B. SATReceiver, Fernsehgeräte mit SAT-Tuner, etc.
Der terrestrische Eingang für den Anschluss an eine DVB-T /
FM-Antenne ist breitbandig und für LAN over Coax geeignet.
Die PSC Multischalter benötigen kein Netzteil.
Die Multischalter und das angeschlossene Quattro LNB
werden vom Receiver gespeist!
keine Signal-Verluste im SAT-Bereich
hohe Anpassung / hohe Signal-Qualität
geringer Stromverbrauch
kurzschlussfest
Made in Germany
The PSC series multiswitches distribute the signals of your
satellite system to up to 16 subscribers, such as SAT receivers, TV sets with satellite tuner, etc.
The terrestrial input for using with a DVB-T / FM antenna is
broadband and LAN over Coax capable.
The PSC series multiswitches need no power supply unit.
The multiswitches and the connected Quattro LNB are
powered by the receiver!
no loss at SAT-range
high modulation / high signal-quality
low power consumption
short-circuit proof
made in Germany
Headends
A Kopfstellen
Modulators
B Modulatoren
Optical devices
C Optische Geräte
Exklusiv bei POLYTRON
Komfort im Glasfasernetz

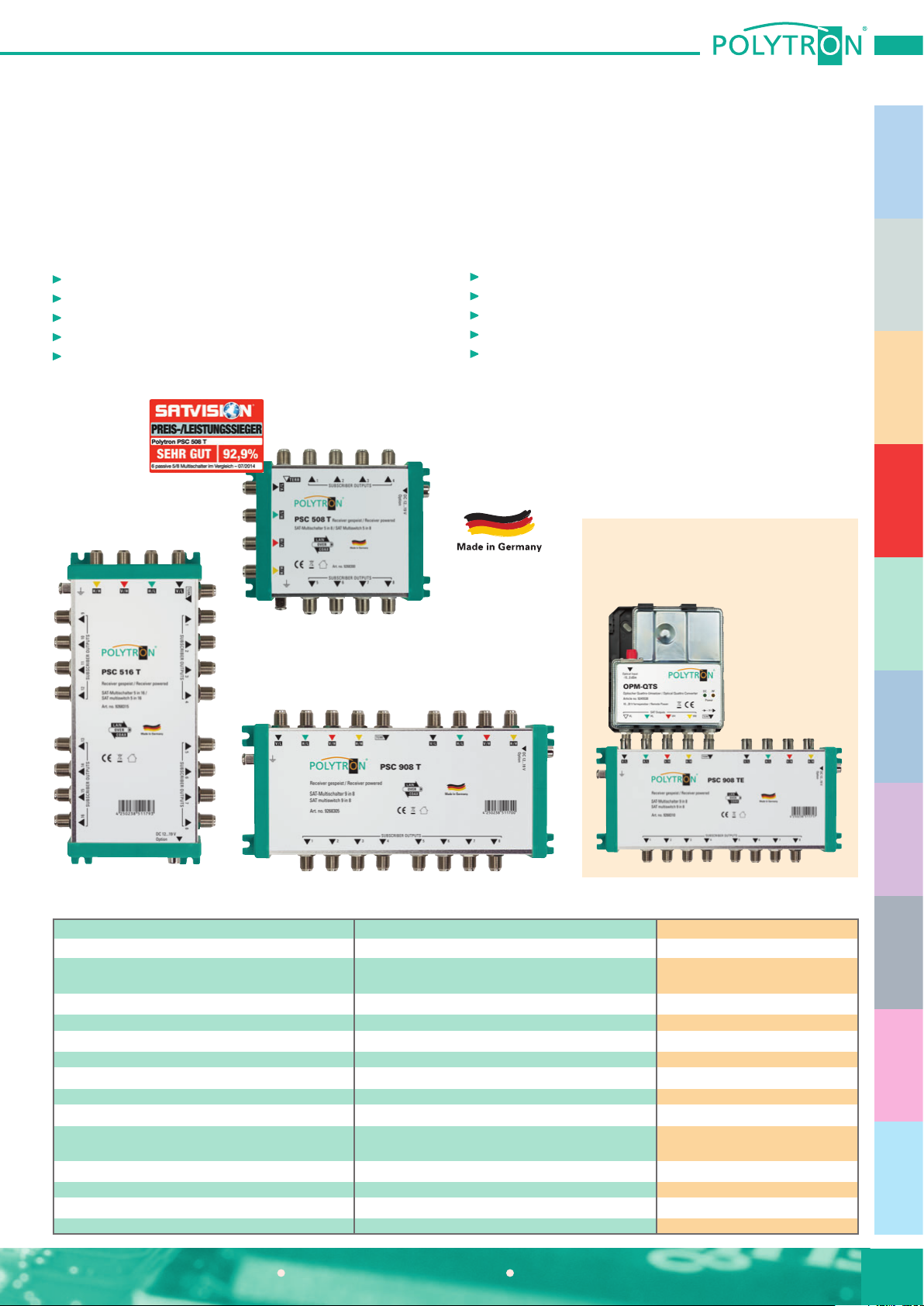

PSC 508 T
PSC 908 TE
F-Stecker Quickfi x
F plugs quickfi x
PSC 516 TPSC 908 T
Typ / Type PSC 508 T PSC 516 T PSC 908 T PSC 508 TE PSC 908 TE
Artikel-Nr. / Article no. 9268300 9268315 9268305 9268302 9268310
Eingänge / Inputs 4 SAT, 1 TERR 4 SAT, 1 TERR 8 SAT, 1 TERR 4 SAT, 1 TERR 8 SAT, 1 TERR
F-Stecker / F plugs Quickfi x
Ausgänge / Outputs 8 16 8 8 8
Anschlussdämpfung / Input loss SAT 950-2200 MHz -1...+3 dB -2...+2 dB -4...+2 dB -1...+3 dB -4...+ 2 dB
Anschlussdämpfung / Input loss TERR. 5-860 MHz 18 dB 22 dB 15 dB 18 dB 15 dB
Schaltkriterien / Switching commands 14 V / 18 V / 0/22 kHz d.t.o. / DiSEqC 14 V / 18 V / 0/22 kHz d.t.o. / DiSEqC
Entkopplung / Isolation Horz. / Vert. > 30 dB > 30 dB > 30 dB > 30 dB > 30 dB
Entkopplung / Isolation SAT / TERR > 30 dB > 30 dB > 30 dB > 30 dB > 30 dB
Eingangspegel max. / Input level max. SAT: 95 dBµV ; TERR: 95 dBµV SAT: 95 dBµV ; TERR: 95 dBµV
Stromaufnahme je Receiver
Power consumption per receiver 38 mA 38 mA 56 mA 38 mA 56 mA
LNB-Stromversorgung / LNB supply Receiver-gespeist / Powered by receiver Receiver-gespeist / Pwr. by receiver
Betriebstemperatur / Operating temperature -30...+50 °C -30...+50 °C
Betriebsspannung / Operating voltage Receiver-gespeist / Powered by receiver Receiver-gespeist / Pwr. by receiver
Maße (B x H x T) / Dimensions (W x H x D) 125 x 112 x 53 mm 212 x 112 x 53 mm 225 x 112 x 53 mm 125 x 112 x 53 mm 225 x 112 x 53 mm
Standalone-Multischalter 9 EingängeStandalone multiswitches 9 IN
Standalone-Multischalter zur
Verteilung von 8 SAT-ZF-Ebenen (z.B. ASTRA + Hotbird)
und terrestrischen Signalen.
B Modulatoren
Modulators
8 SAT und 1 terrestrischer
Eingang
Hohe Energieeffizienz
Integrierter Verstärker um
Kabeldämpfung zu kompensieren
Umschaltkriterien 14/18 V,
0/22 kHz and DISEqC 2.0
Hohe Rückflussdämpfung
Hohe Entkopplung der
Ebenen
Standalone multiswitches
for distribution of 8 SAT IF
polarisations. (e.g. ASTRA +
Hotbird) and terrestrial signals.
8 SAT and 1 terrestrial TV
input
Energy efficient
Built-in amplifier to com-
pensate cable loss
C Optische Geräte
Optical devices
D Multischalter
Multiswitches
PSG 908 P
Switching commands
14/18 V, 0/22 kHz and
DISEqC 2.0
High return loss
High isolation between
the polarisations
E Verstärker
Amplifi ers
F Verteiler, Abzweiger
Splitters, taps
G Filter, Weichen
Filters, combiners
PSG 916 P
H Empfangstechnik
Receiving access.
Typ / Type PSG 904 P PSG 908 P PSG 912 P PSG 916 P
Artikel-Nr. / Article no. 9268008 9268070 9268080 9268090
Eingänge / Inputs 8 SAT, 1 TERR
Ausgänge / Outputs 4 8 12 16
I Ant.dosen, Zubehör
Outlets, accessories
Technical inform.
Eingangsdämpfung / Insertion loss SAT 950-2150 MHz 0 dB
Eingangsdämpfung / Insertion loss TERR. 40-862 MHz -2 dB
Schaltkriterien / Switching commands 14 V / 18 V / 0/22 kHz / DiSEqC 2.0
Entkopplung / Isolation Horz. / Vert. > 30 dB > 30 dB > 30 dB > 30 dB
Entkopplung / Isolation SAT / TERR > 30 dB
Eingangspegel max. / Input level max. SAT: 95 dBµV ; TERR: 95 dBµV
J Technischer Anhang
Stromaufnahme je Receiver / Power consumption per receiver 50 mA
LNB-Stromversorgung / LNB supply max. 1000 mA
Betriebstemperatur / Operation temperature -20...+50 °C
Betriebsspannung / Operating voltage 180-264 VAC, 47-63 Hz
Maße (B x H x T) / Dimensions (W x H x D) [mm] 321 x 120 x 58 321 x 120 x 58 440 x 120 x 58 526 x 120 x 58
Kaskaden-Multischalter 9 EingängeCascadable multiswitches 9 IN
Kaskaden-Multischalter zur
Verteilung von 8 SAT-ZF-Ebenen (z.B. ASTRA + Hotbird)
und terrestrischen Signalen.
8 SAT und 1 terrestrischer
Eingang
Hohe Energieeffizienz
Integrierter Verstärker um
Kabeldämpfung zu kompen-
sieren
Umschaltkriterien 14/18 V,
0/22 kHz and DISEqC 2.0
Hohe Rückflussdämpfung
Hohe Entkopplung der
Ebenen
Optional kann das Netzteil
PSG PG 18/1200 C für LNB-
Speisung angeschlossen
werden
PSG 924 C
Cascadable multiswitches
for distribution of 8 SAT IF
polarisations. (e.g. ASTRA +
Hotbird) and terrestrial signals.
8 SAT and 1 terrestrial TV
input
Energy efficient
Built-in amplifier to com-
pensate cable loss
Switching commands
14/18 V, 0/22 kHz and
DISEqC 2.0
High return loss
High isolation between
the polarisations
Power supply PSG PG
18/1200 C can be used for
LNB power supply
Headends
A Kopfstellen
Modulators
B Modulatoren
Lieferung ohne Netzteil.
Optionales Netzteil für LNB-Speisung PSG PG 18/1200 C
Artikel-Nr. 9268100
Delivery without power supply.
Optional power supply PSG PG 18/1200 C for LNB supply.
Article no. 9268100
PSG 916 C
PSG 912 C
Optical devices
C Optische Geräte
Multiswitches
D Multischalter
Amplifi ers
E Verstärker
Splitters, taps
F Verteiler, Abzweiger
Filters, combiners
G Filter, Weichen
Typ / Type PSG 908 C PSG 912 C PSG 916 C PSG 924 C
Artikel-Nr. / Article no. 9268010 9268030 9268040 9268050
Eingänge / Inputs 8 SAT, 1 TERR
Ausgänge / Outputs 8 12 16 24
Durchgangsdämpfung / Through loss TERR 40-862 MHz 6 dB 5 dB 5 dB 5 dB
Durchgangsdämpfung / Through loss SAT 950-2150 MHz 5 dB 6 dB 6 dB 6 dB
Abzweigdämpfung / Tap loss TERR. 40-862 MHz 6 dB 8 dB 3 dB 3 dB
Abzweigdämpfung / Tap loss SAT 950-2150 MHz 3 dB 3 dB 4 dB 4 dB
Schaltkriterien / Switching commands 14 V / 18 V / 0/22 kHz / DiSEqC 2.0
Entkopplung / Isolation Horz. / Vert. > 28 dB > 28 dB > 28 dB > 28 dB
Entkopplung / Isolation SAT / TERR > 30 dB > 30 dB > 30 dB > 30 dB
Eingangspegel max. / Input level max. SAT: 95 dBµV ; TERR: 95 dBµV
Stromaufnahme je Receiver / Power consumption per receiver 50 mA
LNB-Stromversorgung / LNB supply max. 1200 mA
Betriebstemperatur / Operation temperature -20...+50 °C
Maße (B x H x T) / Dimensions (W x H x D) [mm] 254 x 157 x 49 254 x 214 x 49 254 x 322 x 49 254 x 322 x 49
Standalone-Multischalter zur
Verteilung von 8 SAT-ZF-Ebenen (z.B. ASTRA + Hotbird)
und terrestrischen Signalen.
8 SAT und 1 terrestrischer
Eingang
Hohe Energieeffizienz
Integrierter Verstärker um
Kabeldämpfung zu kompensieren
Umschaltkriterien 14/18 V,
0/22 kHz and DISEqC 1.0
Hohe Rückflussdämpfung
Hohe Entkopplung der
Ebenen
NEW: PSQ series multiswitches
standalone 9 inputs
Standalone multiswitches
for distribution of 8 SAT IF
polarisations. (e.g. ASTRA +
Hotbird) and terrestrial signals.
8 SAT and 1 terrestrial TV
input
Energy efficient
Built-in amplifier to com-
pensate cable loss
Switching commands
14/18 V, 0/22 kHz and
DISEqC 1.0
High return loss
High isolation between
the polarisations
Headends
A Kopfstellen
Modulators
B Modulatoren
Optical devices
C Optische Geräte
Multiswitches
D Multischalter
Typ / Type PSQ 924 P PSQ 932 P
Artikel-Nr. / Article no. 9269025 9269027
Eingänge / Inputs 8 SAT, 1 TERR
Ausgänge / Outputs 24 32
Abzweigdämpfung / Tap loss TERR. 18-862 MHz -32/-30 ±3 dB
Abzweigdämpfung / Tap loss SAT 950-2400 MHz -2…+2 ±2 dB
Schaltkriterien / Switching commands 14 V / 18 V / 0/22 kHz / DISEqC 1.0
Entkopplung / Isolation Horz. / Vert. > 30 dB
Entkopplung / Isolation SAT / TERR > 30 dB
Eingangspegel max. / Input level max. SAT: 95 dBµV ; TERR: 95 dBµV
Stromaufnahme je Receiver / Power consumption per receiver 43 mA
LNB-Stromversorgung / LNB supply max. 800 mA
Betriebstemperatur / Operation temperature 0...55 °C
Betriebsspannung / Operating voltage 90…264 VAC, 50/60 Hz
Maße (B x H x T) / Dimensions (W x H x D) 395 x 230 x 64 mm
