Polytron PSG 1708 P User Manual

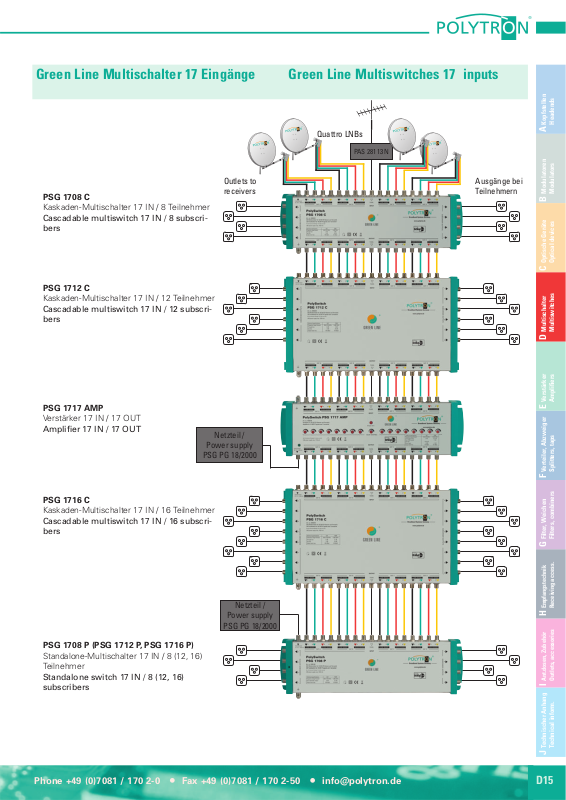

Green Line Multischalter 17 Eingänge Green Line Multiswitches 17 inputs
Quattro LNBs
PAS 28113 N
Headends
A Kopfstellen
PSG 1708 C
Kaskaden-Multischalter 17 IN / 8 Teilnehmer
Cascadable multiswitch 17 IN / 8 subscri­bers
PSG 1712 C
Kaskaden-Multischalter 17 IN / 12 Teilnehmer
Cascadable multiswitch 17 IN / 12 subscri­bers
PSG 1717 AMP
Verstärker 17 IN / 17 OUT
Amplifi er 17 IN / 17 OUT
Power supply
PSG PG 18/2000
Outlets to receivers
Netzteil /
Ausgänge bei Teilnehmern
Modulators
B Modulatoren
Optical devices
Multiswitches
D Multischalter
Amplifi ers
E Verstärker
Splitters, taps
F Verteiler, Abzweiger
PSG 1716 C
Kaskaden-Multischalter 17 IN / 16 Teilnehmer
Cascadable multiswitch 17 IN / 16 subscri­bers
PSG 1708 P (PSG 1712 P, PSG 1716 P)
Standalone-Multischalter 17 IN / 8 (12, 16) Teilnehmer
Standalone switch 17 IN / 8 (12, 16) subscribers
Netzteil /
Power supply
PSG PG 18/2000
Filters, combiners
G Filter, Weichen
Receiving access.
H Empfangstechnik
Outlets, accessories
I Ant.dosen, Zubehör
Technical inform.
J Technischer Anhang
Phone +49 (0)7081 / 170 2-0 Fax +49 (0)7081 / 170 2-50 info@polytron.de
D15
A Kopfstellen
Headends
Standalone-Multischalter 17 Eingänge Standalone multiswitches 17 inputs
Standalone-Multischalter zur Verteilung von 16 SAT-ZF­Ebenen und terrestrischen Signalen.
B Modulatoren
Modulators
16 SAT und 1 terrestrischer
Eingang
Hohe Energieeffizienz
Integrierter Verstärker um
Kabeldämpfung zu kompen­sieren
Umschaltkriterien 14/18 V,
0/22 kHz and DISEqC 2.0 Hohe Rückflussdämpfung Hohe Entkopplung der
Ebenen Für den Betrieb ist Netzteil
Standalone multiswitches for distribution of 16 SAT IF polarisations and terrestrial signals.
16 SAT and 1 terrestrial
TV input Energy efficient Built-in amplifier to com-
pensate cable loss
Switching commands
14/18 V, 0/22 kHz and
DISEqC 2.0 High return loss High isolation between
the polarisations Power supply PSG PG
18/2000 neccessary for
usage
PSG PG 18/2000 notwendig
Optical devices
PSG 1708 P
D Multischalter
Multiswitches
E Verstärker
Amplifi ers
F Verteiler, Abzweiger
Splitters, taps
G Filter, Weichen
Filters, combiners
H Empfangstechnik
Receiving access.
Typ / Type PSG 1708 P PSG 1712 P PSG 1716 P Artikel-Nr. / Article no. 9268190 9268200 9268210 Eingänge / Inputs 16 SAT, 1 TERR Ausgänge / Outputs 8 12 16
I Ant.dosen, Zubehör
Outlets, accessories
Technical inform.
Eingangsdämpfung / Insertion loss SAT 950-2150 MHz 2 dB 2 dB 2 dB Eingangsdämpfung / Insertion loss TERR. 40-862 MHz 21 dB 24 dB 24 dB Schaltkriterien / Switching commands 14 V / 18 V / 0/22 kHz / DiSEqC 2.0 Entkopplung / Isolation Horz. / Vert. > 28 dB Entkopplung / Isolation SAT / TERR > 30 dB Eingangspegel max. / Input level max. SAT: 95 dBµV ; TERR: 95 dBµV
J Technischer Anhang
Stromaufnahme je Receiver / Power consumption per receiver 50 mA LNB-Stromversorgung / LNB supply max. 2400 mA Betriebstemperatur / Operation temperature -20...+50 °C Betriebsspannung / Operating voltage 180-264 VAC, 47-63 Hz Maße (B x H x T) / Dimensions (W x H x D) [mm] 370 x 128 x 54 370 x 209 x 54 370 x 209 x 54
PSG 1712 P
PSG 1716 P
Lieferung ohne Netzteil. Für den Betrieb ist Netzteil PSG PG 18/2000 notwendig.
Artikel-Nr. 9268261
Delivery without power supply. Power supply PSG PG 18/2000 neccessary for usage.
Article no. 9268261
D16
Tel. +49 (0)7081 / 170 2-0 Fax +49 (0)7081 / 170 2-50 info@polytron.de
Kaskaden-Multischalter 17 Eingänge Cascadable multiswitches 17 inputs
Kaskaden-Multischalter zur Verteilung von 16 SAT-ZF­Ebenen und terrestrischen Signalen.
16 SAT und 1 terrestrischer
Eingang Hohe Energieeffizienz Integrierter Verstärker um
Kabeldämpfung zu kompen-
sieren
Umschaltkriterien 14/18 V,
0/22 kHz and DISEqC 2.0 Hohe Rückflussdämpfung Hohe Entkopplung der
Ebenen Optional kann das Netzteil
PSG PG 18/2000 für LNB-
Speisung angeschlossen
werden
Cascadable multiswitches for distribution of 16 SAT IF polarisations and terrestrial signals.
16 SAT and 1 terrestrial
TV input Energy efficient Built-in amplifier to com-
pensate cable loss
PSG 1712 C
Switching commands
14/18 V, 0/22 kHz and
DISEqC 2.0 High return loss High isolation between
the polarisations Power supply PSG PG
18/2000 can be used for
LNB power supply
PSG 1708 C
Headends
A Kopfstellen
Modulators
B Modulatoren
Optical devices
Multiswitches
D Multischalter
PSG 1716 C
Lieferung ohne Netzteil.
Optionales Netzteil für LNB-Speisung PSG PG 18/2000 Artikel-Nr. 9268261
Delivery without power supply.
Optional power supply PSG PG 18/2000 for LNB supply. Article no. 9268261
Typ / Type PSG 1708 C PSG 1712 C PSG 1716 C Artikel-Nr. / Article no. 9268220 9268230 9268240 Eingänge / Inputs 16 SAT, 1 TERR Ausgänge / Outputs 8 12 16 Durchgangsdämpfung / Through loss TERR 40-862 MHz 4 dB 4 dB 4 dB Durchgangsdämpfung / Through loss SAT 950-2150 MHz 5 dB 5 dB 5 dB Abzweigdämpfung / Tap loss TERR. 40-862 MHz 24 dB 24 dB 27 dB Abzweigdämpfung / Tap loss SAT 950-2150 MHz 3 dB 3 dB 3 dB Schaltkriterien / Switching commands 14 V / 18 V / 0/22 kHz / DiSEqC 2.0 Entkopplung / Isolation Horz. / Vert. > 28 dB > 28 dB > 28 dB Entkopplung / Isolation SAT / TERR > 30 dB > 30 dB > 30 dB Eingangspegel max. / Input level max. SAT: 95 dBµV ; TERR: 95 dBµV Stromaufnahme je Receiver / Power consumption per receiver 50 mA LNB-Stromversorgung / LNB supply max. 2400 mA Betriebstemperatur / Operation temperature -20...+50 °C Maße (B x H x T) / Dimensions (W x H x D) [mm] 370 x 128 x 54 370 x 209 x 54 370 x 209 x 54
Amplifi ers
E Verstärker
Splitters, taps
F Verteiler, Abzweiger
Filters, combiners
G Filter, Weichen
Receiving access.
H Empfangstechnik
Outlets, accessories
I Ant.dosen, Zubehör
Technical inform.
J Technischer Anhang
Phone +49 (0)7081 / 170 2-0 Fax +49 (0)7081 / 170 2-50 info@polytron.de
D17
A Kopfstellen
Headends
B Modulatoren
Modulators
NEU: PSQ-Serie Multischalter 17 Eingänge
NEW: PSQ series multiswitches 17 inputs
Quattro LNBs
PAS 28113 N
Optical devices
D Multischalter
Multiswitches
E Verstärker
Amplifi ers
F Verteiler, Abzweiger
Splitters, taps
PSQ 1708 C
Kaskaden-Multischalter 17 IN / 8 Teilnehmer
Cascadable multi switch 17 IN / 8 sub­scribers
PSQ 1716 C
Kaskaden-Multischalter 17 IN / 12 Teilnehmer
Cascadable multi switch 17 IN / 12 sub­scribers
Outlets to receivers
Ausgänge bei Teilnehmern
G Filter, Weichen
Filters, combiners
PSQ 1717 AMP
Verstärker 17 IN / 17 OUT
Amplifi er 17 IN / 17 OUT
H Empfangstechnik
Receiving access.
I Ant.dosen, Zubehör
Outlets, accessories
PSQ 1732 C
Kaskaden-Multischalter 17 IN / 32 Teilnehmer
Cascadable multi switch 17 IN / 32 sub­scribers
J Technischer Anhang
Technical inform.
Netzteil /
Power supply
D20
Tel. +49 (0)7081 / 170 2-0 Fax +49 (0)7081 / 170 2-50 info@polytron.de
NEU: PSQ-Serie Multischalter Standalone 17 Eingänge
Standalone-Multischalter zur Verteilung von 16 SAT-ZF­Ebenen und terrestrischen Signalen.
16 SAT und 1 terrestrischer
Eingang
Hohe Energieeffizienz
Integrierter Verstärker um
Kabeldämpfung zu kompen­sieren
Umschaltkriterien 14/18 V,
0/22 kHz and DISEqC 1.0 Hohe Rückflussdämpfung Hohe Entkopplung der
Ebenen
New: PSQ series multiswitches standalone 17 inputs
Standalone multiswitches for distribution of 16 SAT IF polarisations and terrestrial signals.
16 SAT and 1 terrestrial
TV input Energy efficient Built-in amplifier to com-
pensate cable loss
Switching commands
14/18 V, 0/22 kHz and
DISEqC 1.0 High return loss High isolation between
the polarisations
Headends
A Kopfstellen
Modulators
B Modulatoren
Optical devices
Multiswitches
D Multischalter
PSQ 1708 P PSQ 1716 P
Typ / Type PSQ 1708 P PSQ 1716 P Artikel-Nr. / Article no. 9269011 9269013 Eingänge / Inputs 16 SAT, 1 TERR Ausgänge / Outputs 8 16 Abzweigdämpfung / Tap loss TERR. 18-862 MHz 25 dB ±2 dB 27 dB ±3 dB Abzweigdämpfung / Tap loss SAT 950-2400 MHz 2...0 dB ±2 dB 3...0 dB ±2 dB Schaltkriterien / Switching commands 14 V / 18 V / 0/22 kHz / DiSEqC 1.0 Entkopplung / Isolation Horz. / Vert. 30 dB typ. 30 dB typ. Entkopplung / Isolation SAT / TERR 30 dB typ. 30 dB typ. Eingangspegel max. / Input level max. SAT: 95 dBµV ; TERR: 95 dBµV Stromaufnahme je Receiver / Power consumption per receiver max. 68 mA LNB-Stromversorgung / LNB supply max. 1500 mA optional Betriebstemperatur / Operation temperature 0...55 °C Betriebsspannung / Operating voltage 90…264 VAC, 50/60 Hz Maße (B x H x T) / Dimensions (W x H x D) 293 x 220 x 63 mm 293 x 280 x 63 mm
Amplifi ers
E Verstärker
Splitters, taps
F Verteiler, Abzweiger
Filters, combiners
G Filter, Weichen
Receiving access.
H Empfangstechnik
Outlets, accessories
I Ant.dosen, Zubehör
Technical inform.
J Technischer Anhang
Phone +49 (0)7081 / 170 2-0 Fax +49 (0)7081 / 170 2-50 info@polytron.de
D21
A Kopfstellen
Headends
NEU: PSQ-Serie Kaskaden­Multischalter 17 Eingänge
Kaskaden-Multischalter zur Verteilung von 16 SAT-ZF­Ebenen und terrestrischen
B Modulatoren
Signalen.
Modulators
16 SAT und 1 terrestrischer
Eingang Hohe Energieeffizienz Integrierter Verstärker um
Kabeldämpfung zu kompen-
Optical devices
Multiswitches
sieren
PSQ 1708 C
D Multischalter
Umschaltkriterien 14/18 V,
0/22 kHz and DISEqC 1.0 Hohe Rückflussdämpfung Hohe Entkopplung der
Ebenen Optional kann das Netzteil
PMP-NG 15/3300 für LNB-
Speisung angeschlossen
werden
New: PSQ series multiswitches cascadable 17 inputs
Cascadable multiswitches for distribution of 16 SAT IF polarisations and terrestrial signals.
16 SAT and 1 terrestrial
TV input Energy efficient Built-in amplifier to com-
pensate cable loss
Switching commands
14/18 V, 0/22 kHz and
DISEqC 1.0 High return loss High isolation between
the polarisations Power supply PMP-NG
15/3300 can be used for
LNB power supply
E Verstärker
Amplifi ers
F Verteiler, Abzweiger
Splitters, taps
G Filter, Weichen
Filters, combiners
H Empfangstechnik
Receiving access.
Typ / Type PSQ 1708 C PSQ 1716 C PSQ 1724 C PSQ 1732 C Artikel-Nr. / Article no. 9269010 9269012 9269014 9269016 Eingänge / Inputs 16 SAT, 1 TERR Ausgänge / Outputs 8 16 24 32
I Ant.dosen, Zubehör
Outlets, accessories
Technical inform.
Durchgangsdämpfung / Through loss TERR. 18-862 MHz -2...+2 dB -2...+2 dB -5...-2 dB -5...-2 dB Durchgangsdämpfung / Through loss SAT 950-2400 MHz -2...+2 dB -2...+2 dB -4 ±2 dB -4 ±2 dB Abzweigdämpfung / Tap loss TERR. 18-862 MHz 30 dB 30 dB 33 dB 33 dB Abzweigdämpfung / Tap loss SAT 950-2400 MHz -2...+2 dB -3...0 dB -3...0 dB -3...0 dB Schaltkriterien / Switching commands 14 V / 18 V / 0/22 kHz / DiSEqC 1.0 Entkopplung / Isolation Horz. / Vert. > 25 dB > 25 dB > 25 dB > 25 dB
J Technischer Anhang
Entkopplung / Isolation SAT / TERR > 30 dB > 30 dB > 30 dB > 30 dB Eingangspegel max. / Input level max. SAT: 95 dBµV ; TERR: 95 dBµV Stromaufnahme je Receiver / Power consumption per receiver 68 mA LNB-Stromversorgung / LNB supply max. 1500 mA optional Betriebstemperatur / Operation temperature 0...55 °C Maße (B x H x T) / Dimensions (W x H x D) [mm] 290 x 130 x 65 290 x 190 x 65 290 x 305 x 65 290 x 305 x 65
PSQ 1716 C
PSQ 1732 C
Lieferung ohne Netzteil.
Optionales Netzteil für LNB-Speisung PMP-NG 15/3300 Artikel-Nr. 9267644
Delivery without power supply.
Optional power supply PMP-NG 15/3300 for LNB supply. Article no. 9267644
D22
Tel. +49 (0)7081 / 170 2-0 Fax +49 (0)7081 / 170 2-50 info@polytron.de
