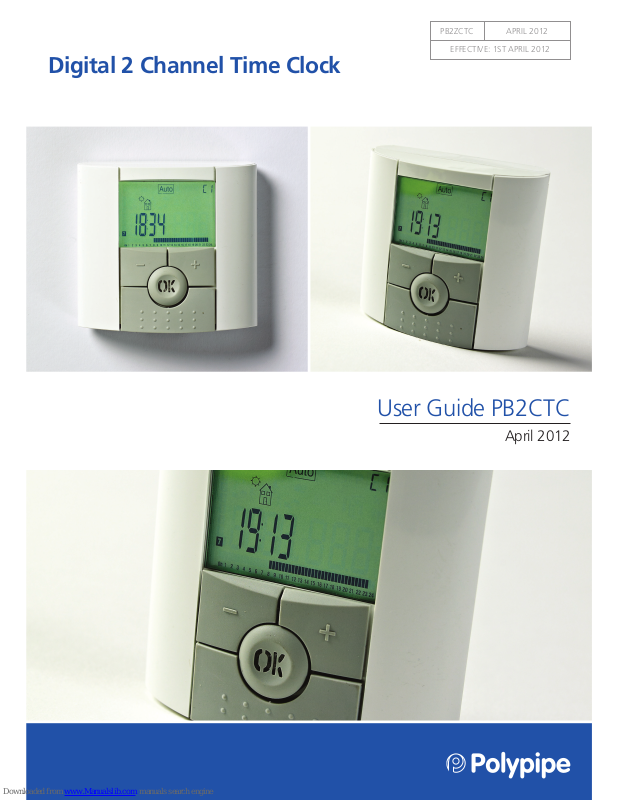

Digital 2 Channel Time Clock
User Guide PB2CTC
PB2ZCTC APRIL 2012
EFFECTIVE: 1ST APRIL 2012
April 2012
CONTENTS
4 Selecting a preset programme .............................................................................................05
02
03
OVERVIEW
The PB2CTC can be used as either a Single Channel or Two Channel Time Clock and is designed to be used with the Master Wiring Centre (PB1ZM).
The unit can be used to provide timing control for either two individual underfloor heating manifolds or a mixture of underfloor heating and radiators.
This user guide provides user settings and programming details. These and the advanced settings can also be downloaded from www.ufch.com in A4 format.

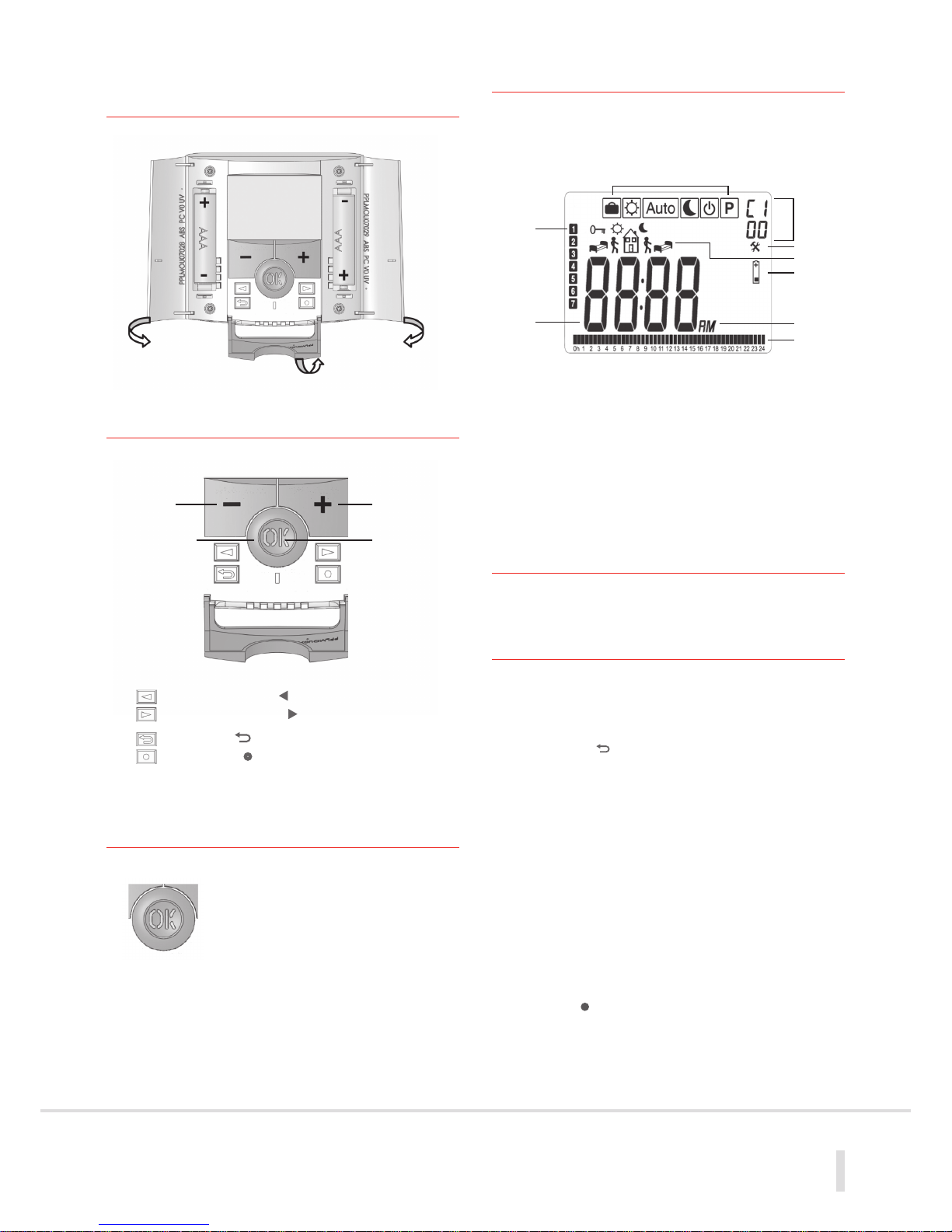

1 Battery Access & User Controls
1.1 Keyboard
1.2 Display & LED
2 First Time Installation
Open the two side covers and Insert the 2 AAA Alkaline supplied batteries (or remove the small protection sticker if the batteries are already installed in the compartment). The unit will display the software version (202) and then default to the main screen.
1 Current day of the week 1 = Monday 2 Operating menu (active mode is framed) 3 Channel assignment number (displays installer/user menu
number when this option is chosen) 4 Installer/User menu active 5 Pictogram for programming 6 Time display 7 AM/PM (12 hour clock only) 8 Programme of current days setting
2.1 Initial Setup
When the batteries are first inserted the screen will first display the software version before showing the set up screen.
2.2 Setting the Time and Date
The value to be adjusted will blink, and is adjusted with the keys (-) and (+), once the adjustment made, validate it with the (OK) key. The thermostat will jump automatically to the next value.
Note: at any time you can return to the previous value by pressing on the escape key (
).
Progress of the adjustments:
Time and day:
Hours Setting Minutes Setting Day of Week setting (1 = Monday)
Date:
Day Setting Month Setting Year Setting
The message “Save” with the blinking green LED will be displayed, press (OK) to finish and save.
You can access the time and date adjustment mode by pressing the (
) key for 1 second at any time.
Navigation key left ( ) Navigation key right (
)
Escape key (
)
Program key (
•
)
Minus key (-)
Plus key (+)
Validation key (OK)
Status LED
Green flash: Attention Red flash: Error (batteries, sensor...)
04
1
6
2
7
3
8
8
4 5
05
3 Channel Initiation
Once the time and date have been entered, the unit will ask you to activate the required number of heating channels by displaying a flashing Ch1 symbol and the word YES. This means that channel 1 is active. To activate the second channel press the (+) button to display Ch2 and using the (+) or (-) choose either Yes or No. Once you have set the required number of heating channels press the return button (
)
twice to return to the main display screen.
4 Selecting a Preset
Programme P1 to P9
There are 9 preset programmes P1 – P9.
The thermostat will default to P1 (see programmes pages 08 to 09).
To select a preset programme Use the navigation keys to move the cursor from Auto to P.
Press OK to make the P1 /P9 adjustable.
Use the (-) or (+) Keys to choose P1 to P9, or U1 to U4.
Select and validate with OK to return to Auto.
and
4.1 Creating User
Defined Programmes
With U1 to U4 Blinking Press the Programme Key ( ) to access programme settings:
- The program creation will always start with the day 1 (Monday).
Once you have pressed the (
) key, the following display
will appear.
Adjust the hour of the first step of the program with (-) or (+).
Press (OK) to validate and jump to the following step.
The Pictogram will blink meaning that you can toggle between:
Choose and press (OK) to validate and then adjust the hour of this step with (-) or (+),
Press (OK) to validate and move to jump to the next step.
If you selected the option you will automatically be required to select the return time with (-) or (+).
Select the return time, press (OK) and move to the next step.
The pictogram will blink again meaning that you can toggle between:
Should you wish to have a second “leave and return” during the day. Use the navigation Keys to select and Press (OK) to validate then adjust the hour of this step with (-) or (+),
Press (OK) to validate and jump to finish the program setting of day 1 (Monday).
You can now can choose to copy the program just created to subsequent days.
Change the choice “Yes” or “no” with (-) or (+) and validate your choice with (OK).
- If you select “no”, you will be invited to create a program for Tuesday (repeat the previous steps).
- If you select “Yes”, you will have the possibility to copy the program from Tuesday to Wednesday... etc, up to the last day of the week (Sunday).
Press (OK) on the last day you will be invited to “SAVE” your program.
The following screen with the blinking green LED will be displayed.
and
06
Press (OK) to save your program and return to the main screen (in AUTO mode).
Press the escape key (
) to erase and come back to the
beginning of the program mode.
Please note that it is possible to use a mixture of pre-set and user defined programmes on separate channels.
5 Manual Programme
Override
When operating in the AUTO mode the programme times can be overidden temporarily by pressing the OK button and using the (-) or (+) buttons to toggle between (see image 1a & 1b) and confirming by pressing OK. When any manual override is made the symbol will be displayed.
To permanently override the programme move the cursor over the symbol for ON or to OFF by using the symbol.
5.1 Holiday Mode
The Holiday mode allows you to suspend the current user programme for a period of hours or days.
First move the cursor over the symbol and press OK then using the (-) or (+) buttons choose the number of hours or days that you enter and then confirm with OK.
The logo will blink and the number of days remaining is displayed until the end of the period.
If you want to stop the holiday function before the end of the duration adjust the day period on “no”.
5.2 Off Mode/Frost Protection
To switch the unit off move the cursor over the symbol.
In this mode frost protection is automatically provided and a minimum temperature of 7.0°C will be maintained. However, this temperature can be changed by adjusting the value in the hidden installer menu.
7 Technical Specification
8 Fault Diagnostics
07
6 Hidden Menu
There is a hidden installer menu which can be accessed by pressing and holding a combination of buttons.
The user menu can be used to set a number of user preferences such as a 12 hour or 24 hour clock display. And also used to adjust various operational settings of the unit.
To access this menu set the unit to the setting and press and hold the (
) button for 10 seconds.
PB4ZCTC Hidden Installer Menu
Menu No Display Description Default Option
00 Ch INI
Sets number of
required channels
N/A
1 to 4
Channels
01 dEG
Change temp
display between
degC or degF
Deg C Deg F
02
Time
24H
Change between
12H or 24H
clock display
24H 12H
03
dSt Yes
Automated
clock change for
Daylight Saving
Time
YES No
05 AirS
Current room
temperature
N/A None
06 AirC
Air temperature
calibration
N/A None
07 SENS Err
No remote
sensor detected
N/A
Function
not active
08 SENC
Remote sensor
calibration
N/A
Function
not active
09 HG 10.0
Frost protection
setting
10 degC
0.05 degC
to 10.0 degC
10 Clr ALL
Restores factory
settings
N/A
Press
& hold OK
11 CLh4 Software version N/A None
12 End
Returns display to Main Screen
N/A Press OK
Measured Temperature Precision: N/A
Environmental
Operating Temperature: 0°C - 40°C Shipping and Storage Temperature: -10°C to +50°C
Setting Temperature Range
Anti freeze/OFF: 7°C Holiday: 0.5°C to 20°C Timer: 5°C to 35°C
Regulation Characteristics: N/A
Electrical Protection: Class II - IP30
Power Supply: 2 AAA LR03 1.5V Operating Life: Alkaline 2 Years
Output: N/A
Optional External Sensor: N/A
My thermostat doesn’t start
Battery - Check if the protection sticker
Problem on the batteries is removed.
- Check the batteries orientation.
- Check the charge of the batteries.
My thermostat LED, blinks in red
Problem The logo blinks (ambient sensor)
on Sensors - Contact your installer. The logo blinks (floor sensor).
- Check the connection
of the sensor.
- Disconnect the sensor, and check
it with an ohmmeter (the value must be around 10kohms).
Battery The logo blinks (batteries) level is low - Replace the batteries.
My thermostat seems work correctly but
the temperature in the room was never
in accordance with the program
Program - Check the clock.
- Check the difference between
Comfort and Setback temperature is not too high?
- Contact your installer, to check
and adjust the calibration.
08
9 Pre-set Programs
P1 Morning, Evening & Weekend
P2 Morning, Midday, Evening & Weekend
P3 Day & Weekend
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Mo
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Tu
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
We
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Th
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Fr
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sa
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Su
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Mo
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Tu
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
We
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Th
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Fr
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sa
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Su
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Mo
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Tu
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
We
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Th
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Fr
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sa
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Su
P4 Evening & Weekend
P5 Morning, Evening (Bathroom)
P6 Morning, Afternoon & Weekend
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Mo
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Tu
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
We
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Th
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Fr
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sa
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Su
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Mo
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Tu
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
We
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Th
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Fr
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sa
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Su
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Mo
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Tu
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
We
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Th
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Fr
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sa
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Su
09
P7 7H - 19H (Office)
P8 8H - 19H * Saturday (Shop)
P9 Weekend (second house)
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Mo
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Tu
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
We
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Th
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Fr
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sa
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Su
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Mo
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Tu
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
We
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Th
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Fr
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sa
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Su
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Mo
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Tu
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
We
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Th
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Fr
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sa
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Su
Polypipe Building Products
Broomhouse Lane
Edlington
Doncaster DN12 1ES
Tel: 01709 770 000
Fax: 01709 770 001
2410 London Road
Mount Vernon
Glasgow G32 8XZ
Tel: 0141 778 8822
Fax: 0141 778 2703
Dromore Road
Lurgan, Craigavon
Co. Armagh BT66 7HL
Tel: 028 38 881270
Fax: 028 38 882344
www.polypipe.com
Underfloor heating systems trade website: www.ufch.com Underfloor heating systems consumer website: www.freeyourwalls.com
User Guide PB2CTC
Digital 2 Channel Time Clock
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
