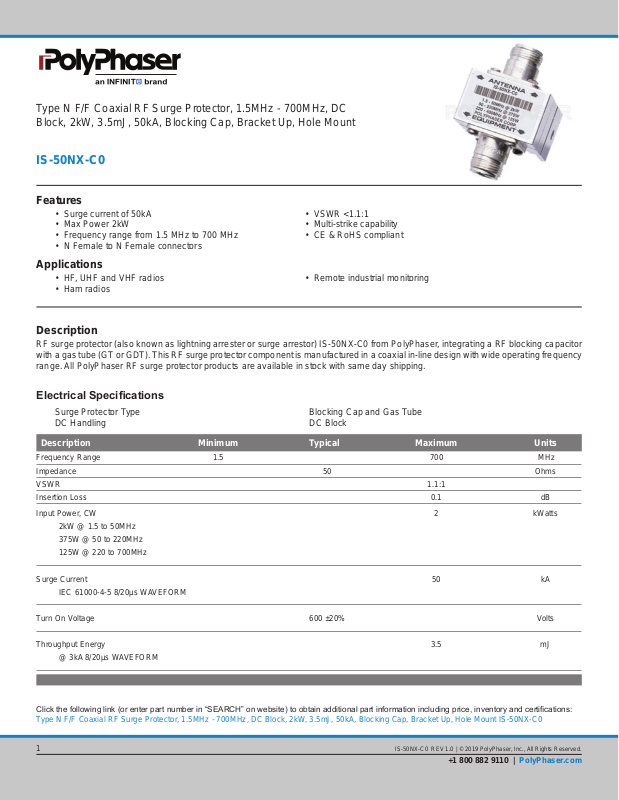

PolyPhaser IS-50NX-C0 Data Sheet

Type N F/F Coaxial RF Surge Protector, 1.5MHz - 700MHz, DC
Block, 2kW, 3.5mJ, 50kA, Blocking Cap, Bracket Up, Hole Mount

IS-50NX-C0

Features

• Surge current of 50kA

• Max Power 2kW

• Frequency range from 1.5 MHz to 700 MHz

• N Female to N Female connectors

Applications

• HF, UHF and VHF radios

• Ham radios

.

Description

RF surge protector (also known as lightning arrester or surge arrestor) IS-50NX-C0 from PolyPhaser, integrating a RF blocking capacitor
with a gas tube (GT or GDT). This RF surge protector component is manufactured in a coaxial in-line design with wide operating frequency
range. All PolyPhaser RF surge protector products are available in stock with same day shipping.

Electrical Specications

Surge Protector Type Blocking Cap and Gas Tube
DC Handling DC Block

• VSWR <1.1:1

• Multi-strike capability

• CE & RoHS compliant

• Remote industrial monitoring

Description Minimum Typical Maximum Units

Frequency Range 1.5 700 MHz
Impedance 50 Ohms
VSWR 1.1:1
Insertion Loss 0.1 dB

Input Power, CW 2 kWatts
2kW @ 1.5 to 50MHz

375W @ 50 to 220MHz
125W @ 220 to 700MHz

Surge Current 50 kA
IEC 61000-4-5 8/20µs WAVEFORM

Turn On Voltage 600 ±20% Volts

Throughput Energy 3.5 mJ
@ 3kA 8/20µs WAVEFORM

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price, inventory and certications:

Type N F/F Coaxial RF Surge Protector, 1.5MHz - 700MHz, DC Block, 2kW, 3.5mJ, 50kA, Blocking Cap, Bracket Up, Hole Mount IS-50NX-C0

1

IS-50NX-C0 REV 1.0 | © 2019 PolyPhaser, Inc., All Rights Reserved.

[phone] | PolyPhaser.com

Type N F/F Coaxial RF Surge Protector, 1.5MHz - 700MHz, DC
Block, 2kW, 3.5mJ, 50kA, Blocking Cap, Bracket Up, Hole Mount

IS-50NX-C0

Mechanical Specications

Size

Length 2.45 in [62.23 mm]
Width/Diameter 1.75 in [44.45 mm]
Height 1.5 in [38.1 mm]

.

Weight 0.35 lbs [158.76 g]

Conguration

Input Connector N Female
Output Connector N Female

Environmental Specications

Temperature

Operating Range -50 to +50 deg C
Storage Range -55 to +85 deg C

.

Ingress Protection (IP) Rating None
Vibration 1G @ 5Hz to 100Hz

Compliance Certications

RoHS
CE

Plotted and Other Data

Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price, inventory and certications:

Type N F/F Coaxial RF Surge Protector, 1.5MHz - 700MHz, DC Block, 2kW, 3.5mJ, 50kA, Blocking Cap, Bracket Up, Hole Mount IS-50NX-C0

2

IS-50NX-C0 REV 1.0 | © 2019 PolyPhaser, Inc., All Rights Reserved.

[phone] | PolyPhaser.com

Type N F/F Coaxial RF Surge Protector, 1.5MHz - 700MHz, DC
Block, 2kW, 3.5mJ, 50kA, Blocking Cap, Bracket Up, Hole Mount

IS-50NX-C0

Typical Performance Data

2.00

1.90

1.80

1.70

1.60

1.50

1.40

1.30

1.20

1.10

1.00
MHz

0 50 100 150 200 250 300 350 400 450 500

VSWR

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price, inventory and certications:

Type N F/F Coaxial RF Surge Protector, 1.5MHz - 700MHz, DC Block, 2kW, 3.5mJ, 50kA, Blocking Cap, Bracket Up, Hole Mount IS-50NX-C0

3

IS-50NX-C0 REV 1.0 | © 2019 PolyPhaser, Inc., All Rights Reserved.

[phone] | PolyPhaser.com

Type N F/F Coaxial RF Surge Protector, 1.5MHz - 700MHz, DC
Block, 2kW, 3.5mJ, 50kA, Blocking Cap, Bracket Up, Hole Mount

IS-50NX-C0

dB

0.00

-0.10

-0.20

-0.30

-0.40

-0.50

-0.60

-0.70

-0.80

-0.90

-1.00
MHz

0 50 100 150 200 250 300 350 400 450 500

INSERTION LOSS

PolyPhaser protects and increases the reliability of global RF communications networks, including transportation, telecommunications,
defense, security and industrial applications, with superior RF surge protection technologies including DC Block, DC Pass and Ultra

Low PIM. Backed by responsive service and expert technical support PolyPhaser continually expands its product o󰀨ering and services

to serve engineers’ urgent needs for RF components in mission critical communication networks.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price, inventory

and certications: Type N F/F Coaxial RF Surge Protector, 1.5MHz - 700MHz, DC Block, 2kW, 3.5mJ, 50kA, Blocking Cap, Bracket Up,

Hole Mount IS-50NX-C0

URL: https://www.polyphaser.com/type-n-surge-protector-700mhz-blocking-cap-gas-tube-is-50nx-c0-p.aspx

4

IS-50NX-C0 REV 1.0 | © 2019 PolyPhaser, Inc., All Rights Reserved.

[phone] | PolyPhaser.com

HARDWARE KIT INCLUDES:

SCREW 10-32 X .50 SLOT F PAN 4-10 SS

SCREW 10-32x.50 SLOT MS PAN 18-8 SS

THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH

THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

Type N F/F Coaxial RF Surge Protector, 1.5MHz - 700MHz, DC Block,
2kW, 3.5mJ, 50kA, Blocking Cap, Bracket Up, Hole Mount

IS-50NX-C0 CAD Drawing

1.75 44.5

1.50 38.1

2X 'N' FEMALE

11

1:1

SCALE

SHEET of

A

REV

IS-50NX-C0

ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY.

DRAWING NUMBER

RFP

T.O. 600Vdc N FEM

PROD CAT

BROADBAND 1.5-700MHz R50

30992

CAGE

A

SIZE

TITLE

.03

.010

.XX=±

.XXX=±

°
1

1/32

THIRD-ANGLE PROJECTION

ANGLES=±

FRACTIONS=±

UNLESS OTHERWISE SPECIFIED

LEADING DIMENSIONS ARE INCHES

DIMENSIONS IN [ ] ARE MILLIMETERS

NOTICE: THE INFORMATION AND DESIGN IN

THIS DOCUMENT IS THE PROPERTY OF

POLYPHASER CORP. ALL RIGHTS RESERVED.

TOLERANCES:

2.45 62.2

.94 23.9

DESCRIPTION

NUT 10-32 HEX 18-8 SS

WASHER 10 EXT TOOTH SS

.31 7.9

.20 5.2

.48 12.2

1

1

1

QTY

2

5
