SK3 Applause™ 1000/2000
Hand Wash Station
Operations & Maintenance Guide
SPECIFICATIONS
Dimension Imperial Metric
Height 47.5 in 121 cm
Width 50.5 in 128 cm
Depth 21.7 in 55 cm
Weight 80 lb 36 kg
Fresh Water
Capacity
(Vinyl LIner)
(Hard Liner)
Gray Water
Capacity
(Vinyl Liner)
(Hard Liner)
Number of
Single Dispenses
(Vinyl Liner)
(Hard Liner)
Pump Capacity
(per stroke) 2 oz 59.14 ml
Paper Towel
Capacity
Soap Dispenser
Capacity 30 oz 887 ml
60 gal
33 gal
60 gal
34 gal
3840
2112
(4 pks-Georgia Paci c 23504)
1000
or (2-rolls Baywest Ecosoft 46200)
227 L
125 L
227 L
129 L
3840
2112
Color Options
• Granite Gray
• Tan
All materials, including resin, pigments and additives
used to make the plastic components as well as the
plumbing components that come in contact with the
fresh water are U.S. FDA food grade compliant.
NOTE: All dimensions are subject to change due to environmental factors.
POLYJOHN
PolyJohn Enterprises Corp
Phone: 800-292-1305
We recommend reading through the entire booklet prior to proceeding with installation, service or
maintenance. All references to left and right throughout this guide are as viewed from the front.
USA
2500 Gaspar Ave.
Whiting, IN 46394
Fax: 219-659-0625
www.polyjohn.com
info@polyjohn.com
Wetherby, England LS22 7RD
POLYJOHN
WORLDWIDE
PolyJohn (UK) Ltd.
Equinox 1 Audby Lane
Phone: 44 (0) 1937-583333
Fax: 44 (0) 1937-583322
www.polyjohn.co.uk
sales@polyjohn.co.uk
SK3-1000/2000 Guide - July 2009
Page 1 of 8
POLYJOHN
CANADA
PolyJohn Canada
P.O. Box 2300
199 Forest Plain Rd.
Orillia, Ontario LV3 6S2
Phone: 800-465-9590
Fax: 705-325-8250
www.polyjohncanada.ca
info@polyjohncanada.ca
General Product Overview
SK3-1000 - Applause Sink with Vinyl Inner Liner
This self-contained, stand alone two-station sink features a unique design where
fresh water is stored in the main outer tank and gray water is stored in a exible
vinyl liner. When the outer tank is lled with water, the inner liner oats up. When
the foot pumps are activated, water drains from the sink bowl strainers into the
inner liner that eventually displaces the water in the main outer tank. The built-in
recessed handles allow for transport, while the hinged lid provides easy access to
the internal components. The three ribbed design provides strength and o ers
space for “strip” advertisements. Two sinks can be placed back-to-back to create
a service island. An optional umbrella can be placed between the back-to-back
sinks and advertising valence overlays can be attached to the umbrella valences
using velcro, which can be an additional source of revenue from special event
sponsors. These sinks are supplied fully assembled from the factory.
SK3-2000 - Applause Sink with Hard Inner Liner
The Applause Sink with the Hard Inner Liner is an option when capacity is not
a factor and is supplied fully assembled from the factory. The hard inner liner
has a fresh water capacity of 33 gallons, and a gray water capacity of 34 gallons.
Fresh water is stored in the main outer tank and gray water is stored in a hard
inner liner.
TOOLS REQUIRED FOR MAINTENANCE
• Drill with 13/64” bit
• Rivet Gun
• Standard slotted screw driver
• Channel Locks
SK3-1000/2000 Guide - July 2009
Page 2 of 8
Operations Information
Fresh Water Plumbing
The plumbing system in this sink is simple and requires minimal maintenance.
If the system becomes plugged, rst check the foot pumps. Depress each foot
pump and observe the level of resistance. If there is resistance and water is
not dispensed, there is most likely an obstruction in the tube or at the ori ce
of the water spigot. If there is no resistance and the water is not dispensed,
then either a.) a tube connection is loose or b.) an internal rubber part of the pump
needs replacing.
Filling with Fresh Water
To open the hinged top you must rst remove the top of the trash chute on
both sides and release the latch locks. Insert a standard 1” garden or similar
type hose into the 1-1/4” round ll port under the lid. Fill the sink with a few
gallons of fresh water to perform a system check. Depress both foot pumps a
few times to “prime” them (the pumps have built-in check valves that will hold a
prime between uses). The sink is equipped with “weep” holes located at the top
of the recessed handles in the sides (fresh water will “weep” from these holes once
the tank has reached capacity).

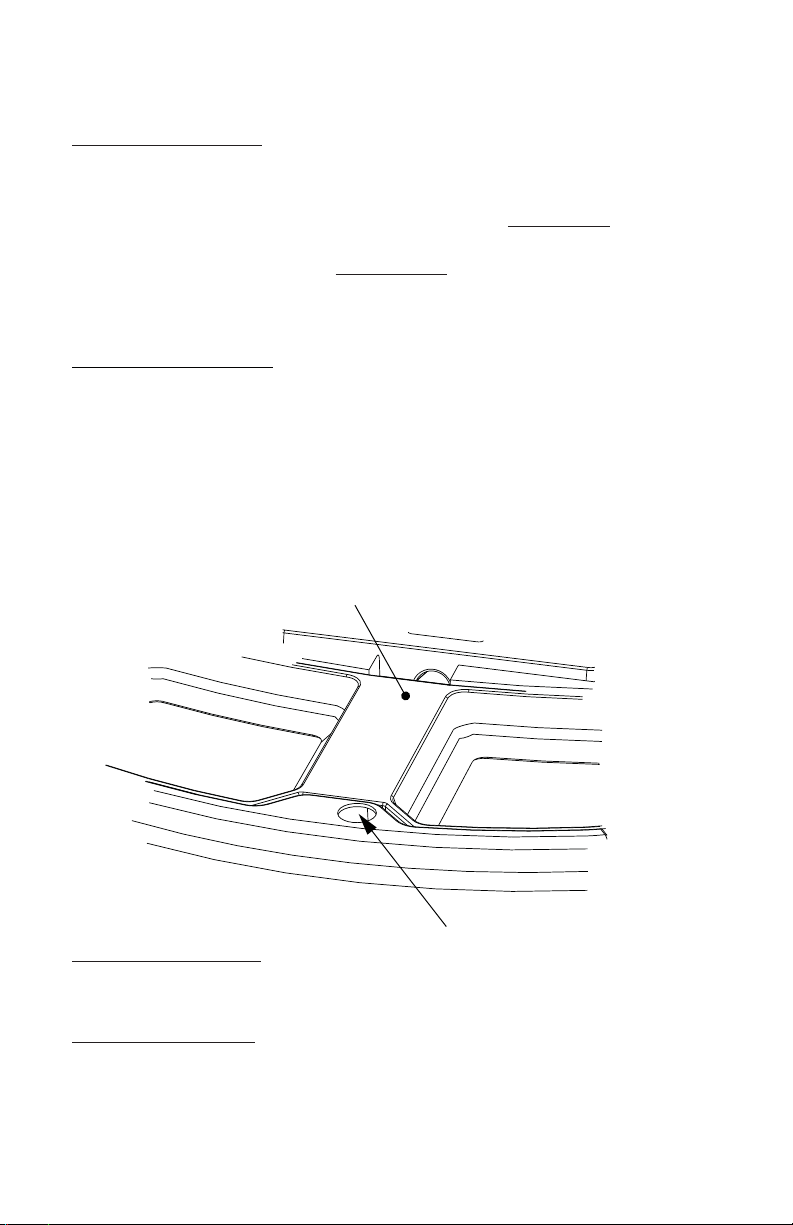

Hard Inner Liner
Emptying Fresh Water
A drain port is located at the bottom left center of the sink.
Emptying Gray Water
NOTE: Certain geographical areas prohibit “dumping” of gray water and requires proper disposal. Gray water can be pumped out by lifting the hinged
top. A drain port is also located at the bottom right center of the sink.
SK3-1000/2000 Guide - July 2009
Page 3 of 8
(2) TD04-1000
Paper Towel Dispenser
(8) PC-000105 - Rivet
(8) PC-000106 - Washer
SK3-0023
Dispenser Column
(10) PC-000117 - Rivet
Parts Drawing -
SK3-0021 - Sink Bowl
(2) PC-100147 - 19” Cable Tether
(2) PC-000105 - Rivet
(2) PC-000102 - Rivet
(2) PC-000106 - Washer
(2) PC-000172 - 3” S.S. Flat Hinge
(6) PC-000105 - Rivet (Hinge to Lid)
(6) PC-000102 - Rivet (Hinge to Tank)
(6) PC-000106 - Washer
(3) PC-000105 - Rivet
Sink Tap
(2) PC-000581G
(4) PC-000104 - Rivet
(4) PC-000106 - Washer
Sink Strainer
(2) PC-000308
LS04-0001
Soap Dispenser
SK3-1000/2000 Guide - July 2009
Page 4 of 8
(2) PC-000373
3/4” Plastic Flange Nut
SK3-0020
Main Tank
(2) PC-000340
3/8” Tube x 3/8 “ Mpt
Male Connector

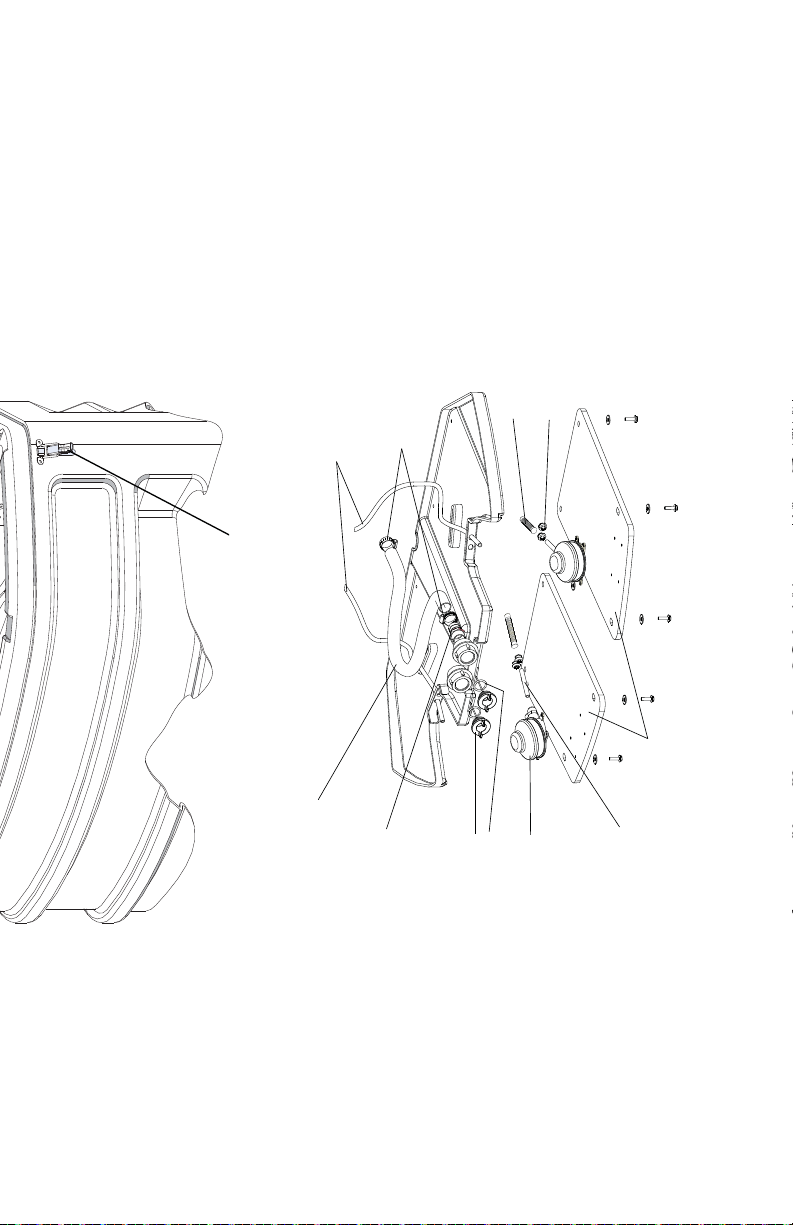

Exploded View
** NOT SHOWN
SK2- 0001 - Bag Liner w/Drain (For SK3-1000)
(14) PC-000356 - Male Snap Fastener
(2) PC-000226 Latch w/Catch
(8) PC-000110 1/8” Rivet
(8) PC- 000111 1/8” Washer
(2) PC-000205M - Lock
(14) PC-000110 - 1/8” Rivet
(14) PC-000111 - 1/8” Washer
(2) SK1-0003 - Trash Chute
(4) PC-000102 - Rivet
(2) PC-000104 - Rivet
(6) PC-000106 - Washer
PC-000791 - I.D. Plate
(2) PC-000102 Rivet
(2) PC- 000106 Washer
PC - 000782 - Decal Not Drinking or Cooking
SK3-0001 - Hard Liner (For SK3-2000)
PC-100309 Elbow 1”x1” Mpt Barb
(4) PC-000415
1/4” Uniseal
(2) PC-000305
Plastic Filter
(2) PC-000352
(2) CT38-065
3/8” x 65” Tube
#12 Hose Clamp
(Used with Hard Liner)
CH100-025 - 1” x 25” Hose
CH100-032 - 1” x 32” Hose
PC-000327 - Fitting
1” Mpt x 1” Barb Plastic
(2) PC-000554 - 1” Plug
(2) PC-000345 - 1” O-Ring
SK3-1000/2000 Guide - July 2009
Page 5 of 8
(2) PC-000600 - Baby Foot Pump
SK1-0002R - Right Base Plate
(8) PC-000142 - Bolt 1/4“-20 X 3/4”
SK1-0002L - Left Base Plate
(8) PC-000168 - Washer 5/16” X 7/8”
(8) PC-000102 - Rivet
(8) PC-000106 - Washer
(2) CT38-005 - 3/8” X 5” Tube
Maintenance Information
Gray Water Bag Replacement
Prior to removing or replacing the bag, be sure the gray water has been completely drained and properly disposed of. Unsnap the fourteen snaps that hold
the bag to the sink. Pull the bag up, locate the tting at the bottom of the bag
and disconnect the hose clamp from the drain hose using a standard slotted
screwdriver.
Drain Hose Replacement
To replace the drain hose, it will be necessary to completely drain the sink of all
fresh and gray water. Pull the bag up out of the sink. Remove the hose clamp
from the tting on the bag and also the one at the bottom of the sink in the
location of the drain port.
Drain Strainer Replacement
The sink strainers are screwed directly into the sink bowls with 3/4” plastic
ange nuts on the underside of the sink bowl. To replace the strainers, open
the hinged lid and use channel locks to remove the ange nuts.
Spigot Replacement
To replace the spigots, open the hinged lid and from the underside of the bowl,
drill out the (2) PC-000104 - Rivets. Pull out the spigot with the tting attached
and disconnect the tubing. Quick disconnect ttings are used throughout the
plumbing system. To disconnect the tubing, push the ring of the tting toward
the tting stem while at the same time pulling out on the tubing.
Filter Replacement
Prior to removing or replacing the lters, be sure to completely drain the fresh
water from the main tank. Also, it will be necessary to drain the gray water bag
and pull it up out of the sink. Pull the PC-000305 - Plastic Filter o of the CT38-
005 - 3/8” x 5” Tube (the lter is tted onto the tube in the bottom of the sink).
Pump Removal
Remove the (4) PC-000142 - 1/4” Hex Head Bolts from each of the base plates.
The pumps are fastened to the base plates with (4) PC-000102 - Rivets and (4)
PC-000106 - Back-up Washers. To remove the pumps, drill out the rivets from
the bottom of the sink and disconnect the tubing. Quick disconnect ttings
are used throughout the plumbing system. To disconnect the tubing, push the
ring of the tting toward the tting stem while at the same time pulling out on
the tubing.
SK3-1000/2000 Guide - July 2009
Page 6 of 8
Maintenance Information (continued)
Paper Towel Dispensers
The dispensers are designed to accept single or multi-fold, as well as roll towels.
The recommended towels are the Georgia Paci c 23504 - single fold or the
Baywest Ecosoft #46200 - roll towel. NOTE: When using other towels, be sure
the width does not exceed 9-1/2”. The use of a roll towel complies with ADA
requirements.

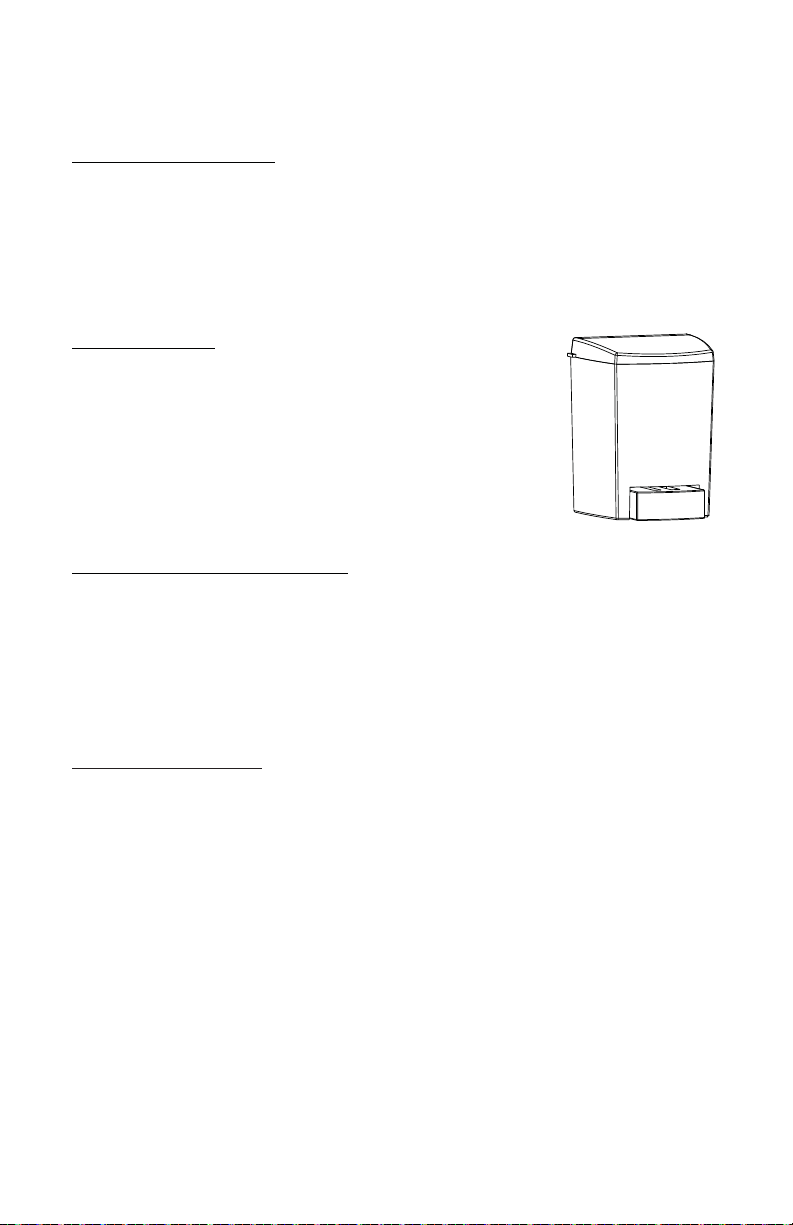

Soap Dispensers
Open the soap dispenser by placing your hands on both
sides of the dispenser and pressing up on the tabs of the
lid. Locate the tab on the mounting plate at the rear of the
dispenser and push in on it and slide the dispenser up and
o . Fill with 30 uid ounces of liquid soap. Refasten it to
the mounting plate and snap the lid back on.
Towel Chutes/Trash Bag Holders
The towel chutes/trash bag holders have a “force- t” common joint design. The
trash bag holder will accept most types of trash bags from 10 to 55 gallons (30
gallon is the most practical). Position the trash bag in the holder and force the
chute into position over the holder.
IMPORTANT DECAL
NOT FOR COOKING OR DRINKING, is required by law in certain areas of the
U.S. Other geographical areas require that the materials used to manufacture
the sinks comply with the U.S. Federal Food and Drug Administration (FDA)
guidelines 21 CFR 175.300 (resins), 177.1520 (ole n polymers) and 178.3297
(colorants for polymers). The materials also comply with the U.S. Public Health
Service Drinking Water Standards, 42 CFR part 72 and U.S. Environmental Protection Agency Interim Primary Drinking Water Regulations 40 CFR part 141.
SK3-1000/2000 Guide - July 2009
Page 7 of 8
Winterizing
• Drain all water from the tanks.
• Depress the foot pump to clear lines.
• Flush tank with a solution of chlorine and water.
CLEANING AND MAINTENANCE
Use a mild soap to clean all surfaces and component parts.
Minor scratches and abrasions can be lightly sanded or scrubbed with a
mild abrasive cleaner (such as “Soft Scrub”) that contains calcium carbonate,
hypochlorate bleach and detergents. Be sure to follow the cleaning product
directions since these ingredients may cause hazardous gases when mixed with
other chemicals. Rinse the cleaned area and bu with a conventional wax.
Some light scratches may also be hidden by using an industrial hot air gun.
To keep the water fresh add a “Fresh Sink Tablet” (chlorinated tablet) each time
the sink is lled with water.
For a source of cleaning, deodorizing and paper products contact:
RID IT
2500 GASPAR AVE.
WHITING, IN 463942175
8002921305 EXTENSION 514
www.rid-it.com
We highly recommend membership in the Portable Sanitation Association International
(PSAI); the worldwide authority on portable sanitation services. The PSAI, “Portable
Sanitation Industry Certi cation Program” manual contains a wealth of information on
standards and service procedures. For more information contact the PSAI:
PORTABLE SANITATION ASSOCIATION INTERNATIONAL PSAI
7800 METRO PARKWAY, SUITE 104
BLOOMINGTON, MINNESOTA 55425 USA
8008223020 / 6128548300 FAX 6128547560
www.psai.org
MISSION STATEMENT
“PolyJohn is a family owned, state of the art, plastics manufacturing company
dedicated to providing its employees with a work environment committed to
excellence, and its customers with innovative products, services and technology
that meet or exceed their requirements.”
THANK YOU FOR PURCHASING POLYJOHN PRODUCTS!
Look for us on the Web @ www.PolyJohn.com
SK3-1000/2000 Guide - July 2009
Page 8 of 8
Loading...
