PSW1-1000 HandStand™

Wash Stand with Wheels

Technical Information

POLYJOHN

USA

PolyJohn Enterprises Corp

2500 Gaspar Ave.

Whiting, IN 46394

Phone: [phone]

Fax: [phone]

www.polyjohn.com
[e-mail]

POLYJOHN

WORLDWIDE

PolyJohn (UK) Ltd.

Equinox 1 Audby Lane

Wetherby, England LS22 7RD

Phone: [phone]

Fax: [phone]

www.polyjohn.co.uk

[e-mail]

POLYJOHN

CANADA

PolyJohn Canada

P.O. Box 2300

199 Forest Plain Rd.

Orillia, Ontario LV3 6S2

Phone: [phone]

Fax: [phone]
www.polyjohncanada.ca
[e-mail]

The PSW1-1000 HandStand™ sink is easily
transportable with a built-in handle and
lightweight rubber tread wheels. Designed
for use where convenient hand washing is
desired or required, such as o ces, class­rooms, construction sites, festivals, food
service locations, etc., to be used indoors
or out. The compact design allows it to be
used most anywhere. Ideal where space is
limited. Shipped fully assembled.

General Overview

All materials, including resin, pigments and
additives used to make the plastic compo­nents as well as the plumbing components
that come in contact with the fresh water
are U.S. FDA food grade compliant.

Height 62 in 157.5 cm

Width 18 in 45.5 cm

Depth 18 in 45.5 cm

Fresh Water Capacity 16 gal 60.5 L

Gray Water Capacity 19 gal 72 L

Pump Capacity

(per stroke)

2  oz 59.14 ml

Soap Dispenser
Capacity

30  oz 887 ml

Number of Single
Dispenses

1024 1024

Paper Towel
Capacity

1 Roll or 500 Single Fold

(2 packs - Georgia Paci c 23504)

Weight Empty 48.5 lb 22 kg

Weight Full 182 lb 82.5 kg

Speci cations

PSW1-1000 - HandStand

December - 2010

Page 2 of 4

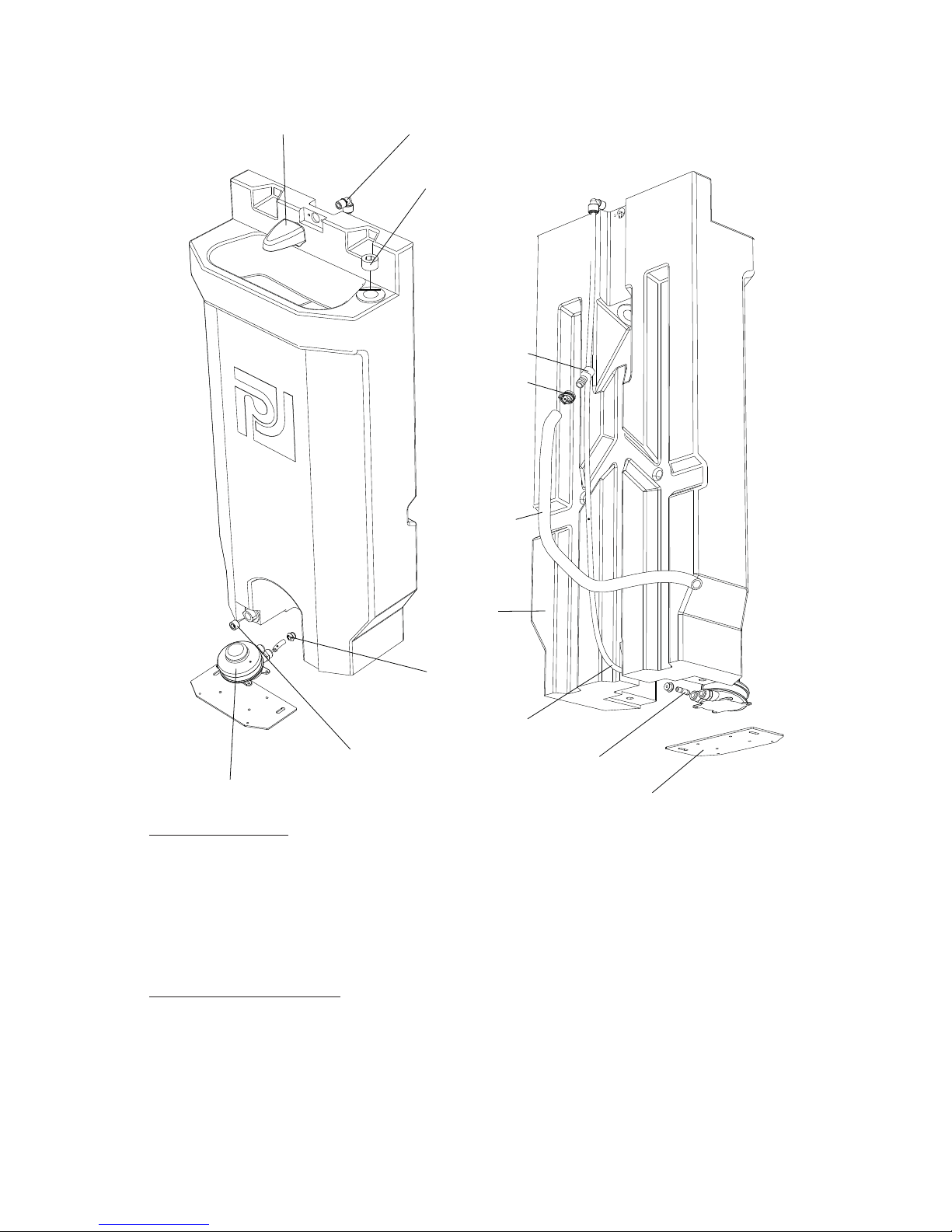

Parts Drawing - Exploded View

Important Decals

NOT FOR COOKING OR DRINKING, required by law in certain areas of the U.S. Other geographi-

cal areas require that the materials used to manufacture the sinks comply with the U.S. Federal
Food and Drug Administration (FDA) guidelines 21 CFR 175.300 (resins), 177.1520 (ole n polymers)
and 178.3297 (colorants for polymers). The materials also comply with the U.S. Public Health Ser­vice Drinking Water Standards, 42 CFR part 72 and U.S. Environmental Protection Agency Interim
Primary Drinking Water Regulations 40 CFR part 141.

HANDS FREE SINK, instruction for user to use foot pump to operate the sink.
UNIT MUST BE DRAINED BEFORE TRANSPORTING, reminds service operator to empty the sink

before transporting.

Filling with Fresh Water

Unscrew the 1” plug located at the top of the sink. Insert a standard 1” garden or similar
type hose and  ll with a few gallons of fresh water to perform a system check. Depress
the pump a few times to “prime” it (the pump has a built-in check valve that will hold a

prime between uses). Continue  lling to the top (which is the 16 gallon water level ca-
pacity and should take approximately 5 minutes with a standard garden hose and normal
water pressure). Tighten the plug when  nished.

PC-000581G - Sink Tap

(2) PC-000107 - Rivet
(2) PC-000106 - Washer

PC-000554 - 1" Drain Plug

PC-000345 - 1” O-Ring

PC- 000339
Elbow 3/8" Tube x 3/8" Npt

PS02-0001

Sink Tank

CT38-0425 - Tubing

3/8" O.D. x 42-1/2" Long

PC-000325 - Straight

Barb 1" Npt x 3/4"

PC-000351 - #10

Hose Clamp

CH075-037 - 3/4"
Drain Hose 37" Long

PC-000551 - 1/2" Drain Plug

PC-000346 - 1/2” O-Ring

PC-000415
Rubber UniSeal

CT38-003
3/8" Tubing x 3" Long

PS02-0003 - Foot Pump Plate

(2) PC-000135 - Screw

PC-000600 - Baby Foot Pump

(4) PC-000102 - Rivet Small Flange
(4) PC-000106 - Washer

**NOT SHOWN
PC-000782 - Decal Not for Drinking or Cooking

PC-000783 - Decal Transport
PC-000790 - Decal Foot Pump

PSW1-1000 - HandStand

December - 2010

Page 3 of 4

Parts Drawing - Exploded View

Soap Dispenser

Open the soap dispenser by placing your hands on both sides of the
dispenser and pressing up on the tabs of the lid. Locate the tab on
the mounting plate at the rear of the dispenser and push in on it and
slide the dispenser up and o . Fill with 30  uid ounces of liquid soap.
Refasten it to the mounting plate and snap the lid back on.

Paper Towel Dispenser

The dispenser is designed to accept single or multi fold, as well as roll towels. The
recommended towels are the Georgia Paci c #23504 - single fold or the Baywest Ecosoft

#46200 - roll towel. NOTE: When using other towels, be sure the width does not exceed
9-1/2”. The use of a roll towel complies with ADA requirements.

Emptying Fresh Water

Drain the fresh water by unscrewing the 1/2” plug located at the bottom of the sink.
Tighten the plug when  nished.

Emptying Gray Water

Wheel the sink to a proper drain location such as a toilet or drain. Pull the hose out from
the rib on the back of the holding tank, remove the hose cap and empty the gray water.
Replace the cap when  nished.

LS04-0001 Soap
Dispenser

(3) PC-000105 - Rivet
(3) PC-000106 - Washer

TD04-1000 - Paper Towel
Dispenser

(4) PC-000105 Rivet
(4) PC-000106 Washer

PC-000550 3” Gray Plug

PSW1-0001P

- Wash Stand W/Wheels Tank

PC-000377

- 3/4” Garden Hose Cap

PC-000313

- Rubber Hose Washer

PC-000376

- Fitting 1” x 3/4” MGHT

PC-000352

- Hose Clamp

CH100-0435
1”I.D. x 43.5” Long

PC-000352 - Hose Clamp

PC-100316 - Elbow
1” Barb x 1” Barb

PC-000417 - 3/4” Uni-Seal

PC-000417
3/4” Uni-Seal
(Replaces the 1/2”
spinweld tting
and elbow in
previous models)

PSW1-0021 - Axle

PC-000213 - Wheel,
Rubber Tread

PS02-1000
Wash Stand Complete

(2) PC-000158 - Screw

PSW1-1000 - HandStand

December - 2010

Page 4 of 4

CLEANING AND MAINTENANCE

Use a mild soap to clean all surfaces and component parts.

Minor scratches and abrasions can be lightly sanded or scrubbed with a mild abrasive
cleaner (such as “Soft Scrub”) that contains calcium carbonate, hypochlorate bleach and
detergents. Be sure to follow the cleaning product directions since these ingredients
may cause hazardous gases when mixed with other chemicals. Rinse the cleaned area
and bu with a conventional wax.

Some light scratches may also be hidden by using an industrial hot air gun.

To keep the water fresh add a “Fresh Sink Tablet” (chlorinated tablet) each time the sink
is  lled with water.

For a source of cleaning, deodorizing and paper products contact:

RID IT

2500 GASPAR AVE.

WHITING, IN 463942175

8002921305 EXTENSION 514

www.rid-it.com

MISSION STATEMENT

“PolyJohn is a family owned, state of the art, plastics manufacturing company dedicated
to providing its employees with a work environment committed to excellence, and its
customers with innovative products, services and technology that meet or exceed their
requirements.”

THANK YOU FOR PURCHASING POLYJOHN PRODUCTS!

Look for us on the Web @ www.PolyJohn.com

We highly recommend membership in the Portable Sanitation Association International
(PSAI); the worldwide authority on portable sanitation services. The PSAI, “Portable
Sanitation Industry Certi cation Program” manual contains a wealth of information on
standards and service procedures. For more information contact the PSAI:

PORTABLE SANITATION ASSOCIATION INTERNATIONAL PSAI

7800 METRO PARKWAY, SUITE 104

BLOOMINGTON, MINNESOTA 55425 USA

8008223020 / 6128548300 FAX 6128547560

www.psai.org

Winterizing

• Drain all water from the tanks.

• Depress the foot pump to clear lines.

• Flush tank with a solution of chlorine and water.
