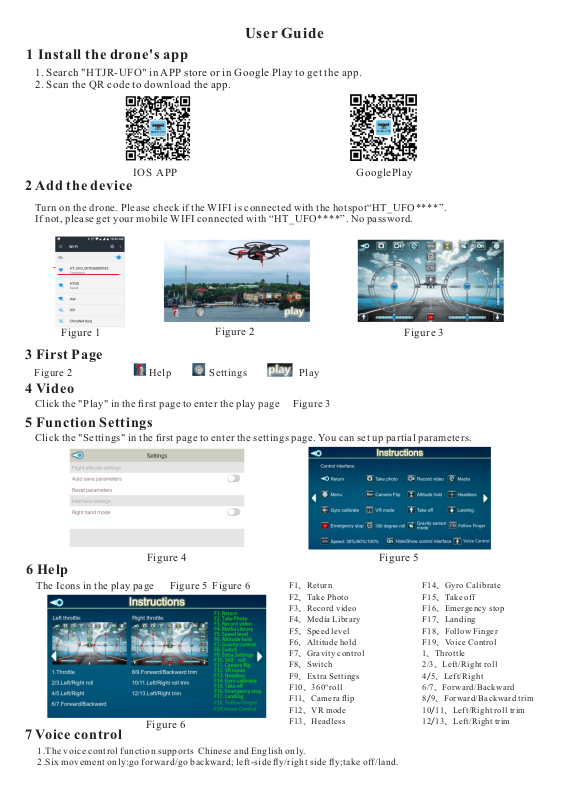

User Guide

1 Install the drone's app

1. Search "HTJR-UFO" in APP store or in Google Play to get the app.

2. Scan the QR code to download the app.

IOS APP

GooglePlay

2 Add the device

Turn on the drone. Please check if the WIFI is connected with the hotspot“HT_UFO****”. If not, please get your mobile WIFI connected with “HT_UFO****”. No password.

Figure 1

Figure 2

Figure 3

3 First Page

Figure 2 Help Settings Play

4 Video

Click the "Play" in the ﬁrst page to enter the play page Figure 3

5 Function Settings

Click the "Settings" in the ﬁrst page to enter the settings page. You can set up partial parameters.

Figure 4

6 Help

The Icons in the play page Figure 5 Figure 6

Figure 6

F1、Retur n F2、Take Photo F3、Recor d video F4、Media L ibrary F5、Speed l evel F6、Altit ude hold F7、Gravi ty contro l F8、Switc h F9、Extra S ettings F10、360° roll F11、Cam era ﬂip F12、VR mod e F13、Head less

7 Voice control

1.The voice control functi on supports Chinese and English only.

2.Six movement only:go for ward/go backward; left-side ﬂy/right side ﬂy;ta ke off/land.

Figure 5

F14、Gyro C alibrat e F15、Take off F16、Emerge ncy stop F17、Land ing F18、Foll ow Finger F19、Voice Contro l 1、Thrott le 2/3、Left /Right roll 4/5、Le ft/Right 6/7、Forw ard/Bac kward 8/9、Fo rward/Backward tri m 10/11、Left/R ight roll tri m 12/1 3、Left/Righ t trim

FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co‐located for operating in conjunction with any other antenna or transmitter.
