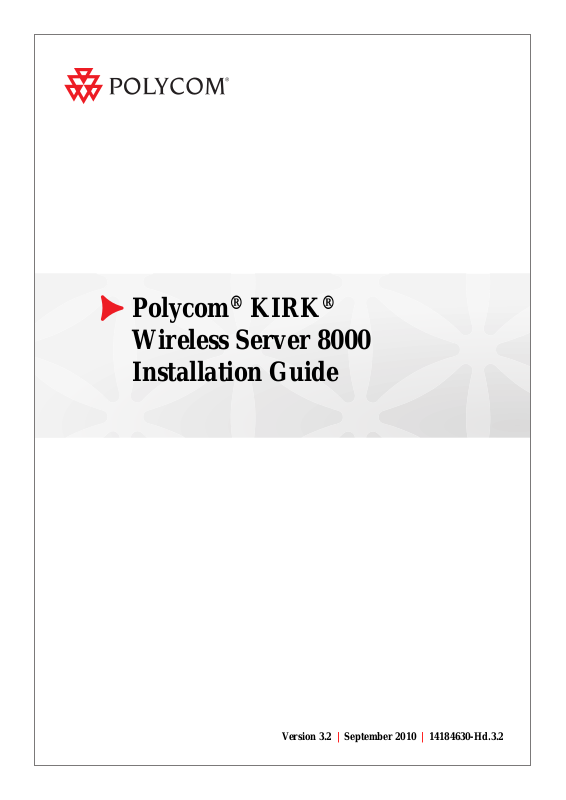

Polycom® KIRK
®
Wireless Server 8000 Installation Guide
Version 3.2 | September 2010 | 14184630-Hd.3.2
Copyright © Polycom, Inc. All Rights Reserved
Proprietary and Confidential
The information contained herein is the sole intellectual property of Polycom, Inc. No distribution, reproduction or unauthorized use of these materials is permitted without the expressed written consent of Polycom, Inc. Information contained herein is subject to change without notice and does not represent commitment of any type on the part of Polycom, Inc. Polycom and Accord are registered trademarks of Polycom, Inc.
Notice
While reasonable effort was made to ensure that the information in this document was complete and accurate at the time of printing, Polycom, Inc., cannot assume responsibility for any errors. Changes and/or corrections to the information contained in this document may be incorporated into future issues.
ii Polycom, Inc.
Contents

Contents

1 KWS8000 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installing the KWS8000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
KWS 8000 Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
General Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing the KWS8000 in a Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installing the KWS 8000 on a Flat Surface . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the KWS8000 on a Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connecting the KWS8000 Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installing Interface Cards and CPU Cards . . . . . . . . . . . . . . . . . . . . . . . . . 15
2 Replacing Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Component Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Component Replacement Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3 Regulatory Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
International Regulatory and Product Information . . . . . . . . . . . . . . . . . . . . 23
Important Safety Instructions and Product Information . . . . . . . . . . . . . . . . 26
A RJ45 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
B Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Analogue Interface Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Base Station Interface Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
RJ45 Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Polycom, Inc. 1
Polycom Kirk Wireless Server 8000 Installation Guide
2 Polycom, Inc.

KWS8000 Installation

This guide describes how you install the KWS8000.

Installing the KWS8000

1

Specifications

The KWS 8000 can be installed in a rack, on a flat surface or on a wall using the KWS8000 Wall Hanger. Before you start the installation, place the KSW 8000 on a stable flat surface in the selected location, and inspect the package for any damage and report it to the reseller or distributor immediately.
Important Please review all the safety instructions for important safety and regulatory information
Table 1-1 Physical Dimensions
Physical dimensions
Height 177mm
Width 422 mm
Depth 328 mm
Weight 5.34 kg (excl. power supply)
Table 1-2 Power Supply
Power supply
AC Input 100-240 VAC, 50/60 Hz
Polycom, Inc. 3
Polycom KIRK Wireless Server 8000 Installation Guide Installing the KWS8000
Table 1-3 Power Consumption
Power consumption
Typical AC Power Consumption 90 Watt
Max. AC Power Consumption Max 360 Watt
Table 1-4 Environment
Environment
Operating temperature 0°C - 40°C (22° - 104°F)
Storage temperature -30°C - 70°C (40° - 158°F)
Relative humidity 20% - 80% Non condensing
Operating altitude Up to 2000 m (6,500 ft)
Operating ESD level 4 KV

KWS 8000 Components

The following table contains all KWS8000 parts and their part numbers.
Picture Description Part Numbers
Table 1-5 KWS 8000 Components
Base Station Interface card (8 base stations)
Analogue Interface card (16 lines)
0233 9100
0233 9200
Analogue Interface card (8 lines)
4 Polycom, Inc.
0233 9220
Installing the KWS8000 KWS8000 Installation
Table 1-5 KWS 8000 Components
Picture Description Part Numbers
CPU card with link option
CPU card without link option
Media Resource Card with link option
0233 9300
Includes two terminator connectors.
0233 9600
0233 9700
Link cable 0233 9400
0233 8900
EU rack
US rack
UK rack
Wall hanger 0250 0200
0233 8901
0233 8902
Includes mains adapter and mains cable.
Polycom, Inc. 5
Polycom KIRK Wireless Server 8000 Installation Guide Installing the KWS8000
Table 1-5 KWS 8000 Components
Picture Description Part Numbers
Mains adaptor 8476 9902
EU mains cable 8468 7013
UK mains cable 8468 7014
US mains cable 8468 7015
Terminator connector 0250 0300
RS232 cable 13281100
6 Polycom, Inc.
Link upwards
Link downwards
USB
Ethernet
RS232
A: RJ45 Connection
B: RJ45 Connection
Installing the KWS8000 KWS8000 Installation

Connections

Figure 1-1 CPU Card Connections
Note Link connections must not be left open. You have to either plug in a link cable or a terminator connector for protection and for stable functionality.
The USB connection is not active in this release. Once it is active, it can be used as an alternative to the RS232 connection.
Figure 1-2 RJ45 Connections for Base Stations
Polycom, Inc. 7
A RJ45 Connection
B RJ45 Connection
D RJ45 Connection
C RJ45 Connection
A Ethernet
Polycom KIRK Wireless Server 8000 Installation Guide Installing the KWS8000
Figure 1-3 J45 Connections for AB Lines
Figure 1-4 Media Resource Card Connection

General Installation Information

8 Polycom, Inc.
The maximum number of KWS 8000 units that can be linked together depends on the mounting method and the maximum length of the link cable:
Rack mount: 8 units
Flat surface mount: 2 units
Wall mount: 1 unit
General Mounting Safety Precautions
Important Always ensure proper rack earthing. Electrical shock hazards from the telecommunication network and AC mains are possible with this equipment. To minimize risk to service personnel and users, the system must be connected to an outlet with a third-wire earth connection.
Keep the area around the KWS8000 clean and free of clutter.
Installing the KWS8000 KWS8000 Installation
Decide on a suitable location for the equipment rack that will hold the
KWS8000 unit. It should be situated in a clean, dry, and dust-free area that is well ventilated. Avoid areas where heat, electrical noise, and electromagnetic fields are generated.
Place it near an earthed power outlet.

Installing the KWS8000 in a Rack

Before you start installation take notice of the following safety precautions.
Rack mounting Safety Precautions.
Important Always ensure proper rack earthing. Electrical shock hazards
from the telecommunication network and AC mains are possible with this equipment. To minimize risk to service personnel and users, the system must be connected to an outlet with a third-wire earth connection.
Ensure that the leveling jacks on the bottom of the rack are fully extended
to the floor with the full weight of the rack resting on them.
In a single rack installation, stabilizers should be attached to the rack.
In multiple rack installations, the racks should be coupled together.
Always make sure the rack is stable before extending a component from the
rack.
You should extend only one component at a time - extending two or more
simultaneously may cause the rack to become unstable.
Before you install the rails, determine the placement of each component in
the rack.
Install the heaviest components on the bottom of the rack first, and then
work up.
Always keep the rack’s trays and boards closed when not servicing, to
maintain proper cooling.
The rack ambient temperature may rise beyond room ambient temperature.
in a multi unit assembly, measures must be taken to ensure the KWS8000 ambient temperature does not exceed the maximum operating ambient temperature of 40 °Celsius/104°Fahrenheit. The backplane temperature inside the KWS8000 can be up to 13°Celsius/24° Fahrenheit higher than the ambient temperature.
To ensure ventilation, always leave 2/3 U between the KWS8000 units any
other units mounted in the rack.
To Install the KWS8000 in a Rack
You can install the KWS8000 in a rack using one of the two following methods:
Polycom, Inc. 9
Polycom KIRK Wireless Server 8000 Installation Guide Installing the KWS8000
a Install the brackets supplied by the rack manufacturer on each side of the
rack on which the KWS8000 is placed. Secure the system by fastening four screws to the rack on the front panel.
- or ­b Install a shelf supplied by the rack manufacturer on top of which the
KWS8000 is placed. Secure the system by fastening four screws to the rack on the front panel.
Figure 1-5 Rack Installation

Installing the KWS 8000 on a Flat Surface

Before you start installation take notice of the following safety precautions.
Flat Surface Mounting Safety Precautions
Ensure the surface can support the weight of the unit.
Never install the KWS8000 on the floor.
10 Polycom, Inc.
Installing the KWS8000 KWS8000 Installation
Never place anything, except ONE additional KWS8000 unit, on top of the
KWS8000. The top plate must be free to allow sufficient cooling.
To Install the KWS 8000 on a Flat Surface 1 Remove the KWS8000 from its package. 2 Before placing the unit, carefully turn it upside down and mount the four
rubber pads supplied in the package. One must be placed at each corner of the bottom plate.
3 Place it on a clean, flat, horizontal surface.

Installing the KWS8000 on a Wall

Before you start installation take notice of the following safety precautions.
Wall Mounting Safety Precautions
Ensure the wall quality is good enough for holding the unit. Avoid
high-porous surfaces, joints and similar.
Never use countersunk screws.
Leave at least 10 centimeter of free air above the unit for ventilation.
To Install the KWS8000 Using the Wall Hanger
For free hanging installations, you use the wall hanger. 1 Find a suitable spot on an even closed-textured surface. The unit should be
placed minimum 1 meter above ground surface and minimum 20 centimeter from any corner.
Polycom, Inc. 11
Polycom KIRK Wireless Server 8000 Installation Guide Installing the KWS8000
Figure 1-6 Wall hanger positioning
2 Mount the wall hanger securely using four screws. Use rawlplugs,
expansion bolts, or other appropriate fastening methods in relation to the wall material.Remove any drilling dust.
3 Fit the KWS 8000 into the wall hanger, and fasten the two front screws.
Figure 1-7 Fitting the kWS8000 into the wall hanger
12 Polycom, Inc.
Installing the KWS8000 KWS8000 Installation

Connecting the KWS8000 Cables

When the KWS8000 has been mounted, the cables can be connected.
Cable Safety Precautions
Before you connect the cables, ensure to take the following electrical safety precautions.
Always use an earthed socket for power.
Use a power cord with protective earth (PE) connection suitable for the
country where it is being used and with the appropriate local approvals.
If using a rack, always ensure proper rack earthing
Power supply cables must be connected prior to connecting any interface
cables.
The interface cables must be removed before any interface card is removed
or replaced.
When unplugging power, unplug AC mains power first before unplugging
the power connector from the KWS8000.
The AC adapters must never be hanging by their own weight in the AC
mains connector or the output connector.
To Connect Power Cables
The KWS8000 has four power plugs on the back panel behind the sliding doors:
System Power Backup
System Power Primary
4+ BIF Power Backup
4+ BIF Power Primary
Polycom, Inc. 13
