About This Guide

This guide explains how to integrate the Polycom® SoundStation® IP 7000
conference phone with a Polycom
PBX telephony system is not compatible with the conference phone. In this
environment, you will be able to conduct both voice and video calls and
conferences, but voice calls will be placed and received using the POTS or
ISDN interface on the Polycom HDX system.

In this guide, you will find everything you need to set up the SoundStation IP
7000 conference phone with a Polycom HDX system. Be sure to verify that
your network is prepared for configuring the conference phone and Polycom
HDX system. As well, be sure to read the Parts List and Safety Notices sections
in this guide before you set up and use the conference phone or Polycom HDX
system.

For information on using the SoundStation IP 7000 phone with a Polycom
HDX system in an unsupported VoIP environment, refer to the User Guide for

the SoundStation IP 7000 Phone Connected to a Polycom HDX System in
Unsupported VoIP Environments.

For information on setting up and using the SoundStation IP 7000 phone with
a Polycom HDX system in a supported VoIP environment, refer to the User
Guide for the SoundStation IP 7000 Phone.

For information on configuring the SoundStation IP 7000 phone in a supported
VoIP environment, refer to the latest Administrator’s Guide for the SoundPoint IP
/ SoundStation IP Family.

®

HDX system in environments where the

This information can also be found at

http://www.polycom.com/support/voicedocumentation/.

iii

Integration Guide for the Polycom SoundStation IP 7000 Phone Connected to a Polycom HDX System in Unsupported VoIP Environments

iv

Contents

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Integrating the SoundPoint IP 7000 Conference Phone with a

Polycom HDX System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Optional and Required Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connecting the Phone to the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Setting Up the Polycom HDX System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Updating the Polycom HDX System Software . . . . . . . . . . . . . . . . . . . . . . . . 5

Connecting the Phone to the Polycom HDX System . . . . . . . . . . . . . . . . . . . 5

Setting Up the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Connecting an Optional External Microphone . . . . . . . . . . . . . . . . . . . . 7

Connecting Optional Auxiliary Audio Components . . . . . . . . . . . . . . . 8

Connecting Mobile or Computer Audio to the 2.5mm Audio

Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Upgrading the Phone’s Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Using the Polycom Customer Support Provisioning Server . . . . . . . . 10

Locating the Latest Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Setting Up a Provisioning Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Downloading New Software to the Phone . . . . . . . . . . . . . . . . . . . . . . . 14

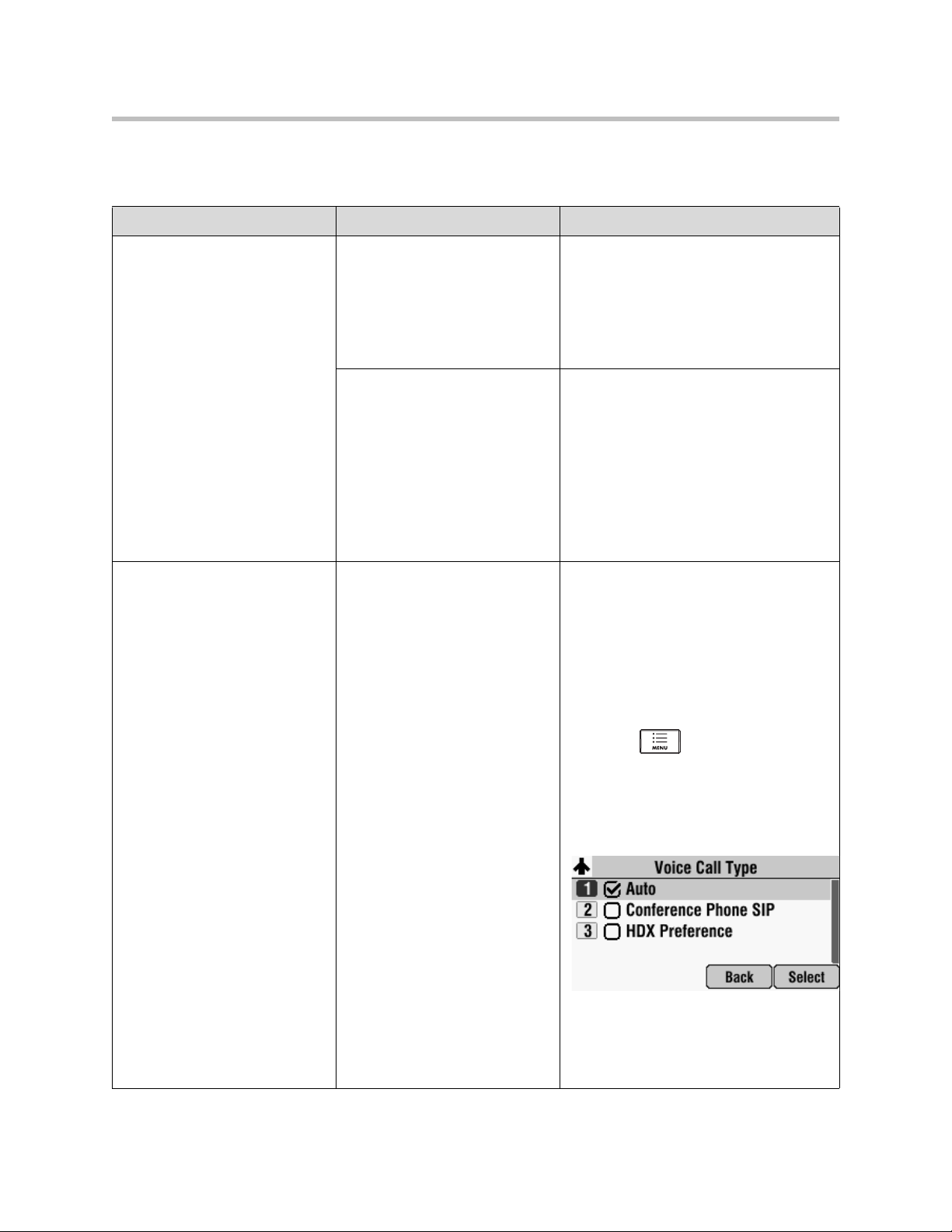

Troubleshooting Your Phone . . . . . . . . . . . . . . . . . . . . . . . .17

Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

SoundStation IP 7000 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Upgrading the SoundStation IP 7000 Phone . . . . . . . . . . . . . . . . . . . . . . . . . 19

Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

v

Integration Guide for the Polycom SoundStation IP 7000 Phone and Polycom HDX Systems in Non-Supported VoIP Environments

vi

Integrating the SoundPoint IP 7000 Conference Phone with a Polycom HDX System

This chapter describes how to integrate the SoundPoint IP® 7000 conference
phone with a Polycom
also describes how to upgrade the phone’s software when it is connected to a
Polycom HDX system. The phone must be running SIP application 3.1.1
(phone software) or later.

The SoundPoint IP 7000 conference phone is compatible with the following
Polycom HDX systems running 2.5 or later:

• Polycom HDX 4000™ series

• Polycom HDX 7000™ series

• Polycom HDX 8000™ HD

• Polycom HDX 9000™ series

Polycom strongly recommends that you connect the SoundPoint IP 7000 to the
LAN using the included network cable and to the Polycom HDX system using an
Polycom HDX Microphone Cable. A LAN connection enables access to a
provisioning server as well as a time server.

A provisioning server facilitates software upgrades, configuration management, and
diagnostic logging, which is helpful if troubleshooting is required.

Access to a time server enables display of the current date and time on the phone's
display.

For more information, refer to Setting Up a Provisioning Server on page 13.

®

HDX system in an unsupported VoIP environment. It

The topics in this chapter include:

• Before You Begin on page 2

• Connecting the Phone to the Network on page 4

1

Integration Guide for the Polycom SoundStation IP 7000 Phone Connected to a Polycom HDX System in Unsupported VoIP Environments

25-foot Network Cable

Quick Start Guide

SoundStation IP 7000 Conference Phone

• Setting Up the Polycom HDX System on page 5

• Updating the Polycom HDX System Software on page 5

• Connecting the Phone to the Polycom HDX System on page 5

• Setting Up the Phone on page 7

• Upgrading the Phone’s Software on page 10

To troubleshooting any issues with the phone, refer to Troubleshooting Your

Phone on page 17.

Before You Begin

Parts List

The following items are included in the basic phone package:

• Polycom SoundStation IP 7000 Conference Phone

Note

• 25-foot Network Cable

• Quick Start Guide

The above mentioned Quick Start Guide contains information for setting up and
using the phone in a supported VoIP environment. To use the phone when it is

connected to a Polycom HDX system in a VoIP environment, refer to the User
Guide for the Polycom SoundStation IP 7000 Phone.

2

Integrating the SoundPoint IP 7000 Conference Phone with a Polycom HDX System

Optional and Required Accessories

You require a Polycom HDX Microphone Cable to connect the phone to the
Polycom HDX system. It is not part of the basic phone package, but is included
in the separate SoundStation IP 7000 - Polycom HDX system integration
package. The cable is also available as a separate item—if you already have the
basic package and the cable was not part of your Polycom HDX system
package or you want to connect it to a separate Polycom HDX Microphone
port.

The following items are optional accessories for the phone:

• External Microphone Kit with two SoundStation IP 7000 extended
microphones

Overview

Note

Connect the extended microphones to the phone. If you connect them to the
Polycom HDX system, they will not function properly.

• Mobile Phone Cable

• Computer Calling Kit with Computer Calling Cable

• AC Power Kit with a Power Adapter, Regional Power Cord, and Power

Insertion Cable

To integrate the SoundPoint IP 7000 conference phone with the Polycom HDX
system, complete the following steps:

1. Connect the phone to the local area network (LAN) using the supplied
network cable. Refer to Connecting the Phone to the Network on page 4.

2. (Optional.) Upgrade the phone before connecting it to the Polycom HDX
system.

The phone must be running bootROM 4.1.2 or later and SIP application

3.1.1 or later. To determine the bootROM version running on the phone,
press the Menu key, select Settings > Status > Platform > Phone, and then
scroll down to BootROM. To determine the SIP application version
running on the phone, press the Menu key, and then select Settings >
Status > Platform > Application > Main.

Refer to Upgrading the Phone’s Software on page 10.

3. Set up the Polycom HDX system. Refer to Setting Up the Polycom HDX

System on page 5.

4. For proper operation, the Polycom HDX must be running 2.5 or later. To
verify the software, go to System > System Information.

If necessary, update the Polycom HDX system software so it can work
with the phone. Refer to Updating the Polycom HDX System Software on
page 5.

3

Integration Guide for the Polycom SoundStation IP 7000 Phone Connected to a Polycom HDX System in Unsupported VoIP Environments

25-foot Network Cable

1 2

5. Connect the phone to the Polycom HDX system. Refer to Connecting the

Phone to the Polycom HDX System on page 5.

6. Make any optional changes to the phone and connect the phone to any
optional components. Refer to Setting Up the Phone on page 7.

Connecting the Phone to the Network

Note

Connecting the SoundPoint IP 7000 conference phone to the network is optional,
but highly recommended (for the reasons discussed at the beginning of this
chapter).

The following figure shows how to connect the phone to the network.

To connect the SoundPoint IP 7000 phone to the network:

1. Connect the 25-foot Network Cable to the LAN jack on the phone.

2. Connect the other end of the 25-foot Network Cable to an available

LAN port on the wall or hub/switch device port.

Note

AC power adapters are not included in the basic phone package. Power will be
provided to the phone from the Polycom HDX system when connected using the
Polycom HDX Microphone Cable.

4
