Polycom AVAYA 500D, AVAYA 550D User Manual

SoundStation Premier

500D

550D

INSTALLATION INSTRUCTIONS AND USER'S GUIDE

SoundStation Premier SoundStation Premier

500D

550D

Installation Instructions and User's Guide

 Read and understand all instructions.  Follow all warnings and instructions marked

on the instrument.

 Installation must be performed in accordance

with all national wiring rules.

 The outlet to which this apparatus is connected

must be installed near the equipment, and must always be readily accessible.

 This instrument can be hazardous if immersed

in water. To avoid the possibility of electrical shock, do not use the telephone equipment while you are in the bathtub or shower, or when you are wet. If you accidentally drop the equipment into water, do not retrieve it until you have first unplugged all cords. Do not reconnect the telephone equipment until it has dried thoroughly.

 Avoid using the telephone equipment during

electrical storms in your immediate area. There is a remote risk of electric shock from lightning. Urgent calls should be brief. Even though protective measures may have been installed to limit electrical surges from entering your home or business, absolute protection from lightning is impossible.

 If you suspect a natural gas leak, report

it immediately, but use a telephone away from the area in question. The telephone equipment's electrical contacts could generate a tiny spark. While unlikely, it is possible that this spark could ignite heavy concentrations of gas.

IMPORTANT SAFETY

INSTRUCTIONS

SAVE THESE INSTRUCTIONS

 Never push objects of any kind into the

telephone equipment through housing slots as they may touch hazardous voltage points or short out parts that could result in a risk of electric shock. Never spill liquid of any kind on the telephone. If liquid is spilled, however, refer servicing to proper service personnel.

 To reduce the risk of electric shock, do

not disassemble this telephone equipment. Opening or removing covers may expose you to hazardous voltages. Incorrect reassembly can cause electric shock when the equipment is subsequently used. If your telephone equipment does not work properly, refer to the section describing how to get service. The support telephone number can be found on the outside back cover of this book.

 Never install telephone wiring during a

lightning storm.

 Never install telephone jacks in wet locations

unless the jack is specifically designed for wet locations.

 Never touch uninsulated telephone wires or

terminals unless the telephone line has been disconnected from the network interface.

 Always use caution when installing or

modifying telephone lines.

When using your telephone equipment, the following safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.

Table of Contents

Chapter 1 SoundStation Premier® 500D

SoundStation Premier® 550D ......................................1

Introduction .......................................................................................2

Checklist of Parts ..............................................................................2

System Compatibility ........................................................................3

To Ensure Better Performance .......................................................... 3

Installing SoundStation Premier 500D/550D ....................................3

Using SoundStation Premier 500D/550D .........................................6

In Case of Difficulty ..........................................................................9

Maintenance ....................................................................................10

Service .............................................................................................10

Chapter 2 Specifications and Warranty Information ...........11

SoundStation Premier 500D/550D .................................................12

Limited Warranty and Limitation of Liability ................................13

FCC Rules .......................................................................................15

Canadian Department of Communications Notice .........................15

EMC Class A ITE ...........................................................................15

CE Mark LVD and EMC Directive .................................................15

SoundStation Premier Installation Instructions and User's Guide

SoundStation Premier® 500D SoundStation Premier® 550D

with Extended Mic Option

Chapter 1

SoundStation Premier Installation Instructions and User's Guide

SoundStation Premier® 500D/550D

Introduction

Thank you for purchasing SoundStation Premier® 500D/550D. SoundStation Premier® 500D/550D delivers the award-winning full-duplex audioconferencing technology from Polycom in a “plug-n-play” design for direct connection to DEFINITY and System 75/85 digital ECS telephone systems.

With SoundStation Premier® 500D/550D, you can now connect directly to your DEFINITY System ECS wall jack with no need for analog terminal adapters, analog lines, or analog line cards to support your conferencing system. Simply plug SoundStation Premier 500D/550D into your ECS at the wall, and you are up and running in seconds.

SoundStation Premier 500D/550D is designed for you by Polycom—the World’s number one provider of audioconferencing products. From small companies to the Fortune 500, from the smallest conference rooms to the largest boardrooms, you will find more Polycom conferencing products in more places than all of our competitors combined.

And now we’ve designed SoundStation Premier® 500D/550D for you, the DEFINITY customer, with the same proven technology and unparalleled audio quality that has made SoundStation Premier the most widely used conferencing product line in the World.

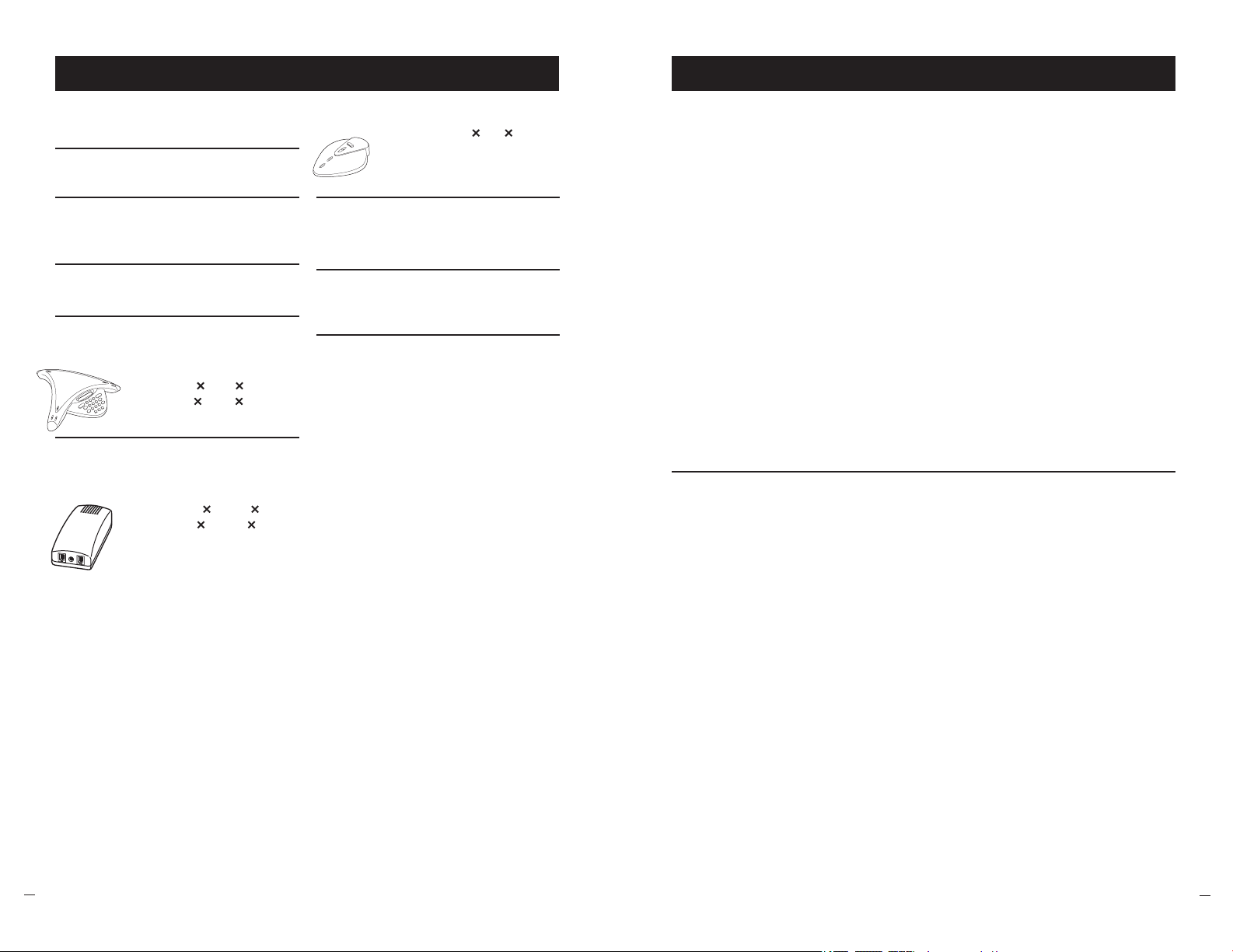

Checklist of Parts

Your SoundStation Premier 500D/550D audioconferencing system includes the following items:

If any of the above parts is missing, please contact your Polycom representative or authorized dealer.

User's Documents

500D/550D Interface Module

Console to Interface Module Cable

Network Cable

RJ11 to RJ45 Adapter Cables

(Additional Adapters Supplied In Some Countries)

Power Adapter (Varies by Country)

Optional Extended Microphones

(For 550D)

Optional Extended Microphones Cables

(For 550D)

System Compatability

SoundStation Premier 500D/550D is compatible with any DEFINITY digital voice port that supports the 6400, 7400 or 8400 series phones (with the exception of the CallMaster series.)

Connection Requirement: Requires standard DEFINITY wall jack. RJ45/RJ11 adapter cables are included for your convenience.

To Ensure Better Performance

 Locate the SoundStation Premier

500D/550D console in a quiet environment, with soft furnishings— such as carpets, curtains, and soundabsorbing walls and ceilings.

 Place the console at the center of a table

or desk.

 Keep papers and other objects away

from the console.

 Seat all participants the same distance

from the SoundStation Premier 500D/550D console.

 Speak at normal conversation levels.

 Direct your voice toward the

SoundStation Premier 500D/ 550D console.

 Do not move the SoundStation Premier

500D/550D console during a call.

 Position extended microphones (option)

6 to 8 feet from the SoundStation Premier 550D console.

 Participants should sit 3 to 6 feet from

a microphone.

Installing SoundStation Premier 500D/550D

1. Insert the short Network Cable into the 500D/550D Interface Module jack marked with the Network icon ( ). Plug the other end into the digital voice jack, as shown below.

(If the connector does not fit, you will

need one of the optional RJ11 to RJ45 Network Cables for connection to the wall jack, and for your phone should you choose that option. This cable has a smaller connector on one end, so try it both ways.)

2. You have the option to install a DEFINITY series telephone along with your SoundStation Premier 500D/550D.

Plug the DEFINITY Telephone cable

into the jack on the 500D/550D Interface Module indicated by the telephone icon ( ).

Modular Wall Jack

500D/550D Interface Module

DEFINITY Telephone

500D/550D Interface Module
