About This Document

This document explains how to configure and maintain one or more SpectraLink 8000 SVP Servers (models SVP100, SVP020, SVP010) within IP telephony environments.

Polycom Model Numbers

This document covers the following registered model number:
SVP100

Related Documents

SpectraLink 8020/8030 Wireless Telephone: Administration Guide for SIP
(1725-36038-001)
Available at.
http://www.polycom.com/usa/en/support/voice/wi-fi/wi-fi.html
Polycom VIEW Certified Products Guide (1725-36040-001)
VIEW Configuration Guide 1725-36xxx-001 where xxx indicates a
number corresponding to the type of access point)
Available at
http://www.polycom.com/support/voice/wi-fi/view_certified.html
Deploying Enterprise-Grade Wi-Fi Telephony Best Practices Guide for Deploying SpectraLink 8020/8030 Wireless Telephones
Available at
http://www.polycom.com/products/voice/wireless_solutions/wifi _communications/handsets/spectralink_8020_wireless.html
PN: 1725-36033-001_G.doc 3
SpectraLink 8000 SVP Server: Administration Guide for SIP

Customer Support

Polycom wants you to have a successful installation. If you have questions, please contact our Customer Support Hotline at 1-888-POLYCOM (1-888-765-9266).
The hotline is open Monday through Friday, 6 a.m. to 6 p.m. Mountain time.
For Technical Support:
For Knowledge Base:
http://www.polycom.com/usa/en/support/voice/voice.html
For Return Material Authorization: rmacoordinator@polycom.com

Icons and Conventions

This manual uses the following icons and conventions.
Caution! Follow these instructions carefully to avoid danger.
Note these instructions carefully.
Label
This typeface indicates a key, label, or button on Polycom hardware.
technicalsupport@polycom.com
4 PN: 1725-36033-001_G.doc
Contents
0 About This Document ............................................................... 3
1 SpectraLink 8000 SVP Server Overview .................................... 7
Polycom Model Numbers ..................................................................3
Related Documents .............................................................................3
Customer Support ...............................................................................4
Icons and Conventions .......................................................................4
SpectraLink Voice Priority (SVP) and Quality of Service ............7
SpectraLink 8000 SVP Server Models ..............................................8
The Timing Function ..........................................................................8
Multiple SVP Servers ..........................................................................8
Multiple SVP Server Capacities ......................................................10
Notes on System Configuration ......................................................12
System Diagram ................................................................................13
System Components .........................................................................14
The Front Panel of the SVP Server ..................................................16
2 Installing the SpectraLink 8000 SVP Server ............................. 19
Required Materials ............................................................................19
Locate the SVP Server .......................................................................20
Install the SVP Server .......................................................................20
3 Configuring the SpectraLink 8000 SVP Server ......................... 23
Connecting to the SVP Server .........................................................23
PN: 1725-36033-001_G.doc 5
SpectraLink 8000 SVP Server: Administration Guide for SIP
The NetLink SVP-II System Menu .................................................24
Network Configuration ....................................................................25
SendAll .........................................................................................26
SVP Server Configuration ................................................................29
QoS Configuration ............................................................................33
Change Password..............................................................................35
4 Swapping/Adding/Deleting SVP Servers ................................ 37
Adding an SVP Server ................................................................37
Removing an SVP Server ...........................................................37
SVP Server Failure ......................................................................38
5 Software Maintenance ........................................................... 39
Software Updates ..............................................................................39
6 Troubleshooting via System Status Menu ................................. 41
Error Status ........................................................................................42
Network Status ..................................................................................43
Software Version ...............................................................................45
7 Safety Notices ....................................................................... 47
6 PN: 1725-36033-001_G.doc

SpectraLink 8000 SVP Server Overview

The SpectraLink 8000 SVP Server is an Ethernet LAN device that works with access points (APs) to provide QoS on the wireless LAN. Voice packets to and from the SpectraLink 8000 Wireless Telephones are intercepted by the SVP Server and encapsulated for prioritization as they are routed to and from an IP telephony server.
1

SpectraLink Voice Priority (SVP) and Quality of Service

SpectraLink Voice Priority (SVP) is the SpectraLink quality of service (QoS) mechanism that is implemented in the wireless telephone and AP to enhance voice quality over the wireless network. SVP gives preference to voice packets over data packets on the wireless medium, increasing the probability that all voice packets are transmitted efficiently and with minimum delay. SVP is fully compatible with IEEE 802.11b standards.
PN: 1725-36033-001_G.doc 7
SpectraLink 8000 SVP Server: Administration Guide for SIP

SpectraLink 8000 SVP Server Models

The SVP Server is available in three models. Which model is selected for your facility depends on current and expected capacity. All SVP Servers within a subnet must be the same model type.
SVP100: Serves 80 calls simultaneously.
SVP020: Serves 20 powered-on handsets.
SVP010: Serves 10 powered-on handsets.
See the following capacity tables for multiple SVP Server system capacities.
All SVP Server models are installed, configured and administered according to the instructions in this document. The model information is available on the Software Version screen. See Chapter 6 Troubleshooting via System Status Menu, section Software Version.

The Timing Function

SVP Servers provide the connection or "gateway" to the IP PBX for the wireless telephones and the "timing" function for active calls. This "gateway" function is distributed across the SVP Servers.
The number of active SVP Servers is determined dynamically. Whenever SVP Servers are added to or removed from the system, the distribution of the "timing" function for active calls is affected.

Multiple SVP Servers

Multiple SVP Server environments are those which have more than one SVP Server. Up to four SVP010 models or up to two SVP020 models may be installed in any one subnet. Up to 16 models of SVP100 Servers may be installed in any one subnet. All SVP Servers must be in the same subnet.
When more than one SVP Servers are installed, the wireless telephone load is balanced across the available Servers, both for the communication path between the SVP Server and the wireless
8 PN: 1725-36033-001_G.doc
SpectraLink 8000 SVP Server Overview
telephones, and between the SVP Server and the PBX (or other far-end device).
SVP Server availability
A SpectraLink handset registers to a single SVP Server the first time it is powered on. Once the handset has contacted this Registration Server, it obtains a list of all SVP Servers in the system. The handset then maintains this list in non-volatile memory and updates it only when rebooted. When a handset later attempts to check in and cannot contact the ordained Registration Server, it will then fall back to its list of other Servers and attempt to check in elsewhere. After the handset has successfully checked into the system once, it never requires that the Registration Server be present unless the handset is reconfigured back to factory defaults, or the entire system of SVP Servers is changed out. See section Swapping/Adding/Deleting SVP Servers.
Registration Server identification
The handsets identify the SVP Server in three possible ways. These are outlined in the Administration and Configuration document for the handset model(s) and the IP protocol being used in your facility. Essentially, the SVP Server can be identified by a static IP address in the Admin menu, by a DHCP option 151 specification, or by a DNS query of “SLNKSVP2”. The address found identifies the Registration Server.
PN: 1725-36033-001_G.doc 9
SpectraLink 8000 SVP Server: Administration Guide for SIP
Number of handsets
SVP010
SVP020

Multiple SVP Server Capacities

The system capacity of each SVP Server model is shown in the tables below. Note that SVP Server models may not be combined within one subnet.
SpectraLink SVP010 and SVP020 Server capacity
The system capacity of the SVP010 and SVP020 is measured by number of powered-on handsets. If this number exceeds the maximum, the handset that cannot be served will display an error and will not connect to the SVP Server. Other handsets will not be affected.
Number of SVP
Servers
1 10 20 2 20 40 3 30 N/A 4 40 N/A
SpectraLink SVP100 Server capacity
The capacity of the SVP100 Server is determined by active calls. The table below shows the capacity of an IP gateway in a multiple-SVP Server environment. The table shows the total possible calls at 100% active calls. However, since it is unlikely that all handsets will be in use at the same time, the table then analyzes the number of handsets that could be installed in any given system where 10%, 15% or 20% of the handsets are in active calls at any one time. The calculations are not linear due to the Erlang
1
An Erlang is a unit of telecommunications traffic measurement. Strictly speaking, an Erlang represents the continuous use of one
voice path. In practice, it is used to describe the total traffic volume of one hour.
Erlang traffic measurements are made in order to help telecommunications network designers understand traffic patterns within their voice networks. This is essential if they are to successfully design their network topology and establish the necessary trunk group sizes.
Erlang traffic measurements or estimates can be used to work out how many lines are required between a telephone system and a central office (PSTN exchange lines), or between multiple network locations.
Please visit www.erlang.com for additional information.
1
calculation for telephony traffic. The
10 PN: 1725-36033-001_G.doc
SpectraLink 8000 SVP Server Overview
Possible installed handsets
possible installed handsets figures are approximate and meant as a guideline and not as an absolute recommendation for any facility.
Number
of SVP
Servers
1 80 80 65 500 433 325 2 64 128 111 1000 740 555 3 60 180 160 1500 1067 800 4 58 232 211 2000 1407 1055 5 57 285 262 2500 1747 1310 6 56 336 312 3000 2080 1560 7 56 392 367 3500 2447 1835 8 55 440 415 4000 2767 2075
9 55 495 469 4500 3127 2345 10 55 550 524 5000 3493 2620 11 55 605 578 5500 3853 2890 12 54 648 621 6000 4140 3105 13 54 702 674 6500 4493 3370 14 54 756 728 7000 4853 3640 15 54 810 782 7500 5213 3910 16 54 864 836 8000 5573 4180
Number
of calls
possible
per Server
Total possible
installed handsets
@ 100% in active calls
Erlang
@ 10%
in active
calls
@ 15%
in active
calls
@ 20%
in active
calls
PN: 1725-36033-001_G.doc 11
SpectraLink 8000 SVP Server: Administration Guide for SIP

Notes on System Configuration

In an IP system using subnets to differentiate telephony areas, each subnet must have its own APs. Each subnet may require an SVP Server to maintain voice quality, but this depends on traffic volume and router capacity.
Multiple SVP Server environments are those which have more than one SVP Server.
SVP Server models may not be combined within one subnet. More than one SVP Server model type may be used within a facility if installed on different subnets.
Wireless telephones cannot roam with uninterrupted service between subnets unless specific LAN components are present. Certain AP/Ethernet switch combinations establish a layer-2 tunnel across subnets that enables the handsets to roam. Without this capability, any call in progress will be dropped when the user moves out of range and the handset must be power cycled in order to resume functionality in the new subnet area.
Please see Best Pr actices for Deploying Enterprise-Grade Wi-Fi Telephony for detailed configuration information when installing multiple SVP Server models across several different subnets.
IP multicast addresses are used when SpectraLink i640 and 8030 Wireless Telephones are installed. This requires that multicasting be enabled on the subnet used for the SpectraLink 8000 Wireless Telephones, SVP Server, and telephony gateways.
Routers are typically configured with filters to prevent multicast traffic from flowing outside of specific domains. The wireless LAN can be placed on a separate VLAN or subnet to reduce the effects of broadcast and multicast traffic from devices in other network segments.
The SVP Server requires a Cat. 5 cable connection between its network port and the Ethernet switch. The SVP Server auto­negotiates to the type of port on the Ethernet switch and supports 10Base-T, 100Base-T, full-duplex and half-duplex port types.
12 PN: 1725-36033-001_G.doc

System Diagram

SVP Server
Access point
Wireless
SpectraLink
Access point
Optional
PSTN
PBX
(showing
SpectraLink
SpectraLink 8000 System Integrated into IP Telephony System
The following diagram shows multiple SVP Servers residing on a network with an IP telephony gateway and IP telephony server, wireless LAN APs, and Ethernet switch:
SpectraLink 8000 SVP Server Overview
SpectraLink 8000
SVP Server
SpectraLink 8000
SVP Server
Wireless Telephones
POS
Wireless Telephones
SpectraLink 8000
System Components
TFTP server
Ethernet switch
IP gateway
or
Ethernet cable Phone cable
SpectraLink 8000
optional multiple
SVP Servers)
IP phones
PN: 1725-36033-001_G.doc 13
SpectraLink 8000 SVP Server: Administration Guide for SIP

System Components

SpectraLink e340/h340/i640 and 8020/8030 Wireless Telephones
Employees can carry wireless telephones to make and receive calls as they move through the WLAN coverage area. The wireless telephones are to be used on-premises; they are not cellular or satellite phones. Just like wired telephones, they can receive calls directly, receive transferred calls, transfer calls to other extensions, and make outside and long distance calls (subject to the restrictions applied in your facility.)
Access points
Supplied by third party vendors, APs provide the connection between the wired Ethernet LAN and the wireless (802.11) LAN. APs must be positioned in all areas where wireless telephones will be used. The number and placement of APs will affect the coverage area and capacity of the wireless system. Typically, the requirements for use of SpectraLink 8000 Wireless Telephones are similar to those of wireless data devices. Contact Polycom, or a certified Polycom distributor, for specific information about your facility’s needs.
The SpectraLink 8000 System must connect to APs that utilize SpectraLink Voice Priority (SVP). Contact Polycom, or a certified Polycom distributor, to verify that your AP and its software version are supported.
Ethernet switch
A component in the wired Ethernet LAN infrastructure. Switches interconnect multiple network devices, including APs and other components. Ethernet switches are required to provide the higher performance network connections needed to handle combined voice and data traffic.
14 PN: 1725-36033-001_G.doc
SpectraLink 8000 SVP Server Overview
Router
A router is an optional component in the wired Ethernet LAN infrastructure that separates a wired LAN into segments so that network traffic is restricted to those segments that are directly involved in the communication. Installation of a network router is recommended in larger networks, where there may be significant network traffic not related to the wireless LAN. A router will isolate the wireless LAN from the associated wired LAN so that they are not impacted by each others’ traffic. The SVP Servers, the APs, and their associated Ethernet switch must all be on the same “side” of the router.
SpectraLink 8000 SVP Server
The SVP Server manages call network traffic as detailed in this document.
Administrative computer
An administrative computer is required for setup and maintenance of the SVP Server. This computer may be temporarily connected directly to the component or to the network; a dedicated computer is not required. Some installations use a laptop to configure and maintain system components.
TFTP server
Required in an IP system to distribute software to the wireless telephones and SVP Server. May be on a different subnet than the IP gateway, IP telephony server, and APs.
PN: 1725-36033-001_G.doc 15
SpectraLink 8000 SVP Server: Administration Guide for SIP
Status
3 4 5 1 2

The Front Panel of the SVP Server

The SVP Server’s front panel contains ports to connect to power, the LAN, and to an administrative computer via an RS-232 port. Status LEDs supply information about the SVP Server’s functioning.
L
A
RS-232
N K O K
C
C
O
T
L
NETWORK
RS-232 Port: male DB-9 connector (DTE) used for RS-232 connection to
a terminal, terminal emulator, or modem for system administration.
E R R O R
PWR
LEDs
LNKOK: Lit when there is a network connection.
ACT: Lit if there is system activity.
COL: Lit if there are network collisions.
NETWORK: Port to wired (Ethernet) LAN.
ERROR: Lit when the system has detected an error.
STATUS: Indicate system error messages and status.
1: Heartbeat, indicates gateway is running.
2: If active calls.
3: SVP Server is locked.
4: Currently unused.
5: This SVP Server is the cluster master.
PWR (power jack): Connects to the AC adapter supplying power to the
system.
Use only the Polycom-provided Class II AC Adapter with output 24V DC, 1A.
16 PN: 1725-36033-001_G.doc
SpectraLink 8000 SVP Server Overview
Note that the model designation may be found on the label which is on the side of the SVP Server.
PN: 1725-36033-001_G.doc 17

Installing the SpectraLink 8000 SVP Server

As shown in the system diagram, the SVP Server is connected to the Ethernet switch. The specifications covered here allow for great flexibility in physical placement of the components within stated guidelines.
See the Configuration and Administration document for your vendor’s IP system for information on LAN requirements, network infrastructure and IP addressing.
2
This unit must be installed by a service person familiar with the installation of electronic equipment.
Do not power up the unit before it has been properly grounded to a protective earth. See Grounding instructions below.

Required Materials

The following equipment must be provided by the customer.
Power outlet – AC adapter provided by Polycom. Backboard space – the SVP Server is designed to be wall- mounted
to ¾" plywood securely screwed to the wall.
Screws – required to mount the SVP Server to the wall. Four #8
3/4" panhead wood screws (or similar device) are required.
Cat. 5 cable – RJ-45 connector at the SVP Server. Connection to
Ethernet switch.
Grounding materials per section below Grounding Instructions.
PN: 1725-36033-001_G.doc 19
SpectraLink 8000 SVP Server: Administration Guide for SIP

Locate the SVP Server

The SVP Server measures approximately 4 x 12.5 x 7 inches, and weighs about five pounds. The unit can be wall- mounted, vertically or horizontally, over ¾" plywood. The SVP Server can also be rack­mounted using a rack- mount kit (sold separately).
Locate the SVP Server in a space with:
Sufficient backboard mounting space (for wall mount) and
proximity to the LAN access device (switched Ethernet hub) and power source.
Easy access to the front panel, which is used for cabling.
A maximum distance of 325 feet (100 meters) from the Ethernet
switch.

Install the SVP Server

The SVP Server may be mounted on a rack or to a wall.
Mount the SVP Server on a rack
The rack-mount kit is designed for mounting equipment in a standard 19- inch rack and should contain the following equipment:
Mounting plates – two for each SVP Server to be mounted. Screws – four rack-mount screws for each SVP Server to be
mounted.
To rack-mount the SVP Server:
1. Remove the corner screws from the SVP Server.
2. Screw the U-shaped end (round screw holes) of the two mounting
plates to the SVP Server.
3. Screw the other end of the two mounting plates (oblong screw
holes) to the rack.
4. Repeat steps 1-3 for each additional SVP Server. The mounting
plate is designed to provide the correct minimum spacing between units. When mounting multiple units, stack the units in the rack as closely as possible.
20 PN: 1725-36033-001_G.doc
Installing the SpectraLink 8000 SVP Server
Mount the SVP Server to a wall
The SVP Server can be mounted either horizontally or vertically.
To mount the SVP Server to a wall:
1. Using a 1/8-inch drill bit, drill four pilot holes, on 1.84-inch by
12.1-inch centers (approximately equivalent to 1-13/16” by 12-1/8”).
2. Insert the #8 3/4-inch screws in the pilot holes and tighten,
leaving a 1/8-inch to 1/4-inch-gap from the wall.
Grounding instructions
The metal chassis of this unit may contain leakage currents (i.e., "touch" current) which is cumulative when multiple units are
Safety
Warning
connected together to form a system. To prevent the summation of leakage currents from being present on exposed metal surfaces, the following installation procedure must be followed.
All system units must be grounded to a protective earth by means of the grounding stud located on the rear panel. Refer to the illustration below for recommended continuity connection.
No more than 15 units may be grounded through one connection to the protective earth ground. Systems involving more than 15 units must be broken up into groups of 15 or fewer units with each group provided with an independent protective earthing conductor.
PN: 1725-36033-001_G.doc 21
SpectraLink 8000 SVP Server: Administration Guide for SIP
Connect SVP Server to LAN
Using a Cat. 5 cable, connect the NETWORK port on the SVP Server to the connecting port on the Ethernet switch.
Connect power
1. Once the units have been properly grounded, connect the power
plug from the AC adapter to the jack labeled Server.
Use only the provided Class II AC Adapter with output 24V DC, 1A.
2. Plug the AC adapter into an 110V AC outlet to apply power to the
SVP Server.
3. Verify that leakage current ("touch" current) is below 250 μA rms
on exposed metal surfaces.
PWR on the SVP
4. If leakage is excessive, power off the system and re-verify ground
path continuity.
5. The system will cycle through diagnostic testing and the LEDs
will blink for about one minute. When the system is ready for use:
The ERROR LED should be off. Status 1 should be blinking.
22 PN: 1725-36033-001_G.doc
3

Configuring the SpectraLink 8000 SVP Server

During initial setup of the SVP Server the IP address is established and the maximum number of active calls per AP is set. Optionally, you may enter a hostname and a location for software updates via TFTP.

Connecting to the SVP Server

The initial connection to the SVP Server must be made via a serial connection to establish the SVP Server’s IP address. After the IP address is established, connection to the SVP Server may be done via the network using telnet. It is recommended that the basic setup actions occur while the serial connection is made.
Connect via the serial port
1. Using a DB-9 female, null-modem cable, connect the SVP Server to
the serial port of a terminal or PC.
2. Run a terminal emulation program (such as HyperTerminal™) or
use a VT-100 terminal with the following configuration:
Bits per second: 9600
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
3. Press Enter to display the SVP Server login screen.
4. Enter the default login: admin and default password: admin.
These are case sensitive.
5. The
PN: 1725-36033-001_G.doc 23
NetLink SVP-II System menu will display.
SpectraLink 8000 SVP Server: Administration Guide for SIP
Connecting via telnet
Telnet can only be used after the SVP Server’s IP address is configured.
The telnet method of connection is used for routine maintenance of the SpectraLink Server for both local and remote administration, depending on your network.
To connect via telnet, run a telnet session to the IP address of the SVP Server. Once you connect and log in, the displays.

The NetLink SVP-II System Menu

The main menu displays as shown here:
NetLink SVP-II System menu
System Status
Menu for viewing error messages, status of operation and software code version.
SVP-II Configuration
Allows you to set the mode and reset the system.
24 PN: 1725-36033-001_G.doc

Network Configuration

Allows you to set network configuration options, including IP address and hostname.
Change Password
Allows you to change the password for SVP Server access.
Network Configuration
The IP address and other network settings are established via the
Network Configuration screen. This is also where you may optionally
establish a hostname and enter the IP address of the location of any software updates you may obtain from Polycom. See Chapter 5 Software Maintenance for more information about installing software updates via TFTP.
Configuring the SpectraLink 8000 SVP Server
Scroll to similar to the following appears:
Network Configuration and select by pressing Enter. A screen
Note the navigation options at the bottom of the screen. Press Enter to change a value, ESC to exit the screen, and the arrow keys to move the cursor.
PN: 1725-36033-001_G.doc 25
SpectraLink 8000 SVP Server: Administration Guide for SIP

Navigation Option

SendAll
In an IP system with multiple SVP Servers, the SendAll option is provided to speed configuration and to ensure identical settings. The
S=SendAll option allows you to send that configuration parameter to
every SVP Server on the LAN. address is established on EACH SVP Server via the serial connection.
If you anticipate identical settings across the LAN, set just the IP address and custom hostname (if desired) for each SVP Server using the initial serial connection. Then connect via the LAN and configure one SVP Server, pressing configuration options for all other SVP Servers in the system.
SendAll is to be utilized in your system, all SVP Server passwords
If must be identical. DO NOT CHANGE THE PASSWORD AT THE INITIAL CONFIGURATION IF THE Use the default password and change it globally if desired after a LAN connection is established for all SVP Servers.
SendAll can only be used after the IP
S to use the SendAll option to set identical
SendAll OPTION IS DESIRED.
If independent administration of each SVP Server is desired, the passwords may be set at initial configuration.
The following options must be configured:

Configuration Options

All options must be given an entry, but some options do not need to be configured. If no configuration is desired, use the default setting
NONE. If you want to clear a configuration, overtype it with NONE.
The following options must be configured:
IP Address
Enter the IP address of the SVP Server, defined by your network administrator. Enter the complete address including digits and periods.
The SVP Server will automatically lock for maintenance if the IP address is changed. When this must be reset upon exit. All active calls are terminated during a reset.
DHCP may be entered.
Maintenance Lock occurs, the SVP Server
26 PN: 1725-36033-001_G.doc
Configuring the SpectraLink 8000 SVP Server
Hostname
(Optional) change the default host name, if desired. This is the name of the SVP Server to which you are connected, for identification purposes only. You cannot enter spaces in this field. Valid characters are numbers 0-9, letters a-z A-Z, or an underscore _.
The host names for each SVP Server and OAI Gateway on the system must be unique.
Subnet Mask
The network administrator must define the subnet mask.
Default Gateway
The IP address of a router on the local subnet.
SVP-II TFTP Download Master
This entry indicates the source of software updates for the SVP Server. See Chapter 5 Software Maintenance for more information. Valid source location entries are:
NONE: disables.
IP Address: The IP address of a network TFTP server that will be
used to transfer software updates to the SVP Server.
DNS Server and DNS Domain
These settings are used to configure Domain Name services. Consult your system administrator for the correct settings. These can also be set to
DHCP. This will cause the DHCP client in the SVP Server to
attempt to automatically get the correct setting from the DHCP server. The DHCP setting is only valid when the IP address is also acquired using DHCP.
WINS Servers
These setting are used for Windows Name Services. Consult your system administrator for the correct settings. These can also be set to
DHCP. This will cause the DHCP client in the SVP Server to attempt to
automatically get the correct setting from the DHCP server. The
PN: 1725-36033-001_G.doc 27
SpectraLink 8000 SVP Server: Administration Guide for SIP
DHCP setting is only valid when the IP address is also acquired using DHCP.
When the name services are set up correctly, the SVP Ser ver can translate hostnames to IP addresses. Using telnet, it is also possible to access the SVP Server using its hostname instead of the IP address.
Workgroup
As set in WINS.
Syslog Server
Logging may be set to either DHCP (see DNS above), an [IP address] or
NONE. If Syslog is set, a message is sent to the syslog server when an
alarm is triggered.
Disable Telnet service
Prevents Telnet access into the SVP Server. Reset the SVP Server for the change to take effect. Upon reset the Telnet protocol server is not started.
The SVP Server must be reset in order to set the configuration options. If the SVP Server is in Maintenance Lock, you must manually reset it by selecting the pressing Y upon exit.
Reset option in the SVP-II Configuration screen and then
28 PN: 1725-36033-001_G.doc

SVP Server Configuration

The SVP-II Configuration screen is where you set the mode of the SVP Server. It is also where you can lock the SVP Server for maintenance and reset the SVP Server after maintenance. The type of gateway you are using determines the mode of the SVP Server.
From the main menu, scroll to SVP-II Configuration and select by pressing Enter.
Configuring the SpectraLink 8000 SVP Server
Ensure the SVP-II Mode is set to NetLink IP as shown in the above screen.
The following options must be configured:
Phones per Access Point
AP specifications are detailed in the Configuration Notes for each brand and type. Refer to these notes when entering the number of simultaneous calls supported for your type.
802.11 Rate
Select 1MB/2MB to limit the transmission rate between the wireless telephones and APs. Select to determine its rate.
PN: 1725-36033-001_G.doc 29
Automatic to allow the wireless telephone
SpectraLink 8000 SVP Server: Administration Guide for SIP
First Alias IP Address/Last Alias IP Address
The SVP Server uses an IP address when acting as a proxy for the wireless telephone. Therefore, one alias IP address is required for every installed Wireless Telephone. These IP addresses must be entered as a range and must be assigned solely for this purpose.
When multiple SVP100 Servers are installed, a different range must be configured in each SVP Server. In determining how many addresses to configure per SVP Server, use this formula: (# of handsets / # of SVP Servers) + 30%. This formula will accommodate the possibility of unequal distribution of handsets among the available SVP Servers.
All alias addresses must be on the same subnet as the SVP Server and cannot be duplicated on other subnets or SVP Servers. There is no limit to the number of addresses that can be assigned, but the capacity of each SVP Server is 500 wireless telephones.
Alias IP Addresses are not necessary in Cisco systems.
Enable H.323 Gatekeeper
In certain H.323 protocol systems, the SVP Server may function as a gatekeeper. Enter Y to have the SVP Server function as the gatekeeper in the H.323 protocol environment.
Ethernet link
The SVP Server will auto-negotiate unless there is a need to specify a link speed.
Check-in throttling
The check-in throttling option regulates the number of handsets that can check-in simultaneously. The error caused by a massive check-in that has overwhelmed the server. If persisting, throttling may be raised. However, a setting that is too high may slow check-in performance. The option allows for a setting from 0 to 4, with 0 being the least amount of throttling and 4 being the most. Consult with Customer Support for help in determining if throttling is advised for your system.
Maximum payloads reached is
30 PN: 1725-36033-001_G.doc
Configuring the SpectraLink 8000 SVP Server
Missed ding limit
The Missed ding limit defaults to 3 and should be left at this setting unless advised by Customer Service to raise or lower it. The DING message is a proprietary method of communication among system elements. This setting is designed to assist service engineers in fine­tuning system performance and should not be changed without their consultation.
System Locked
This option is used to take the system down for maintenance. The default entry is starting. Return to
Load balancing enables a locked SVP Server to distribute idle handsets to other SVP Servers in the cluster. Existing calls will not be interrupted and the SVP Server will become idle once all calls are ended and idle phones are transferred to another SVP Server.
N (No). Set it at Y (Yes) to prevent any new calls from
N to restore normal operation.
Maintenance Lock
The system automatically sets this option to Y (Yes) after certain maintenance activities that require reset, such as changing the IP address. that the administrator cannot change this option. It is automatically set by the system. Reset the system at exit to clear
Maintenance Lock prevents any new calls from starting. Note
Maintenance Lock.
Inactivity Timeout (min)
Set the number of minutes the administrative module can be left unattended before the system closes it. This number can be from 1 to
100. If it is set to zero (0), the administrative module will not close due to inactivity.

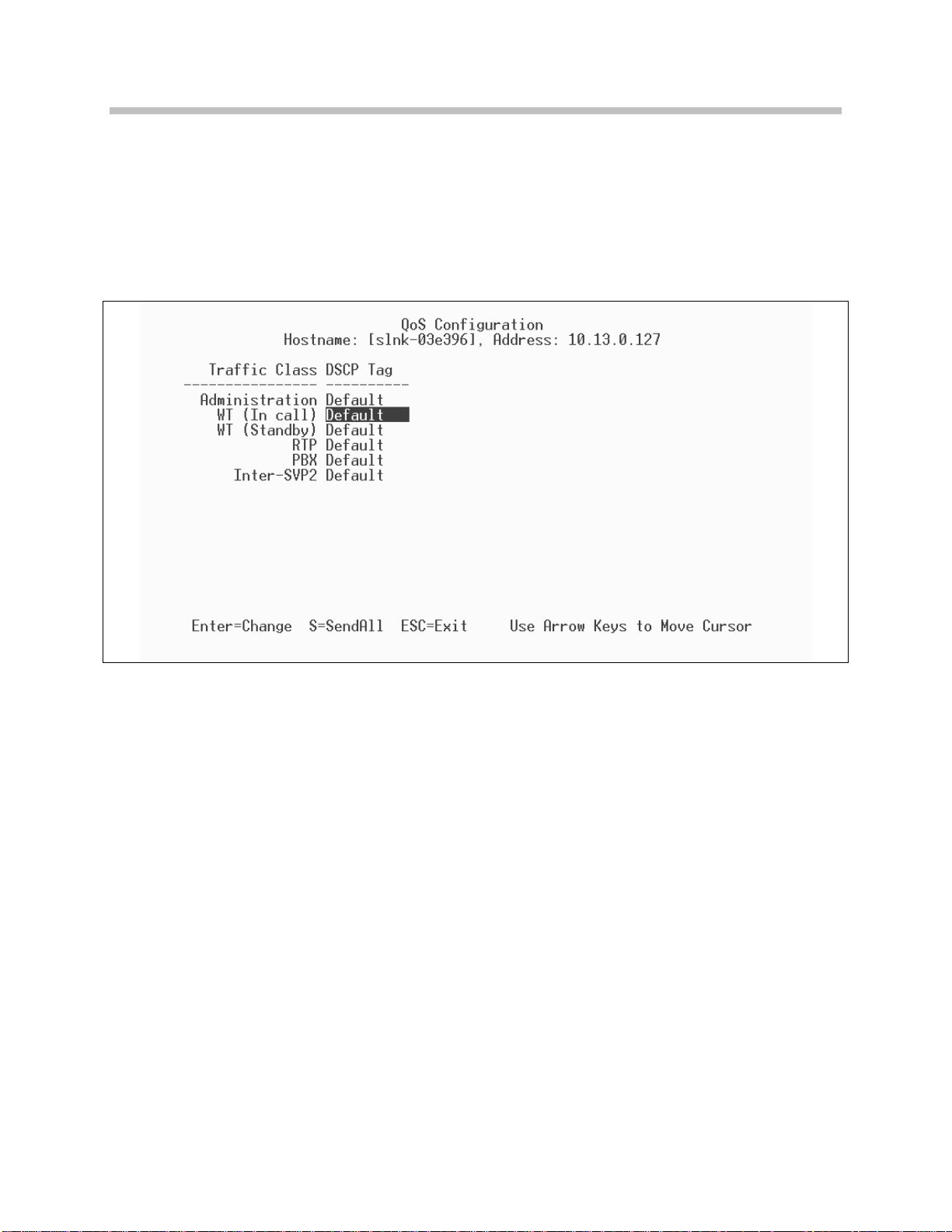

QoS Configuration
Select this option to set the DSCP tags. See QoS Configuration section below.
PN: 1725-36033-001_G.doc 31
SpectraLink 8000 SVP Server: Administration Guide for SIP
Reset System
If this option is selected, you will be prompted to reset the SVP Server upon exiting this screen.
Reset all SVP Servers
If this option is selected, you will be prompted to reset all SVP Servers upon exiting this screen. This is necessary if you have changed configurations on other SVP Servers by using the
The SVP Server should be reset at the end of any maintenance procedure that requires a reset either via Maintenance Lock or manually via Reset System.
Note that resetting the SVP Server will terminate any calls in progress. See the Network Status section for information on determining if active calls exist.
SendAll option.
32 PN: 1725-36033-001_G.doc

QoS Configuration

DSCP tags set packet priorities for QoS.
Configuring the SpectraLink 8000 SVP Server
DSCP Tag
DSCP (Differentiated Services Code Point) is a QoS mechanism for setting relative priorities. Packets are tagged with a DSCP field in the IP header for type of service. The decimal value may be set as a number from 0-63 and may be different for each traffic class listed on the screen.
Administration tags set the priority for telnet, TFTP, and other
administrative traffic. Administrative traffic can have the lowest priority because it does not require voice quality.
WT (In call) traffic requires voice quality and may be set to a higher
priority than
RTP traffic is the audio traffic to the IP PBX. It requires voice
quality.
PBX traffic is not audio to the PBX.
Inter-SVP2 traffic is the information-passing protocol that SVP
Servers use to communicate with each other.
WT (Standby) traffic.
PN: 1725-36033-001_G.doc 33
SpectraLink 8000 SVP Server: Administration Guide for SIP
When forwarding packets, the SVP Server overwrites the received DSCP value. The final DSCP tag for packets in each of the traffic classes are assigned a DSCP value based on the following rules and per the table below.
Packets are tagged with the corresponding Traffic Class value entered in the QoS Configuration menu if the value for the Traffic Class is set to something other than Default.
Otherwise, packets are tagged with the Administration Traffic Class value (the first item in the QoS Configuration Menu) if the corresponding Traffic Class is set to Default and the Administration Traffic Class value is set to something other than Default.
Finally, packets are tagged with the Default value of the corresponding Traffic Class if both the corresponding Traffic Class and the Administration Traffic Class values are set to Default. The following table lists the Default values for the DSCP tags.
Traffic Class Default Administration Priorit y Low 0 WT (In call) Priority High 4 WT (Standby) Priority Med 0 RTP Priority High 4 PBX Priority Med 0 Inter-SVP2 Priority Med 0
Default DSCP settings will mark traffic for Best Effort handling under normal circumstances. Please consider changing these values based on the recommended QoS settings from your network hardware manufacturer to achieve prioritization for your voice traffic.
34 PN: 1725-36033-001_G.doc

Change Password

If desired, the password to access the SVP Server may be changed.
A password must meet the following requirements:
It must be more than four characters, but cannot exceed 16
characters.
The first character must be a letter.
Only numbers and letters are allowed.
No dashes, spaces, or punctuation marks, etc. are allowed.
Configuring the SpectraLink 8000 SVP Server
Select
Change Password from the main menu. A screen similar to the
following will appear:
Enter the information and either select Set Password or press the S key to set the new password.
If you are using the
Send All option as described above in Network
Configuration every SVP Server must have the same password. Please review that section for additional information about using
Send All.
If you forget a password, call Polycom Customer Service for assistance.
PN: 1725-36033-001_G.doc 35
4

Swapping/Adding/Deleting SVP Servers

Whenever an SVP Server is removed from the system, wireless telephones that are using the SVP Server will be affected and calls may be lost. If the removal of the SVP Server is intentional, the administrator should lock and idle the system prior to removing an SVP Server.
Load balancing enables a locked SVP Server to distribute idle handsets to other SVP Servers in the cluster. Existing calls will not be interrupted and the SVP Server will become idle once all calls are ended and idle phones are transferred to another SVP Server.

Adding an SVP Server

A new SVP Server is detected within two seconds of being added to the system (booted/configured/connected). When detected, wireless telephones not active in a call will gradually be forced to reboot and check in again. Any wireless telephone in a call will immediately switch to the SVP Server that should provide its "timing" function. This switch should not be noticeable to the user since it is similar to a normal handoff between APs. When the wireless telephone ends the call, it will eventually be forced to reboot and check in again. Only a few handsets at a time are rebooted to prevent excessive check in traffic on the network. Handsets scheduled to be rebooted can still make calls and will be rescheduled for reboot when the call is ended.

Removing an SVP Server

The preferred method for removing an SVP Server from an active system is to first lock the SVP Server. When an SVP Server is locked for removal from the system, load balancing enables the locked SVP Server to distribute idle handsets to other SVP Servers in the cluster. Active calls will not be interrupted. The locked SVP Server will
PN: 1725-36033-001_G.doc 37
SpectraLink 8000 SVP Server: Administration Guide for SIP
become idle once all calls are ended and idle handsets are registered to other SVP Servers. Once all handsets have been moved---as evidenced by the number of screen---the idle SVP Server may be unplugged and removed from the system.
During this process, there is a short period where a handset registered on a locked SVP Server may attempt to initiate a call before it is re­registered to another SVP Server. In this case, if there is an unlocked SVP Server in the cluster, the SVP Server will tell the handset to reboot. As it reboots, the handset will check-in with an available SVP Server and the user may then start a call. Handsets registered on unlocked SVP Servers are not affected.
Of course if a system only has one SVP Server, no calls will be possible until the removed SVP Server is replaced.

SVP Server Failure

Telephones in Use on the Network Status
If an SVP Server becomes unable to manage calls or fails, any handset registered to that SVP Server loses service (and any calls) and will reboot within 30 seconds. After rebooting, the handset will register with another SVP (if there is one available) and be able to make new calls. Handsets not registered on the failed SVP may experience a few seconds of disruption in audio but are otherwise unaffected.
38 PN: 1725-36033-001_G.doc

Software Maintenance

The SVP Server uses proprietary software programs written and maintained by Polycom Corporation. The software versions that are running on the system components can be displayed via the
Status
screen.
You may obtain information about software updates from Polycom or its authorized dealer.
At startup the SVP Server uses TFTP to check the software version it is running against the version in the TFTP location. If there is a discrepancy, the SVP Server will download the version in the TFTP location. See the Configuration and Administration document for your vendor’s IP system for more information about using TFTP.
5
System

Software Updates

Lock the SVP Server in the SVP-II Configuration screen prior to updating the software. In multiple SVP Server systems, all SVP Servers must be locked and upgraded at the same time.
Downloads for the SVP Server are available from
http://www.polycom.com/usa/en/support/voice/wi­fi/spectralink_8000_svp_server.html.
After software updates are obtained from Polycom, they must be transferred to the TFTP location in the LAN to update the code used by the SVP Server(s).
Note that locking the SVP Server will prevent new calls from starting. All calls in progress will be terminated when the SVP Server is reset.
PN: 1725-36033-001_G.doc 39
6

Troubleshooting via System Status Menu

Information about system alarms, and network status displays on various screens accessed through the is opened from the main menu of the SVP Server. See the previous sections for directions on how to connect to the SVP Server and navigate to the
System Status Menu.
System Status Menu screen, which
Error Status - Displays alarm and error message information.
Network Status - Displays information about the Ethernet network to
which the SVP Server is connected.
Software Versions - Lists the software version for each SpectraLink
component.
Gatekeeper Database - Not used in a SIP environment.
Options on the operation of the components of the system. Use this data to determine
PN: 1725-36033-001_G.doc 41
System Status Menu provide a window into the real time
SpectraLink 8000 SVP Server: Administration Guide for SIP
Alarm Text
Action
system function and to troubleshoot areas that may be experiencing trouble.

Error Status

The Error Status screen displays any alarms that indicate some system malfunction. Some of these alarms are easily remedied and others require a call to Polycom’s Customer Support Department.
From the
System Status Menu, select Error Status. The screen displays
active alarms on the SVP Server.
The following table displays the list of alarms and a description of the action to take to eliminate the alarm.
Maximum payload usage reached Reduce usage, clear alarm2 Maximum telephone usage reached Reduce usage, clear alarm Maximum access point usage reached Reduce usage, clear alarm Maximum call usage reached Reduce usage, clear alarm SRP audio delayed Reduce usage, clear alarm SRP audio lost Reduce usage, clear alarm No IP address Configure an IP address SVP Server(s) lost Reduce usage or replace lost
SVP Server. Clear alarm
Press C to clear all clearable alarms.
2
If capacity problems persist, additional SVP Servers may need to be added to the system to improve performance.
42 PN: 1725-36033-001_G.doc

Network Status

The SVP Server is connected to the Ethernet network, referred to as the LAN or Local Area Network. The information about that connection is provided through the
Troubleshooting via System Status Menu
Network Status screen.
From the information about the Ethernet network. This information can help troubleshoot network problems. A sample screen is displayed here.
System Status Menu, select Network Status. The screen displays
Ethernet Address – MAC address of the SVP Server (hexadecimal).
System Uptime – The number of days, hours and minutes since the SVP
Server was last reset.
Net – The type of connection to the Ethernet switch currently utilized.
See SVP100 Capacity for more information.
Data is transmitted over SpectraLink components by proprietary technology developed by Polycom Corporation. The SpectraLink Radio Protocol (SRP) packets and bytes can be differentiated from other types of transmissions and are used to evaluate system functioning by Polycom customer support and engineering personnel.
PN: 1725-36033-001_G.doc 43
SpectraLink 8000 SVP Server: Administration Guide for SIP
RX – Ethernet statistics concerning the received packets during System
Uptime.
bytes – bytes received
packets – packets received
errors – Sum of all receive errors (long packet, short packet, CRC,
overrun, alignment)
drop – packets dropped due to insufficient memory
fifo – overrun occurred during reception
alignment – nonoctet-aligned packets (number of bits NOT
divisible by eight)
multicast – packets received with a broadcast or multicast
destination address
TX – Ethernet statistics concerning the transmitted packets during
System Uptime.
bytes – bytes transmitted
packets
errors
repeated collision, underrun, carrier)
drop
fifo
carrier – carrier lost during transmission
collisions
SVP-II Access Points in Use – APs in use by wireless telephones, either in
– packets transmitted
– Sum of all transmit errors (heartbeat, late collision,
– packets dropped due to insufficient memory
– underrun occurred during transmission
– packets deferred (delayed) due to collision
standby or in a call. ‘Last’ is current, ‘Max’ is the maximum number in use at one time.
SVP-II Access Points in Calls – APs with wireless telephones in a call.
SVP-II Telephones in Use – wireless telephones in standby or in a call.
SVP-II Telephones in Calls – wireless telephones in a call.
SVP-II SRP Audio (Delay) – SRP audio packets whose transmission was
momentarily delayed.
SVP-II SRP Audio (Lost) – SRP audio packets dropped due to insufficient
memory resources.
44 PN: 1725-36033-001_G.doc

Software Version

The SVP Server and wireless telephones utilize Polycom Corporation’s proprietary software that is controlled and maintained through versioning. The about the version currently running on the SVP Server. This information will help you determine if you are running the most recent version and will assist Polycom engineering and/or customer support in troubleshooting software problems.
This screen also displays the model type.
Troubleshooting via System Status Menu
Software Version screen provides information
From the displayed here.
System Status Menu, select Software Version. A sample screen is
Note that the software versions on your system may be different from the versions displayed in the above sample screen.
PN: 1725-36033-001_G.doc 45
SpectraLink 8000 SVP Server: Administration Guide for SIP
Number
The table below shows the description, major version numbers, and filenames of the files that are provided when downloading updates.
Name
Table of contents 173 svp100.toc Functional code 174 zvmlinux File system 175 flashfs
Major Version
Filename
The major version numbers will not change, but minor version numbers to the right of the decimal change with each release. The minor version numbers for these three files must all match, as they do in the screen example (17x.024).
46 PN: 1725-36033-001_G.doc

Safety Notices

WARNING: Changes or modifications to this equipment not approved by SpectraLink Corporation may cause this equipment to not comply with part 15 of the FCC rules and void the user’s authority to operate this equipment.
WARNING: SpectraLink products contain no user-serviceable parts inside. Refer servicing to qualified service personnel.
IMPORTANT SAFETY INFORMATION Follow these general precautions while installing telephone equipment:
Never install telephone wiring during a lightning storm.
Never install telephone jacks in wet locations unless the jack is
specifically designed for wet locations.
Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.
Use caution when installing or modifying telephone lines
PN: 1725-36033-001_G.doc 47
Loading...
