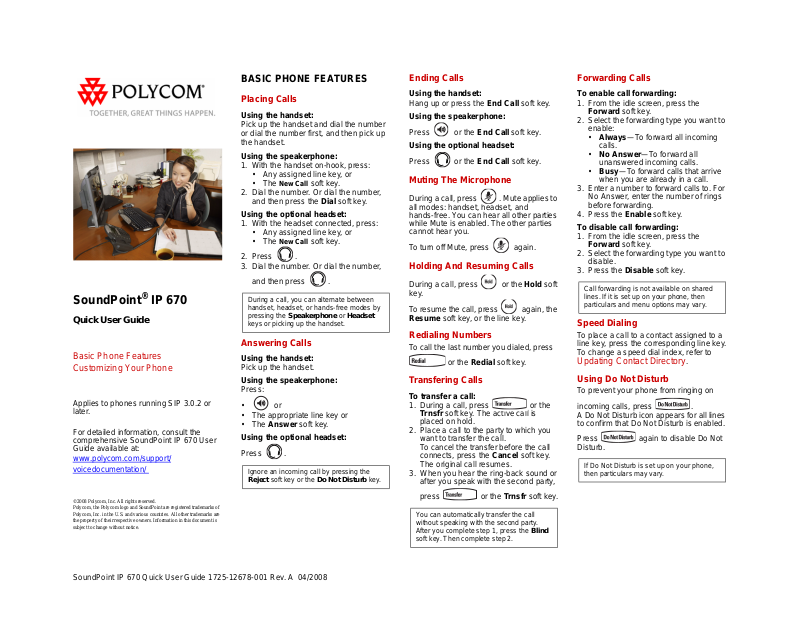

Page 1
SoundPoint® IP 670
Quick User Guide
Basic Phone Features
Customizing Your Phone
Applies to phones running SIP 3.0.2 or
later.
For detailed information, consult the
comprehensive SoundPoint IP 670 User
Guide available at:
www.polycom.com/support/
voicedocumentation/
©2008 Polycom, Inc. All rights reserved.
Polycom, the Polycom logo and SoundPoint are registered trademarks of
Polycom, Inc. in the U.S. and various countries. All other trademarks are
the property of their respective owners. Information in this document is
subject to change without notice.
BASIC PHONE FEATURES
Placing Calls
Using the handset:
Pick up the handset and dial the number
or dial the number first, and then pick up
the handset.
Using the speakerphone:
1. With the handset on-hook, press:
• Any assigned line key, or
•The
2. Dial the number. Or dial the number,
Using the optional headset:
1. With the headset connected, press:
2. Press .
3. Dial the number. Or dial the number,
During a call, you can alternate between
handset, headset, or hands-free modes by
pressing the Speakerphone or Headset
keys or picking up the handset.
Answering Calls
Using the handset:
Pick up the handset.
Using the speakerphone:
Press:
• or
• The appropriate line key or
•The Answer soft key.
Using the optional headset:
Press .
Ignore an incoming call by pressing the
Reject soft key or the Do Not Disturb key.
New Call soft key.
and then press the Dial soft key.
• Any assigned line key, or
•The
New Call soft key.
and then press .
Ending Calls
Using the handset:
Hang up or press the End Call soft key.
Using the speakerphone:
Press or the End Call
soft key.
Using the optional headset:
Press or the End Call soft key.
Muting The Microphone
During a call, press . Mute applies to
all modes: handset, headset, and
hands-free. You can hear all other parties
while Mute is enabled. The other parties
cannot hear you.
To turn off Mute, press again.
Holding And Resuming Calls
During a call, press or the Hold soft
key.
T o resume the call, press again, the
Resume soft key, or the line key.
Redialing Numbers
To call the last number you dialed, press
or the Redial soft key.
Transfering Calls
To transfer a call:
1. During a call, press or the
Trnsfr soft key. The active call is
placed on hold.
2. Place a call to the party to which you
want to transfer the call.
To cancel the transfer before the call
connects, press the Cancel soft key.
The original call resumes.
3. When you hear the ring-back sound or
after you speak with the second party,
press or the Trnsfr soft key.
You can automatically transfer the call
without speaking with the second party.
After you complete step 1, press the Blind
soft key. Then complete step 2.
Forwarding Calls
To enable call forwarding:
1. From the idle screen, press the
Forward soft key.
2. Select the forwarding type you want to
enable:
• Always—To forward all incoming
calls.
• No Answer—To forward all
unanswered incoming calls.
• Busy—To forward calls that arrive
when you are already in a call.
3. Enter a number to forward calls to. For
No Answer, enter the number of rings
before forwarding.
4. Press the Enable soft key.
To disable call forwarding:
1. From the idle screen, press the
Forward soft key.
2. Select the forwarding type you want to
disable.
3. Press the Disable soft key.
Call forwarding is not available on shared
lines. If it is set up on your phone, then
particulars and menu options may vary.
Speed Dialing
To place a call to a contact assigned to a
line key, press the corresponding line key.
To change a speed dial index, refer to
Updating Contact Directory.
Using Do Not Disturb
To prevent your phone from ringing on
incoming calls, press .
A Do Not Disturb icon appears for all lines
to confirm that Do Not Disturb is enabled.
Press again to disable Do Not
Disturb.
If Do Not Disturb is set up on your phone,
then particulars may vary.
SoundPoint IP 670 Quick User Guide 1725-12678-001 Rev. A 04/2008
Page 2
Hosting Conference Calls*
To host a conference:
1. Call the first party.
2. After the first party answers, press
or the Confrnc soft key. The
active call is placed on hold.
3. Place a call to the second party.
4. When the second party answers, press
or the Confrnc soft key. All
parties are now joined in the
conference.
You can do the following:
• To put the conference on hold,
press the Hold soft key. To resume
the conference, press the Resume
soft key.
• To end the conference, press the
End Call soft key . The other p arties
remain connected.
• To split the conference into two
separate calls on hold, press the
Split soft key.
If you have an active call and a call on hold,
you can create a conference between all
three parties by pressing the Join soft key.
*Conferencing is an optional feature that your
system administrator sets up. Particulars and menu
options may vary.
Accessing Voice Mail*
The flashing Message Waiting Indicator
on the front of the phone, individual line
indicators, and a stutter dial tone (instead
of a normal dial tone) indicate new voice
mail messages.
To listen to voice messages:
1. Press .
2. Follow the voice prompts to listen to
your messages.
*Voice mail is an optional feature that your
system administrator sets up. Particulars and menu
options may vary.
Using Call Lists
To review missed calls, received calls,
or placed calls:
1. Press , and then select Call
Lists > Missed Calls, Received
Calls, or Placed Calls.
2. Select a call from the list. You can do
the following:
• To place a call, press the Dial
soft key.
• To change the phone number
before dialing, press the
Edit soft key.
If you press the More soft key, you can
also do the following:
• To remove the call from the list,
press the Clear soft key.
• To store the contact in your Contact
Directory, press the Save soft key.
• To view detailed information about
the call, press the Info soft key.
CUSTOMIZING YOUR PHONE
Updating Contact Directory
To add a contact:
1. Press , then select Contact
Directory.
2. Press the More soft key, then press
the Add soft key.
3. Enter the contact information (use the
Up and Down arrow keys to scroll
between fields):
• (Optional.) Enter the first and last
name of the contact. Press the
1/A/a soft key to select numeric,
uppercase, and lowercase modes.
• (Required.) Enter the contact’s
phone number.
• (Optional.) Change the speed dial
index number. The contact is
automatically assigned the next
available number.
• (Optional.) Set the ring type (refer to
Updating Ring Type).
4. Press the Save soft key.
You can also add contacts to your
Contact Directory from call lists (refer to
Using Call Lists).
To edit a contact:
1. Press , and then select
Contact Directory.
2. Scroll to the contact whose information
you want to update, and then press the
Edit soft key.
3. Update the contact information. For
information on the fields you can
update, refer to step 3 in the previous
section.
4. Press the Save soft key.
To search for a contact:
1. Press , and then select
Contact Directory.
2. Press the Search soft key . Then, enter
the first few characters of the contact’s
name, and then press the Search soft
key again.
Adjusting Speaker and Ringer
Volume
To change the speaker volume:
• During a call, press .
To change the ringer volume:
• When the phone is in the idle state,
press .
Updating Ring Type
You can change the ring tone on your
phone.
To change the incoming ring tone:
1. Press , and then select
Settings > Basic > Ring Type.
2. Scroll to the ring type you want. To
hear the ring type before you select it,
press the Play soft key.
3. Press the Select
If you select Silent ring, press the Line key
or Answer soft key to answer incoming
calls.
soft key.
You can set distinctive ring tones for
different contacts.
To set a
ring type for a contact:
1. Press , and then select
Contact Directory.
2. Search for the contact (refer to
Updating Contact Directory).
3. Press the Edit soft key, and then use
the Down arrow key to scroll to
Ring Type.
4. Enter a number that corresponds to
one of the ring types available under
Settings > Basic > Ring Type.
5. Press the Save soft key.
Headset Memory Mode
For permanent or full-time headset users,
all calls can default to the headset.
To enable Headset Memory Mode:
1. Press , and then select
Settings > Basic > Preferences >
Headset ... > Headset Memory ...
2. Use the arrow keys and press the
Select soft key to enable Headset
Memory Mode.
T o disable Headset Memory Mode, repeat
steps 1 and 2.
T o activate Headset Memory Mode, press
twice.
SoundPoint IP 670 Quick User Guide 1725-12678-001 Rev. A 04/2008
