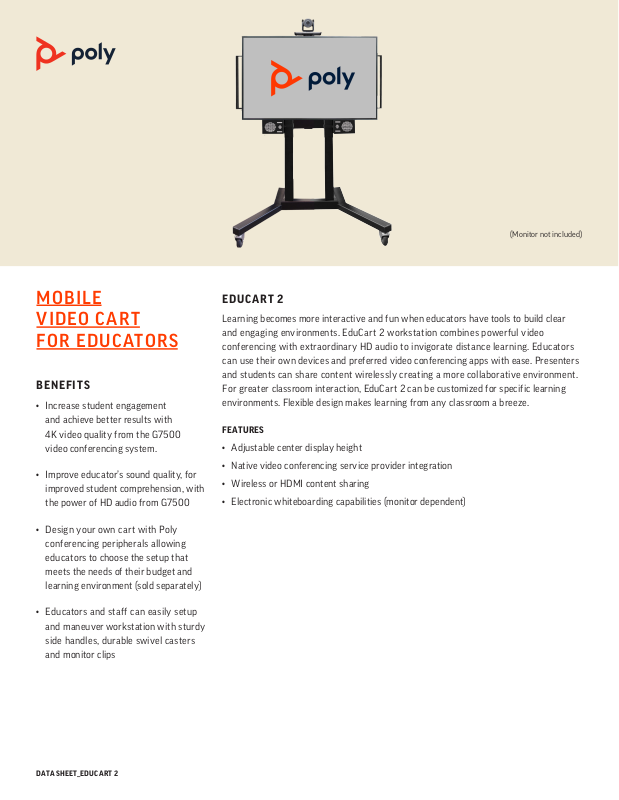

Page 1
(Monitor not included)
MOBILE
VIDEO CART
FOR EDUCATORS
BENEFITS
• Increase student engagement
and achieve better results with
4K video quality from the G7500
video conferencing system.
• Improve educator’s sound quality, for
improved student comprehension, with
the power of HD audio from G7500
• Design your own cart with Poly
conferencing peripherals allowing
educators to choose the setup that
meets the needs of their budget and
learning environment (sold separately)
EDUCART 2
Learning becomes more interactive and fun when educators have tools to build clear
and engaging environments. EduCart 2 workstation combines powerful video
conferencing with extraordinary HD audio to invigorate distance learning. Educators
can use their own devices and preferred video conferencing apps with ease. Presenters
and students can share content wirelessly creating a more collaborative environment.
For greater classroom interaction, EduCart 2 can be customized for specific learning
environments. Flexible design makes learning from any classroom a breeze.
FEATURES
• Adjustable center display height
• Native video conferencing service provider integration
• Wireless or HDMI content sharing
• Electronic whiteboarding capabilities (monitor dependent)
• Educators and staff can easily setup
and maneuver workstation with sturdy
side handles, durable swivel casters
and monitor clips
DATA SHEET_EDUCART 2
Page 2
EDUCART 2
SPECIFICATIONS
PACKAGE INCLUDES
• G7500 codec
• EagleEye IV 12x camera
• Poly IP Microphone
• Bluetooth® remote control
• Cable bundle
• EduCart 2 stand, casters and hardware
VIDEO STANDARDS AND PROTOCOLS
• H.264 AVC, H.264 High Profile, H.265
• H.239
• H.264 video error concealment
VIDEO INPUT
• 1x HDCI
• 1x HDMI
• 3x USB
• Camera switching via touch interface or
remote control
VIDEO OUT
• 2x HDMI
• Touch display compatible
PEOPLE VIDEO RESOLUTION
• 4K, 30 fps (TX and RX) from 2048 Kbps
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
• 4SIF/4CIF, 60 fps from 512 Kbps
• 4SIF/4CIF, 30 fps from 128 Kbps
• SIF (352 x 240), CIF (352 x 288)
• From 64 kbps
• QCIF (176 x 144) from 64 kbps
• w288p from 128 Kbps
• w4 48 from 384 Kbps
• w576p from 512 Kbps
CONTENT VIDEO RESOLUTION
• Input:
- UHD (3840 x 2160)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x 720p)
- XGA (1024 x 768)
- SVGA (800 x 600)
• Output:
- UHD (3840 x 2160)
- WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
• Content frame rate:
- 5–60 fps (up to 4K resolution
at 15 fps in call)
CONTENT SHARING
• Poly Content App support
• Apple AirPlay
• Miracast
• 1x HDMI input
AUDIO INPUT
• Up to three 1x IP microphone arrays
• 1x HDMI
• 1x 3.5 mm stereo line-in
AUDIO OUTPUT
• 65w stereo speakers
• 1x HDMI
• 1x 3.5 mm stereo line-out
OTHER INTERFACES
• 1x USB-C
• 1x RS-232, 8-pin mini-DIN
• Bluetooth 5.0
• WiFi 802.11a/b/g/n/ac (MIMO)
Multichannel Concurrency
AUDIO STANDARDS AND PROTOCOLS
• 22 kHz bandwidth with Polycom Siren 22
technology, G.719 (M- Mode)
• 14 kHz bandwidth with Polycom Siren 14
technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711,
G.728, G.729A
NETWORK
• IPv4
• IPv6
• 1x 10/100/1G Ethernet
• Auto-MDIX
• 3x 10/100/1G LLN supporting POE+/PSE
• H.323 and/or SIP up to 6 Mbps
• Polycom Lost Packet Recovery
(LPR) technology
• Dynamic bandwidth allocation
• Reconfigurable MTU size
• RS232 with REST and CLI API support
• Web Proxy support—Basic, Digest
and NTLM
• Simple Certificate Enrollment Protocol
(SCEP)
DATA SHEET_EDUCART 2
Page 3
SECURITY
• Media encryption (H.323, SIP):
AES-128, AES-256
• H.235.6 support
• PKI/Certificate Management:
- TLS 1.2, 1.1, 1.0
- Self-signed and CA-signed
certificate support
- CRL and OCSP-based certificate
revocation checking
• Local account password policy configuration
• Security profiles
• Local account and login port lockout
• Secure defaults
• Remote logging with support for TLS
• Active directory external authentication
OPTIONS
• Poly TC8 intuitive touch interface for
Poly Studio X Family and G7500
• Poly IP Table Microphone
• Poly Microphone IP Adapter
• EagleEye Cube smart USB video
conferencing camera
• EagleEye Director II high performance
HD video camera
• EagleEye Producer video
camera tracking module
INTEROPERABILITY
• Native support for Zoom, StarLeaf,
8x8, GoToRoom and RingCentral
• All cloud service providers through
Poly Video App Mode
• USB Device Mode
ELECTRICAL
• Auto sensing power supply
• Typical operating voltage/power:
- 37VA @ 120V @ 60 Hz
- 37VA @ 230V @ 50/60 Hz
ENVIRONMENTAL SPECIFICATION
• Operating temperature: 0 to 40 °C
• Operating humidity: 15 to 80%
• Non-operating temperature: -40 to 70 °C
• Non-operating humidity (non-condensing):
5 to 95%
• Maximum altitude: 10,000 ft
PHYSICAL CHARACTERISTICS
• EduCart 2 stand:
- 46.5” W x 63.5” H x 33.25” D
- 80 lbs (Base Cart)
- MONITOR NOT INCLUDED
• G7500 base box:
- 13.75” L x 1.5” H x 5.5” D
- 2.1 lbs
LIMITED WARRANTY
• One-year return to factory parts and labor
Certain features may only be available with
certain apps or in Poly Video mode
LEARN MORE
For more information on EduCart 2 visit www.poly.com
