Calisto 610

Corded USB Speakerphone

User Guide

Welcome 3

System Requirements 3

What's in the box 4

Speakerphone Controls 5

Connect PC and Call 6

Plantronics Hub Software 7

Devices Tab 7 Applications Tab 7

Troubleshooting 8

Welcome

Congratulations on purchasing your new Plantronics Calisto 610 corded USB speakerphone. This user guide contains instructions for setting up and using your Calisto 610 speakerphone.

Calisto 610 highlights and features

• Personal corded speakerphone peripheral device.

• Connects to your PC.

• Full duplex audio, hear and be heard as naturally as speaking face-to-face.

• 360° microphone coverage.

• Integrated call control and other features via Plantronics Hub software.

System Requirements

• Softphone and down, microphone mute/un-mute, call reject.

• Small and portable, includes carrying case.

NOTE Please refer to the separate safety instructions for important product safety information

prior to installation or use.

Computer

• Supported operating systems: Windows XP SP3 or later, Windows Vista SP1 or later, Windows 7 SP1, Windows 8 and Windows 10

• Processor: 400 MHz Pentium processor or equivalent (minimum); 1 GHz Pentium processor or equivalent (recommended)

• RAM: 96 MB (minimum); 256 MB (recommended)

• Hard disk: 1.5GB (minimum); 3GB (recommended)

Uniﬁed Communications client call control features - call answer/end, volume up/

What's in the box

Carrying case Corded speakerphone

Speakerphone Controls

1 Volume Up/Volume Down Buttons

Increase/decrease volume Press up/down volume buttons to desired volume Maximum or minimum volume Hold up/down buttons until max/min reached Ringer volume Press up/down volume buttons while no call is active

2 Mute Button

Mute microphones (far-end cannot hear you) Un-Mute microphones 1 short button press un-mutes microphones; Mute LED turns off Reject an incoming call 1 long button press (2 seconds); call rejected

3 Call Button

Answer or end a call Answer a 2nd call while on a call 1 button press ends ﬁrst call, 2nd 1 short button press answers

1 button press

2nd call

1 short button press mutes mics; Mute LED turns solid red

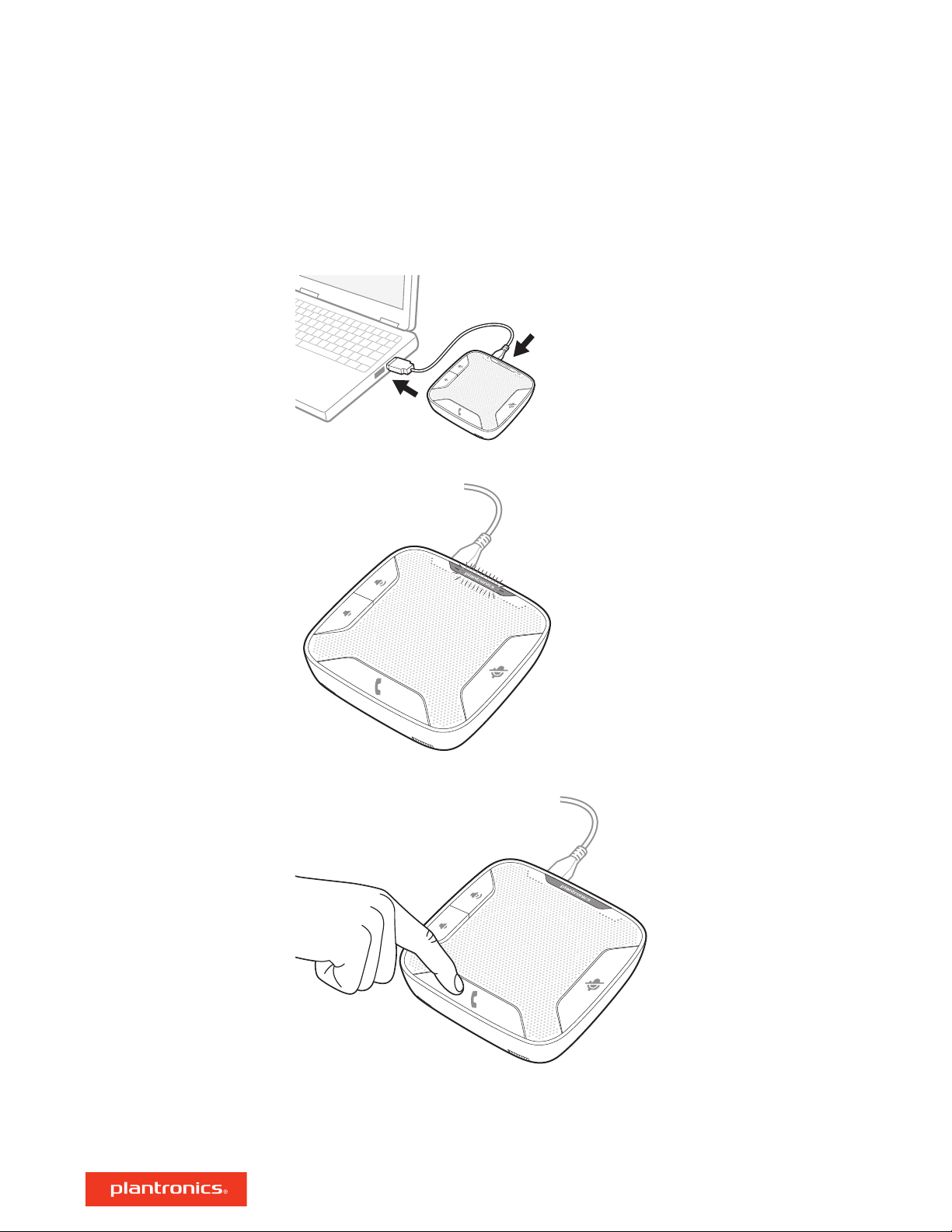

Connect PC and Call

1 The speakerphone will power on once it is connected to the PC.

NOTE Do not insert directly into a docking station or hub.

2 The Plantronics logo will illuminate once the speakerphone is ready for a call.

3 Press the Call button to begin or end a call.

Plantronics Hub Software

Plantronics Hub software (optional) for Windows enhances your speakerphone's capabilities, and, enhances your user experience when used with your PC.

For example, Plantronics Hub software provides:

• Integrated call control for popular softphones and Uniﬁed Communications (UC) clients

• Enhanced UC presence capabilities - more granular availability status means fewer interruptions

• Useful Preferences settings

• Automated software and ﬁrmware updates

Hub software loads when your PC is booted up and runs discretely in the background, requiring no user intervention except via the following:

• Plantronics Control Panel — a one stop utility for all device, application, preferences and conﬁguration options, and product information

• Plantronics Update Manager — provides notiﬁcation and facilitates installation for your speakerphone's ﬁrmware and Hub software updates

Devices Tab

Applications Tab

To launch any of these utilities, go to: Start > Programs > Plantronics

• Displays active Plantronics devices supported by Plantronics Hub software.

• Audio Settings — Provides a convenience shortcut to Windows audio

• Device Settings — No Device settings are available for Calisto 610 in Plantronics Control Panel.

• Displays all applications enabled by Plantronics Hub software and supported for Calisto 610.

• All supported applications which are currently running are in designated with a "check mark".

• Allows you to conﬁgure the behavior of supported media players when a softphone call is received, and when the call has ended.

• Provides opt-in conﬁrmation to allow Plantronics to capture usage statistics to help improve our software.

• Allows conﬁguration of presence information sharing with supported applications.

conﬁguration options.

Troubleshooting

How do I know Calisto 610 is turned on?

Is there a visual indicator on the Calisto 610 that shows volume level?

What size room and how many participants does Calisto 610 support for group conference calls?

Pressing the volume +/- buttons while the unit is ON emits a volume adjustment tone.

No. There is no visual indication of volume level or volume adjustments on the Calisto 610.

NOTE The Calisto 610 has a mid-range default volume setting. It

provides audible indications as you adjust the volume and when you have reached the maximum or minimum volume level.

There are 2 variables to consider for this answer, and both involve the perceived audio by 8 listeners on the other (far) end of a Calisto 610 call:

1 The acoustic properties of the room: Not all rooms are created

equal, and room acoustics can vary signiﬁcantly.

2 The subjective opinion (or hearing abilities) of the far-end listener(s)

which can also vary signiﬁcantly

With these variables considered, in general Calisto 610 can be used in up to a 12x12 foot room with up to 8 participants.
