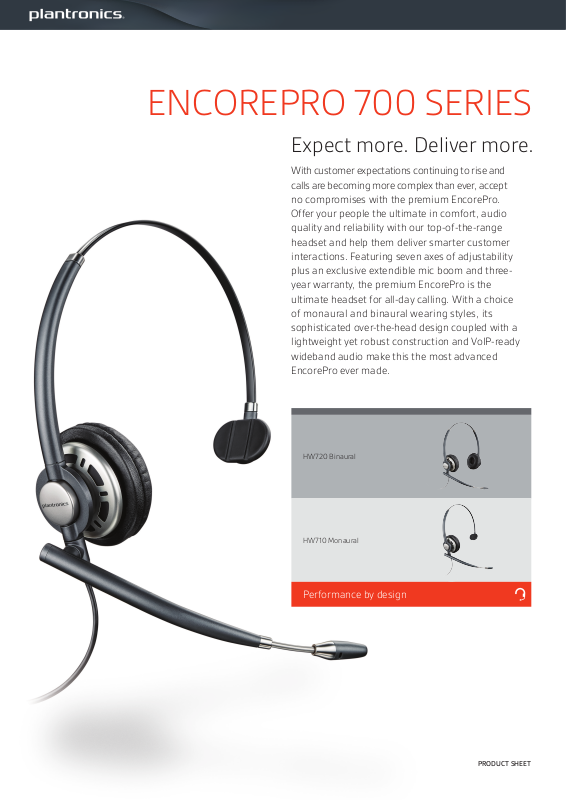

Poly 78712-102 Product Data Sheet

ENCOREPRO 700 SERIES

Expect more. Deliver more.

With customer expectations continuing to rise and
calls are becoming more complex than ever, accept
no compromises with the premium EncorePro.
Offer your people the ultimate in comfort, audio
quality and reliability with our top-of-the-range
headset and help them deliver smarter customer
interactions. Featuring seven axes of adjustability
plus an exclusive extendible mic boom and three-
year warranty, the premium EncorePro is the
ultimate headset for all-day calling. With a choice
of monaural and binaural wearing styles, its
sophisticated over-the-head design coupled with a
lightweight yet robust construction and VoIP-ready
wideband audio make this the most advanced
EncorePro ever made.

HW720 Binaural

HW710 Monaural

Performance by design

PRODUCT SHEET

HW710/HW720

• Quick Disconnect for multiple

connectivities and walkaway

convenience

• Re-enforced, lightweight headband

provides strength and durability

• Plush leatherette ear cushions for

all-day comfort

• Wideband audio for higher quality calls

• 3 year warranty

Performance by design

ENCOREPRO 700 SERIES

KEY FEATURES

• Enhanced noise-cancelling and wideband audio give you clearer conversations with your

customers enabling you to offer a better service

• Distinctive and unique design provides high performance and a stylish look

• Slim and discrete construction ensures comfort and allows you to fully focus on the customer

• VoIP ready through the use of enhanced echo control and wideband audio, allows you to preserve

your investment through future phone system upgrades

• Seven axes of adjustability ensure you can wear the headset in the most comfortable and

effective position

• Quick Disconnect feature provides walkaway convenience and compatibility with all

Plantronics® USB and deskphone audio processors and direct connect cables

• Backed by industry-leading Plantronics global service and support

Connects to PC or deskphone with Plantronics audio processors

Ideal for Telephone intensive users in roles that warrant premium comfort, traditional

formal contact centres and informal contact centres (e.g. helpdesks)

Audio performance Wideband audio (up to 6,800 Hz), noise-cancelling microphone

Transmit Characteristics (typical)

Sensitivity @ 1kHz: -39 ± 3 dBV/Pa

Frequency Range: 150 to6800Hz

Output Impedance: <125Ω

Typical Test Conditions: 1.8VDC, 3.3KΩ DC Resis, 3.3KΩ AC Load

Receive Characteristics (typical)

Sensitivity @ 1kHz: 17 dBPa/V (Monaural) 10 dBPa/V (Binaural)

Frequency Range: 100 to6800Hz

Acoustic Limit:

Input Impedance: 150Ω ± 25% (Monaural) 300Ω ± 25% (Binaural)

Typical Test Conditions: 100mV Drive, 10Ω Source Impedance. Measured on ITU-T Type

<24dBPa (<118SPL)

3.3 artificial ear, Ear Reference Point

Headset Model Weight Part number

HW710, EMEA Over-the-head, Monaural, Noise-cancelling 50g 78712-102

HW720, EMEA Over-the-head, Binaural, Noise-cancelling

For more information about the HW710/HW720 or other products, please visit our

website at plantronics.com.

GLOBAL SERVICE AND SUPPORT

Backed by Plantronics industry-leading global service and support.

Plantronics Ltd, Royal Wootton Bassett, UK, 0800 410014 or [phone]

72g

78714-102
