Poly 214181-01 User Manual

Calisto 3200/5200
Corded Speakerphone
User Guide

Contents

Overview 3
Connect speakerphone 4
Daily Use 5
Power 5 Answer or End a call 5 Mute/Unmute 5 Volume 5 Music 5
Support 6
2
1
2
3
4
5
6
8
7

Overview

Volume up
1
Mute
2
Volume down
3
Call button
4
Speaker
5
Indicator light
6
USB cord
7
3.5mm cord (Calisto 5200 model only)
8
3

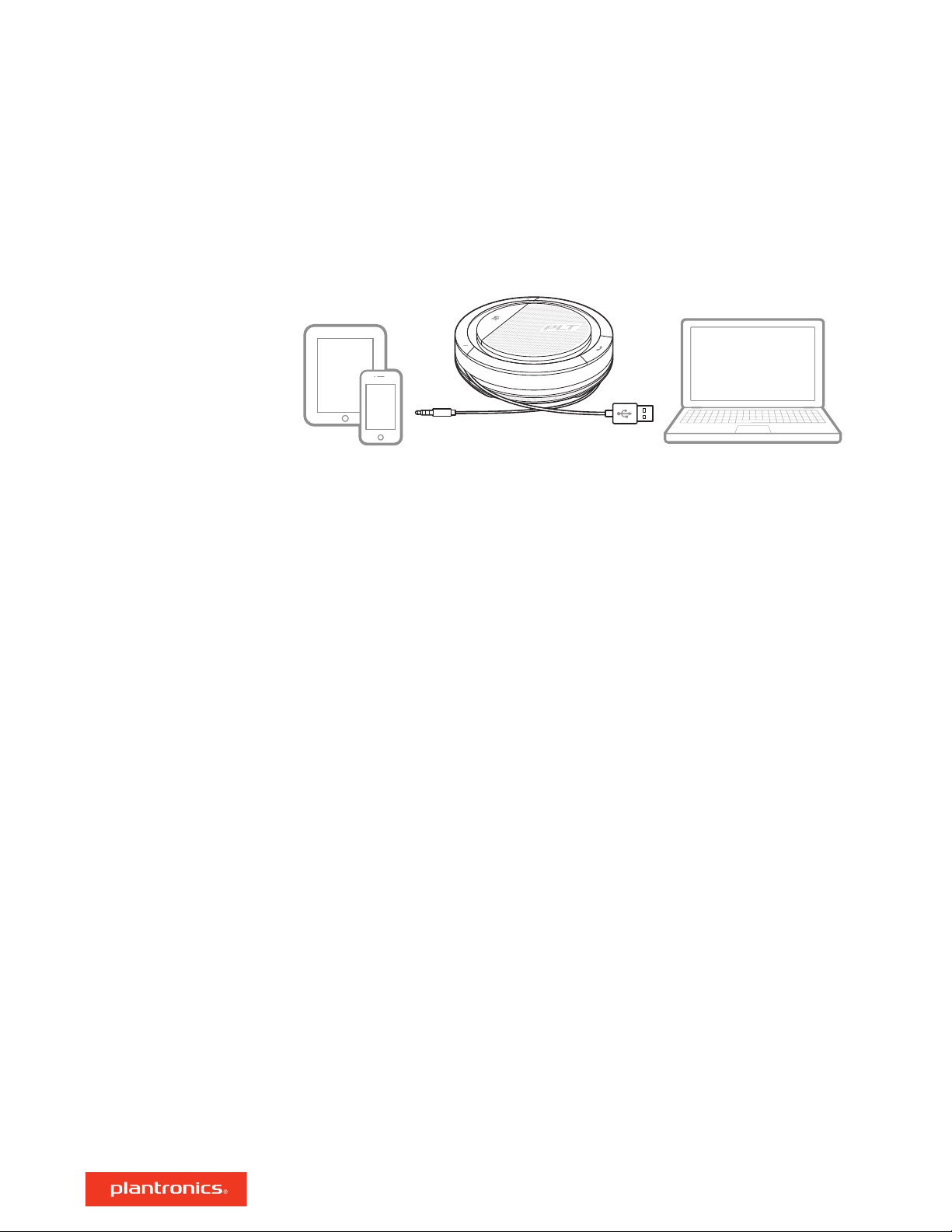

Connect speakerphone

Connect the speakerphone to your computer using the USB cable. Connect the speakerphone to your tablet or mobile phone using the 3.5 mm cable (Calisto 5200 model only). Use the speakerphone to play music or call audio.
4

Daily Use

Power

Plug the USB cable into your computer. The indicator light on the speakerphone will illuminate
white and remain on while connected to the power supply.
Plug the 3.5 mm cable into your tablet or mobile device.
NOTE The table refers to the Calisto 5200 model only, there is no battery in the Calisto 3200.
Status Talk time Indicator
Battery high Greater than 12 hours "Battery high"
Battery medium
Battery low Less than 2 hours, greater than 30
Battery critical Equal to or less than 30 minutes 30 minutes, "Battery low" repeated every 15
Important: If the speakerphone does not automatically power on when plugged in, press and hold
the call and mute buttons for 4 seconds to manually power on the speakerphone. Repeating this process will power off the device.
Less than 12 hours, greater than 2 hours
minutes
"Battery medium"
"Battery low" played at less than 2 hours talk time
minutes 10 minutes, "Battery low" repeated every 5
minutes 0 minutes "Power off" played once

Answer or End a call

Mute/Unmute

Volume

Music

A short press of the Call button answers or ends a call.
A short press of the Mute button mutes or unmutes the microphones.
Press the up (+) or down (-) volume buttons for the desired volume.
For a better listening experience with the 3.5mm connector (Calisto 5200 model only), put the speakerphone in music mode by pressing and holding the mute button for 4 seconds. Turn off music mode before taking or receiving calls by pressing and holding the mute button for 4 seconds.
5

Support

NEED MORE HELP?
plantronics.com/support
Plantronics, Inc.
345 Encinal Street Santa Cruz, CA 95060 United States
©
2018 Plantronics, Inc. Bluetooth is a registered trademark of Bluetooth SIG, Inc. and any use by Plantronics, Inc. is under license. All trademarks are the
property of their respective owners.
212877-06 (09.18)
Plantronics BV
Scorpius 171 2132 LR Hoofddorp Netherlands
