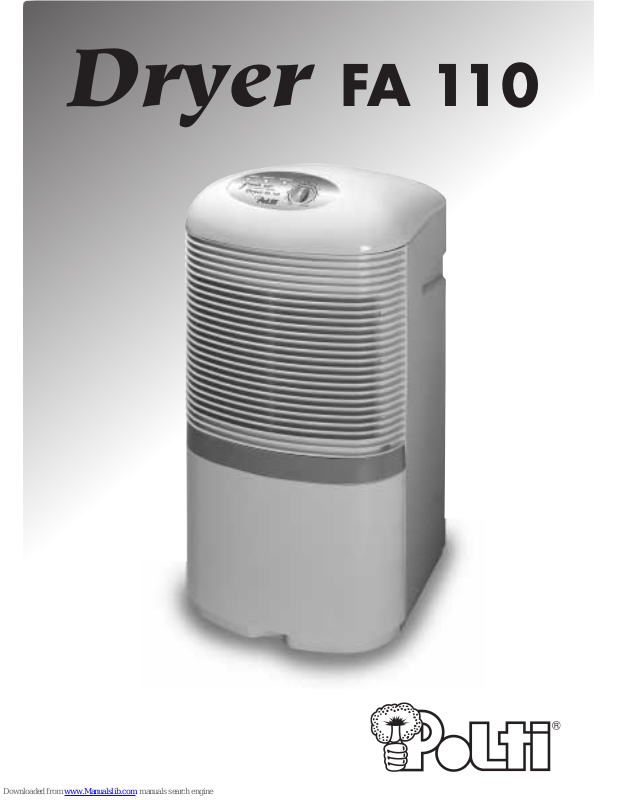

Dryer FA 110
3
4
5
1
2
6
7
8
9
ENGLISH
A - DEFROST
Defrost funtion indicator light
B - TANK FULL
Full tank indicator light
C - OPERATION
Operation indicator light
D - HUMIDITY SETTING
Humidity control knob
Polti S.p.A. reserves the right to change equipment
or accessory specification without prior notice.
1 - Water tank
2 - Laundry flap (Directional drawhole)
3 - Control panel
4 - Air filter
5 - Air inlet
6 - Hole for direct condensation drainage
7 - Top air outlet
8 - Power cord winder
9 - Power cord
TECHNICAL DETAILS
Power supply 230/240 V - 50 Hz
Absorbed power 360 W
CONTROL PLATE DESCRIPTION
Dryer FA 110
Dryer
HUMIDIFY
SETTING
ENGLISH
MMMMAAAAIIIINNNN FFFFUUUUNNNNCCCCTTTTIIIIOOOONNNNSSSS AAAANNNNDDDD FFFFEEEEAAAATTTTUUUURRRREEEESS
SS
DRYER FA 110 is a dehumidifier equipped with an automatic device to preset
and select the required humidity indoors from 40% Relative Humidity (RH) up to
80% RH.
This device maintains the required humidity inside a room by automatically
starting and stopping the appliance. This also saves energy, as the appliance
starts operating only when it is necessary to restore the correct humidity.
DRYER FA 110 is equipped with the continuous dehumidifying function. By turning
the “HUMIDIFY SETTING” knob on the “CONT.” position, the automatic stopping
device is in fact excluded and the appliance operates continuously.
The condensation is collected in a tank which can be easily removed as required.
When the tank is full, the appliance stops operating and the water level indicator
(TANK FULL) lights up.
DRYER FA 110 is also equipped with an automatic defrost device. When the room
temperature is lower than 12°C, the device automatically starts operating for
8 minutes every hour. During this operation mode the “DEFROST” indicator light
lights up.
IIIINNNNSSSSTTTTAAAALLLLLLLLAAAATTTTIIIIOOOONN
NN
• Before connecting the unit to the mains, make sure that the power supply
corresponds to the one specified on the technical details labels.
• Do not install the appliance on a soft or uneven floor surface (to avoid possible
vibrations or excessive noise).
• Do not place the appliance near heat sources such as stoves, heaters etc. This
will allow better operation and energy saving.
• Keep the areas behind and in front of the unit clear from obstruction, so that
the air flow is not hindered.
• Avoid putting water containers, watered plants, or heavy objects on the unit.
ENGLISH
PPPPRRRREEEECCCCAAAAUUUUTTTTIIIIOOOONNNNSSSS
• Read the operating instructions carefully before using your dehumidifier for the
first time and keep them for future reference.
• Use the appliance only for domestic use and only for the purpose it was
designed for.
• Never operate the appliance if it has been subjected to violent knocks, if it is
damaged or if a malfunction has caused damage to the electrical connections.
• Do not allow children or people who are not familiar with the instructions to use
the appliance.
• Disconnect the appliance from the mains when it is not in use, before moving
it and before cleaning it.
• To avoid spillage, empty the water tank before moving the appliance.
• Do not tip the appliance to the side as spilling water could cause damage to
the inside components.
• Do not insert sharp objects through the air inlet screen.
• Never immerse the appliance in water or any other liquid.
OOOOPPPPEEEERRRRAAAATTTTIIIIOOOONN
NN
• DRYER FA 110 is able to operate properly in places where temperature is
included between 5 and 35°C. Outside this range, the protection device of the
compressor will stop the operation of the appliance. This condition is to be
considered normal.
• If the dehumidifier does not start, check that the set humidity required is not
higher than the humidity in the room.
• If the dehumidifier does not start or it stops working, check the appliance is
correctly connected. If the plug and power supply are OK, wait for about 10
minutes (the automatic safety cut out takes about 10 minutes to respond)
and restart the appliance. If the appliance still does not work, contact your
authorised Polti Service Centre.
ENGLISH
• When the DRYER FA 110 is in operation, the compressor will produce heat
and the room temperature could become slightly higher. This condition is quite
normal.
• Close all the doors and windows when the appliance is in operation to obtain
better dehumidifying results.
IIIINNNNSSSSTTTTRRRRUUUUCCCCTTTTIIIIOOOONNNNSSSS
To start the dehumidifier:
1. Put the humidity control knob on the “OFF” position, turning it to the left.
2. Insert the plug in a suitable supply socket.
3. Start the dehumidifier by turning the humidity control knob (D) to the right, and
set it to the desired humidity (normally on position 7, corresponding to RH60%).
When the compressor is in operation, the green indicator light (C) comes on.
4. To turn off the dehumidifier, turn the humidity control knob to the left on
position “OFF”.
SSSSUUUUGGGGGGGGEEEESSSSTTTTEEEEDDDD HHHHUUUUMMMMIIIIDDDDIIIITTTTYYYY SSSSEEEETTTTTTTTIIIINNNNGGGGSSSS
The range of relative humidity corresponding to the numbers on the humidity
control knob is the following:
Control knob Approx.humidity
position nr. regulation
1 20%
3 30%
5 40%
7 60%
9 80%
For living-rooms, dining-rooms and bedrooms we suggest position “7”.
For store rooms, or other places that need to be drier, we suggest position “5”.
ENGLISH
AAAAUUUUTTTTOOOOMMMMAAAATTTTIIIICCCC DDDDEEEEFFFFRRRROOOOSSSSTTTTIIIINNNNGG
GG
• If the temperature in a room is lower than 12°C, the unit is automatically
switched to the “defrost” function for 8 minutes every hour. During this
functioning mode the “DEFROST” indicator light comes on.
WWWWAAAATTTTEEEERRRR LLLLEEEEVVVVEEEELLLL IIIINNNNDDDDIIIICCCCAAAATTTTOOOORR
RR
• DRYER FA 110 is equipped with a water level indicator: when the water storage
level becomes full, the compressor and the fan stop and the red indicator light
“TANK FULL” lights up to signal the necessity to pour out the water from the
storage tank.
HHHHOOOOWWWW TTTTOOOO EEEEMMMMPPPPTTTTYYYY TTTTHHHHEEEE WWWWAAAATTTTEEEERRRR SSSSTTTTOOOORRRRAAAAGGGGEEEE TTTTAAAANNNNKK
KK
• Take out the water tank by gently pulling it outwards,
through the hollow at the base of the tank (fig. 1).
• For an easy transport, lift up the handle of the tank
(fig. 2).
• Empty the tank and gently place it back in the unit,
paying attention that it reaches the correct
position. If the tank is not in the correct position, the
compressor will not start.
IMPORTANT!
• When the unit stops it is necessary to wait for about
3 minutes before starting it again. This waiting time
has been factory-set to protect the compressor
from damage.
• Therefore, it is suggested not to remove and
replace the tank repeatedly, as these actions involve
a repeated start of compressor with consequent
risk of wear and malfunction.
Fig. 2
Fig. 1
ENGLISH
UUUUSSSSEEEE OOOOFFFF CCCCOOOONNNNTTTTIIIINNNNUUUUOOOOUUUUSSSS WWWWAAAATTTTEEEERRRR DDDDRRRRAAAAIIIINN
NN
• Take out the water tank by pulling it outwards.
• With a tool remove the cover of the hole for direct
condensation drainage, which is at the back of the
unit (fig. 3).
• Insert a PVC water drainage pipe of 14 mm I.D. in
the drainage hole and connect it to the drainage
mouth at the front of the unit (fig. 4).
• Place the water tank back in the unit.
Important: make sure that the continuous drainage
pipe is connected to a suitable drainage in order to
prevent the liquid from spilling on the floor.
SSSSUUUUGGGGGGGGEEEESSSSTTTTIIIIOOOONNNNSSSS FFFFOOOORRRR GGGGEEEENNNNEEEERRRRAAAALLLL MMMMAAAAIIIINNNNTTTTEEEENNNNAAAANNNNCCCCEEEE
• The appliance is equipped with an extractable and
washable cartridge-type filter. To take out the filter
it is enough to slip it off by pulling it downwards
(fig. 5). After the cleaning operation, insert the
filter back in its place by running it in the guides
until it is completely fitted in.
• It is recommended to clean the filtering net at least
once every two weeks of operation, simply using
some water with temperature lower than 40°C. Do
not use alcohol, solvents or boiling water.
• To avoid deformation, let the filtering net dry away from heat sources such as
sun, stoves, heaters etc.
• For cleaning the outside of the appliance simply use a moist cloth. Do not use
detergents or abrasive sponges, these may cause damage to the plastic
surface.
Fig. 3
Fig. 4
Fig. 5
ENGLISH
WWWWAAAARRRRNNNNIIIINNNNGGGGSS
SS
• In case of failure or malfunction, do not attempt to disassemble the appliance
but contact your Polti Service Centre.
TTTTRRRROOOOUUUUBBBBLLLLEEEE SSSSHHHHOOOOOOOOTTTTIIIINNNNGGGG
PROBLEM CAUSE REMEDY
The appliance does The appliance is not Connect the appliance to
not function connected to the mains the mains
Full water tank Empty the water tank
Water tank not properly Place water tank
installed correctly
Appliance on, airflow Dirty air filter Clean air filter
too weak
Appliance is too noisy Appliance is on an Put the appliance on
uneven surface a level surface
One of the lights Program fault Unplug the unit for
remains on incorrectly at least 1 minute.
