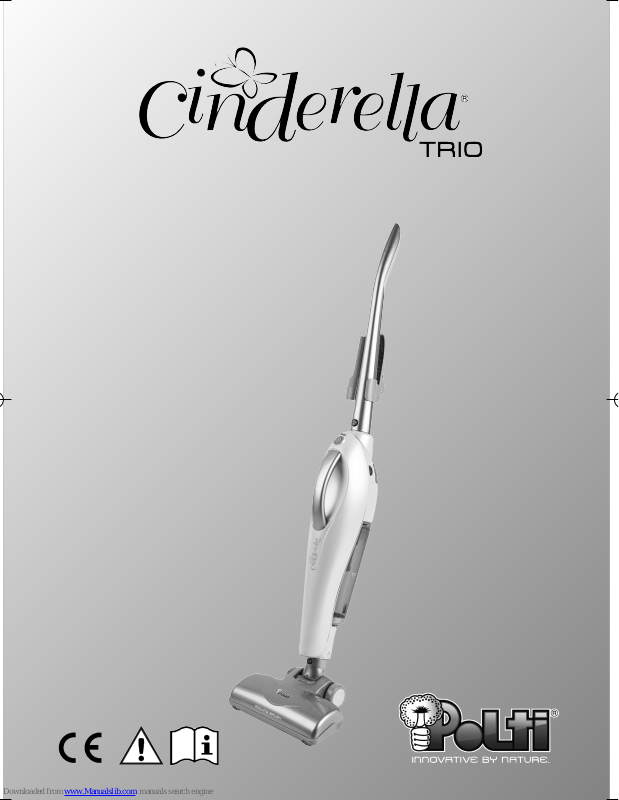

POLTI CINDERELLA TRIO User Manual

CINDERELLA TRIO

1S08

Fig. 1

Fig. 2

3

2

4

5

6

9

7

8

11b
11c

11

13b

13a

10

5

12

13

11a

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig.10

Fig.13

Fig.14

Fig.11

Fig.12

1

ENGLISH

CINDERELLA TRIO

26

This unit conforms with EC-directives 2004/108/CE (EMC) and 2006/95/CE (low volta­ge)

.

KEY

1) Handle

2) Bristle brush

3) Lance

4) Accessory storage

5) Accessory release button

6) ON/OFF switch

7) Battery

8) Battery release button

9) Handle

10) Vacuum unit

11) Dirt collection container
11a) Container release button
11b) Filter
11c) Filter cover

12) Motorized brush

13) Battery charger
13a) ON (green) indicator

13b) Loading indicator (red)

Polti S.p.A. reserves the right to change equipment or accessory specification without
prior notice.

Read these instructions carefully before using the appliance.

CINDERELLA TRIO

27

ENGLISH

PRECAUTIONS

KEEP THIS INSTRUCTION

MANUAL

• Read these instructions carefully before
using the appliance.

• Any use which does not comply with these
instructions will invalidate the warranty.

• The wiring system to which the appliance is
connected must always comply with the
laws in force.

• Before connecting the appliance, make
sure that the mains voltage is the same as
the voltage indicated on the data label of
the appliance and that the power outlet is
connected to earth.

• Always turn off the appliance at the on/off
switch before unplugging it.

• If the appliance is left unused, always di­sconnect it from the mains. Never leave the
appliance unattended with the cable plug­ged into the mains.

• Before performing any maintenance opera­tion, always turn the equipment off.

• Do not pull the power cable out of the
socket, but grasp the plug itself to avoid da­mage to the socket.

• Do not allow the power cable to be twisted,
crushed, stretched, or come into contact
with sharp or hot surfaces.

• Do not use the appliance if the power cable
or other important parts of the appliance
are damaged.

• Do not use electric extension leads that are
not authorized by the manufacturer, as they
may cause damage or fire.

• Should it be necessary to replace the
power cable, contact an authorized service
centre.

• Never touch the appliance with wet hands
or feet with the cable plugged into the
mains.

• Do not use the appliance when barefoot.

• Never immerse the appliance, the cable or
the plugs in water or another liquid.

• Use of the appliance in places where there
is a danger of explosions is prohibited.

• Do not use the product with toxic substan­ces.

• Do not leave the appliance exposed to wind
or rain.

• Do not place the appliance near a live ele­ment, an electric stove or any other source
of heat.

• Do not expose the appliance to extreme
temperatures.

• Never let children or people who are not fa­miliar with how the appliance works use it.

• Do not press the buttons hard or with a
pointed object such as a pen.

• Always rest the appliance on a stable sur­face.

• Should the equipment be dropped or there
be signs of damage, the equipment should
not be used and must be taken to a service
centre.

• In case of breakdown or malfunction switch
off the appliance and never attempt to di­sassemble it, but refer to an authorized
Polti Service Centre.

• To avoid prejudicing the safety of the ap­pliance when repairing or replacing acces­sories, use only original spare parts.

• We recommend you use original Polti pro­ducts only, as products from other brands
may not be suitable for use in Polti products
and could cause damage.

• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or in­struction concerning use of the appliance
by a person responsible for their safety.

• Children should be supervised to ensure
that they do not play with the appliance.

• Do not use if the appliance has been drop­ped, has visible signs of damage or leaks.

• If the supply cord is damaged, it must be re­placed by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.

• All the packaging material (cardboard
boxes, bags and plastic covers etc.) are po­tentially dangerous and should be kept out
of the reach of children.

• Only use the power supply included with
the equipment.

ENGLISH

CINDERELLA TRIO

28

• Do not use the battery that is not provided
by the manufacturer.

• Pay attention to the battery polarity, the
crust of battery discreteness are marked
with + - .

• The abandoned battery must break out
from the vacuum cleaner and send it to an
authorized service center.

• The battery must break out from the va­cuum cleaner when it stores for long time.

• The charger is only suited the battery provi­ded by the manufacturer.

• You must stop using the vacuum cleaner
when the battery leak liquor and break out it
at once. Use gauze or cotton which is
cleanly clean the liquor, give your attention
to metal parts. Put the new battery into
when cleaned.( Do these operation with
gloves and avoid the liquor touch skin).

CORRECT USE OF THE

PRODUCT

This appliance is intended for home use for vacuu­ming solids as described and in accordance with
the instructions provided in this manual. Please
read these instructions carefully and keep them, as
you may find them useful in future.

Polti declines liability for any damage or acci­dent derived from any use of this appliance whi­ch does not comply with the instructions con­tained in this booklet.

ATTENTION

Directive 2002/96/EC (Waste Electrical and
Electronic Equipment - WEEE): information
for users
This product complies with EU Directive
2002/96/EC.

The crossed-out wastebasket sym­bol on the appliance means that at
the end of its useful lifespan, the pro-

duct must be disposed of separately
from ordinary household wastes.
The user is responsible for delivering the ap­pliance to an appropriate collection facility at
the end of its useful lifespan.
Appropriate separate collection to permit
recycling, treatment and environmentally

compatible disposal helps prevent negative
impact on the environment and human health
and promotes recycling of the materials
making up the product. For more information
on available collection facilities, contact your
local waste collection service or the shop
where you bought this appliance.

DISPOSAL OF THE BATTERY

The batteries supplied contain substances
which are potentially harmful to the environ­ment.
Before disposing of the equipment, remove
the batteries, do not throw them away with
household waste but take them to an official
collection centre.

The NiMH batteries can explode if expo­sed to high temperatures or are thrown
into the fire.
Before disposing of the battery, make sure
that it is discharged, leaving the equip­ment operating until it is off.
Remove the battery as shown in the ma­nual.

CHARGING THE BATTERY

Place the battery charger in a dry and ventila­ted location.

• Remove the battery from the vacuum unit

(10) by pressing the battery release button
(8) (Fig.1).

• Insert the plug of the battery charger power

cable (13) into a suitable socket: the ON in­dicator light will turn green (13a).

• Insert the battery (8) into the battery char­ger (13) (Fig.2): the red charging light will
come on (13b) flashing to indicate that the
battery is loading.

NOTE: the first time the battery is charged,
allow it to charge for at least 15 hours before
using the equipment.
Normally, the charging time for a completely
discharged battery is around 8-10 hours.

After using the device, wait until the bat­tery has cooled down before charging it.

• When the battery is completely charged,
the charging indicator light (13b) changes
from flashing to steady.

CINDERELLA TRIO

29

ENGLISH

NOTE: For daily use, we recommend always
leaving the battery charger connected and
charging the battery whenever the broom is
not in use, so that the equipment is always
ready and charged.
If you do not anticipate using the equipment
for long periods of time, disconnect the bat­tery charger plug to avoid wasting energy.
It is normal for the power supply to heat up
during charging.

The battery is a component that wears out
easily and is guaranteed for a period of 6
months from the date of purchase.

BROOM ASSEMBLY

• Insert the battery (7) in its housing on the
vacuum unit (10), pressing until a click is
heard (fig.3).

• Connect the motorized brush (12) to the va­cuum unit (10) as shown in Fig. 4, making
sure that the 2 contacts on the brush line up
with the two holes located on the vacuum
unit. Press the two parts until you hear
the hook click.

• Connect the handle (1) to the vacuum unit
(10) (Fig.5) making them line up until you
hear the hook click.

• It is possible to attach the accessory sto-

rage (4) to the handle (1) attaching it so that
it meets its seat located on the handle
(Fig.6).

USE

• Turn the equipment on with the ON/OFF

switch (6). The equipment will start to va­cuum and at the same time the motorized
brush (12) will start working making the bri­stles turn.
The combination of the suction and the ro­tating bristles gives the equipment excellent
suction power.

All the dirt suctioned is collected in the dirt
collection container (11).
To keep the equipment’s efficiency high,
empty the dirt collection container at the end
of every use (11).
To empty the dirt collection container, follow
the instructions listed in the paragraph “
emptying and cleaning of the dirt collection
container (11)”.

The equipment can also be used as a porta­ble vacuum, by holding the vacuum unit (10)
by the special handle (9).
To best take advantage of the equipment, fol­low the instructions provided below:

• Separate the handle (1) and the motorized
brush (12) by pressing the accessory re­lease button (5) (Fig.7).

• Insert the lance (2) in the input of the va­cuum unit (10) (Fig.8).
It is also possible to connect the bristle
brush (3) to the lance as shown in Fig.8.

ENGLISH

CINDERELLA TRIO

30

CARE OF YOUR VAPORELLA

• Before attempting any maintenance
operation, always disconnect the ap­pliance from the mains.

• To clean the body of the appliance, simply
use a moist cloth. Do not use solvents or
detergents which may harm the body mate­rial.

MAINTENANCE

EMPTYING AND CLEANING THE DIRT COL-

LECTION CONTAINER (11)

• Remove the dirt collection container (11) by
pressing the release button (11a) (Fig.9).

• Separate the filter (11b) from the container
(Fig.10).

• Separate the filter (11b) from the filter co­ver (11c), by turning it anti-clockwise
(open) and pulling it to remove it (Fig.11).

• Rinse the filter (11b) and the filter cover
(11c) under running water.

After washing it, shake the filter gently to eli­minate any residue of dirt and excess water.
NOTE: allow the filter to dry naturally, away
from direct sources of light and heat. It is ad­visable to wait 24 hours before replacing the
filter in the appliance.
Replace the filter with a new one if it is torn.

• The filter should be replaced every 6
months. Any breakdowns of the product
due to failure to replace the filter will not be
covered by the guarantee.

• Reassemble the filter (11b) inside the co­ver (11c) and fasten it by turning it
clockwise (close).

• Replace everything inside the dirt collec­tion container.

• Reposition the dirt collection container (11)
on the vacuum unit (10) by fastening it first
into the upper part and then locking it in the
lower part until you hear the hook click
(Fig.12).

CLEANING THE MOTORIZED BRUSH (12)

Should the brush become very dirty, it is pos­sible to clean its interior.
To clean the motorized brush (12), proceed
as described below:

• Separate the brush (12) from the vacuum
unit (10) by pressing the accessory release
button (5) (Fig.7).

• Turn the brush upside down, loosen the
screws and remove the cover shown in
Fig.13.

• Remove the bristle cylinder by taking the
belt off (Fig.14).

• Clean the bristle cylinder of the brush re­moving any dirt residue.

• Reposition everything and close the brush
again by performing the operations descri­bed previously in reverse.

CINDERELLA TRIO

31

ENGLISH

TROUBLESHOOTING

Problem Cause Solution

The appliance won’t turn on The battery is not inserted

The battery is discharged

Insert the battery

Charge the battery

The brush is not working The brush is not attached cor-

rectly.

Something is obstructing the ro­tation of the bristles of the brush.

Check and correctly connect the
brush.

Clean the interior of the brush as
described in the maintenance
paragraph.

The ON indicator light (13a) of
the battery charger does not
come on

The wire is disconnected. Connect the plug of the wire to

the mains socket.

The charging indicator light
(13b) does not come on.

There is no battery

The battery is not inserted
correctly

Insert the battery.

Insert the battery
correctly.
