1. Overview

The Maestros are Pololu’s second-generation family of USB servo controllers. The Maestro family consists of four controllers, each available fully assembled or as a partial kit:

• Micro Maestro 6 [http://www.pololu.com/catalog/product/

1350]

• Mini Maestro 12 [http://www.pololu.com/catalog/product/

1352]

• Mini Maestro 18 [http://www.pololu.com/catalog/product/

1354]

• Mini Maestro 24 [http://www.pololu.com/catalog/product/1356]

With three control methods — USB for direct connection to a PC computer, TTL serial for use with embedded systems, and internal scripting for self-contained, host controller-free applications — and channels that can be configured as servo outputs for use with radio control (RC) servos [http://www.pololu.com/catalog/category/23] or electronic speed controls (ESCs), digital outputs, or analog/digital inputs, the Maestro is a highly versatile servo controller and general I/O board in a highly compact package. The extremely precise, high-resolution servo pulses have a jitter of less than 200 ns, making the Maestro well suited for high-performance animatronics, and built-in speed and acceleration control make it easy to achieve smooth, seamless movements without requiring the control source to constantly compute and stream intermediate position updates to the Maestro. The Maestro features configurable pulse rates (up to 333 Hz for Mini Maestros) and can generate a wide range of pulses to allow maximum responsiveness and range from modern servos. Units can be daisy-chained with additional Pololu servo and motor controllers on a single serial line.

A free configuration and control program is available for Windows and Linux (see Section 4), making it simple to configure and test the board over USB, create sequences of servo movements for animatronics or walking robots, and write, step through, and run scripts stored in the servo controller. The Maestro’s internal script memory allows storage of servo positions that can be automatically played back without any computer or external microcontroller connected (see Section 6).

1. Overview Page 3 of 67

The Maestros’ channels can also be used as general-purpose digital outputs and analog or digital inputs, providing an easy way to read sensors and control peripherals directly from a PC over USB. These inputs can be used with the scripting system to enable creation of self-contained animatronic displays that respond to external stimuli.

A USB A to mini-B cable [http://www.pololu.com/catalog/product/130] (not included) is required to connect this device to a computer.

1. Overview Page 4 of 67

Features

• Three control methods: USB, TTL (5 V) serial, and internal scripting

• 0.25μs output pulse width resolution (corresponds to approximately 0.025° for a typical servo, which is beyond what the servo could resolve)

• Configurable pulse rate and wide pulse range (see the Maestro comparison table below)

• Individual speed and acceleration control for each channel

• Channels can be optionally configured to go to a specified position or turn off on startup or error

• Alternate channel functions allow the channels to be used as: ◦ General-purpose digital outputs (0 or 5 V)

◦ Analog or digital inputs (channels 0 – 11 can be analog inputs; channels 12+ can be digital inputs)

◦ One channel can be a PWM output with frequency from 2.93 kHz to 12 MHz and up to 10 bits of resolution (see Section 4.a for details)

• A simple scripting language lets you program the controller to perform complex actions even after its USB and

serial connections are removed

• Free configuration and control application for Windows and

Linux makes it easy to:

◦ Configure and test your controller

◦ Create, run, and save sequences of servo movements for animatronics and walking robots

◦ Write, step through, and run scripts stored in the servo controller

• Two ways to write software to control the Maestro from a PC: ◦ Virtual COM port makes it easy to send serial commands from any development environment that supports serial

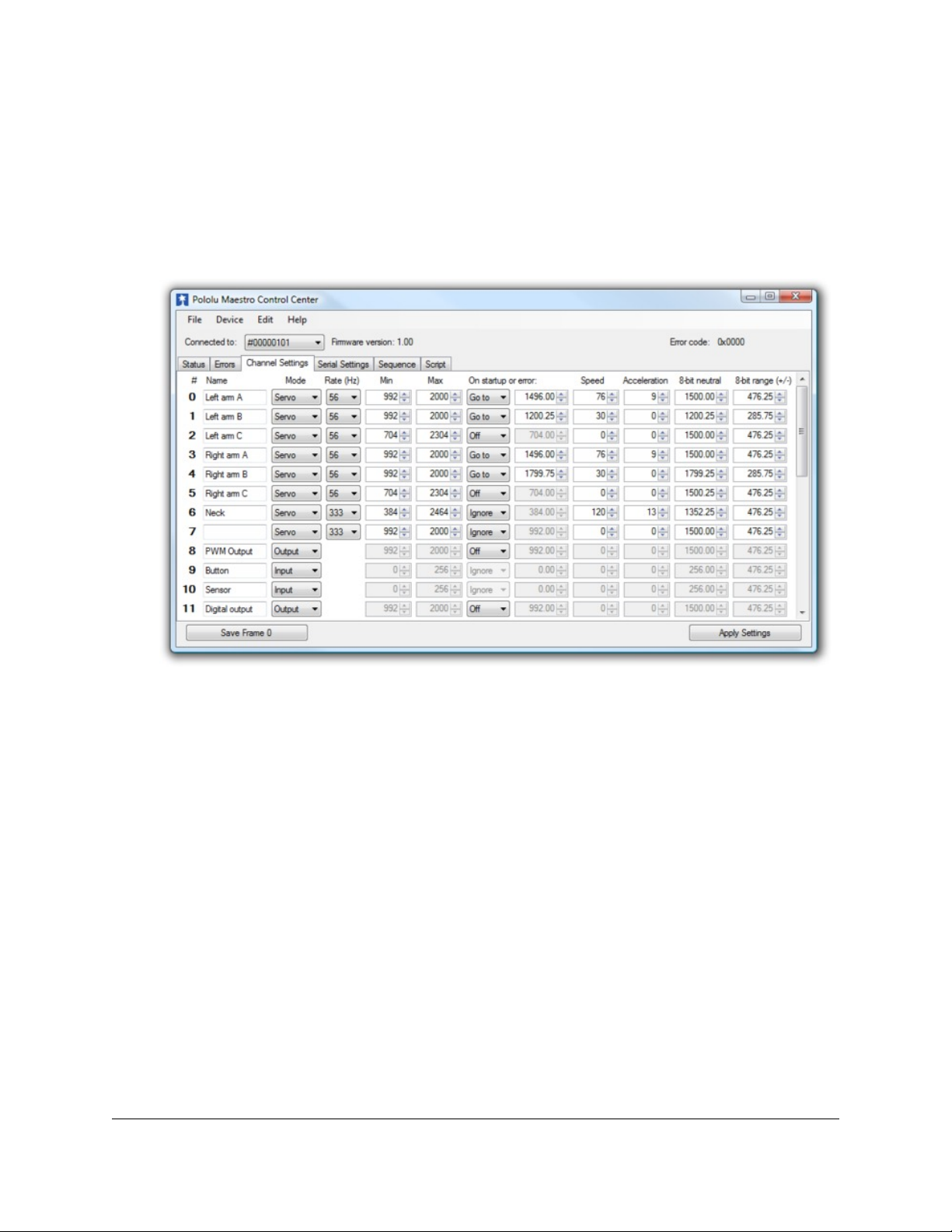

The Channel Settings tab in the Maestro

Control Center.

communication

◦ Pololu USB Software Development Kit

[http://www.pololu.com/docs/0J41] allows use of more advanced

native USB commands and includes example code in C#, Visual Basic .NET, and Visual C++

• TTL serial features: ◦ Supports 300 – 200,000 bps in fixed-baud mode, 300 – 115,200 bps in autodetect-baud mode

◦ Simultaneously supports the Pololu protocol, which gives

The Status tab in the Maestro Control

Center.

access to advanced functionality, and the simpler Scott Edwards MiniSSC II protocol (there is no need to configure the device for a particular protocol mode)

◦ Can be daisy-chained with other Pololu servo and motor controllers using a single serial transmit line

◦ Chain input allows reception of data from multiple Mini Maestros using a single serial receive line without extra components (does not apply to Micro Maestros)

◦ Can function as a general-purpose USB-to-TTL serial adapter for projects controlled from a PC

• Board can be powered off of USB or a 5 – 16 V battery, and it makes the regulated 5V available to the user

• Upgradable firmware

1. Overview Page 5 of 67

Maestro Comparison Table

Micro Maestro

Mini Maestro 12

Mini Maestro 18

Mini Maestro 24

Channels: 6 12 18 24

Analog input channels: 6 12 12 12

Digital input channels: 0 0 6 12

Width:

Length:

Weight

Configurable pulse rate

Pulse range

Script size

This is the weight of the board without header pins or terminal blocks.

The available pulse rate and range depend on each other and factors such as baud rate and number of channels

used. See Section 9 for details.

The user script system is more powerful on the Mini Maestro than on the Micro Maestro. See Section 6.d for details.

(1)

: 3.0 g 4.2 g 4.9 g 6.0 g

(2)

: 64–3280 μs 64–4080 μs 64–4080 μs 64–4080 μs

(3)

: 1 KB 8 KB 8 KB 8 KB

0.85" (2.16 cm)

1.20" (3.05 cm)

1.10" (2.79 cm) 1.10" (2.79 cm) 1.10" (2.79 cm)

1.42" (3.61 cm) 1.80" (4.57 cm) 2.30" (5.84 cm)

33–100 Hz 1–333 Hz 1–333 Hz 1–333 Hz

1. Overview Page 6 of 67

Application Examples

• Serial servo controller for multi-servo projects (e.g. robot arms,

animatronics, fun-house displays) based on microcontroller boards such as the BASIC Stamp, Orangutan robot controllers

[http://www.pololu.com/catalog/category/8], or Arduino platforms

• Computer-based servo control over USB port

• Computer interface for sensors and other electronics: ◦ Read a gyro [http://www.pololu.com/catalog/product/1266] or

accelerometer [http://www.pololu.com/catalog/product/766] from a

computer for novel user interfaces

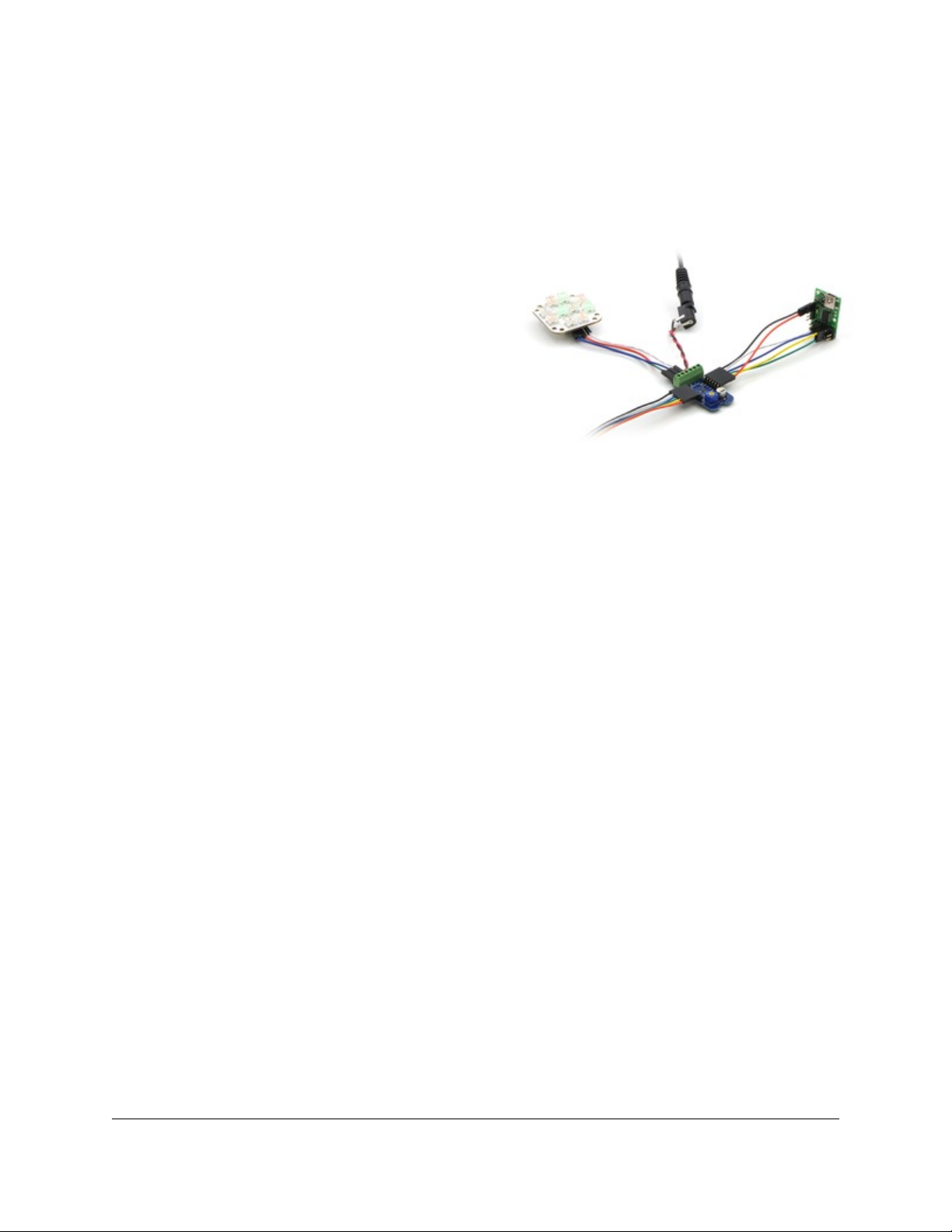

◦ Control a string of ShiftBrites [http://www.pololu.com/catalog/

product/1240] from a computer for mood lighting

• General I/O expansion for microcontroller projects

• Programmable, self-contained Halloween or Christmas display

controller that responds to sensors

• Self-contained servo tester

1.a. Micro Maestro Pinout and Components

Micro Maestro as the brains of a tiny

hexapod robot.

Micro Maestro 6-channel USB servo controller

(fully assembled) labeled top view.

Note: This section applies to the Micro Maestro servo controller. Please see Section 1.b for Mini Maestro pinout and component information.

The Pololu Micro Maestro 6-channel servo controller can connect to a computer’s USB port via a USB A to mini-

B cable [http://www.pololu.com/catalog/product/130] (not included). The USB connection is used to configure the servo

1. Overview Page 7 of 67

controller. It can also be used to send commands to the servo controller, get information about the servo controller’s current state, and send and receive TTL serial bytes on the TX and RX lines.

The processor and the servos can have separate power supplies.

Processor power must come either from USB or from an external 5–16V power supply connected to the VIN and GND inputs. It is safe to have an external power supply connected at the same time that USB is connected; in such cases the processor will be powered from the external supply. Note that if the external supply falls below 5 V, correct operation is not guaranteed, even if USB is also connected.

Servo power connections are provided in the upper right corner of the Micro Maestro board. Servo power is passed directly to the servos without going through a regulator, so the only restrictions on your servo power supply are that it must be within the operating range of

Micro Maestro power pins.

your servos and provide enough current for your application. Please consult the datasheets for your servos to determine an appropriate servo power source, and note that a ballpark figure for the current draw of an average straining servo is 1 A.

You can power the Maestro’s processor and servos from a single power supply by connecting the positive power line to both VIN and the servo power ports. An easy way to accomplish this on the Micro Maestro is to solder a wire on the bottom of the board between VIN and one of the servo power connections as shown in the picture to the right.. Only one ground connection is needed because all ground pins on the board are connected.

The 5V (out) power output allows you to power your own 5V devices from the on-board 50mA regulator or directly from USB. The on-board regulator is used whenever VIN is powered; in this case, since the Maestro requires 30 mA, there is about 20 mA available to power other devices.

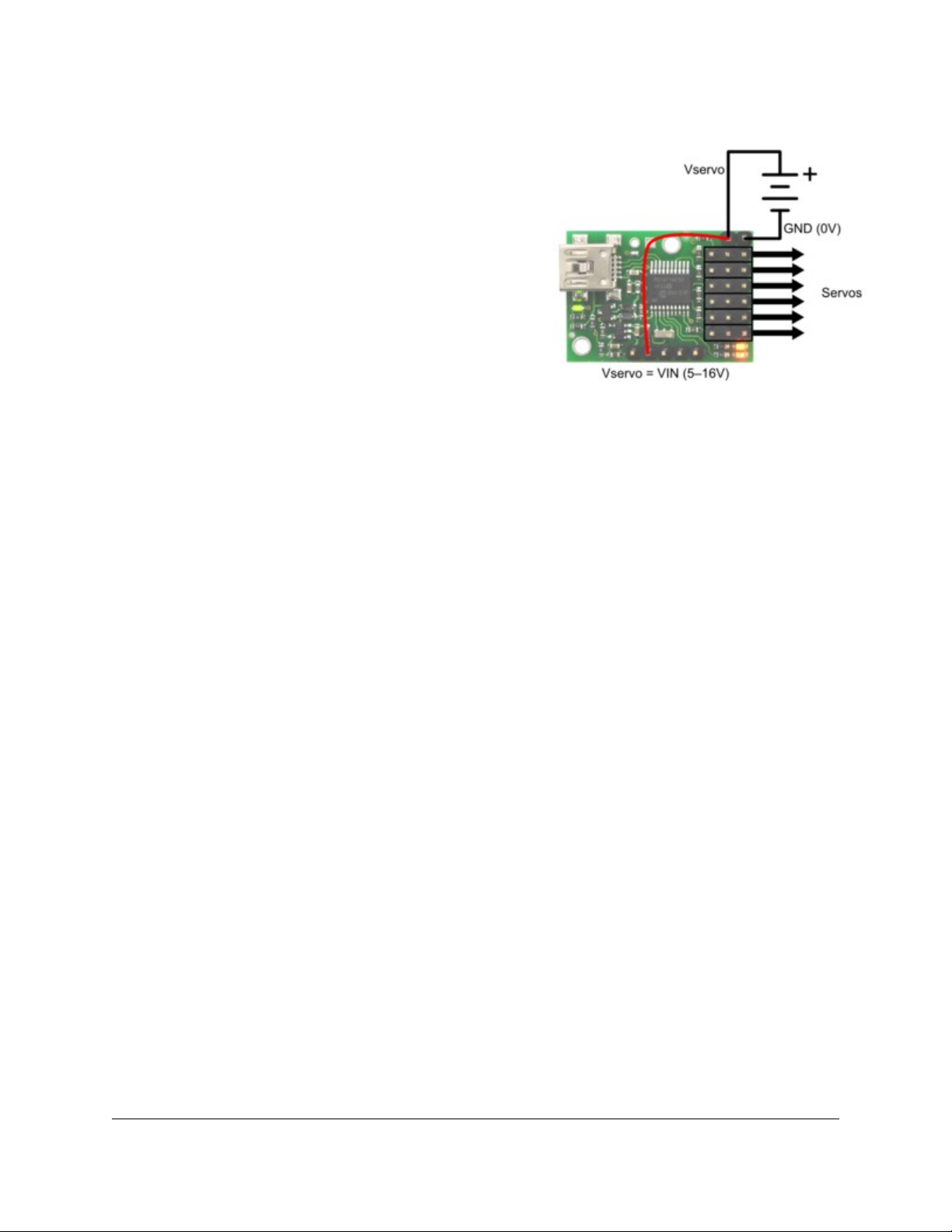

Micro Maestro configured to use

a single power supply for both

board and servos.

The SIG lines (0, 1, 2, …) are used for sending pulses to servos, controlling digital outputs, and measuring analog voltages. These lines are protected by 220Ω resistors. The total current limit (in or out) for these pins is 60 mA, but when using the on-board regulator the current out is limited to 20 mA (see above.)

The RX line is used to receive non-inverted TTL (0–5 V) serial bytes, such as those from microcontroller UARTs. These bytes can either be serial commands for the Maestro, arbitrary bytes to send back to the computer via the USB connection, or both. For more information about the Maestro’s serial interface, see Section 5.a. Note that the Maestro will probably be able to receive 3.3V TTL serial bytes, but it is not guaranteed to read 3.3V as high on the RX pin, so you should boost 3.3V TTL serial signals to above 4V if you want to ensure reliable operation.

The TX line transmits non-inverted TTL (0–5 V) serial bytes. These bytes can either be responses to serial commands sent to the Maestro, or arbitrary bytes sent from the computer via the USB connection.

The RST pin can be driven low to perform a hard reset of the Maestro’s microcontroller, but this should generally not be necessary for typical applications. The line is internally pulled high, so it is safe to leave this pin unconnected.

1. Overview Page 8 of 67

Micro Maestro 6-channel USB servo controller

bottom view with quarter for size reference.

The dimensions of the Micro Maestro PCB are 1.200" × 0.850". The vertical and horizontal distances between the two mounting holes are 0.650" and 0.575". The Micro Maestro weighs 3.0 g (0.11 oz) without header pins.

1.b. Mini Maestro Pinout and Components

Mini Maestro 12-channel USB servo controller (fully

assembled) labeled top view.

1. Overview Page 9 of 67

Note: This section applies to the Mini Maestro 12, 18, and 24 servo controllers. Please see

Section 1.a for Micro Maestro pinout and

component information.

The Pololu Mini Maestro 12-,18-, and 24-channel servo controllers can connect to a computer’s USB port via a USB A to mini-B cable

[http://www.pololu.com/catalog/product/130] (not

included). The USB connection is used to configure the servo controller. It can also be used to send commands to the servo controller, get information about the servo controller’s current state, and send and receive TTL serial bytes on the TX and RX lines.

Mini Maestro 18-channel USB servo controller (fully

assembled) labeled top view.

Mini Maestro 12 power pins.

Mini Maestro 18 power pins.

Mini Maestro 24-channel USB servo controller (fully

assembled) labeled top view.

1. Overview Page 10 of 67

The processor and the servos can have separate power supplies.

Processor power must come either from USB or from an external 5–16V power supply connected to the VIN and GND inputs on the left side of the board. It is safe to have an external power supply connected at the same time that USB is connected; in that case the processor will be powered from the external supply. Note that if the external supply falls below 5 V, correct operation is not guaranteed, even if USB is also connected.

Servo power connections are provided in the lower right corner of the Mini Maestro board. On the Mini Maestro 18 and 24, you can make servo power connections via a 2-pin terminal block or a 2-pin 0.1" header; the Mini Maestro 12 only has a 2-pin 0.1" header for connecting servo power. Servo power is passed directly to the servos without going through a regulator, so the only restrictions on your

Mini Maestro 24 power pins.

servo power supply are that it must be within the operating range of your servos and provide enough current for your application. Please consult the datasheets for your servos to determine an appropriate servo power source, and note that a ballpark figure for the current draw of an average straining servo is 1 A.

You can power the Maestro’s processor and servos from a single power supply by connecting the positive power line to both VIN and the servo power ports (only one ground connection is needed because all ground pins on the board are connected). The recommended way to do this is to connect your power supply to the dedicated servo power pins in the corner of the board and use the included blue shorting block to connect the pins labeled “VSRV=VIN”.

The 5V (out) power output allows you to power your own 5V devices from the 150mA on-board regulator or directly from USB. The on-board regulator is used whenever VIN is powered; in this case, since the Maestro requires 50 mA, there is about 50 mA available to power other devices.

The signal lines (0, 1, 2, …) are used for sending pulses to servos, controlling digital outputs, and measuring voltages. The total current limit (in or out) for these pins is 150 mA, but when using the on-board regulator the current out is limited to 50 mA (see above.)

The TX line transmits non-inverted TTL (0–5 V) serial bytes. These bytes are either generated by the Mini Maestro itself (as responses to serial commands or arbitrary bytes sent from the computer via the USB connection), or they come from the TXIN line.

The ERR line is an output that is tied to the red error/user LED. It is driven high when the red LED is on, and it is a pulled low through the red LED when the red LED is off. The red LED turns on when an error occurs, turns off when the error flags have been cleared, and can also be controlled by the user script. Since the ERR line is never driven low, it is safe to connect the ERR line of multiple Mini Maestros together. Please note, however, that doing this will cause the

1. Overview Page 11 of 67

red LEDs of all connected Mini Maestros to turn on whenever one of the Mini Maestros turns on its red LED. For more information on the possible error conditions and response options, please see Section 4.b.

The TXIN line is a serial input line that makes it easy to chain together multiple Mini Maestros. Any serial bytes received on this line will be buffered through an AND gate and transmitted on the TX line. See Section 5.g for more information about daisy chaining.

Bottom view with dimensions (in inches) of Pololu Micro and Mini Maestro

servo controllers.

The dimensions of the Mini Maestro PCBs are shown in the picture above, along with the Micro Maestro for comparison. The vertical and horizontal distances between the two mounting holes are as follows: 1.20" and 0.50" for the Mini Maestro 12, 1.58" and 0.50" for the Mini Maestro 18, and 1.50" and 0.50" for the Mini Maestro 24.

1.c. Indicator LEDs

The Maestro has three indicator LEDs:

• The green USB LED indicates the USB status of the device. When the Maestro is not connected to a computer

via the USB cable, the green LED will be off. When you connect the Maestro to USB, the green LED will start blinking slowly. The blinking continues until the Maestro receives a particular message from the computer indicating that the Maestro’s USB drivers are installed correctly. After the Maestro gets this message, the green LED will be on, but it will flicker briefly when there is USB activity. The control center application constantly streams data from the Maestro, so when the control center is running and connected to the Maestro, the green LED will flicker constantly.

• The red error/user LED usually indicates an error. The red LED turns on when an error occurs, and turns off

when the error flags have been cleared. See Section 4.b for more information about errors. The red LED can also be controlled by the user script; the red LED will be on if there is an error or if the script command for turning it on was run.

• The yellow status LED indicates the control status. When the Maestro is in auto-baud detect mode (the default)

and has not yet detected the baud rate, the yellow LED will blink slowly. During this time the Maestro does not transmit any servo pulses. Once the Maestro is ready to drive servos, the yellow LED will periodically flash briefly. The frequency of the flashes is proportional to the servo period (the amount of time between pulses on a single channel); with a period of 20 ms the flashing occurs approximately once per second. On the Micro Maestro, the number of flashes indicates the state: a single flash indicates that none of the servos are enabled (no pulses are being sent) and all output channels are low, while a double flash indicates that at least one of the servos is enabled or one of the output channels is being driven high. The Mini Maestros only emit single flashes. Also, when a valid serial command is received, the yellow LED will emit a brief, dim flash which ends when the next valid serial command is received or when the main blinking occurs (whichever happens first).

1. Overview Page 12 of 67

When the Maestro is reset in some other way than being initially powered up, the red and/or yellow LEDs blink four times to indicate the reset condition:

• Yellow off, red blinking: A brownout reset. This occurs when the Maestro’s 5 V line drops below about 3.0 V,

usually due to low batteries or an inadequate power supply.

• Yellow blinking, red off: The Maestro was reset by a low voltage on its RST line.

• Yellow and red blinking together: A firmware crash resulted in a “watchdog” reset. This also occurs immediately

following a firmware upgrade, as a normal part of the upgrade process.

• Yellow blinking, red steady: A firmware error resulted in a soft reset. This should never occur during normal

usage.

1.d. Supported Operating Systems

The Maestro USB drivers and configuration software work under Microsoft Windows XP, Windows Vista, Windows 7, and Linux.

The Maestro is not compatible with any version of Mac OS.

1. Overview Page 13 of 67

2. Contacting Pololu

You can check the product page of your particular Maestro model for additional information. We would be delighted to hear from you about any of your projects and about your experience with the Maestro. You can contact us

[http://www.pololu.com/contact] directly or post on our forum [http://forum.pololu.com/]. Tell us what we did well, what we

could improve, what you would like to see in the future, or anything else you would like to say!

2. Contacting Pololu Page 14 of 67

3. Getting Started

3.a. Installing Windows Drivers and Software

If you are using Windows XP, you will need to have Service Pack 3 [http://www.microsoft.com/downloads/

details.aspx?FamilyId=68C48DAD-BC34-40BE-8D85-6BB4F56F5110] installed before installing the drivers for the

Maestro. See below for details.

Before you connect your Maestro to a computer running Microsoft Windows, you should install its drivers:

1. Download the Maestro Servo Controller Windows Drivers and Software [http://www.pololu.com/file/download/

maestro_windows_110720.zip?file_id=0J266] (6MB zip)

2. Open the ZIP archive and run setup.exe. The installer will guide you through the steps required to install the

Maestro Control Center, the Maestro command-line utility (UscCmd), and the Maestro drivers on your computer. If the installer fails, you may have to extract all the files to a temporary directory, right click setup.exe, and select “Run as administrator”.

3. During the installation, Windows will warn you that the driver has not been tested by Microsoft and recommend

that you stop the installation. Click “Continue Anyway” (Windows XP) or “Install this driver software anyway” (Windows 7 and Vista).

4. After the installation is finished, your start menu should have a shortcut to the Maestro Control Center (in

the Pololu folder). This is a Windows application that allows you to configure, control, debug, and get real-time feedback from the Maestro. There will also be a command-line utility called UscCmd which you can run at a Command Prompt.

Windows 7 and Windows Vista users: Your computer should now automatically install the necessary drivers when you connect a Maestro. No further action from you is required.

3. Getting Started Page 15 of 67

Windows XP users: Follow steps 5–9 for each new Maestro you connect to your computer.

5. Connect the device to your computer’s USB port. The Maestro shows up as three devices in one so your XP

computer will detect all three of those new devices and display the “Found New Hardware Wizard” three times. Each time the “Found New Hardware Wizard” pops up, follow steps 6-9.

6. When the “Found New Hardware Wizard” is displayed, select “No, not this time” and click “Next”.

7. On the second screen of the “Found New Hardware Wizard”, select “Install the software automatically” and

click “Next”.

3. Getting Started Page 16 of 67

8. Windows XP will warn you again that the driver has not been tested by Microsoft and recommend that you stop

the installation. Click “Continue Anyway”.

9. When you have finished the “Found New Hardware Wizard”, click “Finish”. After that, another wizard will

pop up. You will see a total of three wizards when plugging in the Maestro. Follow steps 6-9 for each wizard.

3. Getting Started Page 17 of 67

If you use Windows XP and experience problems installing or using the serial port drivers, the cause of your problems might be a bug in older versions of Microsoft’s usb-to-serial driver usbser.sys. Versions of this driver prior to version

5.1.2600.2930 will not work with the Maestro. You can check what version of this driver you have by looking in the “Details” tab of the “Properties” window for usbser.sys in C:\Windows\System32\drivers. To get the fixed version of the driver, you will need to install Service Pack 3 [http://www.microsoft.com/downloads/details.aspx?FamilyId=68C48DAD-

BC34-40BE-8D85-6BB4F56F5110]. If you do not want Service Pack 3, you can try installing Hotfix KB918365 instead, but

some users have had problems with the hotfix that were resolved by upgrading to Service Pack 3. The configuration software will work even if the serial port drivers are not installed properly.

After installing the drivers, if you go to your computer’s Device Manager and expand the “Ports (COM & LPT)” list, you should see two COM ports: the Command Port and the TTL Port. In parentheses after these names, you will see the name of the port (e.g. “COM5” or “COM6”). If you expand the “Pololu USB Devices” list you should see an entry for the Maestro.

3. Getting Started Page 18 of 67

Windows 7 device manager showing the Micro Maestro 6-channel USB servo controller.

Windows XP device manager showing the Micro Maestro 6-channel USB servo

controller.

Some software will not allow connection to higher COM port numbers. If you need to change the COM port number assigned to your USB device, you can do so using the Device Manager. Bring up the properties dialog for the COM port and click the “Advanced…” button in the “Port Settings” tab. From this dialog you can change the COM port assigned to your device.

3. Getting Started Page 19 of 67

3.b. Installing Linux Drivers and Software

The Maestro Control Center running in Ubuntu Linux.

You can download the Maestro Control Center and the Maestro command-line utility (UscCmd) for Linux here:

• Maestro Servo Controller Linux Software [http://www.pololu.com/file/download/

maestro_linux_100507.tar.gz?file_id=0J315] (112k gz)

Unzip the tar/gzip archive by running “tar -xzvf” followed by the name of the file. After following the instructions in

README.txt, you can run the programs by executing MaestroControlCenter and UscCmd.

You can also download the C# source code of UscCmd as part of the Pololu USB Software Development Kit

[http://www.pololu.com/docs/0J41]. Read README.txt in the SDK for more information.

The Maestro’s two virtual serial ports can be used in Linux without any special driver installation. The virtual serial ports are managed by the cdc-acm kernel module, whose source code you can find in your kernel’s source code drivers/usb/

class/cdc-acm.c. When you connect the Maestro to the PC, the two virtual serial ports should appear as devices with

names like /dev/ttyACM0 and /dev/ttyACM1 (the number depends on how many other ACM devices you have plugged in). The port with the lower number should be the Command Port, while the port with the higher number should be the TTL Serial Port. You can use any terminal program (such as kermit) to send and receive bytes on those ports.

3.c. Using the Maestro without USB

It is possible to use the Maestro as a serial servo controller without installing any USB drivers or using a PC. Without using USB, you will not be able to change the Maestro’s settings, but you can use the default settings which are suitable for many applications. The default settings that the Maestro ships with are described below.

Default Settings

• The serial mode is “UART, detect baud rate”; after you send the 0xAA baud rate indication byte, the Maestro

will accept TTL-level serial commands on the RX line.

• The Pololu Protocol device number is 12, the Mini SSC offset is 0, and serial timeout and CRC are disabled.

• All channels are configured as servos, with a minimum pulse with of 992 μs and a maximum pulse width of

2000 μs.

• The 8-bit neutral point is 1500 μs and the 8-bit range is 476.25 μs.

3. Getting Started Page 20 of 67

• On startup or error, the servos turn off (no pulses are sent).

• On startup, there are no speed or acceleration limits, but you can set speed and acceleration limits using serial

commands.

• The servo period is 20 ms (each servo receives a pulse every 20 ms).

• The user script is empty.

3. Getting Started Page 21 of 67

+ 46 hidden pages

Pololu Maestro Servo Controller User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

1. Overview

Features

Maestro Comparison Table

Application Examples

1.a. Micro Maestro Pinout and Components

1.b. Mini Maestro Pinout and Components

1.c. Indicator LEDs

1.d. Supported Operating Systems

2. Contacting Pololu

3. Getting Started

3.a. Installing Windows Drivers and Software

3.b. Installing Linux Drivers and Software

3.c. Using the Maestro without USB

Default Settings
