Tools Needed:
301 - Shop Stool With Backrest
Assembly Instructions
Includes:
(1) Stool Seat (1) Stool Frame (1)Wood Back Rest (2) Back Braces
4
x
4
1/4” x 3/4” Hex Head
Steps:
x
1/4” Hex Cap
Machine Screw
wrench at head screwdriver
x
4
1/4” Lock Washer
x
4
#12- 3/4”
Wood Screw
phillips head screwdriver
x
4
1/4” Hex Nut
x
4
1/4” x 1” Carriage Bolt
1
2
Lay seat on a hard surface with under side up.
Turn stool frame upside down and line up holes
in frame with pilot holes in seat fasten with (4)
#12 x ¾” wood screws.
3
4
[2]

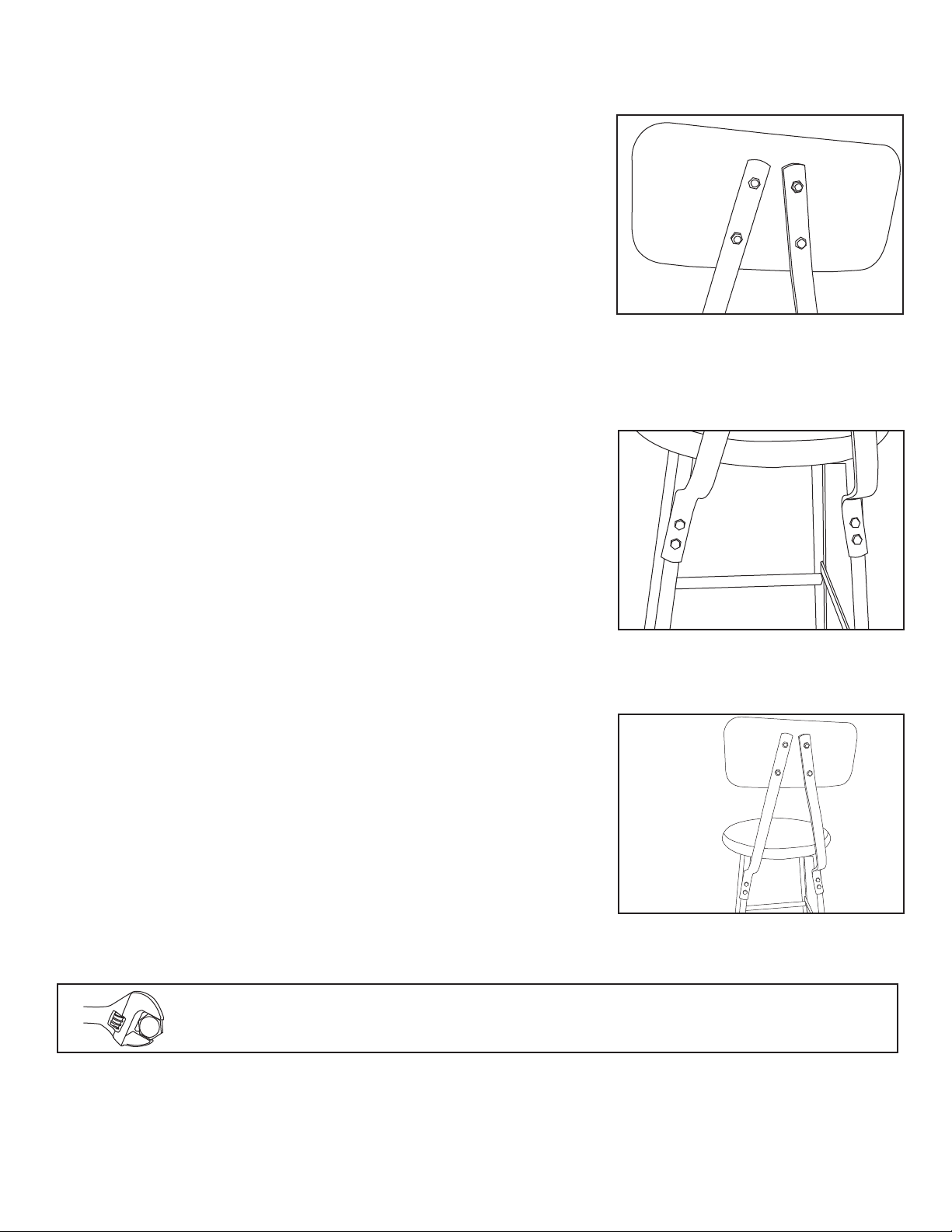

Turn Stool upright. Attach wood stool back to
back braces by inserting (4) 1/4” x 1” Carriage
Bolts through wood back and stool back brace,
and fasten with (4) 1/4” Hex Caps. HAND
TIGHTEN ONLY.
Attach Back Braces with Back Rest to Stool Frame
using (4) 1/4” x 3/4” Hex Head Machine Screws,
1/4” Lock Washers, and 1/4” Hex Nuts. HAND
TIGHTEN ONLY.
Square up Back Rest to Frame if needed. Tighten
Carriage Bolts in wood Back Rest. The Bolt will
indent (set itself) into the wood back.
5
After all brackets are in place, make sure stool is square and then, tighten all
screws.
